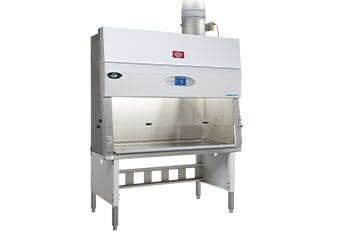

LabGard ES FHNU-565
Class II Type B2 Biosafety Cabinet

TOUCH PANEL INTERFACE | NSF/ANSI 49 | UL 1805 | ASHRAE 110

Class II Type B2 biological safety cabinet cabinets are chosen specifically for their ability to supplement biological containment with a degree of protection from chemical vapors. The NU-565 provides proven protection from both hazards by complying not only with the biosafety cabinet requirements of NSF/ANSI 49 but also with the fume hood requirements of both UL 1805 and ASHRAE 110. This biosafety cabinet is further adapted for such applications by using a UL 586 fire retardant exhaust HEPA filter and placing both its outlets and service valve controls safely outside the work zone. The downflow motor is interlocked with external exhaust by not only a mechanical pressure switch but also a differential velocity pressure flow grid to minimize the risk of it blowing air out of the cabinet should the exhaust fail. A touch screen displays the readings from both this exhaust flow grid and a work area downflow sensor at all times for the operator.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The LabGard® model NU-565 is available in two different sizes to meet the needs of your laboratory space and application.

Products

NU-565-400

Nominal 4-foot (1.2 m)

NU-565-600

Nominal 6-foot (1.8 m)

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Monitor AirflowSensorPressureGrid
Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design
Control System TouchLink
Downflow fpm (m/s) 60 fpm (0.30 m/s)
Protection [, Product, Personnel, Environmental]
Work Access Opening(s) 8-inches (203 mm)
  • Features
  • Specs
  • Options & Accessories
  • Resources
TouchLink Electronic Control System for Class II, Type B2 Biosafety Cabinets

Manage Airflow Performance and Safety

TouchLink Control System

The airflow dynamics in an externally exhausted type B2 cabinet need to work in constant harmony. The TouchLink control system displays inflow velocity, downflow velocity, and exhaust volume on a single, easy to read front screen. The digital control system interlocks the downflow blower with the external exhaust to shut down the motor if an exhaust failure occurs—a safeguard that is further backed up by a mechanical pressure switch.

Digital exhaust flow grid for Class II, Type B Biosafety Cabinets

Ensuring Your Cabinet is in its flow

Digital Exhaust Flow Grid

The digital differential velocity pressure flow monitors exhaust to enable the TouchLink to derive not only inflow velocity but also the critical parameter of exhaust volume for display to the cabinet operator.

Biosafety Cabinet downflow thermistor airflow sensor.

Precision Product Protection

Downflow Air Sensor

The downflow sensor measures velocity inside the work zone and passes the data to the TouchLink display to assure users of product protection, a critical aspect in many pharmaceutical and biotechnology applications.

Biosafety Cabinet historical performance graph on TouchLink Control System

Keeping a Track Record

Performance History

The TouchLink control panel not only displays one week of cabinet performance on screen but also allows a full month of history to be downloaded to USB for procedures that must be carried out under documented airflow conditions.

TAKE MORE THAN JUST OUR WORD FOR IT.

COMPLIANCE TO BIOSAFETY CABINET & FUME HOOD STANDARDS

115V/60Hz (No Suffix)

 MODEL

 ACCESS OPENING

 NSF/ANSI 49

 UL 1805

 ASHRAE 110

 NU-565-400  8 in (203mm)  √  √  √
 NU-565-600  8 in (203mm)  √  √  √

NuAire NSF/ANSI 49 Listings

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 5 Years Parts & Labor (Supply Filter Included) (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Single DC ECM Motor
  • Flexible HEPEX™ Plenum

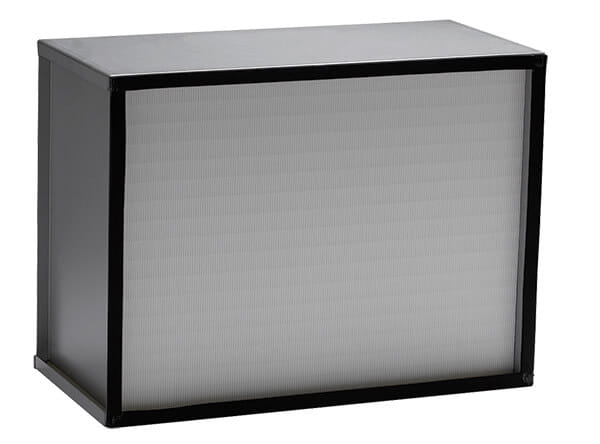

  • UL 586 Exhaust Filter
  • Night Setback
  • Single Piece Stainless Steel Work Zone Side & Back Walls
  • Stainless Steel Dished Work Surface
  • Standard Cord Pass Through on Right Side
  • 8-inch (203mm) Work Access Opening
  • PVC Armrest
  • One Outlet on Left Faring
  • Two Remote Service Valves
  • Two Service Couplings
  • LED Lighting
  • Differential Velocity Pressure Flow Grid
  • Downflow Airflow Sensor
  • TouchLink™ Control Panel
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Monitor AirflowSensorPressureGrid
Bag In Bag Out Optional
Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design
Casters N/A
Control System TouchLink
Cord Pass Through Standard Right
Data Output Features RS-232, USB
Decontamination Seal-able Window N/A
Diffuser Metal, non-flammable
Downflow fpm (m/s) 60 fpm (0.30 m/s)
Drain Valve Location Front right
Electrical Configuration 115V60Hz
Front & Control Panel Material Painted Steel
Fumigation: per NIH/NSF Procedures True
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded (UL 586)
Inflow fpm (m/s) 105 fpm (0.53 m/s)
IV Bar with 6 Hooks Optional
Light Intensity fc (Lux) 90-120 (968-1291)
Motorized Base Stand Optional as Separate Accessory
Motorized Window N/A
Other Built-in Exhaust Option(s) N/A
Other Built-in Supply Filter Option(s) N/A
Outlet(s) Standard One Left Front Faring, Optional One Right Front Farring
Performance Standard NSF-ANSI-49
Plenum Type HEPEX
Power Cord Length Foot (Meter) 12 (3.7)
Pre-filter N/A
Protection Product, Personnel, Environmental
Reach into workzone Inches (mm) 6 (152)
Remote Alarm Terminals Standard
Safety Certification UL, UL-C, UL-1805, UL-586
Style Bench top, optional base stand
Ultraviolet (UV) Light Not available
Viewing Window Inches (mm) 18.5 (470) open to fully closed
Work Access Opening(s) 8-inches (203 mm)
Work Surface One-Piece Dished Stainless Steel with Prop-Up Rod

Access Opening

8" (203 mm) Access Opening Tempered Sliding Glass, NSF Approved Cord Pass Through Right Side

Airflow Control

Air Supply On/Off Control
Cabinet Off Override
Delay Off Exhaust Airflow
Exhaust Airflow Loss Override

Armrest

Plastic Armrest
Stainless Steel Armrest

BIBO Filter

Bag-In/Bag-Out Exhaust Hepa Filter
Standard Option without Bag-In/Bag-Out Exhaust

Exhaust Filter

Metal Frame Exhaust Filter UL-586

Other

Bottom Right Plugged Coupling
IV Bar with 6 Hooks
Left Sidewall Cord Pass-Through
Stainless Steel Window Edge Protector
Worktray Prop-Up

Outlets

Faring Outlets - 115V Left Side With 115V Right Side
Faring Outlets - 115V Left Side With Right Side Plate
Faring Outlets - GFI Left Side With Right Side Plate
Faring Outlets with GFI Right Side and 115V Left Side

Plumbing

1/2" RIGID COPPER
3/8" Black Pipe
3/8" Soft Copper

Power Inputs

115V 60Hz 15 Amp Power Input
Junction Box

Remote Control Valve

Bottom Left Remote Control Valve
Bottom Right Remote Control Valve
Middle Left Remote Control Valve
Middle Right Remote Control Valve
Top Left Remote Control Valve
Top Right Remote Control Valve

Seismic

Seismic Brackets for Adjustable Basestand
Side Mount Seismic Brackets For Adjustable Basestand
Side Mount Seismic Brackets For Telescoping Basestand

Service Couplings

Bottom Left Plugged Coupling
Middle Left Plugged Coupling
Middle Right Plugged Coupling
Side Panels without Plumbing
Top Left Plugged Coupling
Top Right Plugged Coupling

Side Panels

Side Panels with Plumbing Out Back
Side Panels with Plumbing Out Bottom
Side Panels with Plumbing Out Top

Supply Filter

3-inch (76 mm) Metal Frame Supply Separatorless HEPA Filter 99.99% efficient @ 0.3 µ with Permanent Plenum

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
