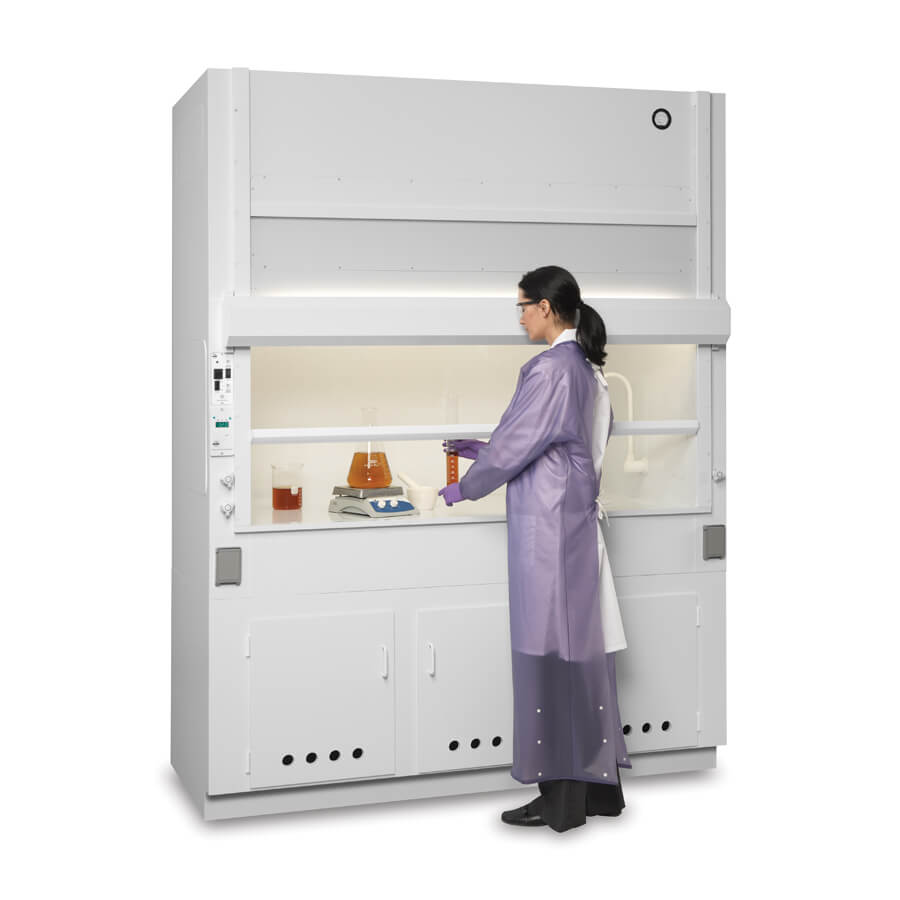

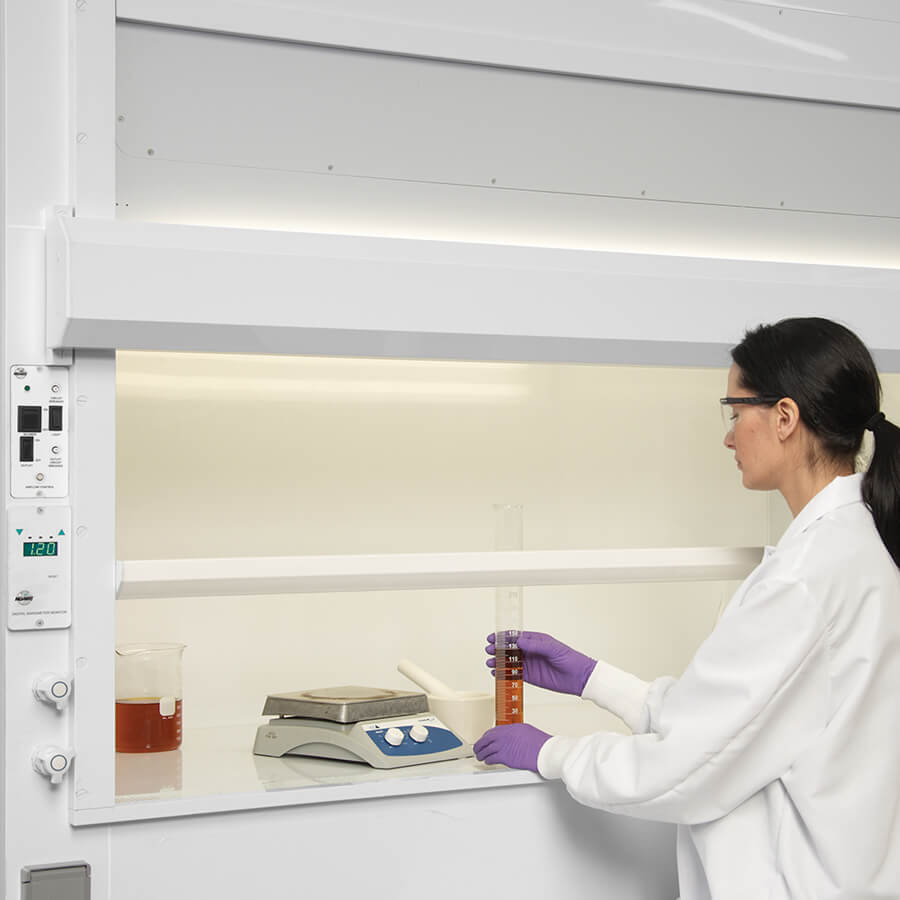

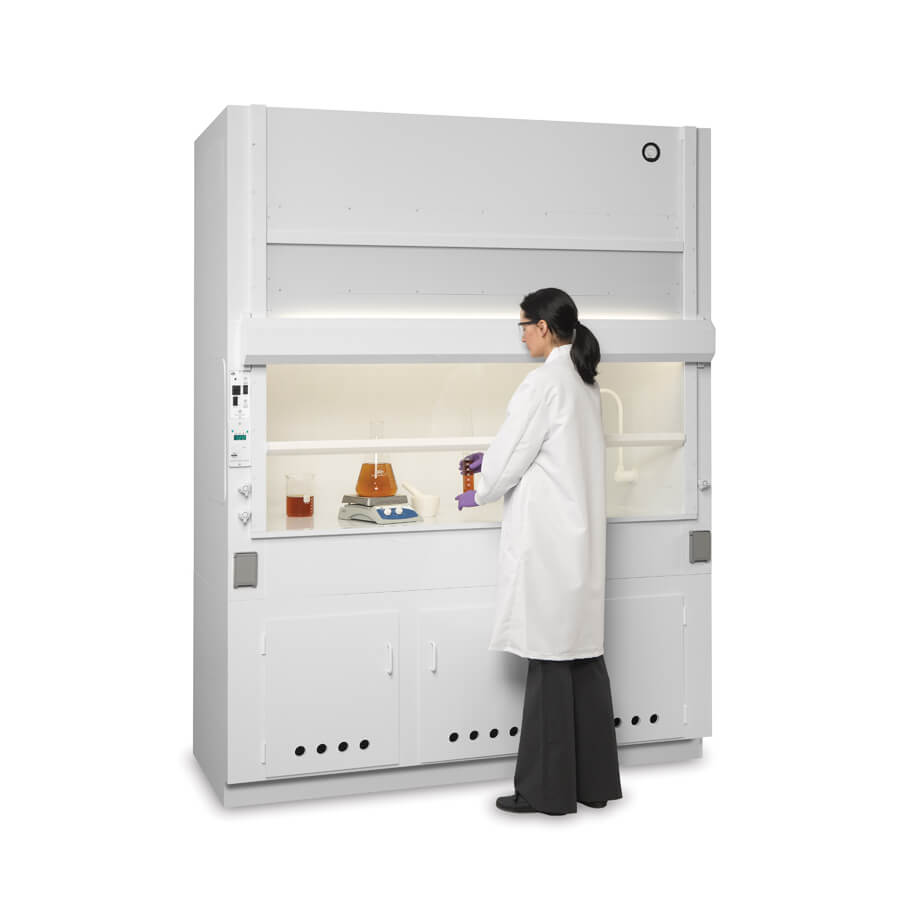

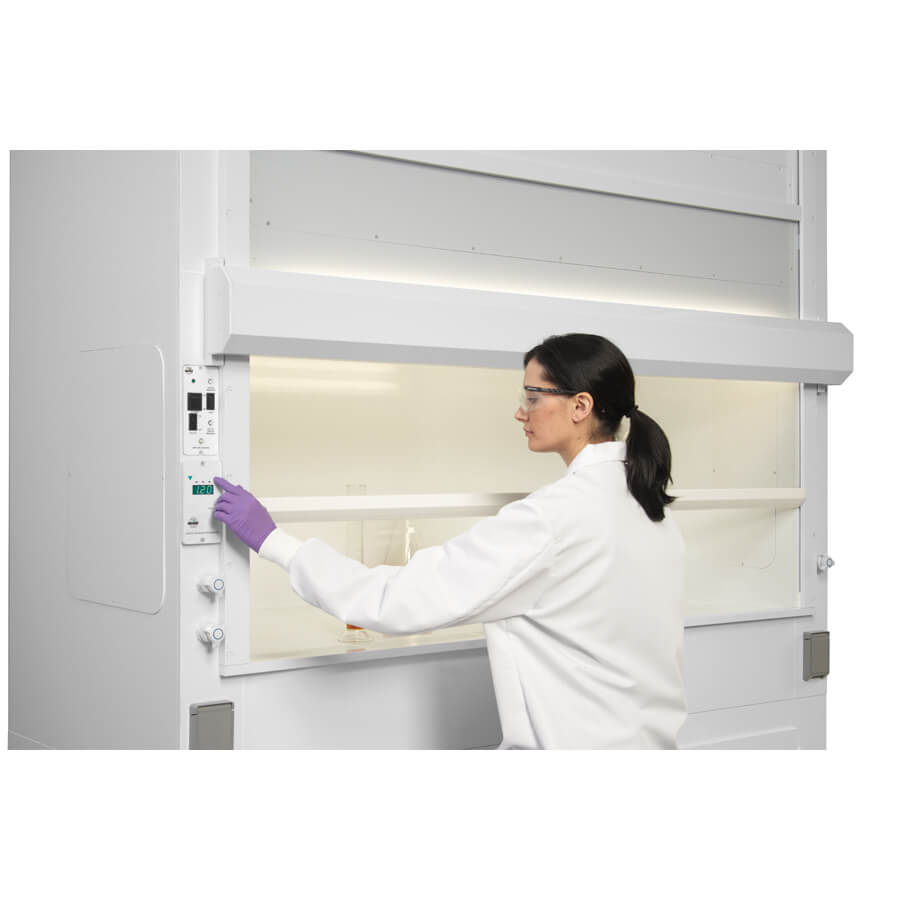

FumeGardNU-156
Vertical Laminar Airflow Polypropylene Fume Hood
HEPA FILTERED DOWNFLOW | TESTED TO ASHRAE 110-2016 | POLYPROPYLENE CONSTRUCTION | CONFIGURABLE AND CUSTOMIZABLE
The NU-156 fills a unique need for laboratories that require a fume hood that is not only built from corrosion-resistant material but also capable of providing HEPA-filtered air to the work zone inside. This distinctive vertical laminar flow fume hood design provides this combination of personnel and product protection by integrating both a downflow blower and HEPA filter above the work surface. Work in the fields of chemical research, microelectronics, semi-conductor design, semi-conductor development, and production assembly processes may benefit from this combination of features. While the basis of design is engineered to meet the performance requirements of ASHRAE 110-2016, this model can be built in multiple widths and depths and configured for a specific application’s needs.
Request a QuoteA SIZE THAT MEETS YOUR NEEDS
Products
NU-156-424
Nominal 4-foot (1.2 m)
Filter Depth 24-inches (610 mm)
NU-156-430
Nominal 4-foot (1.2 m)
Filter Depth 30-inches (762 mm)
NU-156-524
Nominal 5-foot (1.5 m)
Filter Depth 24-inches (610 mm)
NU-156-530
Nominal 5-foot (1.5 m)
Filter Depth 30-inches (762 mm)
NU-156-624
Nominal 6-foot (1.8 m)
Filter Depth 24-inches (610 mm)
NU-156-630
Nominal 6-foot (1.8 m)
Filter Depth 30-inches (762 mm)
NU-156-824
Nominal 8-foot (2.4 m)
Filter Depth 24-inches (610 mm)
NU-156-830
Nominal 8-foot (2.4 m)
Filter Depth 30-inches (762 mm)
Quick Specs
| Air Cleanliness (ISO 14644) | |
|---|---|
| Downflow fpm (m/s) | 60 FPM (0.30 m/s) |
| Work Access Opening(s) | 10 inch (254mm) |
-
Features
-
Specs
-
Options & Accessories
-
Resources
THE BEST OF TWO WORLDS.
HEPA FILTERED WORK ZONE AIR
COMBINE THE NOMINAL WIDTH AND FILTER DEPTH OF YOUR CHOICE.
AVAILABLE SIZE CONFIGURATIONS
115V/60Hz & 230V/50 Hz (E Suffix)
MODEL |
NOMINAL WIDTH |
FILTER DEPTH |
| NU-156-424 NU-156-424E |
4 ft. (1.2m) | 24 in (610mm) |
| NU-156-430 NU-156-430E |
4 ft. (1.2m) | 30 in (762mm) |
| NU-156-524 NU-156-524E |
5 ft. (1.5m) | 24 in (610mm) |
| NU-156-530 NU-156-530E |
5 ft. (1.5m) | 30 in (762mm) |
| NU-156-624 NU-156-624E |
6 ft. (1.8m) | 24 in (610mm) |
| NU-156-630 NU-156-630E |
6 ft. (1.8m) | 30 in (762mm) |
| NU-156-824 NU-156-824E |
8 ft. (2.4m) | 24 in (610mm) |
| NU-156-830 NU-156-830E |
8 ft. (2.4m) | 30 in (762mm) |
The NuAire© Advantage
NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.
Warranty
Backed by the Industry's Best
- 1 Year Parts & Labor (United States and Canada)
- Consult Local Distributor (Global)
Standard Features
- Plastic Impeller
- Flexible HEPEX™ Plenum
- Wood Frame Supply HEPA Filter
- PVC Diffuser
- ISO Class 5 Work Zone
- Prefilter
- Seam Welded Polypropylene Construction
- 10-inch (254mm) Access Opening
- Sliding View Screen
- Removable Work Surface
- Spill Trough Plenum under Work Surface
- Interior and Exterior Plumbing Access Panels
- LED Lighting
- Tested to ASHRAE 110-2016
| Air Cleanliness (ISO 14644) | |
| Armrest | N/A |
| Construction | Polypropylene |
| Diffuser | PVC |
| Downflow fpm (m/s) | 60 FPM (0.30 m/s) |
| Electrical Configuration | 115V60Hz, 230V50Hz |
| Inflow fpm (m/s) | 105 FPM (0.53 m/s) |
| Lighting | LED |
| Light Intensity fc (Lux) | 100 fc (1076 lux) |
| Motor(s) | 1 Plastic Supply Impeller |
| Performance Standard | ANSI-ASHRAE |
| Plenum Type | HEPEX |
| Power Cord Length Foot (Meter) | Inquire |
| Safety Certification | |
| Style | Benchtop |
| Supply Filter | Wood Frame 99.99% Efficiency @ 0.3 Micron |
| Supply Prefilter | Top of Unit |
| Window Opening Max Inches (mm) | 20-inches (508mm) |
| Work Access Opening(s) | 10 inch (254mm) |
| Work Surface | Polypropylene |
Dimensions
| NU-156-424 | NU-156-424E | NU-156-430 | NU-156-524 | NU-156-524E | NU-156-530 | NU-156-624 | NU-156-624E | NU-156-630 | NU-156-824 | NU-156-830 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Est. Shipping Width Inches (mm) | 59 (1499) | 59 (1499) | 69 (1753) | 69 (1753) | 80 (2032) | 80 (2032) | |||||
| Est. Shipping Height Inches (mm) | 85 (2159) | 85 (2159) | 78 (1981) | 78 (1981) | Inquire | Inquire | |||||
| Est. Shipping Depth Inches (mm) | 44 (1118) | 44 (1118) | 38 (965) | 38 (965) | 43 (1092) | 43 (1092) | |||||
| Exterior Depth Inches (mm) | 35 (889) | 35 (889) | 41 (1041) | 35 (889) | 35 (889) | 41 (1041) | 35 (889) | 35 (889) | 41 (1041) | 35 (889) | 41 (1041) |
| Exterior Height Inches (mm) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) | 66 5/8 (1692) |
| Exterior Width Inches (mm) | 48 1/2 (1232) | 48 1/2 (1232) | 48 1/2 (1232) | 60 1/2 (1536) | 60 1/2 (1536) | 60 1/2 (1536) | 72 1/2 (1842) | 72 1/2 (1842) | 72 1/2 (1842) | 96 1/2 (2451) | 96 1/2 (2451) |
| Footprint Depth inches (mm) | 35 (889) | 41 (1041) | 41 (1041) | 35 (889) | 35 (889) | 41 (1041) | 35 (889) | 35 (889) | 41 (1041) | 35 (889) | 41 (1041) |
| Footprint Width inches (mm) | 48 1/2 (1232) | 48 1/2 (1232) | 48 1/2 (1232) | 60 1/2 (1536) | 60 1/2 (1536) | 60 1/2 (1536) | 72 1/2 (1842) | 72 1/2 (1842) | 72 1/2 (1842) | 96 1/2 (2451) | 96 1/2 (2451) |
| Work Area Depth Inches (mm) | 25 1/2 (648) | 25 1/2 (648) | 31 1/2 (800) | 25 1/2 (648) | 25 1/2 (648) | 31 1/2 (800) | 25 1/2 (648) | 25 1/2 (648) | 31 1/2 (800) | 25 1/2 (648) | 31 1/2 (800) |
| Work Area Height Inches (mm) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) | 29 (737) |
| Work Area Width Inches (mm) | 38 1/2 (978) | 38 1/2 (978) | 38 1/2 (978) | 50 1/2 (1283) | 50 1/2 (1283) | 50 1/2 (1283) | 62 1/2 (1588) | 62 1/2 (1588) | 62 1/2 (1588) | 86 1/2 (2197) | 86 1/2 (2197) |
Exhaust
| NU-156-424 | NU-156-424E | NU-156-430 | NU-156-524 | NU-156-524E | NU-156-530 | NU-156-624 | NU-156-624E | NU-156-630 | NU-156-824 | NU-156-830 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Duct Opening | 10-inch (254mm) with Optional Exhaust Transition | 10-inch (254mm) with Optional Exhaust Transition | 10-inch (254mm) with Optional Exhaust Transition | 10-inch (254mm) with Optional Exhaust Transition | 10-inch (254mm) with Optional Exhaust Transition | 10-inch (254mm) with Optional Exhaust Transition | 12-inch (305mm) with Optional Exhaust Transition | 12-inch (305mm) with Optional Exhaust Transition | 12-inch (305mm) with Optional Exhaust Transition | 14-inch (356mm) with Optional Exhaust Transition | 14-inch (356mm) with Optional Exhaust Transition |
| Exhaust Air CFM (CMH) | 759 (1291) | 759 (1291) | 863 (1466) | 995 (1690) | 995 (1690) | 1133 (1925) | 1232 (2093) | 1232 (2093) | 1402 (2382) | 1705 (2897) | 1941 (3298) |
| Inflow Air CFM (CMH) | 280 (476) | 280 (476) | 280 (476) | 369 (627) | 369 (627) | 369 (627) | 456 CFM (775) | 456 CFM (775 CMH) | 456 (775) | 631 (1072) | 631 (1072) |
| Makeup Air Requirements CFM (CMH) | 759 (1291) | 759 (1291) | 863 (1466) | 995 (1690) | 995 (1690) | 1133 (1925) | 1232 (2093) | 1232 (2093) | 1402 (2382) | 1705 (2897) | 1941 (3298) |
| Plant Duct Static Pressure Inches (mm) | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 0.8" (20mm) - 1.0" (25.4mm) w.g. | 1.5" (38mm) w.g. | 1.5" (38mm) w.g. |
| Supply Air CFM (CMH) | 409 (695) | 409 (695) | 505 (858) | 536 (511) | 536 (511) | 663 (1126) | 664 (1128) | 664 (1128) | 820 (1393) | 919 (1561) | 1135 (1928) |
Electrical
| NU-156-424 | NU-156-424E | NU-156-430 | NU-156-524 | NU-156-524E | NU-156-530 | NU-156-624 | NU-156-624E | NU-156-630 | NU-156-824 | NU-156-830 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Electrical Configuration | 115V60Hz | 230V50Hz | 115V60Hz | 115V60Hz | 230V50Hz | 115V60Hz | 115V60Hz | 230V50Hz | 115V60Hz | 115V60Hz | 115V60Hz |
Weight
| NU-156-424 | NU-156-424E | NU-156-430 | NU-156-524 | NU-156-524E | NU-156-530 | NU-156-624 | NU-156-624E | NU-156-630 | NU-156-824 | NU-156-830 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Net Weight lbs (kg) | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | |
| Est. Shipping Weight lbs (kg) | Estimated 710 lbs (322 kgs) | Estimated 710 lbs (322 kgs) | Inquire | Estimated 793 lbs (360 kgs) | Estimated 793 lbs (360 kgs) | Inquire | Estimated 700 lbs (318 kgs) | Estimated 700 lbs (318 kgs) | Inquire | Inquire | Inquire |
Ergonomics
| NU-156-424 | NU-156-424E | NU-156-430 | NU-156-524 | NU-156-524E | NU-156-530 | NU-156-624 | NU-156-624E | NU-156-630 | NU-156-824 | NU-156-830 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Sound Pressure Level per ISO 4871 | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire | Inquire |
