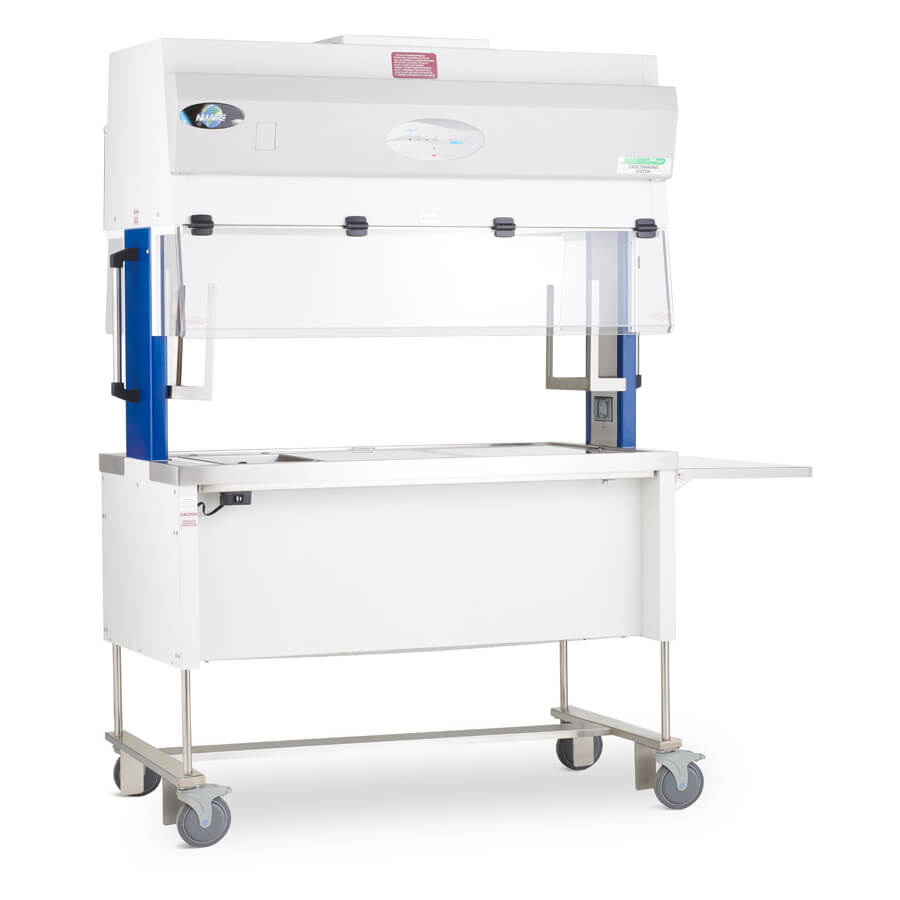

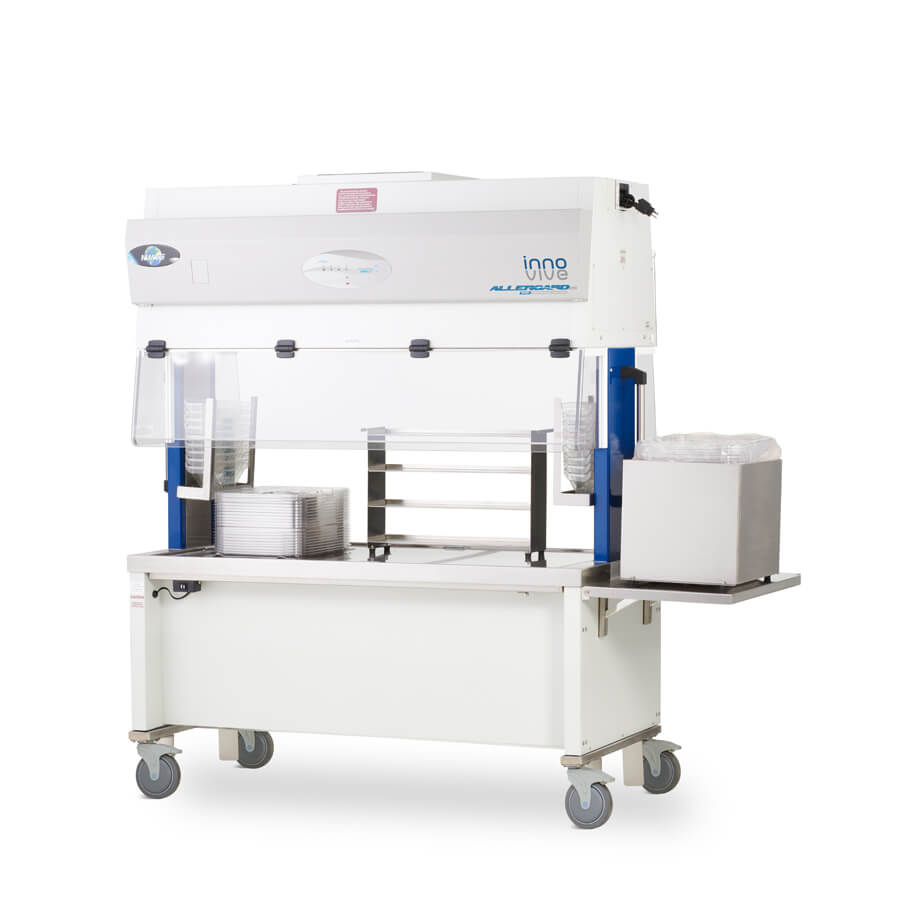

AllerGard ES NU-620R Innovive Rat Animal Transfer Station

The NU-620R uses independent supply and exhaust modules with separate impellers and HEPA filters to create a “Push-Pull” airflow system for a work area specially configured for Innovive® rat cages.

Overview

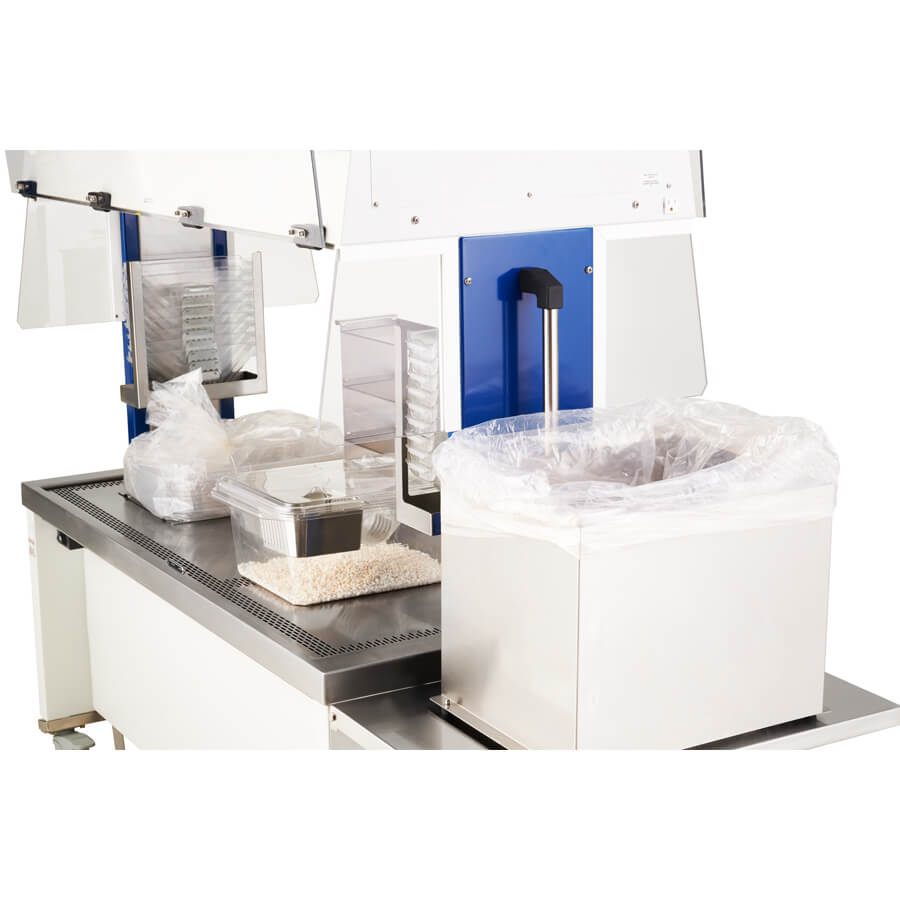

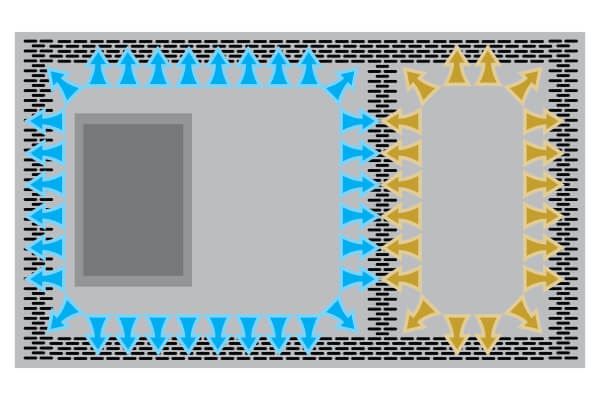

The NU-620R uses an impeller and HEPA filter in both the supply module at the top of the unit as well as in the exhaust module at the bottom to turn the work zone in between into a vertical “piston of air.” The transfer station’s supply impeller at the top of the “piston” draws air down through a prefilter and propels it past a supply HEPA filter and towards the work zone to create a clean air environment. From there, the exhaust impeller at the bottom of the “piston” pulls the downflow air through the slots in the work surface to provide allergen containment. It continues to suck all the air past an exhaust pre-filter before pushing it out an exhaust HEPA filter at the bottom of the transfer station. This “push-pull” airflow passes through a work surface divided by air grills into clean and dirty areas and a work zone configured with the deep wells and feeder holders that the Innovive™ cage changing process requires.

Specifications

AllerGard NU-620R Innovive Rat Animal Transfer Station

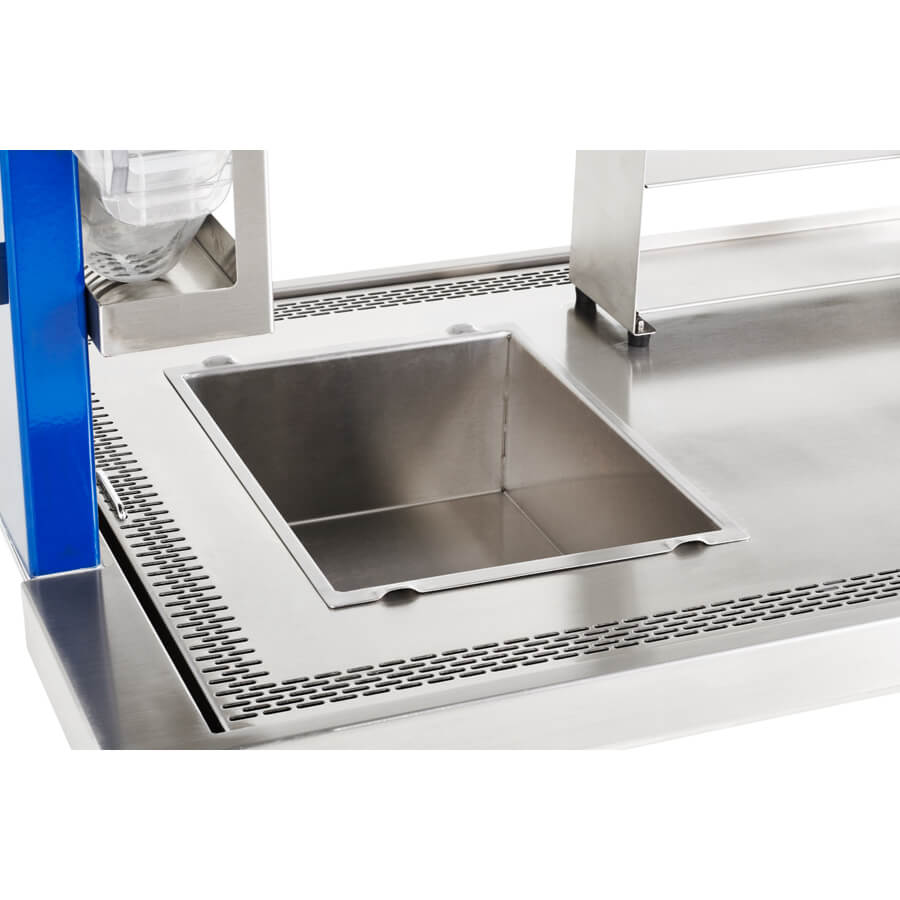

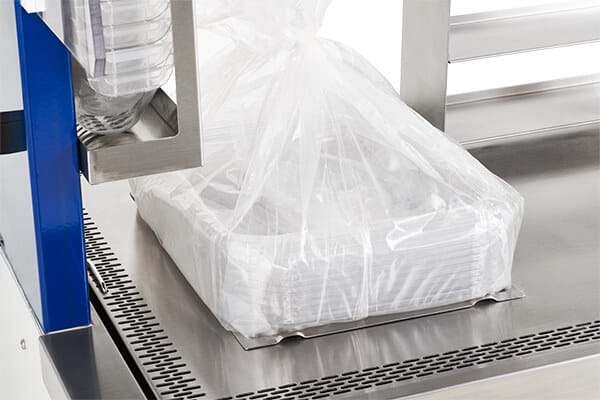

Deep Well(s) 1 Deepwell

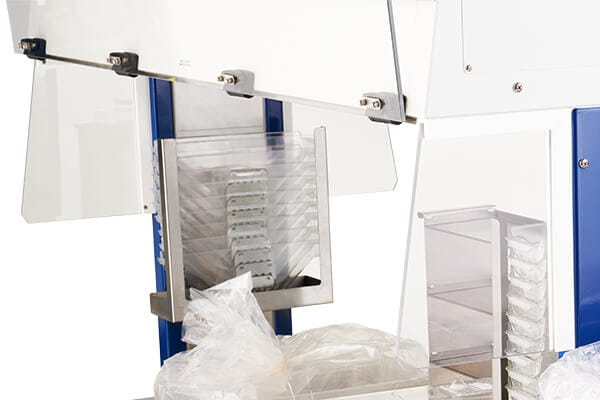

Feeder Holder(s) Standard on Right and Left Side Wall
Folding Shelf Dimensions (W x D) Standard, 18-inch (457mm) x 30-inch (762mm)
Magnifying Glass in Window Standard
Motorized Base Stand Included
Outlet(s) On Right Side
Casters 6-inches (152mm)
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Aluminum
Exhaust Filter 6-inch (152mm)
Exhaust Prefilter Below Work Surface
Lighting LED
Motor(s) 1 Supply Impeller, 1 Exhaust Impeller
Style Console
Supply Filter 6-inch (152mm)
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14-inch (356mm)

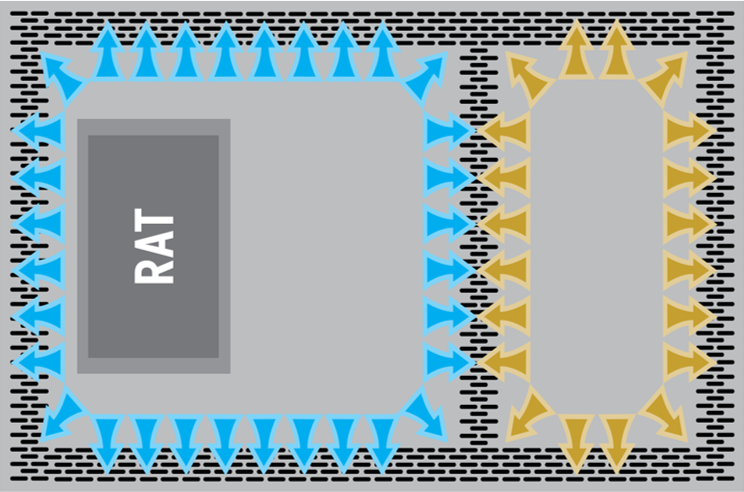

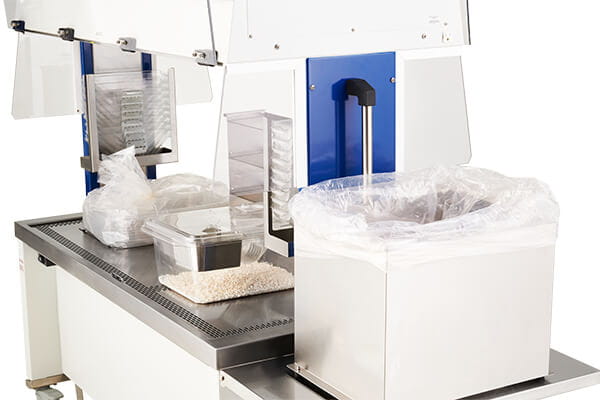

Work Surface Stainless Steel with Prop Rod, Divided into Clean & Dirty via Slots
Exterior Depth Inches (mm) 30 3/4 (780)
Exterior Height (Fully Assembled, maximum) Inches (mm) 90 1/8 (2289)
Exterior Height (Fully Assembled, minimum) Inches (mm) 78 1/8 (1983)
Exterior Height (Minimum for Transport) Inches (mm) 78 1/8 (1983)
Exterior Height Inches (mm) 78 1/8 (1983) - 90 1/8 (2289)
Exterior Width Inches (mm) 60 1/8 (1527) without sidebars
Footprint Depth inches (mm) 30 3/4 (780)
Footprint Width inches (mm) 65 7/8 (1673) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 1/8 (814)
Useable Work Tray Area Width Inches (mm) 32 1/2 (826) Clean Area (including deep wells); 15 7/8 (403) Dirty Area
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 7/8 (659)
Work Area Width Inches (mm) 54 1/2 (1385)
Electrical Configuration 115V 60Hz
Power Cord Power Cord Reel
Air Cleanliness (ISO 14644) ISO Class 5
Downflow fpm (m/s) 80 FPM (0.38 m/s)
Fumigation: per NIH/NSF Procedures Yes
Protection Product
Control System AeroMax
