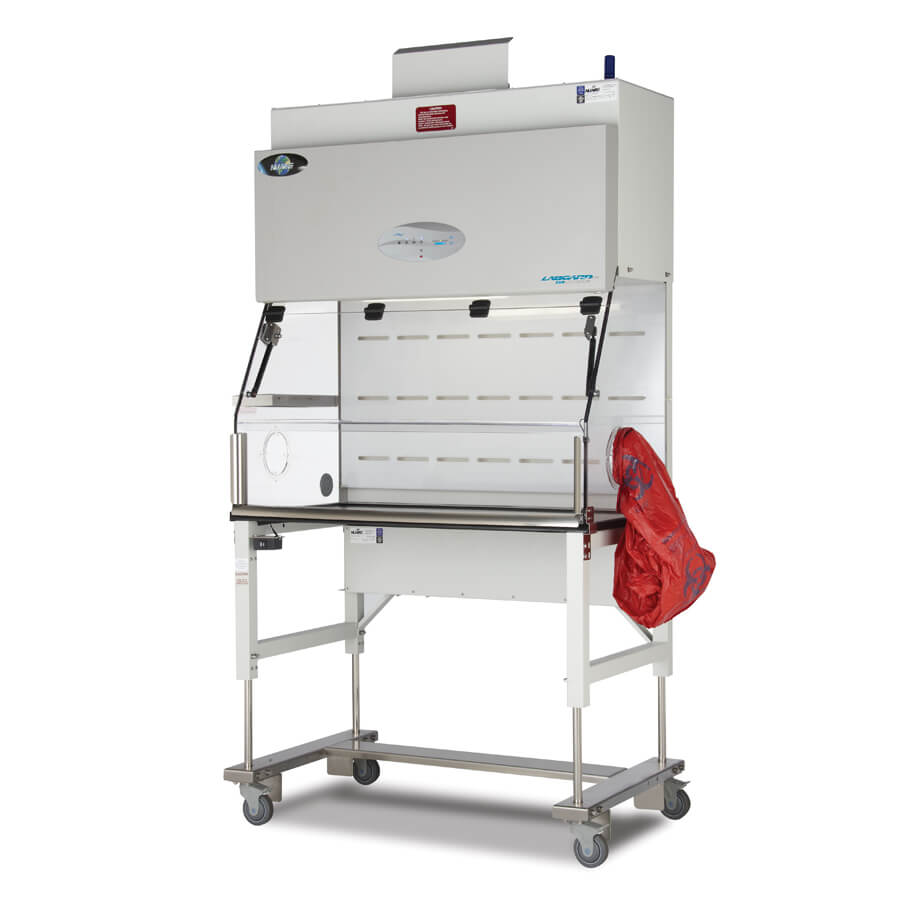

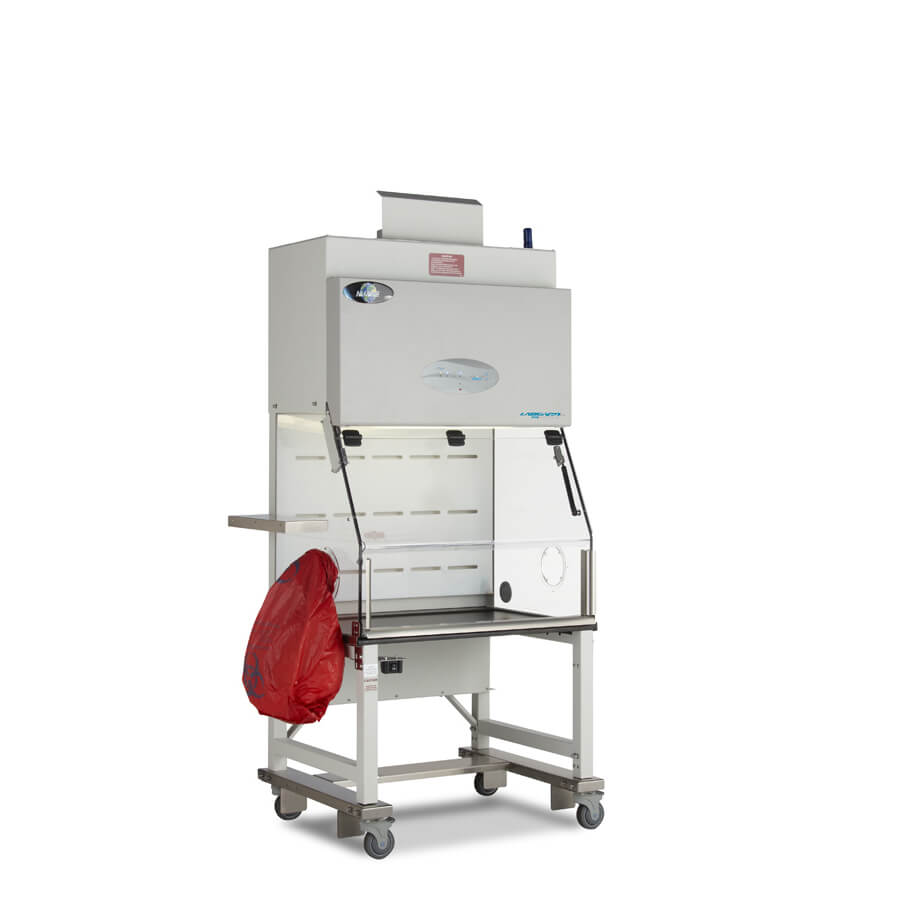

LabGard CVENU-813
Class I Containment Ventilated Enclosure

USP 800 NON-STERILE DRUGS | CLASS I CONTAINMENT | EXHAUSTED OR RECIRCULATING | CONFIGURABLE ENCLOSURE

The LabGard® NU-813 Class I Containment Ventilated Enclosure (CVE) features a versatile design that can be configured to serve the needs of pharmacies compounding non-sterile drugs or microbiological labs seeking personnel and environmental protection. Stainless steel airfoils around the cabinet’s 8-inch (203mm) work access opening guide the 80 FPM (0,41 m/s) inflow as it flows into a polycarbonate work zone with dished, epoxy work surface. These clear sidewalls not only provide visibility but also standard access ports and optional steel waste chutes. The Aeromax™ control system uses simple green, yellow, or red LED lights to visualize airflow performance as it monitors pressure in the cabinet plenum. The unit can be configured with double exhaust HEPA filters and a deflector for work allowing recirculation to the room or with a canopy and airflow alarm for applications demanding connection to an external exhaust.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The LabGard® model NU-813 is available in three different sizes to meet the needs of your laboratory space and application.

Products

NU-813-300

Nominal 3-foot (0.9 m)

NU-813-400

Nominal 4-foot (1.2 m)

NU-813-600

Nominal 6-foot (1.8 m)

Quick Specs

Airflow Monitor Pressure
Control System AeroMax
Protection [, Personnel, Environmental]
Work Access Opening(s) 8-inches (203 mm)
  • Features
  • Specs
  • Options & Accessories
  • Resources
  • Citations
AeroMax Electronic Control System for Lab Equipment

GREEN LIGHT, YELLOW LIGHT,  RED LIGHT.

AEROMAX CONTROL SYSTEM

The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever cabinet performance departs from normal parameters.

"EASY COME, EASY GO."

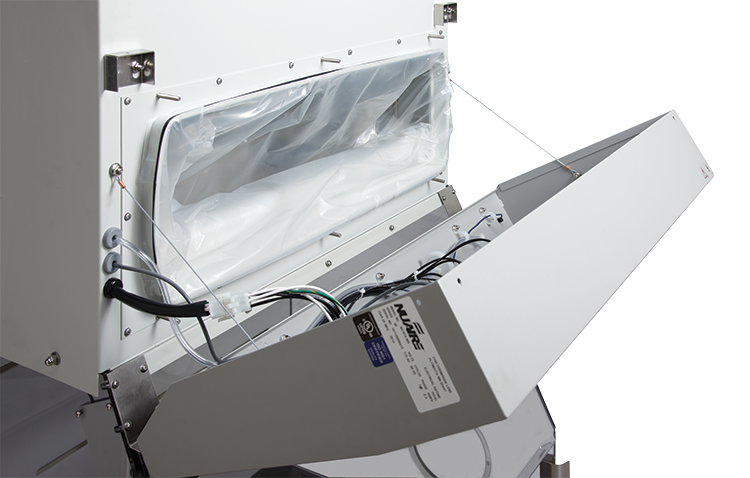

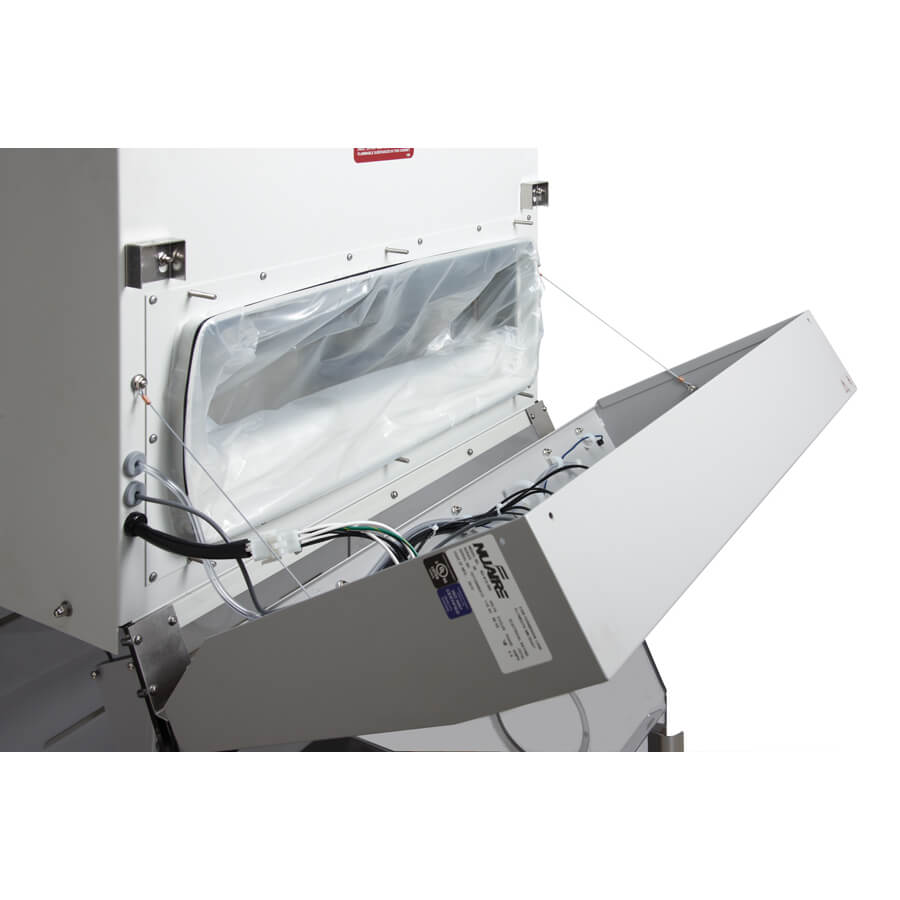

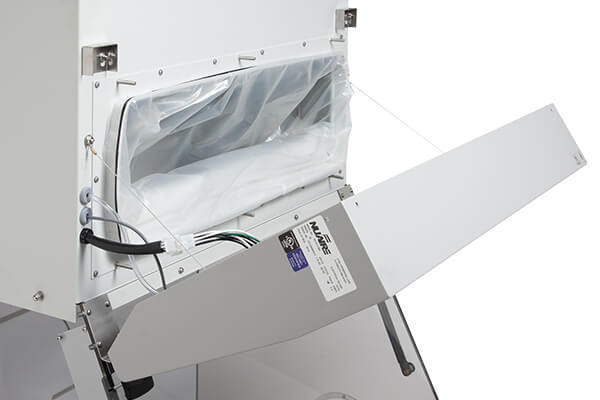

BAG-IN/BAG-OUT EXHAUST FILTER

The bag-in/bag-out feature provides an additional layer of protection for
technicians as they change the exhaust HEPA filter by allowing them to
pull the old filter directly into a bag as they pull it out of the cabinet.

Note: This features does not negate the need to perform an appropriate
decontamination per risk assessment prior to conducting a filter change.

configurable for nonsterile hazard drug compounding.

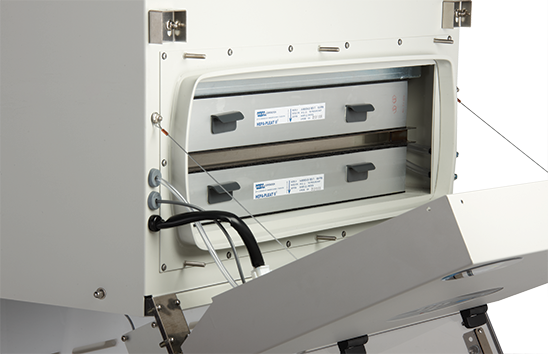

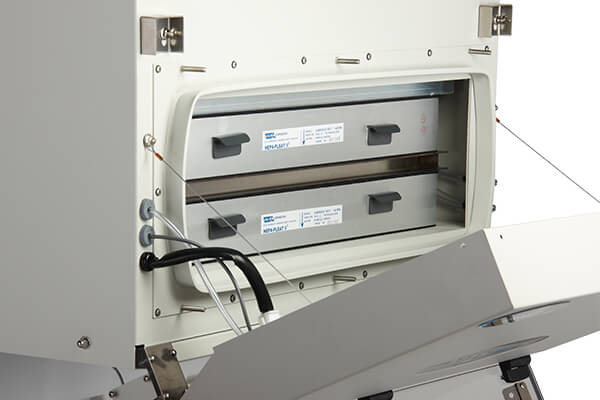

double exhaust filter option

The optional double exhaust HEPA filter configures the NU-813 for use as a Containment Primary Engineering Control (C-PEC) for compounding nonsterile hazardous drugs in those cases allowed by USP-800.

Note: Consult the most up to date USP 800 for guidance on Primary Engineering Control requirements.
USP Guidelines Infographic

A WORK ZONE MADE FOR WHAT YOU DO.

CONFIGURABILITY AND COMFORT

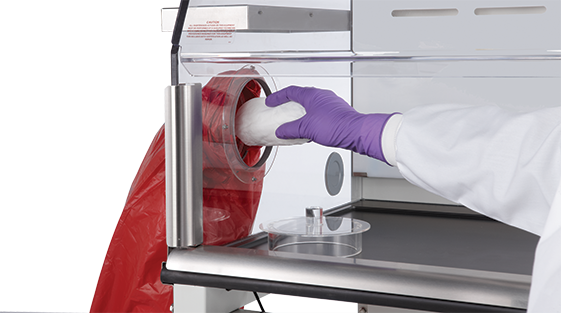

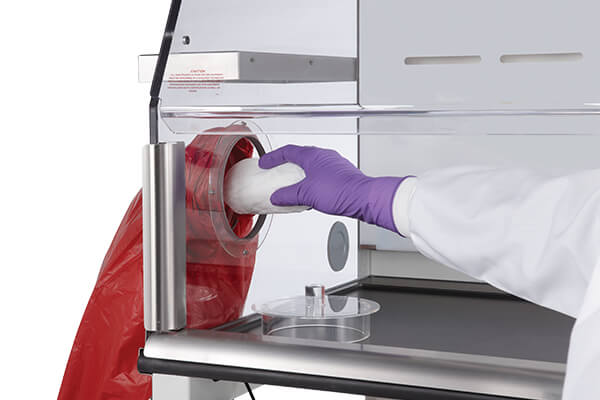

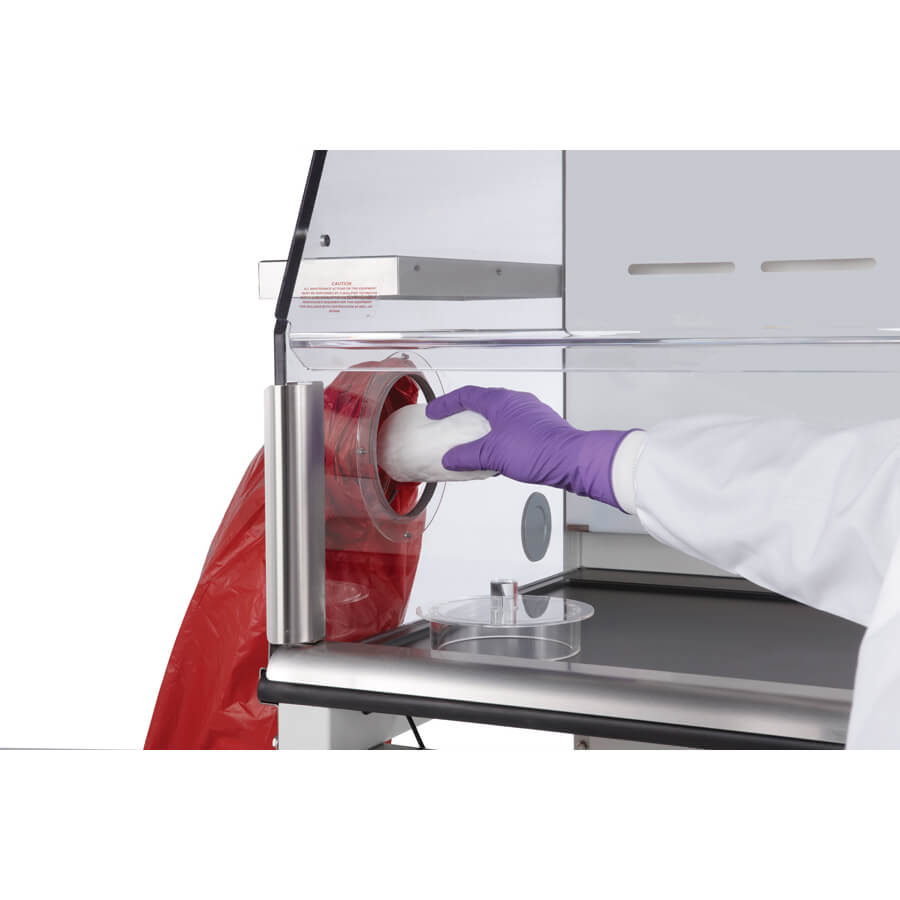

Stainless steel airfoils guide the protective inflow entering the work area and act as a comfortable armrest for the cabinet operator. Cord pass-throughs are standard on both sides, while an optional waste chute and shelf adapt the work zone to the needs of your laboratory or pharmacy.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • EC Impeller
  • Bag-in/Bag-out Exhaust HEPA Filter
  • Polycarbonate Sidewalls
  • Black Epoxy Resin Work Surface
  • Access Port on Both Sides
  • 8-inch (203mm) Work Access Opening
  • Stainless Steel Airfoils on Access Opening

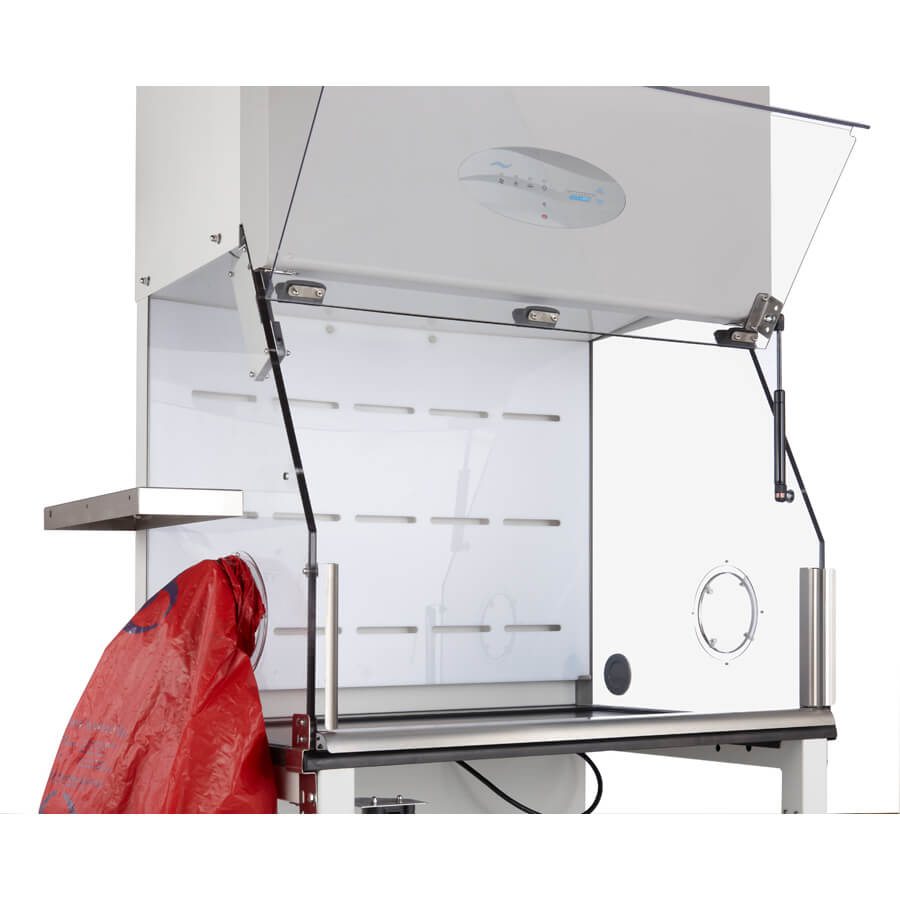

  • Hinged Viewscreen
  • Fluorescent Lighting
  • Digital Pressure Sensor
  • Aeromax™ Control System
Airflow Monitor Pressure
Bag In Bag Out Standard
Casters N/A
Construction Polycarbonate panels with welded blower module
Control System AeroMax
Cord Pass Through Standard on Right and Left Side Wall
Data Output Features RS-232
Double Exhaust HEPA Filter Optional
Electrical Configuration 115V60Hz, 230V5060Hz
Exhaust Filter 5 7/8-inch (149mm) 99.995% @ 0.3 Micron
Front & Control Panel Material Painted Steel
Fumigation: per NIH/NSF Procedures True
HEPA Filter Seal Type Neoprene, Spring loaded
Inflow fpm (m/s) 80 fpm (0.40 m/s)
Lighting Standard Fluorescent with Optional LED
Light Intensity fc (Lux) 50 to 150 (538 to 1600)
Motorized Base Stand Optional as Separate Accessory
Other Built-in Exhaust Option(s) Exhaust Deflector
Outlet(s) Optional
Plenum Type Inquire
Power Cord Length Foot (Meter) 12 (3.7 m)
Pre-filter N/A
Protection Personnel, Environmental
Remote Alarm Terminals Standard
Safety Certification UL, UL-C
Seismic Brackets or Studs Optional
Service Valves (3/8-inch NPT) N/A
Sound Level Inquire
Style Bench top, console with optional base stand
Viewing Window Inches (mm) 24 (610) Open
Waste Chute Optional
Work Access Opening(s) 8-inches (203 mm)
Work Surface Standard Epoxy Resin, Optional Insert

Exhaust

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
8-inch (203mm) Opening Exhaust Requirement for Canopy Exhaust Transition (NU-942) CFM (CMH) 195 (331) 195 (331) 260 (442) 260 (442) 390 (663) 390 (663)


Electrical

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
Blower Amps 1.6 0.8 1.8 0.8 3.2 1.1
Light Amps 0.2 0.2 0.2 0.2 0.4 0.2
Power Cord 12-foot (3.7 m) 12 ft., 14 GA-3 Wire, 15A 12-foot (3.7 m) 12 ft., 14 GA-3 Wire, 15A 12-foot (3.7 m) 12 ft., 14 GA-3 Wire, 15A
Rated Amps 1.8 1 2 1 3.6 1.3


Dimensions

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
Exterior Depth Inches (mm) 29 (737) 29 (737) 29 (737) 29 (737) 29 (737) 29 (737)
Exterior Height Inches (mm) 54 (1372) 54 (1372) 54 (1372) 54 (1372) 54 (1372) 54 (1372)
Exterior Width Inches (mm) 36 (914) 36 (914) 48 (1219) 48 (1219) 72 (1829) 72 (1829)
Work Area Depth Inches (mm) 24 (610) 24 (610) 24 (610) 24 (610) 24 (610) 24 (610)
Work Area Height Inches (mm) 28 (711) 28 (711) 28 (711) 28 (711) 28 (711) 28 (711)
Work Area Width Inches (mm) 37.375 (873) 34 3/8 (873) 46.375 (1178) 46 3/8 (1178) 70.375 (1788) 70 3/8 (1788)


Performance

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
Heat Rejected (BTU/Hour) 265 265 330 330 600 600


Construction

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
Motor(s) 1 Impeller 1 Impeller 1 Impeller 1 Impeller 2 Impellers 2 Impellers


Weight

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
Net Weight lbs (kg) 300 lbs. (136 kg.) 300 (136) 400 (181) 400 (181) 500 (227) 500 (227)
Shipping Weight lbs (kg) 350 lbs. (159 kg.) 350 (159) 450 (204) 450 (204) 550 (249) 550 (249)


Ergonomics

NU-813-300 NU-813-300E NU-813-400 NU-813-400E NU-813-600 NU-813-600E
Sound Level 57 dbA Running Noise in 53 dbA Ambient 57 dbA Running Noise in 53 dbA Ambient 57 dbA Running Noise in 53 dbA Ambient 57 dbA Running Noise in 53 dbA Ambient 62 dbA Running Noise in 53 dbA Ambient 62 dbA Running Noise in 53 dbA Ambient


Built-in Options

Stainless Steel Work Surface Insert

Filter

CHARCOAL FILTER(S-20)REPL HEPA
Double HEPA Filter
PURAFIL FLTR(S-20)REPL HEPA
Single HEPA Filter

Outlets

115V Ground Fault Interrupter
115V Outlet (State Location)
15A South African Outlet (Type M)
Australian Outlet (Type I)
Current UK Outlet (Type G)
Israel Outlet (Type H)
Old UK Outlet (Type D)
Outlet Type E (Qty 1)
Schuko Outlet (Type F)
Swiss Outlet (Type J)
US Standard Outlet (Type B)

Seismic

Seismic Studs

Service Valves

Service Valve

Top Panel

Exhaust Collar
