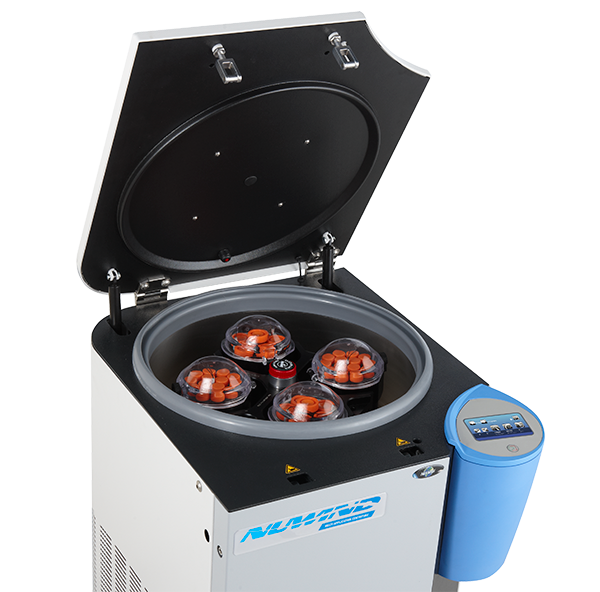

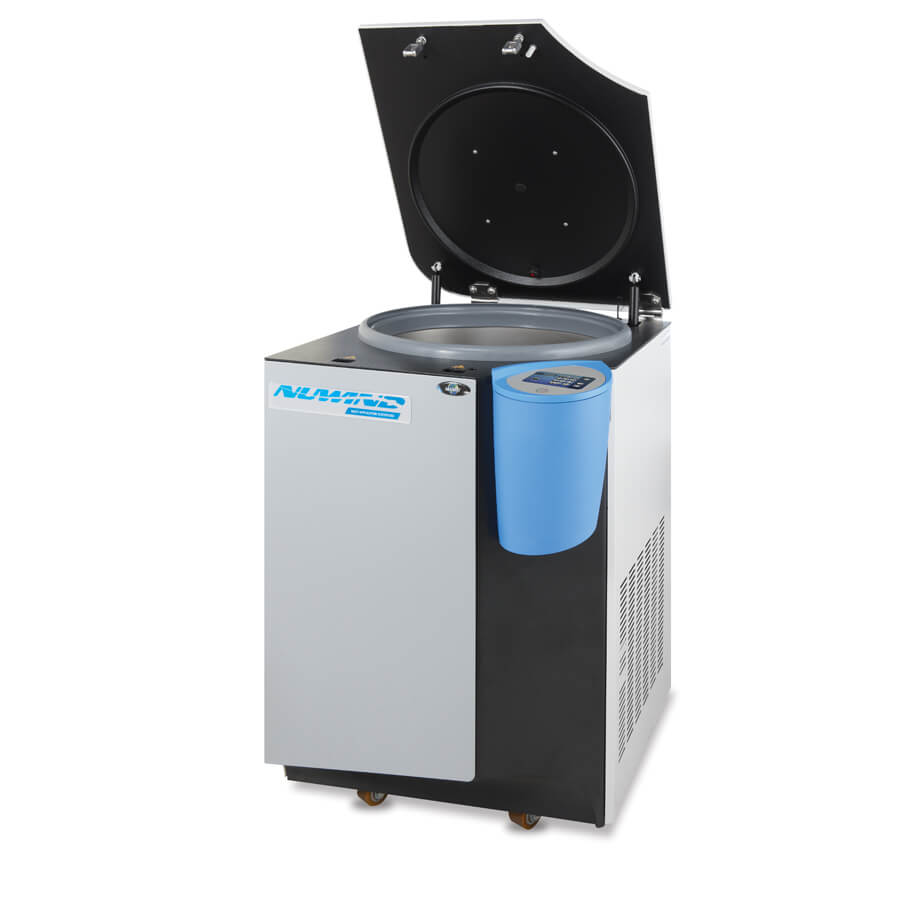

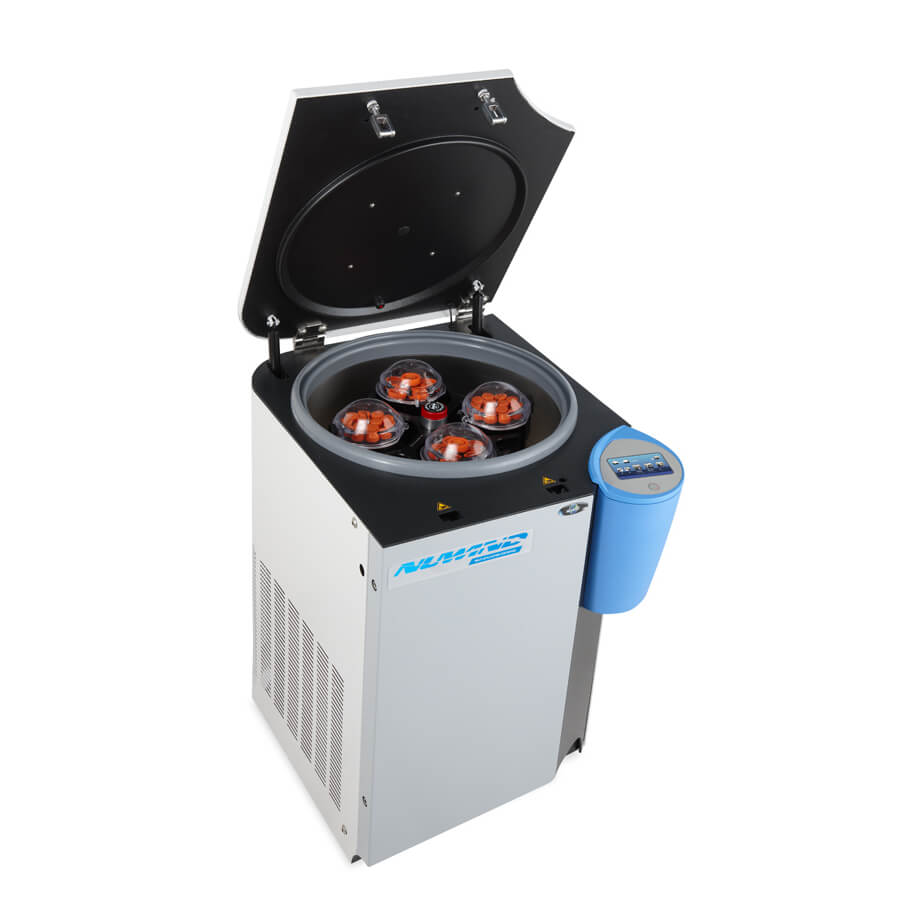

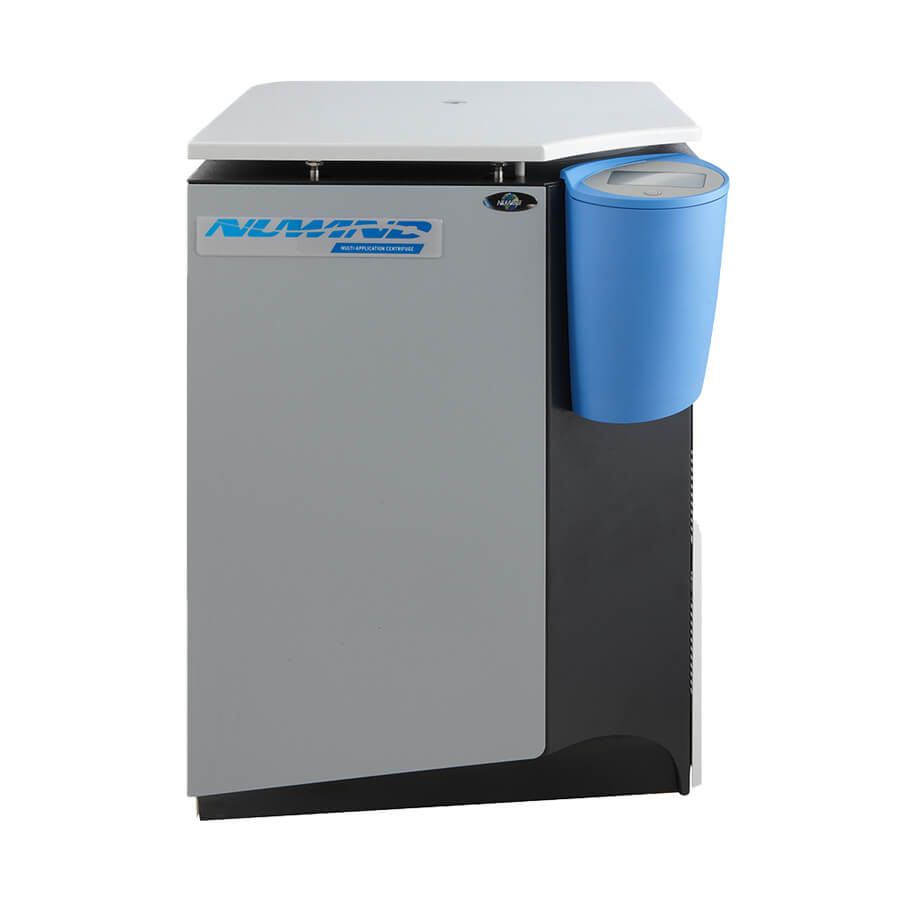

NuWindNU-C300RF
General Purpose Centrifuge

FLOOR STANDING CONFIGURATION | SPINS 3L SWING-OUT ROTOR | CONSISTENT REFRIGERATION | EASY TO CHANGE ROTORS

The NuWind NU-C300RF floor-standing refrigerated model features the ability to spin either swing-out or angular rotors and a refrigeration system that enables the centrifuge bowl to maintain a consistent cool temperature. The centrifuge’s steel construction and lockable lid combine with the imbalance detection sensor to ensure safety while the Click Spin™ function allows rotors to be exchanged at the mere twist of a knob. Finally, the InSight Electronic Control Center allows easy entry of centrifugation parameters and the creation of up to 99 programs using a modern touch panel interface.

Request a Quote

A CONFIGURATION TO MEET YOUR NEEDS

The NU-C300RF is offered in two electrical configurations to meet your laboratory’s needs.

Products

NU-C300RF

115V, 60Hz

NU-C300RF-E

230V, 50/60Hz

Quick Specs

15ml Round Bottom Tube Capacity 96 in NU-RX1000 Swing-out Rotor; 32 in NU-RX750 Swing-out Rotor;
50ml Conical Bottom Tube Capacity 40 in NU-RX1000 Swing-out Rotor; 24 in NU-RX750 Swing-out Rotor; 8 in NU-RA8-50
Control System InSight
Maximum Capacity 4 x 1000 ml
Maximum RCF (xg) 16,660
Maximum Speed (rpm) 12,100
Number of Programs 99, Pre-cooling, Pre-Warming
Temperature Accuracy °C ± 2 ° C
  • Features
  • Specs
  • Options & Accessories
  • Resources

CENTRIFUGATION AT THE TOUCH OF A BUTTON.

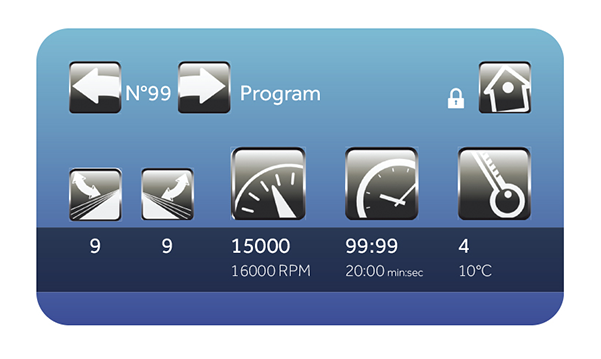

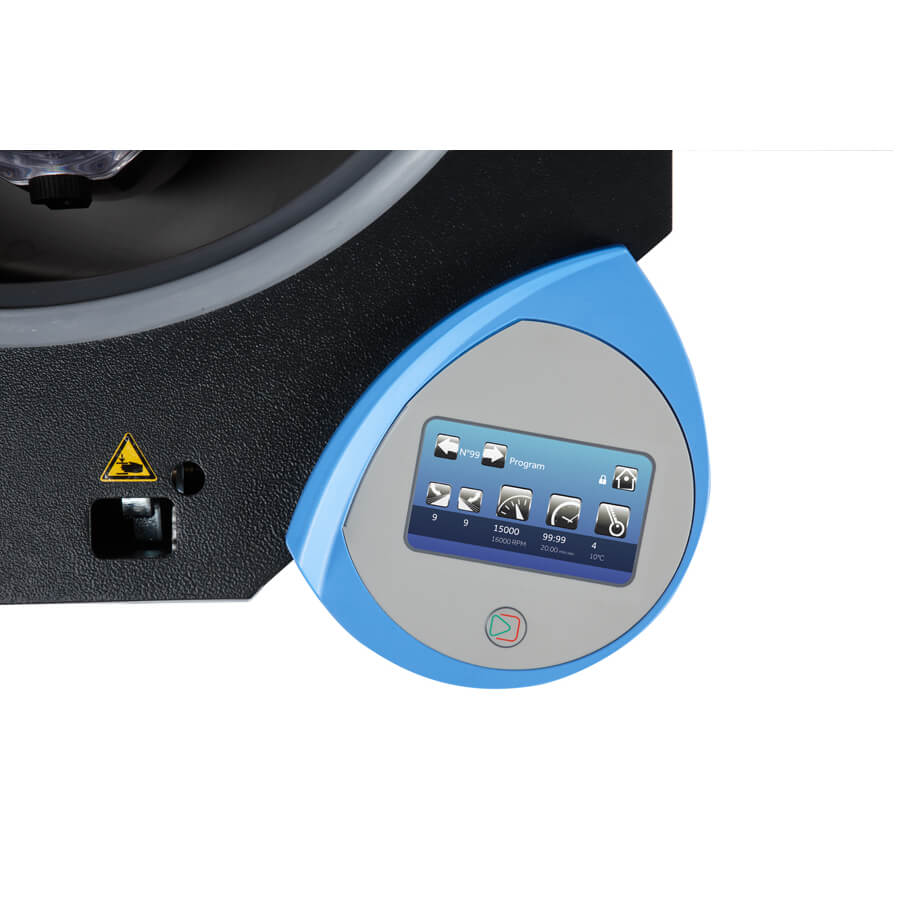

INSIGHT CONTROL CENTER

The NuWind's touch screen interface allows users to easily enter speed and time parameters for their next centrifugation run or create up to a total of 99 programs that can be reused again and again. An electronic logbook of centrifuge use and a programmable reminder to grease the equipment help ensure proactive preventive maintenance.
InSight Control Center

CHANGING ROTORS IS A SNAP...OR IN OUR CASE, A CLICK.

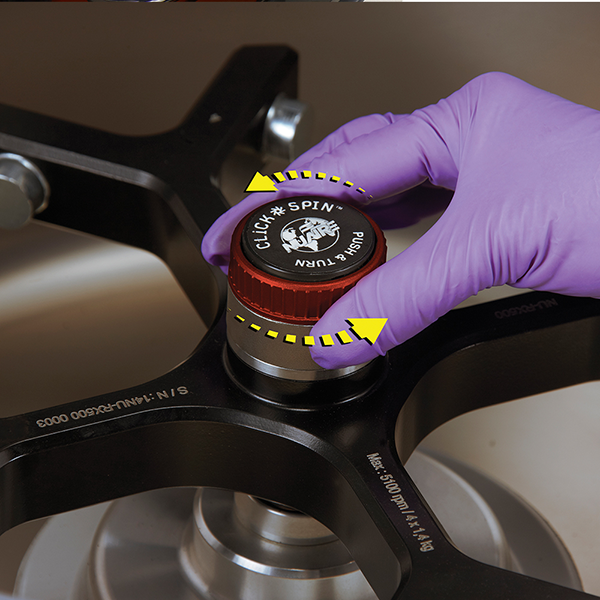

CLICK SPIN ROTOR EXCHANGE

You shouldn't need more than one centrifuge to spin different types of rotors and you shouldn't need to become a mechanic to trade one rotor for the other. Take advantage of the NuWind's ability to spin a wide range of both swing-out and angular rotors and exchange them by just turning a knob. Versatility is at your fingertips as you effortlessly combine the rotor, bucket, adaptors and lids that meet the needs of your specific application.
Click Spin

MAINTAIN CONSISTENT BOWL TEMPERATURE.

EASY REFRIGERATION

The refrigerated NuWind models feature a refrigeration system with pre-cooling and pre-warming programs and an adjustment range between -10C and 40C. With an ambient temperature of 20C +/-2C and while spinning an NU-RX750 rotor at a speed of 3,600RPM, the NU-C300R can maintain a temperature of 4C.

swing-out rotor tube capacity at 4600 rpm / 4731 xg*

nu-rx750 swing-out rotor

Tube Volume 5/7ml 10ml 15ml 15ml 50ml 50ml
Tube Shape Round Round Round Conical Conical Skirted
Tubes per Rotor 108 84 32 56 24 20

Microplate Type Standard Microplates Deep Well Blocks
Microplates/Blocks per Rotor 16 4

*Speed reduces to 4600 RPM / 4564 xg for microplates


swing-out rotor tube capacity at 3500 rpm / 2750 xg*

nu-rx1000 swing-out rotor

Tube Volume 1.5/2ml 5-7ml 10ml 14ml 15ml 30ml 50ml 175ml 225ml 250ml 290ml
Tube Shape Microtube Blood Blood Urine Conical Skirted Conical Conical Conical Conical Conical Flat
Tubes per Rotor 200 200 156 156 96 40 40 8 8 8 8

Tube Volume 500ml 625ml 750ml
Tube Shape Flat Flat Flat
Tubes per Rotor 4 4 4

Microplate Type Standard Microplates Deep Well Blocks
Microplates/Blocks per Rotor 24 4

*Speed reduces to 3500 RPM / 2655 xg for microplates

microplate swing-out rotor capacity at 5100 rpm / 4537 xg

nu-rhdw swing-out rotor

Plate Type Plates per Rotor Speed
96-Well Microplate 8 5100 RPM / 4537 xg
96-Well "Deep Well" Plate 2 5100 RPM / 4537 xg

angular rotor tube capacity at selected velocities

assorted angular rotors

Tube Volume Tube Shape Tubes per Rotor Speed
2ml Microtubes 30 16000 RPM / 27720 xg
2ml Microtubes 48 15500 RPM / 27129 xg
5ml Microtubes 16 13200 RPM / 21000 xg
15ml Microtubes 30 4800 RPM / 3606 xg
50ml Conical 8 12100 RPM / 16660 xg
100ml 6 12100 RPM / 17351 xg

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Refrigeration System Maintains 4°C Temperature
  • 3L Swing-Out Rotor Capacity
  • Broad Range of Angle Rotors
  • Click Spin™ Rotor Exchange
  • Motorized Lid Lock
  • Imbalance Detection
  • Rotor Overspeed Prevention
  • Painted Steel Main Cabinet
  • Stainless Steel Bowl
  • InSight Electronic Control Center with touch panel
  • Power Factor Control Smooths Input Current
100ml Tube Capacity 6 in NU-RA6-100 Angle Rotor
10ml Round Bottom Tube Capacity 156 in NU-RX1000 Swing-out Rotor; 84 in NU-RX750 Swing-out Rotor;
14ml Tube Capacity 92-156 in NU-RX1000 Swing-out Rotor;
15ml Conical Bottom Tube Capacity 96 in NU-RX1000 Swing-out Rotor; 56 in NU-RX750 Swing-out Rotor
15ml Micro Tube Capacity 30 in NU-RA30-15 Angle Rotor
15ml Round Bottom Tube Capacity 96 in NU-RX1000 Swing-out Rotor; 32 in NU-RX750 Swing-out Rotor;
175ml Conical Bottom Bottle Capacity 8 in NU-RX1000 Swing-out Rotor;
225ml Conical Bottom Bottle Capacity 8 in NU-RX1000 Swing-out Rotor;
250ml Conical Bottom Bottle Capacity 8 in NU-RX1000 Swing-out Rotor;
290ml Flat Bottom Bottle Capacity 8 in NU-RX1000 Swing-out Rotor;
30ml Skirted Conical Tube Capacity 40 in NU-RX1000 Swing-out Rotor;
350ml Flat Bottom Bottle Capacity N/A
400ml Conical Bottom Bottle Capacity N/A
500ml Flat Bottom Bottle Capacity 4 in NU-RX1000 Swing-out Rotor;
50ml Round Bottom Tube Capacity N/A
50ml Skirted Bottom Tube Capacity 20 in NU-RX750 Swing-out Rotor;
50ml Conical Bottom Tube Capacity 40 in NU-RX1000 Swing-out Rotor; 24 in NU-RX750 Swing-out Rotor; 8 in NU-RA8-50
5ml Micro Tube Capacity 16 in NU-RA16-5 Angle Rotor
5-7ml Round Bottom Tube Capacity 200 in NU-RX1000 Swing-out Rotor; 108 in NU-RX750 Swing-out Rotor;
625ml Flat Bottom Bottle Capacity 4 in NU-RX1000 Swing-out Rotor;
750ml Flat Bottom Bottle Capacity 4 in NU-RX1000 Swing-out Rotor;
Acceleration Slopes 9
Ambient Operating Temperature (°C) 20⁰C ± 2⁰C
Braking Slopes 10
Construction Painted Steel Main Cabinet, and Stainless Steel Bowl
Control System InSight
Deep Well Blocks Capacity 4 in NU-RX1000 Swing-out Rotor; 4 in NU-RX750 Rotor; 2 in NU-RHDW Rotor;
Electrical Configuration 115V60Hz, 230V5060Hz
Environment Altitude 6562 Feet (2000 meters) above sea level
Environment Humidity Maximum relative humidity 80% for temperatures up to 31⁰C decreasing linearly to 50% relative humidity at 40⁰C
Environment Temperature Range 60⁰F - 85⁰F (15⁰C - 30⁰C)
Exterior Depth Inches (mm) 27.25 (690)
Exterior Height Inches (mm) 32.75 (830)
Exterior Width Inches (mm) 26.5 (670)
Footprint Depth inches (mm) 27.2" (690mm)
Footprint Width inches (mm) 26.4" (670mm)
For indoor use only True
Heat Rejected (BTU/Hour) 5801
Imbalance Detection Sensor True
Maximum Capacity 4 x 1000 ml
Maximum RCF (xg) 16,660
Maximum Speed (rpm) 12,100
Standard Microplates Capacity 24 in NU-RX1000 Swing-out Rotor; 16 in NU-RX750 Swing-out Rotor; 8 in NU-RHDW Rotor;
1.5-2.0ml Micro Tube Capacity 200 in NU-RX1000 Swing-out Rotor; 48 in NU-RA48-2 Angle Rotor; 30 in NU-RA30-2 Angle Rotor;
Motorized Lid Lock True
Net Weight lbs (kg) 375 (170)
Number of Programs 99, Pre-cooling, Pre-Warming
Optimal Refrigeration Settings +4 ° C temperature with NU-RX750 rotor can be maintained at 3,600RPM at an ambient temperature of 20⁰C ± 2⁰C.
Power Consumption 1700
Power Cord Length Foot (Meter) Inquire
Refrigerant R404A
Refrigerant Charge 0.35 kg
Rotor Speed Control True
Shipping Dimensions 39.4" (1000mm) x 31.5" (800mm) x 31.5" (800mm) H x W x D
Shipping Weight lbs (kg) 410 (185)
Sound Level ≤ 57 dB(A)
Speed Control Precision RPM ± 10 rpm
Style Floor Standing
Temperature Accuracy °C ± 2 ° C
Temperature Control Range -10 ° C to 40 ° C

Electrical

NU-C300RF NU-C300RF-E
Electrical Configuration 115V60Hz 230V5060Hz
Nominal Intensity 17 A 9 A
