In-VitroCellNU-5800
Direct Heat CO2 Incubator

200-Liter Capacity | Temp, CO2, Humidity, & O2 Control | HEPA Filtration | Sterilization Cycles

The NU-5800 family of CO2 incubators offers touch panel control and monitoring of temperature, CO2, relative humidity, and oxygen levels to meet the demands of a broad range of cell culture applications. Beyond using an infrared sensor for precise control of CO2 and separately adjustable chamber, door and perimeter heaters to balance internal temperature, this family can create hypoxic conditions by injecting N2 and directly control humidity to set point by routing air through an evaporator tank. The air pump outside the 200L growth chamber also constantly draws air through a HEPA filter and cycles it back to create ISO Class 5 quality air at positive pressure and minimize contamination. Scientists can choose between a 95C humidified or 145C dry decontamination depending on their laboratory’s procedures. A touch screen makes it easy to enter set points as well as to view or download historical performance. This moderately sized incubator can be stacked to efficiently use the valuable space in your laboratory.

Request a Quote

CHOOSE YOUR CHAMBER PARAMETERS

Choose the Model with the Control of Parameters Your Application Requires

Products

NU-5800

Temperature, CO2 Control

NU-5810

Temperature, CO2 Control, Sterilization Cycles

NU-5820

Temperature, CO2, RH Control, Sterilization Cycles

NU-5831

Temperature, CO2, O2 Control, Sterilization Cycles

NU-5841

Temperature, CO2, RH, O2 Control, Sterilization Cycles

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
CO2 Accuracy ± 0.1%
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
Control System NuTouch
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Recovery 0.12°C/min. on Average
Temperature Uniformity °C ± 0.35°C @ 37°C
  • Features
  • Specs
  • Options & Accessories
  • Resources
  • Citations

THE MODERN USER EXPERIENCE YOU EXPECT.

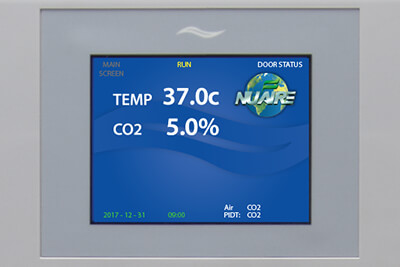

NUTOUCH CONTROL SYSTEM

The NuTouch control system provides you with the user experience you have come to expect from any piece of modern equipment. Change set points, view chamber history, start a decontamination cycle, or perform a calibration procedure from this simple interface. All NuAire CO2 incubators standardize on the NuTouch control system, meaning that once users learn to navigate one incubator they can move seamlessly to any other in the lab.
NuTouch Control System

THE WARM EMBRACE OF DIRECT HEAT TECHNOLOGY.

DIRECTLY HEATED CHAMBER

The direct heat incubator uses heating elements placed around the chamber, in the door perimeter, and in the door itself to provide balanced temperature within a steel, insulated chamber environment. Door and perimeter heaters can be adjusted independently to ensure uniformity even when the incubator is installed in more demanding ambient temperatures.
Temperature Uniformity

CONVENIENT CONTAMINATION CONTROL.

145C HEATED DECONTAMINATION

The direct heat technology enables the use of a 145C decontamination cycle that can be conveniently run overnight in just 8 hours without removing the CO2, temperature, or O2 sensors. The NuTouch control system steps the user through the process with on screen instructions and displays progress throughout each phase of the complete cycle.

Note: Models with direct RH control will require removal of the RH sensor.

Constant Contamination Control

CELL CULTURES DESERVE THEIR OWN CLEAN ROOM.

CONSTANT HEPA AIR FILTRATION

Continual HEPA filtration of chamber air complements periodic high heat decontamination to provide Constant Contamination Control. InVitrocell’s design constantly takes a sample of air from the chamber, routes it through a HEPA filter in a compartment outside that inner chamber, and ultimately returns it to create an ISO Class 5 level of clean air in the interior as well as a slight positive pressure. Inside the InVitrocell, your cell cultures are protected by a multi-tiered defense against contamination.
Constant HEPA Filtration

CHOOSE THE MODEL WITH THE CAPABILITIES YOUR WORK REQUIRES.

CONTROL OF CHAMBER PARAMETERS

115V/50-60Hz & 230V/50-60Hz (E Suffix)

 MODEL

 TEMPERATURE

 CO2

 DECONTAMINATION

 RELATIVE HUMIDITY

 O2

 NU-5800
 NU-5800E
 √  √
 NU-5810
 NU-5810E
 √  √  √
 NU-5820
 NU-5820E
 √  √  √  √
 NU-5831
 NU-5831E
 √  √  √    √
 NU-5841
 NU-5841E
 √  √  √  √  √


The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor, IR Sensor 5 Years Parts Only (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Cold Rolled Steel with Powder Coated Finish Exterior
  • Polished, 16 Gauge Type 304L Stainless-Steel Chamber

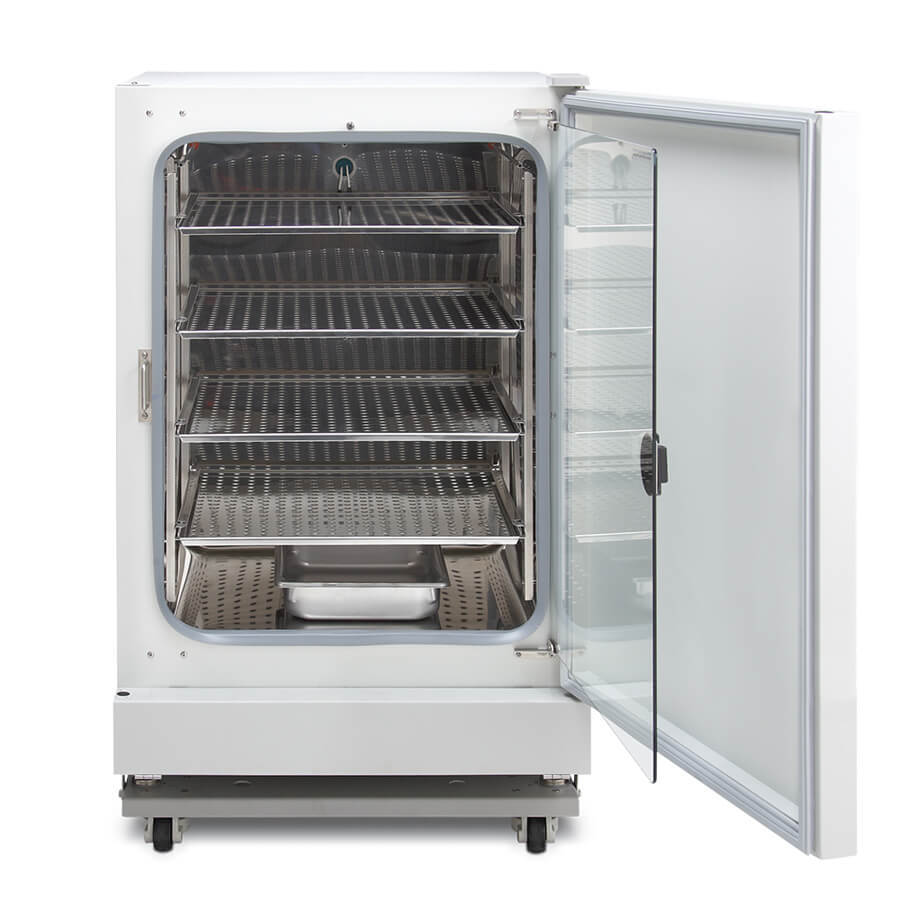

  • Set of 4 Stainless Steel Shelves
  • Inner Glass Door
  • Separately Adjustable Chamber, Perimeter, & Door Heaters
  • Infrared CO2 Sensor
  • Dual Temperature Sensors
  • Air Pump External to Chamber
  • HEPA Filter External to Chamber
  • Multilingual Touch Screen
  • USB Port for Data Download
  • RH Sensor and Evaporator Tank (NU-5820, NU-5820E, NU-5841, NU-5841E)
  • Zirconia O2 Sensor (NU-5831, NU-5831E, NU-5841, NU-5841E)

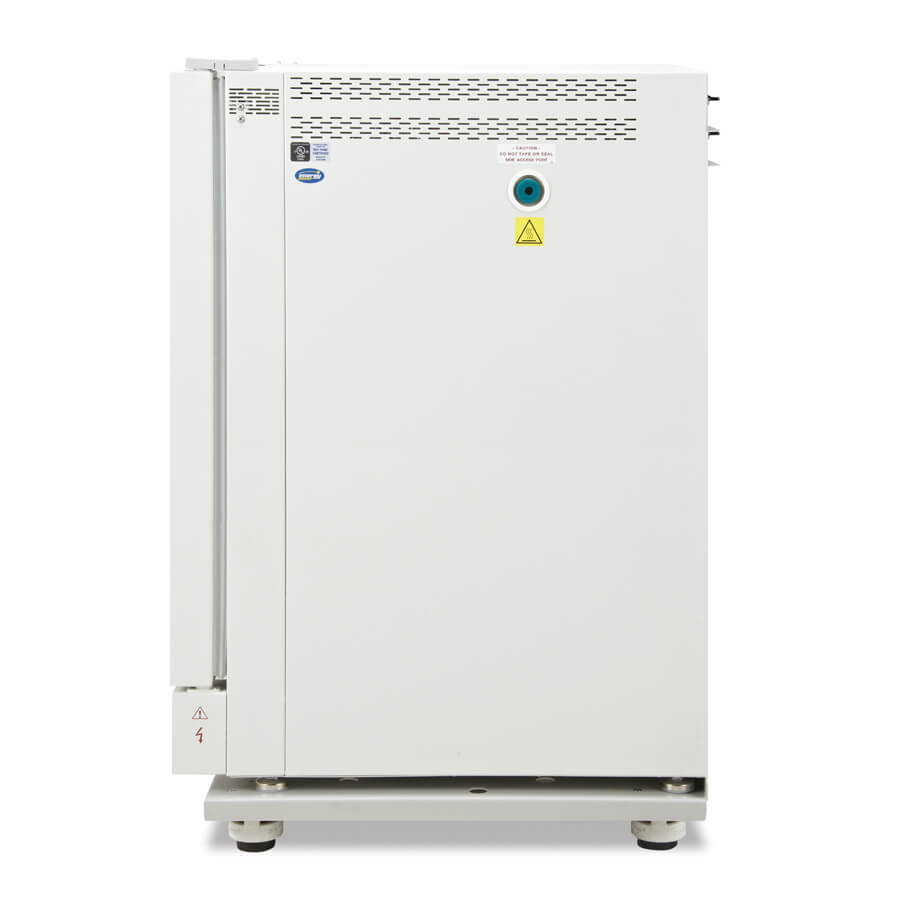

Access Port Location Right Side
Air Cleanliness (ISO 14644) ISO-Class-5
Chamber Air Circulation Method Air Pump
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Chamber Heater(s) Location Walls, Top and Bottom of Chamber
Chamber Jacket Technology Air Jacket via One or Two Axial Fans Drawing Air into Shell
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Control System NuTouch
Data Output Features RS-485, USB, 4-20mA
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable
Electrical Configuration 115V50Hz, 230V5060Hz
Exterior Depth Inches (mm) 27.188 (691)
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Height Inches (mm) 39.688 (1008)
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
Exterior Width Inches (mm) 26.750 (680)
Footprint Depth inches (mm) 20.75 (527)
Footprint Width inches (mm) 23.75 (603)

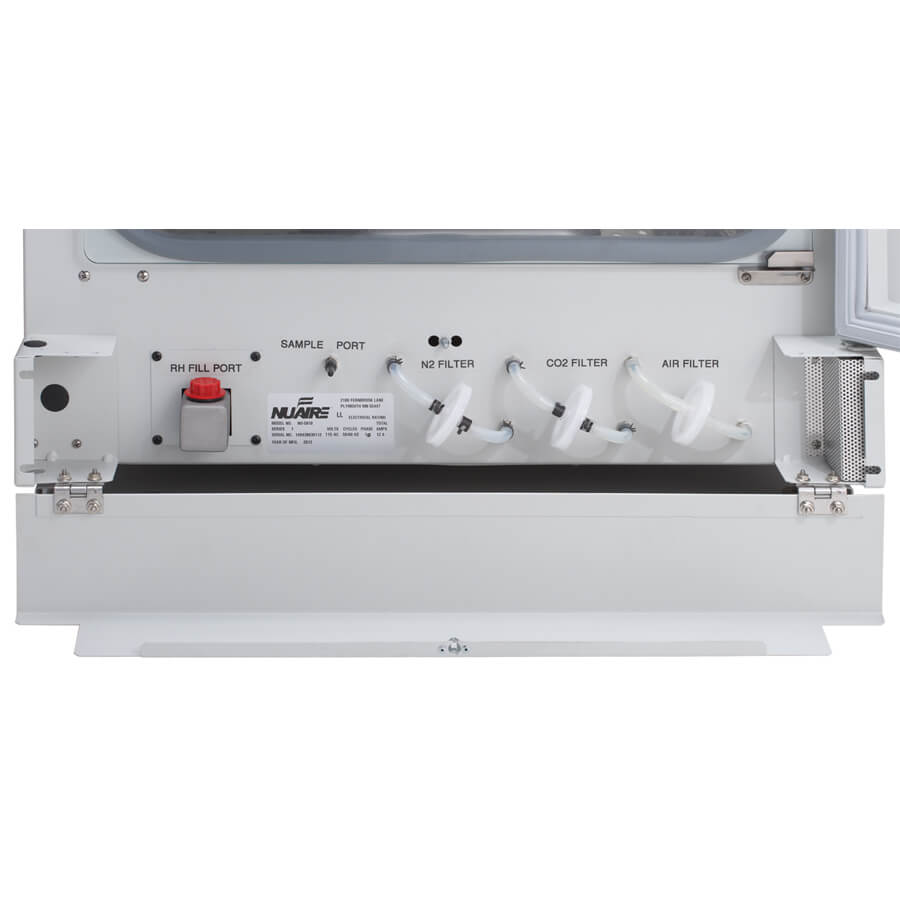

In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Segmented Doors Optional Set of 6 Inner Doors, 2 Across by 3 Down
Inner Doors One
Insulation High Density Insulation with High "R" Rating
Interior Depth Inches (mm) 20.053 (509)
Interior Door Seal Silicone Rubber Gasket
Interior Height Inches (mm) 28.500 (724)
Interior Material Polished Type 304L 16 Gauge Stainless Steel
Interior Volume Cubic Feet (Liters) 7.06 (200)
Interior Width Inches (mm) 21.257 (540)
Net Weight lbs (kg) 235 (106)
O2 Accuracy ± 0.25%
O2 Control Logic Fixed algorithm/ manual environmental adaptable
O2 Display Resolution 0.1%
O2 Measuring Range 0 - 25%
O2 Set Point Range 0.5 - 21.0% (ambient) (21.0% Default) (2 - 21.0% when RH setpoint is above 90%)
O2 Recovery 5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type Zirconia Ceramic
Power Cord Length Foot (Meter) 8 (2.5)
Remote Alarm Terminals Standard
RH Accuracy +5% /- 3%
RH Control Method Water Pan or Evaporator Box, Depending on Model
RH Control Logic Fixed algorithm/ manual environmental adaptable
RH Control Range Ambient dependent to 95%
RH Display Resolution 0.1%
RH Evaporator Box Capacity 3L
RH Recovery 90% +5%/-3% within 25 minutes on average
RH Sensor Type Precision capacitance bulk-polymer
RH Water Pan Capacity 2L (Recommended Fill 1.5L)
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Material Stainless Steel
Shelf Width Inches (mm) 19 3/4 (502)
Shelves 4 Shelves Supplied, 20 Shelves Maximum Capacity
Shipping Weight lbs (kg) Inquire
Sterilization/Decontamination Cycle True (False on NU-5800, NU-5800E)
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)

Electrical

NU-5800 NU-5800E NU-5800E-N NU-5810 NU-5810E NU-5810E-N NU-5820 NU-5820E NU-5831 NU-5831E NU-5841 NU-5841E
Electrical Configuration 115V60Hz 230V5060Hz 230V5060Hz 115V60Hz 230V5060Hz 230V5060Hz 115V60Hz 230V5060Hz 115V60Hz 230V5060Hz 115V60Hz 230V5060Hz


General

NU-5800 NU-5800E NU-5800E-N NU-5810 NU-5810E NU-5810E-N NU-5820 NU-5820E NU-5831 NU-5831E NU-5841 NU-5841E
Safety Certification [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ]


Chamber

Copper Alloy Chamber 115V
Copper Alloy Chamber 230V
Stainless Steel Chamber 115V
Stainless Steel Chamber 230V

Inner Door

Inner Glass Door
Sectioned Inner Door

Outer Door (Right Hinge Standard)

Left Side Door Hinge

Power Cord

Euro Power Cord Option Shipping Kit
UK Power Cord Option

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
Video CO2 Incubator HEPA filtration

In-VitroCell CO2 Incubator Closed Loop HEPA Filtration

Learn More
White Paper

CO2 Incubator Buying Guide

Learn More
Warranty

CO2 Incubator Warranty

Learn More
Video NuAire CO2 incubator control system video

In-VitroCell CO2 Incubators NuTouch Electronic Control System

Learn More
Drawing

NU-5800 CO2 Incubator Cut Sheet

Learn More
Drawing

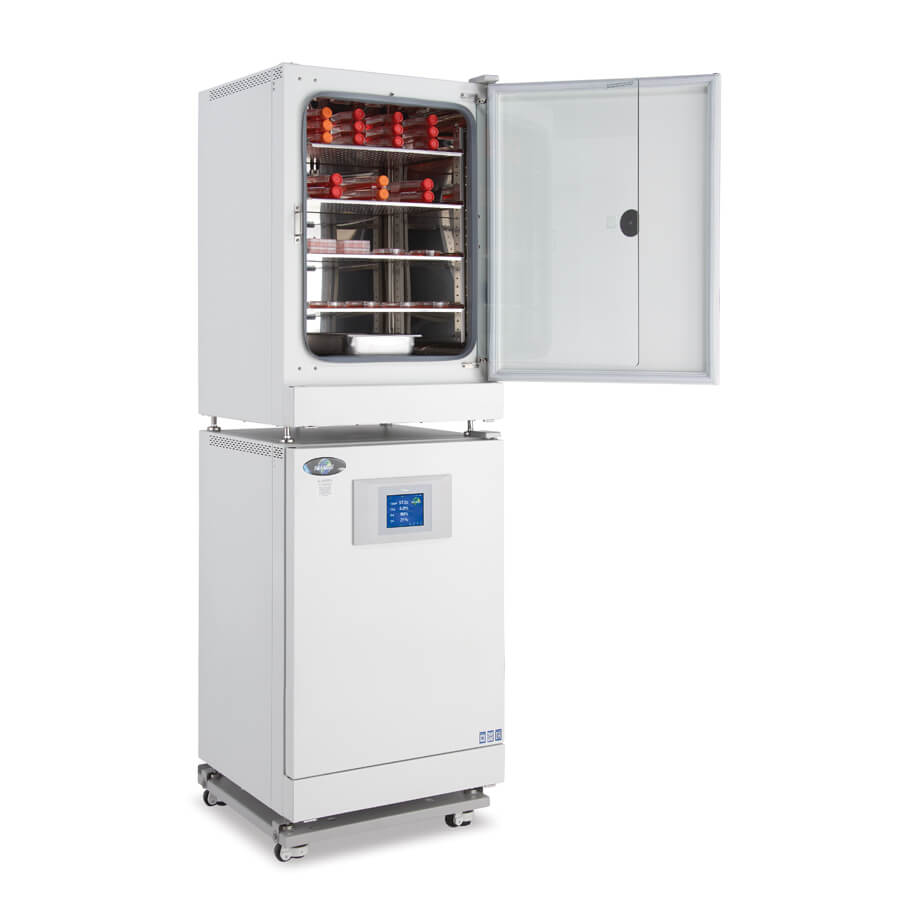

NU-5700 stacked on NU-5800 CO2 Incubator
