Blizzard HCNU-99420J
-80°C Ultralow Freezer
ERGONOMIC CHEST CONFIGURATION | ENERGY EFFICIENT HC REFRIGERANTS | VIP & POLYURETHANE FOAM INSULATED | USB DOWNLOADABLE DATA LOGGING
The Blizzard™ chest ultra-low freezer efficiently stores samples by using HC refrigerants and protects them within a structure using steel walls and composite insulation. The ergonomic design facilitates easy access, while the front electronic control panel clearly visualizes running parameters at all times and includes a USB port for long term datalogging.
Request a QuotePower for Your Lab
Products
NU-99420JE
230V 50/60Hz
NU-99420JG
220V 60Hz
Quick Specs
| 2-inch Box Capacity | 270 |
|---|---|
| Rack Capacity | 27 |
| Temperature Accuracy °C | ±1 |
| Temperature Control | Microprocessor Controller |
| Temperature Uniformity °C | ±5 |
-
Features
-
Specs
-
Options & Accessories
-
Resources
CLARITY AND EASE.

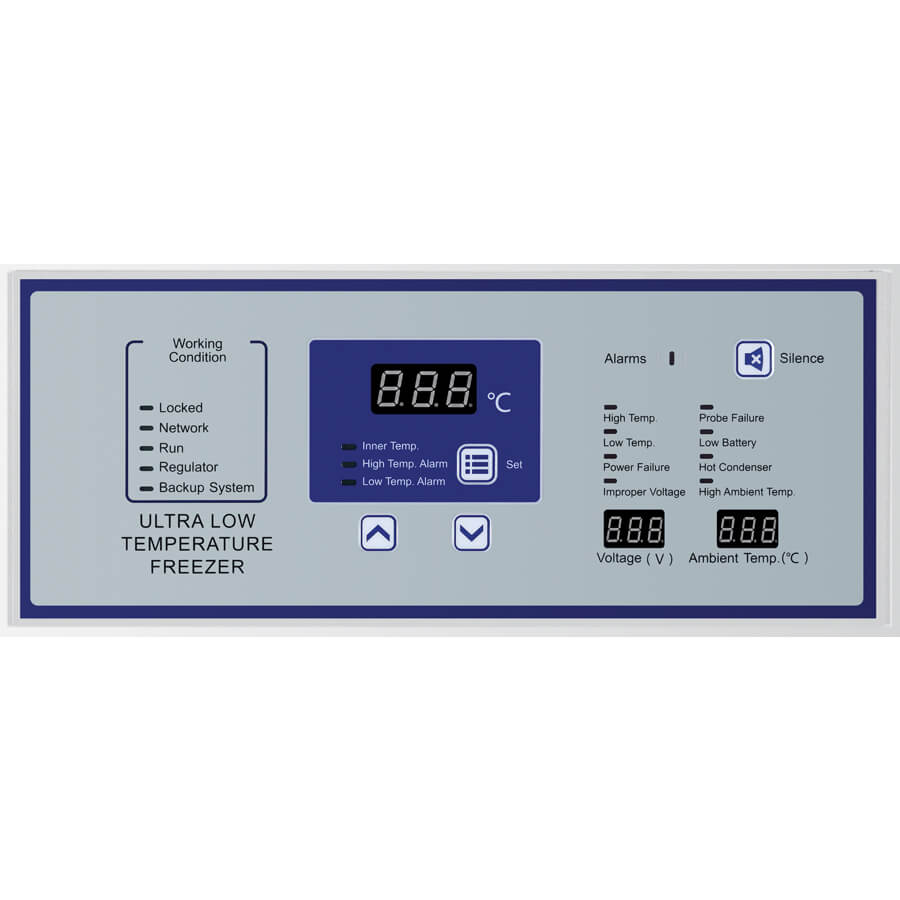

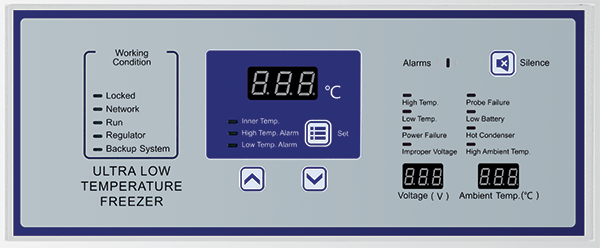

ELECTRONIC CONTROL SYSTEM
MAKING COLD STORAGE EASILY ACCESSIBLE.
ERGONOMIC CONFIGURATION
| WO | Total Width | 2130mm |
| W1 | Freezer Width | 1650mm |
| W2 | Inner Cabinet Width | 1367mm |
| HO | Total Height | 1020mm |
| H1 | Inner Cabinet Height | 702mm |
| H2 | 1st Compartment Height | 652mm |
| DO | Total Depth | 870mm |
| D1 | Inner Cabinet Depth | 462mm |
efficient and reliable cold storage.
TYPICAL PERFORMANCE
| Temperature Uniformity | +/- 5C |
| Temperature Accuracy | +/- 1C |
| Cool Down Time (25C ambient to -80C) | 240 Minutes |
| Warm Up Time (25C ambient -80C to -50C) | 150 Minutes |
| 1 Min Door Open Recovery Time (25C ambient running temp -75C) |
30 Minutes |
The NuAire© Advantage
NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.
Warranty
Backed by the Industry's Best
- 3 Years Parts & Labor (United States and Canada)
- Consult Local Distributor (Global)
Standard Features
- Temperature Range of -40°C to -86°C
- R290 and R170 Refrigerants
- Main Insulation with VIP and Polyurethane Foam
- Steel Exterior Walls
- Steel Interior Walls
- Electronic Control System
- Pass Code Protection
- Audible and Visual Alarms
- Battery Backup for Power Failure Alarm
- USB Download Port for Datalogging
| Est. Shipping Width Inches (mm) | 90 (2286) |
| 1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes | 30 |
| 2-inch Box Capacity | 270 |
| Est. Shipping Height Inches (mm) | 45 (1143) |
| Est. Shipping Depth Inches (mm) | 38 (965) |
| Access Port Location | Inquire |
| Adjustable High/Low Temperature Alarms | True |
| Alarms | Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc. |
| Ambient Temperature (°C) | 10 to 32 |
| Auto Voltage Safeguard | Included |
| Back Up Battery for Alarm Functions | High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser, and low battery alarms |
| Cabinet Thickness Inches (mm) | 5.5 (140) |
| Casters | All-direction caster with fixing stand |
| Compressor Capacity Watt | 950 |
| Compressor Type/Brand/Number | Hermetic Reciprocating Type / SECOP / 2 |
| Condenser Type | Enhanced Micro-Channel & Forced-Air Cooled |
| Cool Down Time (25°C ambient to -80°C) in Minutes | 240 |
| Data Output Features | USB, RS-232/485 |
| Defrost Method | Manual |
| Door Thickness Inches (mm) | 3.14 (80) |
| Electrical Configuration | 220V60Hz, 230V50Hz |
| Electric Protection Type | Class I |
| Evaporator Type | Cold Wall With Enhanced Heat Transfer Treatment |
| Exterior Depth Inches (mm) | 34.3 (870) |
| Exterior Depth with Door Open Inches (mm) | 68.30 (1735) [Height with Door Open; Unit is Chest Model |
| Exterior Door | Single Door |
| Exterior Door Seal | One Seal on the Outside Door |
| Exterior Height Inches (mm) | 40.2 (1020) |
| Exterior Material | Color Coating Cold Plate Steel |
| Exterior Width Inches (mm) | 83.9 (2130) |
| Fan Brand | EBM |
| Footprint Depth inches (mm) | 34.3 (870) |
| Footprint Width inches (mm) | 83.9 (2130) |
| Inner Doors | Three Solid Doors |
| Insulation | CFC Free Foaming Agent |
| Interior Depth Inches (mm) | 18.2 (462) |
| Interior Door Seal | N/A |
| Interior Height Inches (mm) | 25.7 (652) |
| Interior Material | Stainless Steel |
| Interior Volume Cubic Feet (Liters) | 14.8 (420) |
| Interior Width Inches (mm) | 53.8 (1367) |
| Leg Levelers | Inquire |
| Locking Mechanism | Inquire |
| Net Weight lbs (kg) | 682 (310) |
| Performance Standard | |
| Power Switch | On-Off with Circuit Breaker |
| Rack Capacity | 27 |
| Refrigerant Charge/Flammable | R290 in 1st Stage / R170 in 2nd Stage / Flammable |
| Refrigeration System Type | Direct cooling |
| Remote Alarm Terminals | Remote Alarm Port, RS232 / RS485 (Optional) |
| Setpoint Security | Yes |
| Shelf Capacity lbs (kg) | 110 (50) per Shelf |
| Shelf Depth Inches (mm) | N/A |
| Shelf Material | Stainless Steel |
| Shelf Width Inches (mm) | N/A |
| Shelves | 0 |
| Est. Shipping Weight lbs (kg) | 787 (357) |
| Sound Level | 49 dB(A) |
| Style | Chest |
| Temperature Accuracy °C | ±1 |
| Temperature Control | Microprocessor Controller |
| Temperature Range °C | -40 to -86 |
| Temperature Sensor Type | RTD (Pt100) |
| Temperature Uniformity °C | ±5 |
| Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes | 150 |
Electrical
| NU-99420JE | NU-99420JG | |
|---|---|---|
| Power Consumption KWh/day | 12.5 | 12.5 |
| Electrical Configuration | 230V50Hz | 220V60Hz |
| Input Power (W) | 1540 | 1540 |
| Power Cord | Grounded Three Prong Power Plug, Rated 16A | Grounded Three Prong Power Plug, Rated 16A |
| Power Cord Length Foot (Meter) | 8.2 ft (2.5m) | 8.2 ft (2.5m) |
| Rated Current (A) | 7.5 | 7.5 |
| Rated Frequency (Hz) | 230 | 60 |
| Rated Voltage (V) | 50 | 230 |
| Stable Current (A) | 7 | 7 |
Performance
| NU-99420JE | NU-99420JG | |
|---|---|---|
| Heat Rejected (BTU/Hour) | 1344 (Average) | 1344 |
