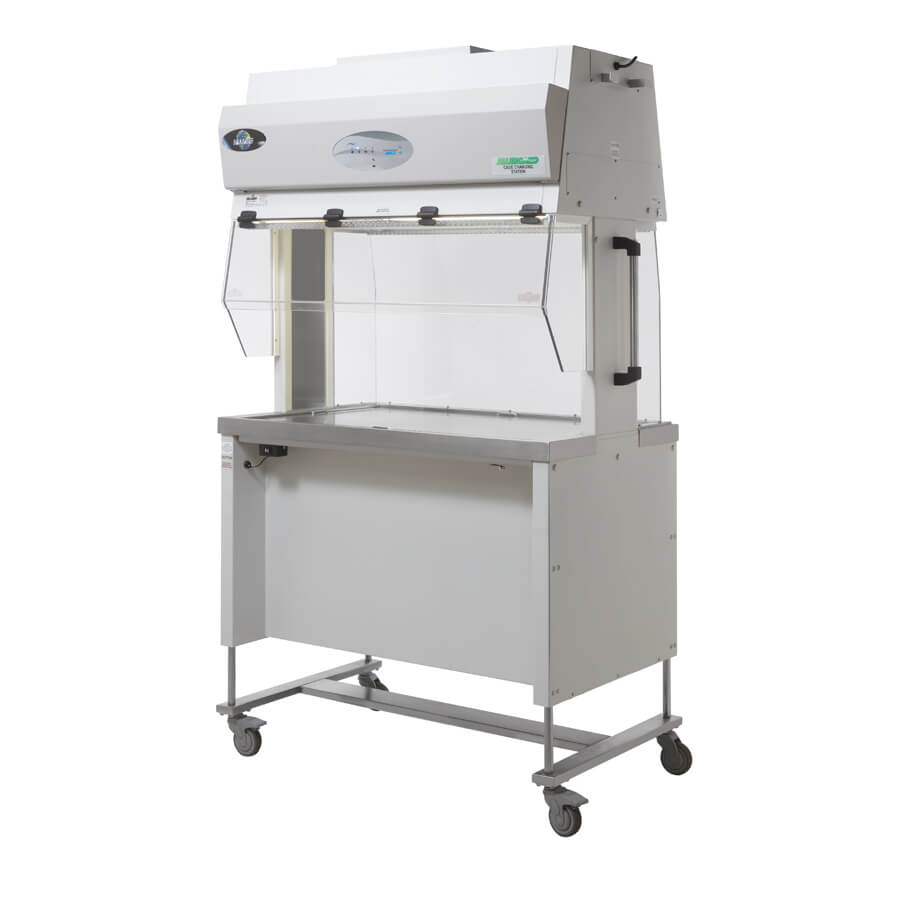

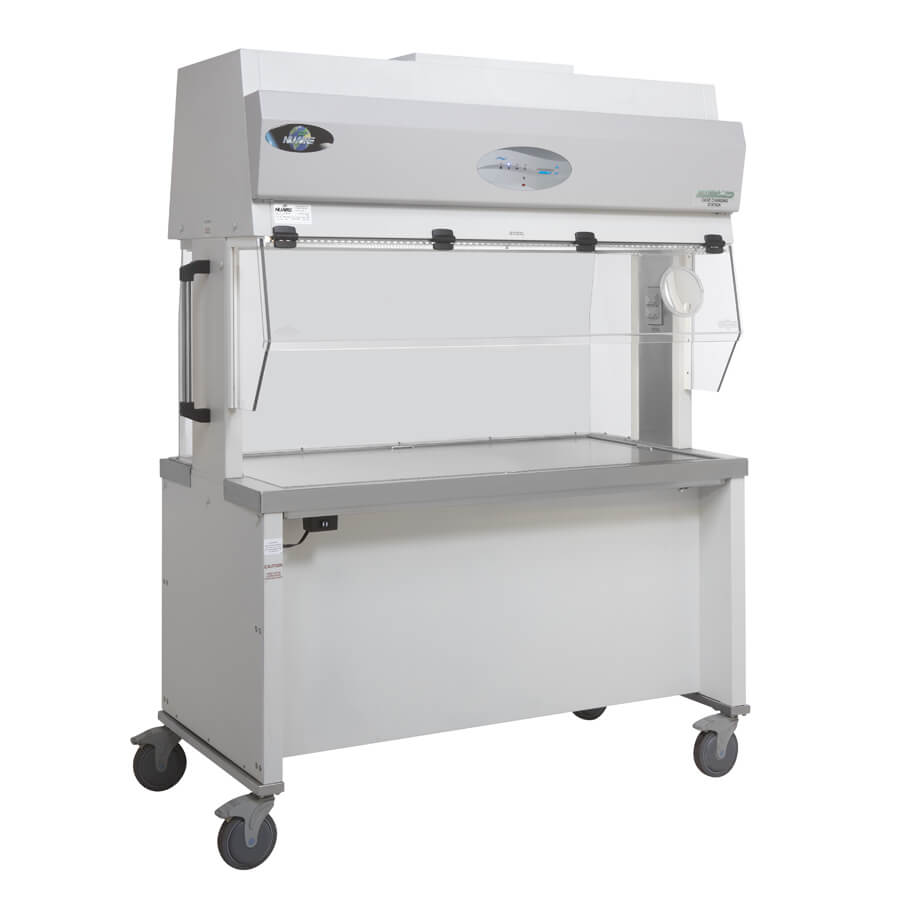

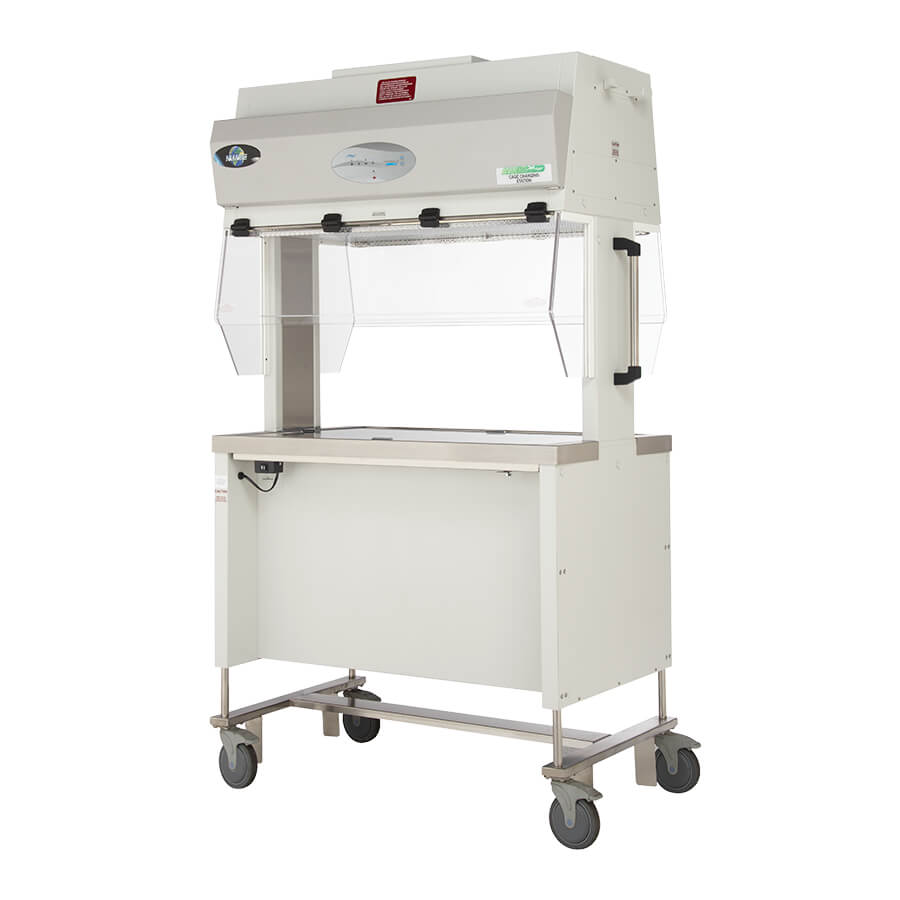

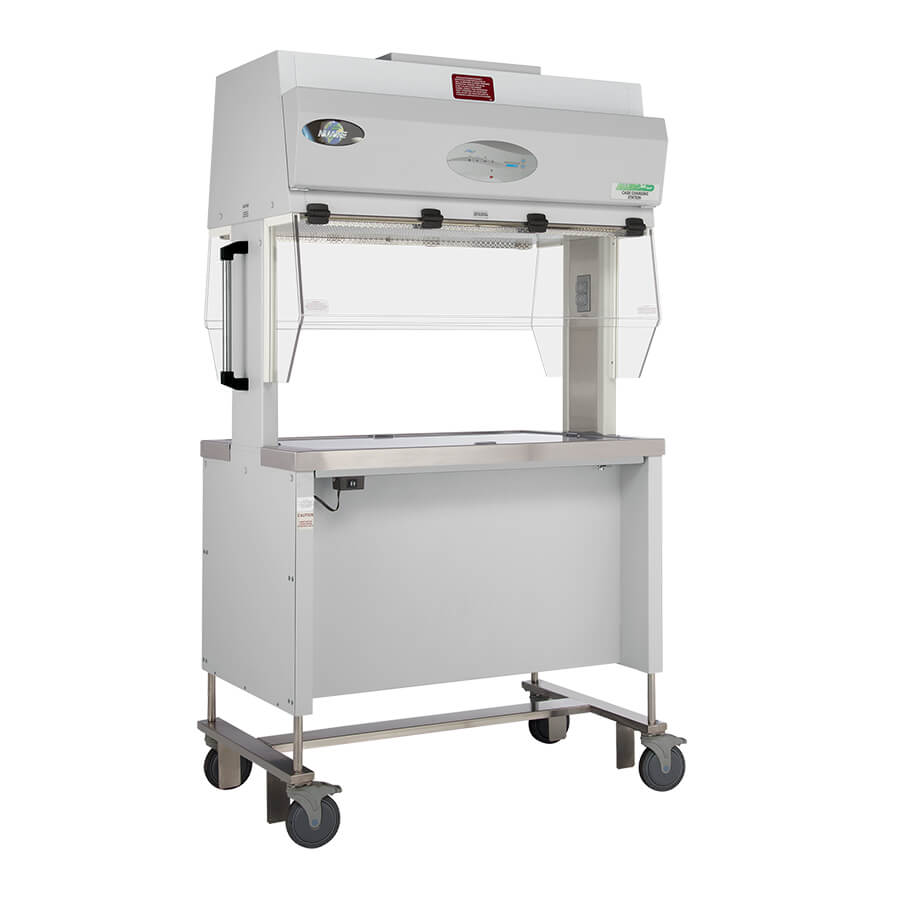

AllerGard ES NU-620 Dual Sided Animal Transfer Station

The NU-620 employs a “piston of air” design that is configurable with dual-sided access for workflows needing flexibility in tight spaces.

Overview

The AllerGard NU-620 Dual Access Animal Transfer Station (ATS) employs a “push-pull” pattern of airflow to provide clean air in the work zone for small animal cage caging and generate suction through air slots on the work surface for allergen containment. A supply impeller creates the “push” in the transfer station by drawing air through a pre-filter and then propelling it past a supply HEPA filter and toward the work zone to create a clean air environment. From there, a powerful DC ECM motor underneath the work zone will “pull” the air down through the air slots in the work surface to contain allergens. The air is then drawn past an exhaust pre-filter and pushed out an exhaust HEPA filter on the bottom of the unit. The Aeromax control system displays the performance of this “piston of air” by visualizing the plenum pressure as a series of multi-colored LED indicators. The NU-620 is designed as a dual-sided cabinet to provide flexibility to vivariums that have little room to maneuver their equipment.

Specifications

AllerGard NU-620 Animal Transfer Station
Built-in Shelf for Stand-Up Option Option
Deep Well(s) N/A
Feeder Holder(s) Option
Folding Shelf Dimensions (W x D) Option, 14-inch (355mm) x 30-inch (762mm)
Magnifying Glass in Window Optional
Motorized Base Stand Included
Outlet(s) One, Right Sidewall
Service Valves (3/8-inch NPT) N/A
Casters 4 (102), Lockable
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Metal
Exhaust Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Exhaust Prefilter Below Work Surface
HEPA Filter Seal Type Neoprene, Spring-loaded
Lighting LED
Motor(s) 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower
Plenum Type Inquire
Style Console
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14 (356)
Work Surface Stainless Steel
Est. Shipping Depth Inches (mm) 38 (965)
Est. Shipping Height Inches (mm) 75 (1905)
Est. Shipping Width Inches (mm) 52 (1321)
Exterior Depth Inches (mm) 30 5/8 (778)
Exterior Height (Fully Assembled, maximum) Inches (mm) 92 1/2 (2350)
Exterior Height (Fully Assembled, minimum) Inches (mm) 80 1/2 (2045)
Exterior Height (Minimum for Transport) Inches (mm) 75 (1905) without castors
Exterior Height Inches (mm) 80 1/2 (2045) - 92 1/2 (2350)
Exterior Width Inches (mm) 42 (1067) without sidebars
Footprint Depth inches (mm) 30 5/8 (777)
Footprint Width inches (mm) 48 (1220) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 3/4 (630)
Useable Work Tray Area Width Inches (mm) 34 3/8 (873)
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 1/2 (648)
Work Area Width Inches (mm) 36 5/8 (929)
Blower/Lights Amps 5
Electrical Configuration 115V60Hz, 230V5060Hz
Outlet Amps 3
Power Cord 15A
Power Cord Length Foot (Meter) 20 ft. (6.1 m) Cord Reel
Rated Amps 12
Light Intensity fc (Lux) Inquire
Sound Pressure Level per ISO 4871 Inquire
Safety Certification UL, UL-C
Free Standing Cage Top Holder Accessory
Hand Sanitizer Dispenser Accessory
Air Cleanliness (ISO 14644) ISO-Class-5
Downflow fpm (m/s) 60 (0.30)
Fumigation: per NIH/NSF Procedures Yes
Heat Rejected (BTU/Hour) 785
Inflow fpm (m/s) 25 (0.13)
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 480 (218)
Net Weight lbs (kg) 430 (195)
Built-in Shelf for Stand-Up Option Option
Deep Well(s) N/A
Feeder Holder(s) Option
Folding Shelf Dimensions (W x D) Option, 14-inch (355mm) x 30-inch (762mm)
Magnifying Glass in Window Optional
Motorized Base Stand Included
Outlet(s) One, Right Sidewall
Service Valves (3/8-inch NPT) N/A
Casters 4 (102), Lockable
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Metal
Exhaust Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Exhaust Prefilter Below Work Surface
HEPA Filter Seal Type Neoprene, Spring-loaded
Lighting LED
Motor(s) 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower
Plenum Type Inquire
Style Console
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14 (356)
Work Surface Stainless Steel
Est. Shipping Depth Inches (mm) 38 (965)
Est. Shipping Height Inches (mm) 75 (1905)
Est. Shipping Width Inches (mm) 52 (1321)
Exterior Depth Inches (mm) 30 5/8 (777)
Exterior Height (Fully Assembled, maximum) Inches (mm) 92 1/2 (2350)
Exterior Height (Fully Assembled, minimum) Inches (mm) 80 1/2 (2045)
Exterior Height (Minimum for Transport) Inches (mm) 75 (1905) without castors
Exterior Height Inches (mm) 80 1/2 (2045) - 92 1/2 (2350)
Exterior Width Inches (mm) 42 (1067) without sidebars
Footprint Depth inches (mm) 30 5/8 (777)
Footprint Width inches (mm) 48 (1220) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 3/4 (630)
Useable Work Tray Area Width Inches (mm) 34 3/8 (873)
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 1/2 (648)
Work Area Width Inches (mm) 36 5/8 (929)
Blower/Lights Amps 3
Electrical Configuration 115V60Hz, 230V5060Hz
Outlet Amps 3
Power Cord 15A
Power Cord Length Foot (Meter) 20 ft. (6.1 m) Cord Reel
Rated Amps 8
Light Intensity fc (Lux) Inquire
Sound Pressure Level per ISO 4871 Inquire
Safety Certification UL, UL-C
Free Standing Cage Top Holder Accessory
Hand Sanitizer Dispenser Accessory
Air Cleanliness (ISO 14644) ISO-Class-5
Downflow fpm (m/s) 60 (0.30)
Fumigation: per NIH/NSF Procedures Yes
Heat Rejected (BTU/Hour) 785
Inflow fpm (m/s) 25 (0.13)
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 480 (218)
Net Weight lbs (kg) 430 (195)
Built-in Shelf for Stand-Up Option Option
Deep Well(s) N/A
Feeder Holder(s) Option
Folding Shelf Dimensions (W x D) Option, 14-inch (355mm) x 30-inch (762mm)
Magnifying Glass in Window Optional
Motorized Base Stand Included
Outlet(s) One, Right Sidewall
Service Valves (3/8-inch NPT) N/A
Casters 4 (102), Lockable
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Metal
Exhaust Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Exhaust Prefilter Below Work Surface
HEPA Filter Seal Type Neoprene, Spring-loaded
Lighting LED
Motor(s) 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower
Plenum Type Inquire
Style Console
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14 (356)
Work Surface Stainless Steel
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 75 (1905)
Est. Shipping Width Inches (mm) 58 (1473)
Exterior Depth Inches (mm) 30 5/8 (777)
Exterior Height (Fully Assembled, maximum) Inches (mm) 92 1/2 (2350)
Exterior Height (Fully Assembled, minimum) Inches (mm) 80 1/2 (2045)
Exterior Height (Minimum for Transport) Inches (mm) 75 (1905) without castors
Exterior Height Inches (mm) 80 1/2 (2045) - 92 1/2 (2350)
Exterior Width Inches (mm) 48 (1219) without sidebars
Footprint Depth inches (mm) 30 5/8 (777)
Footprint Width inches (mm) 54 (1372) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 3/4 (630)
Useable Work Tray Area Width Inches (mm) 40 3/8 (1025)
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 1/2 (648)
Work Area Width Inches (mm) 42 5/8 (1081)
Blower/Lights Amps 5.5
Electrical Configuration 115V60Hz, 230V5060Hz
Outlet Amps 3
Power Cord 15A
Power Cord Length Foot (Meter) 20 ft. (6.1 m) Cord Reel
Rated Amps 12
Light Intensity fc (Lux) Inquire
Sound Pressure Level per ISO 4871 Inquire
Safety Certification UL, UL-C
Free Standing Cage Top Holder Accessory
Hand Sanitizer Dispenser Accessory
Air Cleanliness (ISO 14644) ISO-Class-5
Downflow fpm (m/s) 60 (0.30)
Fumigation: per NIH/NSF Procedures Yes
Heat Rejected (BTU/Hour) 785
Inflow fpm (m/s) 25 (0.13)
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 510 (231)
Net Weight lbs (kg) 460 (209)
Built-in Shelf for Stand-Up Option Option
Deep Well(s) N/A
Feeder Holder(s) Option
Folding Shelf Dimensions (W x D) Option, 14-inch (355mm) x 30-inch (762mm)
Magnifying Glass in Window Optional
Motorized Base Stand Included
Outlet(s) One, Right Sidewall
Service Valves (3/8-inch NPT) N/A
Casters 4 (102), Lockable
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Metal
Exhaust Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Exhaust Prefilter Below Work Surface
HEPA Filter Seal Type Neoprene, Spring-loaded
Lighting LED
Motor(s) 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower
Plenum Type Inquire
Style Console
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14 (356)
Work Surface Stainless Steel
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 75 (1905)
Est. Shipping Width Inches (mm) 58 (1473)
Exterior Depth Inches (mm) 30 5/8 (777)
Exterior Height (Fully Assembled, maximum) Inches (mm) 92 1/2 (2350)
Exterior Height (Fully Assembled, minimum) Inches (mm) 80 1/2 (2045)
Exterior Height (Minimum for Transport) Inches (mm) 75 (1905) without castors
Exterior Height Inches (mm) 80 1/2 (2045) - 92 1/2 (2350)
Exterior Width Inches (mm) 48 (1219) without sidebars
Footprint Depth inches (mm) 30 5/8 (777)
Footprint Width inches (mm) 54 (1372) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 3/4 (630)
Useable Work Tray Area Width Inches (mm) 40 3/8 (1025)
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 1/2 (648)
Work Area Width Inches (mm) 42 5/8 (1081)
Blower/Lights Amps 3.5
Electrical Configuration 115V60Hz, 230V5060Hz
Outlet Amps 3
Power Cord 15A
Power Cord Length Foot (Meter) 20 ft. (6.1 m) Cord Reel
Rated Amps 8
Light Intensity fc (Lux) Inquire
Sound Pressure Level per ISO 4871 Inquire
Safety Certification UL, UL-C
Free Standing Cage Top Holder Accessory
Hand Sanitizer Dispenser Accessory
Air Cleanliness (ISO 14644) ISO-Class-5
Downflow fpm (m/s) 60 (0.30)
Fumigation: per NIH/NSF Procedures Yes
Heat Rejected (BTU/Hour) 785
Inflow fpm (m/s) 25 (0.13)
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 510 (231)
Net Weight lbs (kg) 460 (209)
Built-in Shelf for Stand-Up Option Option
Deep Well(s) N/A
Feeder Holder(s) Option
Folding Shelf Dimensions (W x D) Option, 14-inch (355mm) x 30-inch (762mm)
Magnifying Glass in Window Optional
Motorized Base Stand Included
Outlet(s) One, Right Sidewall
Service Valves (3/8-inch NPT) N/A
Casters 4 (102), Lockable
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Metal
Exhaust Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Exhaust Prefilter Below Work Surface
HEPA Filter Seal Type Neoprene, Spring-loaded
Lighting LED
Motor(s) 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower
Plenum Type Inquire
Style Console
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14 (356)
Work Surface Stainless Steel
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 75 (1905)
Est. Shipping Width Inches (mm) 72 (1829)
Exterior Depth Inches (mm) 30 5/8 (777)
Exterior Height (Fully Assembled, maximum) Inches (mm) 92 1/2 (2350)
Exterior Height (Fully Assembled, minimum) Inches (mm) 80 1/2 (2045)
Exterior Height (Minimum for Transport) Inches (mm) 75 (1905) without castors
Exterior Height Inches (mm) 80 1/2 (2045) - 92 1/2 (2350)
Exterior Width Inches (mm) 60 (1524) without sidebars
Footprint Depth inches (mm) 30 5/8 (777)
Footprint Width inches (mm) 66 (1677) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 3/4 (630)
Useable Work Tray Area Width Inches (mm) 52 3/8 (1330)
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 1/2 (648)
Work Area Width Inches (mm) 54 5/8 (1387)
Blower/Lights Amps 6
Electrical Configuration 115V60Hz, 230V5060Hz
Outlet Amps 3
Power Cord 15A
Power Cord Length Foot (Meter) 20 ft. (6.1 m) Cord Reel
Rated Amps 12
Light Intensity fc (Lux) Inquire
Sound Pressure Level per ISO 4871 N/A
Safety Certification UL, UL-C
Free Standing Cage Top Holder Accessory
Hand Sanitizer Dispenser Accessory
Air Cleanliness (ISO 14644) ISO-Class-5
Downflow fpm (m/s) 60 (0.30)
Fumigation: per NIH/NSF Procedures Yes
Heat Rejected (BTU/Hour) 785
Inflow fpm (m/s) 25 (0.13)
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 580 (263)
Net Weight lbs (kg) 530 (240)
Built-in Shelf for Stand-Up Option Option
Deep Well(s) N/A
Feeder Holder(s) Option
Folding Shelf Dimensions (W x D) Option, 14-inch (355mm) x 30-inch (762mm)
Magnifying Glass in Window Optional
Motorized Base Stand Included
Outlet(s) One, Right Sidewall
Service Valves (3/8-inch NPT) N/A
Casters 4 (102), Lockable
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Diffuser Metal
Exhaust Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Exhaust Prefilter Below Work Surface
HEPA Filter Seal Type Neoprene, Spring-loaded
Lighting LED
Motor(s) 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower
Plenum Type Inquire
Style Console
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14 (356)
Work Surface Stainless Steel
Est. Shipping Depth Inches (mm) 43 (1092)
Est. Shipping Height Inches (mm) 75 (1905)
Est. Shipping Width Inches (mm) 72 (1829)
Exterior Depth Inches (mm) 30 5/8 (777)
Exterior Height (Fully Assembled, maximum) Inches (mm) 92 1/2 (2350)
Exterior Height (Fully Assembled, minimum) Inches (mm) 80 1/2 (2045)
Exterior Height (Minimum for Transport) Inches (mm) 75 (1905) without castors
Exterior Height Inches (mm) 80 1/2 (2045) - 92 1/2 (2350)
Exterior Width Inches (mm) 60 (1524) without sidebars
Footprint Depth inches (mm) 30 5/8 (777)
Footprint Width inches (mm) 66 (1677) with sidebars
Useable Work Tray Area Depth Inches (mm) 24 3/4 (630)
Useable Work Tray Area Width Inches (mm) 52 3/8 (1330)
Work Area Depth Inches (mm) 28 1/4 (718)
Work Area Height Inches (mm) 25 1/2 (648)
Work Area Width Inches (mm) 54 5/8 (1387)
Blower/Lights Amps 4
Electrical Configuration 115V60Hz, 230V5060Hz
Outlet Amps 3
Power Cord 15A
Power Cord Length Foot (Meter) 20 ft. (6.1 m) Cord Reel
Rated Amps 8
Light Intensity fc (Lux) Inquire
Sound Pressure Level per ISO 4871 Inquire
Safety Certification UL, UL-C
Free Standing Cage Top Holder Accessory
Hand Sanitizer Dispenser Accessory
Air Cleanliness (ISO 14644) ISO-Class-5
Downflow fpm (m/s) 60 (0.30)
Fumigation: per NIH/NSF Procedures Yes
Heat Rejected (BTU/Hour) 785
Inflow fpm (m/s) 25 (0.13)
Protection Product
Control System AeroMax
Est. Shipping Weight lbs (kg) 580 (263)
Net Weight lbs (kg) 530 (240)

Review

Options

  • Free Standing Cage Top Holder
  • 115V 60Hz Outlet
  • 115V Ground Fault Interrupter
  • 15A South African Outlet (Type M)
  • Australian Outlet (Type I)
  • Current UK Outlet (Type G)
  • Israel Outlet (Type H)
  • Old UK Outlet (Type D)
  • Outlet Type E (Qty 1)
  • Schuko Outlet (Type F)
  • Swiss Outlet (Type J)
  • US Standard Outlet (Type B)
  • Disposable Prefilter
  • Dual Layer Washable Prefilter
  • Automatic Hand Sanitizer with Solution
  • Automatic Hand Sanitizer-Empty Bottle
  • Hand Sanitizer Dispenser
  • Hand Sanitizer Dispenser with Foam
  • Hinged Window with Magnifying Glass
  • Hinged Window without Magnifying Glass

Request Your Quote for a NU-620

Please fill out the form below for a lab equipment quote and we'll get to work on getting you what you need. Need to talk with someone right away? Give us a call at 763-553-1270.

Thank you for completing the form.

We will be in touch. If you have any urgent questions, please reach out at 763-553-1270.

Cookies help us improve your website experience.
By using our website, you agree to our use of cookies.
Confirm
