NuWindNU-C200V
General Purpose Centrifuge

SINGLE PASS VENTILATION | EASY TO CHANGE ROTORS | TOUCH PANEL CONTROLS | SMALL LAB FOOTPRINT

The NuWind NU-C200V ventilated model features the ability to spin either swing-out or angular rotors and a special ventilation system that exhausts single pass air from the bowl and motor to the outside in order to maintain a consistent temperature. The centrifuge’s steel construction and lockable lid combine with the imbalance detection sensor to ensure safety while the Click Spin™ function allows rotors to be exchanged at the mere twist of a knob. Finally, the InSight Electronic Control Center allows easy entry of centrifugation parameters and the creation of up to 99 programs using a modern touch panel interface.

Request a Quote

A CONFIGURATION TO MEET YOUR NEEDS

The NU-C200V is offered in two electrical configurations to meet your laboratory’s needs.

Products

NU-C200V

115V, 60Hz

NU-C200V-E

230V, 50/60Hz

Quick Specs

15ml Round Bottom Tube Capacity 28 in NU-RX625 Swing-out Rotor; 12 in NU-RX400 Swing-out Rotor
50ml Conical Bottom Tube Capacity 16-20 in NU-RX625 Swing-out Rotor; 12 in NU-RX400 Swing-out Rotor; 8 in NU-RA8-50 Angle Rotor
Control System InSight
Maximum Capacity 4 x 625 ml
Maximum RCF (xg) 22,380
Maximum Speed (rpm) 15,300
Number of Programs 99
Temperature Accuracy °C Not Available
  • Features
  • Specs
  • Options & Accessories
  • Resources

CENTRIFUGATION AT THE TOUCH OF A BUTTON.

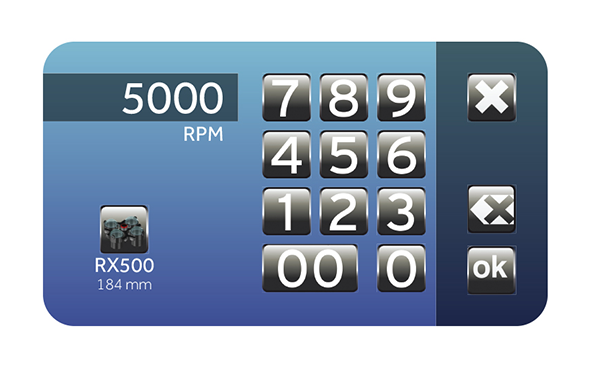

INSIGHT CONTROL CENTER

The NuWind's touch screen interface allows users to easily enter speed and time parameters for their next centrifugation run or create up to a total of 99 programs that can be reused again and again. An electronic logbook of centrifuge use and a programmable reminder to grease the equipment help ensure proactive preventive maintenance.

InSight Control Center

CHANGING ROTORS IS A SNAP...OR IN OUR CASE, A CLICK.

CLICK SPIN ROTOR EXCHANGE

You shouldn't need more than one centrifuge to spin different types of rotors and you shouldn't need to become a mechanic to trade one rotor for the other. Take advantage of the NuWind's ability to spin a wide range of both swing-out and angular rotors and exchange them by just turning a knob. Versatility is at your fingertips as you effortlessly combine the rotor, bucket, adaptors and lids that meet the needs of your specific application.
Click Spin

maintain consistent bowl temperature.

single pass air ventilation

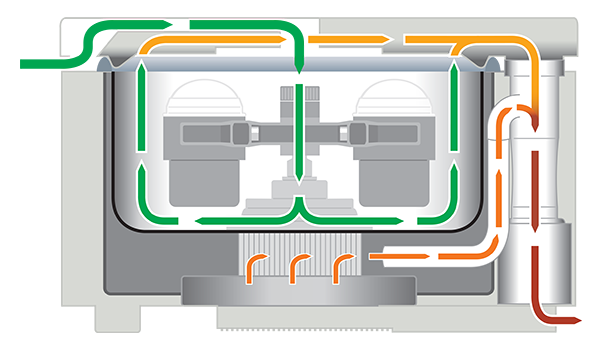

The ventilated NuWind models feature a special ventilation system whereby outside air is drawn into an opening in the centrifuge lid itself and then drawn down into the bowl to be circulated (green arrow) before being drawn back up once again into the lid and finally expelled from the centrifuge (red arrows). Similarly, hot air near the motor is expelled near the equipment's rear (orange arrows). The result is a centrifuge bowl whose temperature is kept under 37C for the proper centrifugation of the samples spun inside.

swing-out rotor tube capacity at 4500 rpm / 4256 xg

nu-rx250 swing-out rotor

 Tube Volume  1.5/2ml  5/7ml  10ml  15ml  15ml  50ml  50ml   50ml  175-225ml   400ml
 Tube Shape  Microtube  Round  Round  Round  Conical  Round  Conical  Skirted  Conical  Conical
 Tubes per Rotor  120  60  48  12  28  16  12  12-16  4  4

SWING-OUT ROTOR TUBE CAPACITY AT 4500 RPM / 4166 XG

NU-RX500 SWING-OUT ROTOR

 Tube Volume  1.5/2ml  5/7ml  10ml  15ml  15ml  50ml  50ml  175ml  225ml  350ml  625ml
 Tube Shape  Microtube  Round  Round  Round  Conical  Conical  Skirted  Conical  Conical  Flat  Flat
 Tubes per Rotor  184  92  76  28  44  16-20  20  4  4  4  4

Microplate Type Standard Microplates Deep Well Blocks
Microplates/Blocks per Rotor 16 4



MICROPLATE SWING-OUT ROTOR CAPACITY AT 4500 RPM / 3531 XG

NU-RHDW SWING-OUT ROTOR

 Plate Type  Plates per Rotor Speed
 96-Well Microplate  8  4500 RPM / 3531 xg
 96-Well "Deep Well" Plate  2  4500 RPM / 3531 xg

ANGULAR ROTOR TUBE CAPACITY AT SELECTED VELOCITIES

ASSORTED ANGULAR ROTORS

 Tube Volume  Tube Shape Tubes per Rotor Speed
 2ml  Microtubes  24  15300 RPM / 22380 xg
 2ml  Microtubes  30  15300 RPM / 25350 xg
 2ml  Microtubes  48  14000 RPM / 21720 xg
 5ml  Microtubes  16  13200 RPM / 21035 xg
 15ml   Microtubes  30  4500 RPM / 3328 xg
 50ml   Conical  8  12200 RPM / 16973 xg
 100ml    6  10700 RPM / 13568 xg

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Single Pass Air Ventilation System
  • 2L Swing-Out Rotor Capacity
  • Broad Range of Angle Rotors
  • Click Spin™ Rotor Exchange
  • Motorized Lid Lock
  • Imbalance Detection
  • Rotor Overspeed Prevention
  • Painted Steel Main Cabinet
  • Stainless Steel Bowl
  • InSight Electronic Control Center with touch panel
  • Power Factor Control Smooths Input Current
100ml Tube Capacity 6 in NU-RA6-100 Angle Rotor
10ml Round Bottom Tube Capacity 76 in NU-RX625 Swing-out Rotor; 48 in NU-RX400 Swing-out Rotor;
14ml Tube Capacity N/A
15ml Conical Bottom Tube Capacity 44 in NU-RX625 Swing-out Rotor; 28 in NU-RX400 Swing-out Rotor
15ml Micro Tube Capacity 30 in NU-RA30-15 Angle Rotor
15ml Round Bottom Tube Capacity 28 in NU-RX625 Swing-out Rotor; 12 in NU-RX400 Swing-out Rotor
175ml Conical Bottom Bottle Capacity 4 in NU-RX625 Swing-out Rotor; 4 in NU-RX400 Swing-out Rotor
225ml Conical Bottom Bottle Capacity 4 in NU-RX625 Swing-out Rotor; 4 in NU-RX400 Swing-out Rotor
250ml Conical Bottom Bottle Capacity N/A
290ml Flat Bottom Bottle Capacity N/A
30ml Skirted Conical Tube Capacity N/A
350ml Flat Bottom Bottle Capacity 4 in NU-RX625 Swing-out Rotor
400ml Conical Bottom Bottle Capacity 4 in NU-RX400 Swing-out Rotor;
500ml Flat Bottom Bottle Capacity N/A
50ml Round Bottom Tube Capacity 16 in NU-RX400 Swing-out Rotor;
50ml Skirted Bottom Tube Capacity 20 in NU-RX625 Swing-out Rotor; 12-16 in NU-RX400 Swing-out Rotor
50ml Conical Bottom Tube Capacity 16-20 in NU-RX625 Swing-out Rotor; 12 in NU-RX400 Swing-out Rotor; 8 in NU-RA8-50 Angle Rotor
5ml Micro Tube Capacity 16 in NU-RA16-5 Angle Rotor
5-7ml Round Bottom Tube Capacity 92 in NU-RX625 Swing-out Rotor; 60 in NU-RX400 Swing-out Rotor;
625ml Flat Bottom Bottle Capacity 4 in NU-RX625 Swing-out Rotor
750ml Flat Bottom Bottle Capacity N/A
Acceleration Slopes 9
Ambient Operating Temperature (°C) 20 ± 2
Braking Slopes 10
Construction Painted Steel Main Cabinet, and Stainless Steel Bowl
Control System InSight
Deep Well Blocks Capacity 4 in NU-RX625 Swing-out Rotor; 2 in NU-RHDW Rotor;
Electrical Configuration 115V50Hz, 230V50Hz
Environment Altitude 6562 Feet (2000 meters) above sea level
Environment Humidity Maximum relative humidity 80% for temperatures up to 31⁰C decreasing linearly to 50% relative humidity at 40⁰C
Environment Temperature Range 60⁰F - 85⁰F (15⁰C - 30⁰C)
Exterior Depth Inches (mm) 22 (604)
Exterior Height Inches (mm) 13.75 (347)
Exterior Width Inches (mm) 18 (457)
Footprint Depth inches (mm) 22" (604mm)
Footprint Width inches (mm) 18.1" (457mm)
For indoor use only True
Heat Rejected (BTU/Hour) 3071
Imbalance Detection Sensor Standard
Maximum Capacity 4 x 625 ml
Maximum RCF (xg) 22,380
Maximum Speed (rpm) 15,300
Standard Microplates Capacity 16 in NU-RX625 Swing-out Rotor; 8 in NU-RHDW Rotor;
1.5-2.0ml Micro Tube Capacity 184 in NU-RX625 Swing-out Rotor; 120 in NU-RX400 Swing-out Rotor; 48 in NU-RA48-2 Angle Rotor; 30 in NU-RA30-2 Angle Rotor; 24 in NU-RA24-2 Angle Rotor;
Motorized Lid Lock Standard
Net Weight lbs (kg) 156 (71)
Number of Programs 99
Optimal Refrigeration Settings Not Available
Power Consumption 22380
Power Cord Length Foot (Meter) Inquire
Refrigerant Not Available
Refrigerant Charge Not Available
Rotor Speed Control Standard
Shipping Dimensions 19.8" (500mm) x 23.8" (600mm) x 31.7" (800mm) H x W x D
Shipping Weight lbs (kg) 191 (87)
Sound Level ≤ 60 dB(A)
Speed Control Precision RPM ± 10
Style Bench Top
Temperature Accuracy °C Not Available
Temperature Control Range Not Available

Electrical

NU-C200V NU-C200V-E
Electrical Configuration 115V60Hz 230V5060Hz
Nominal Intensity 8.5 A 4 A
