ProGardNU-17
Base Cabinet Polypropylene Casework

The ProGard NU-17 Combination 7-Drawer Casework provides rust free storage in water treatment and waste management facilities or can be used in any type of corrosive laboratory.

Request a Quote

Designed to Meet Your Application

ProGard casework is available in standard and custom sizes to outfit your laboratory.

Products

NU-17-3630

36 x 22 x 29 in. (914 x 559 x 737 mm)

NU-17-3636

36 x 22 x 35 in. (914 x 559 x 889 mm)

NU-17-4230

42 x 22 x 29 in. (1067 x 559 x 737 mm)

NU-17-4236

42 x 22 x 35 in. (1067 x 559 x 889 mm)

NU-17-4830

48 x 22 x 29 in. (1219 x 559 x 737 mm)

NU-17-4836

48 x 22 x 35 in. (1219 x 559 x 889 mm)

Quick Specs

  • Features
  • Specs
  • Options & Accessories
  • Resources

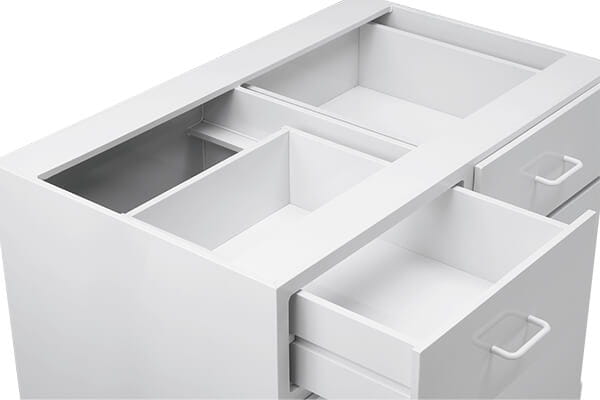

Polypropylene cabinet with drawer interior construction.

Easy Glide

Drawer Cabinet Construction

ProGard base cabinet with drawers features 3-inch (77 mm) x 0.5-inch (13 mm) front and rear full-length stretchers for added stability. The side of the cabinet has fully welded drawer lids rails for maximum support. A fully welded partition for multiple draws case provides added strength and a 0.5-inch (13 mm) reveal around all drawers to easy drawer movement.

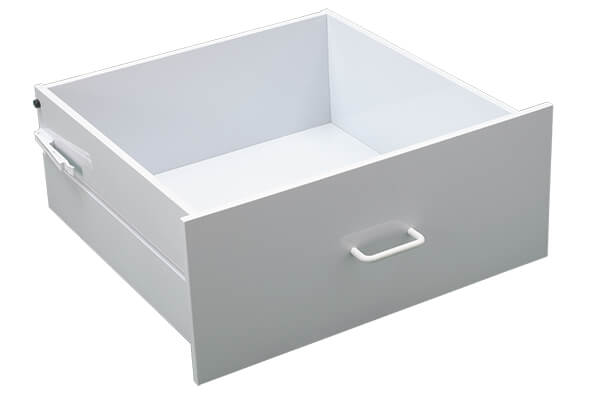

Polypropylene drawer

Easy Cleaning

Drawer Construction

Interior seams are cemented and tacked to form smooth, easily cleanable interior corners. Sides are bolted (0.25-inch x 20, PVC hex head) to the rear panel for added strength. The front is fully seam welded to the sides and bottom. Wire pulls handles are molded polypropylene fastened by PTFE coated screws.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 1 Year Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Fully Seam Welded Interior
  • Fully Welded Drawer Glide Rails
  • 0.5-inch (13 mm) Reveal Around Drawers
  • Pre-Drilled & Counter-Bored Holes for Installation
  • 4-inch (102) High, 3-inch (77 mm) Deep Toe Kick
  • Molded Wire Pull Handled with PTFE Coated Screws

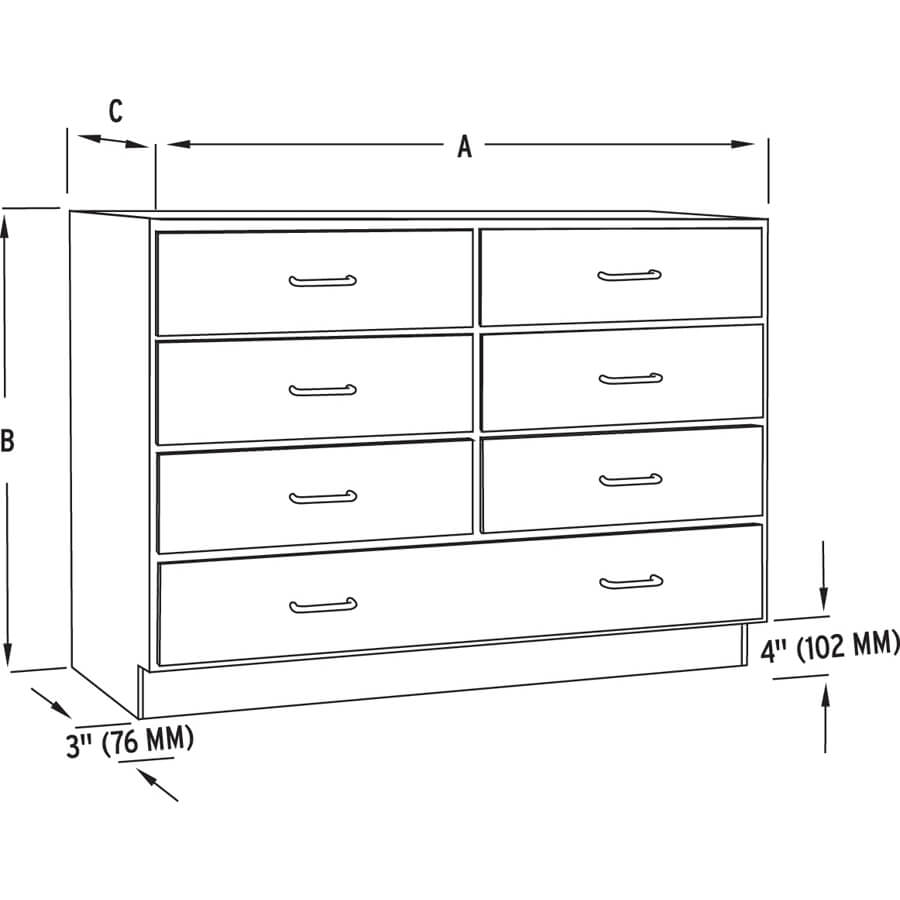

Dimensions

NU-17-3630 NU-17-3636 NU-17-4230 NU-17-4236 NU-17-4830 NU-17-4836
Est. Shipping Width Inches (mm)
Est. Shipping Height Inches (mm)
Est. Shipping Depth Inches (mm)
Exterior Depth Inches (mm) 22” (559) 22 (559) 22 (559) 22 (559) 22 (559) 22 (559)
Exterior Height Inches (mm) 29 (737) 35 (889) 29 (737) 35 (889) 29 (737) 35 (889)
Exterior Width Inches (mm) 36 (914) 36 (914) 42 (1067) 42 (1067) 48 (1219) 48 (1219)


Weight

NU-17-3630 NU-17-3636 NU-17-4230 NU-17-4236 NU-17-4830 NU-17-4836
Est. Shipping Weight lbs (kg)


NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
Brochure

Polypropylene Laboratory Equipment

Download the brochure
Warranty

Polypropylene Fume Hoods and Casework Warranty

View the warranty
Specification

Polypropylene Casework

View the specification
