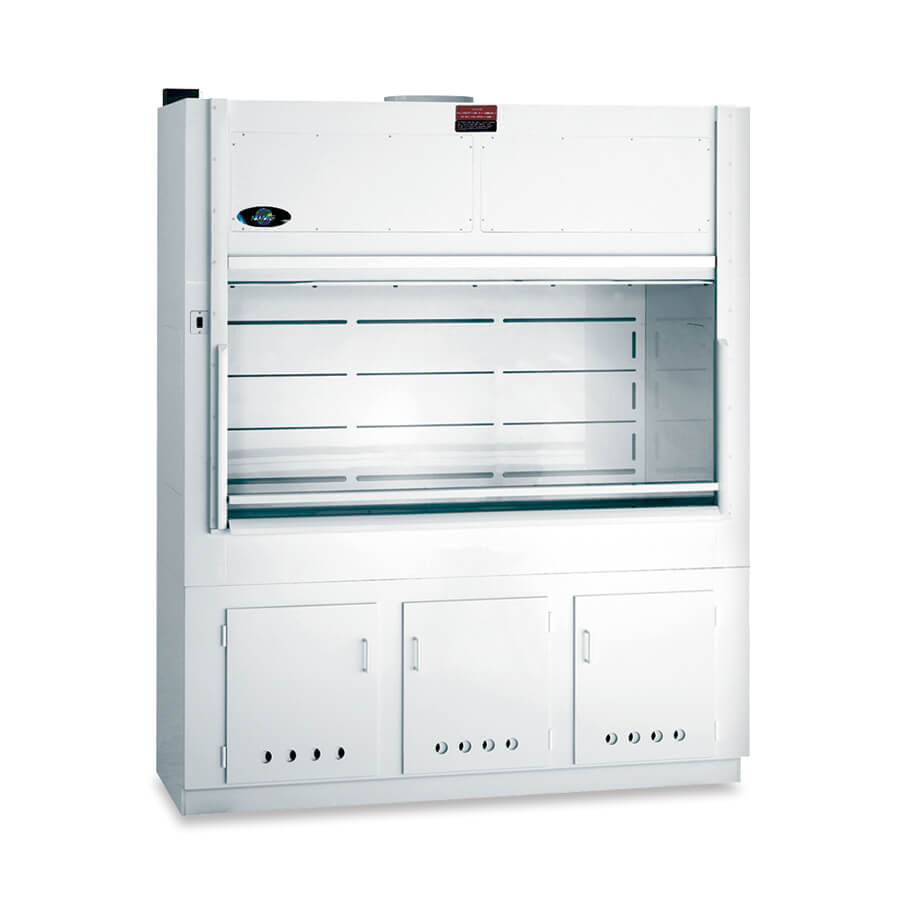

FumeGardNU-162
Conventional Polypropylene Fume Hood

CONVENTIONAL AIRFLOW PATTERN | TESTED TO ASHRAE 110-2016 | POLYPROPYLENE CONSTRUCTION | CONFIGURABLE AND CUSTOMIZABLE

The NU-162 combines the protection of a traditional fume hood with the corrosion-resistant properties of polypropylene to meet the needs of laboratories performing procedures with specialized demands. Laboratories working in high acid environments, in the fields of trace metal analysis, materials analysis, toxicology, semi-conductor development, prototyping, production, etching and plating operations may benefit from a fume hood constructed of stress-relieved white polypropylene instead of metal materials. While the basis of design is engineered to meet the performance requirements of ASHRAE 110-2016, this model can be built in multiple widths and depths and configured for a specific application’s needs.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The FumeGard™ NU-162 is available in four nominal widths, each with your choice of two depths.

Products

NU-162-424

Nominal 4-foot (1.2 m)
Filter Depth 24-inches (610 mm)

NU-162-430

Nominal 4-foot (1.2 m)
Filter Depth 30-inches (762 mm)

NU-162-524

Nominal 5-foot (1.5 m)
Filter Depth 24-inches (610 mm)

NU-162-530

Nominal 5-foot (1.5 m)
Filter Depth 30-inches (762 mm)

NU-162-624

Nominal 6-foot (1.8 m)
Filter Depth 24-inches (610 mm)

NU-162-630

Nominal 6-foot (1.8 m)
Filter Depth 30-inches (762 mm)

NU-162-824

Nominal 8-foot (2.4 m)
Filter Depth 24-inches (610 mm)

NU-162-830

Nominal 8-foot (2.4 m)
Filter Depth 30-inches (762 mm)

Quick Specs

Air Cleanliness (ISO 14644)
Downflow fpm (m/s) N/A
Work Access Opening(s) 18 inch (457mm)
  • Features
  • Specs
  • Options & Accessories
  • Resources

tried and true.

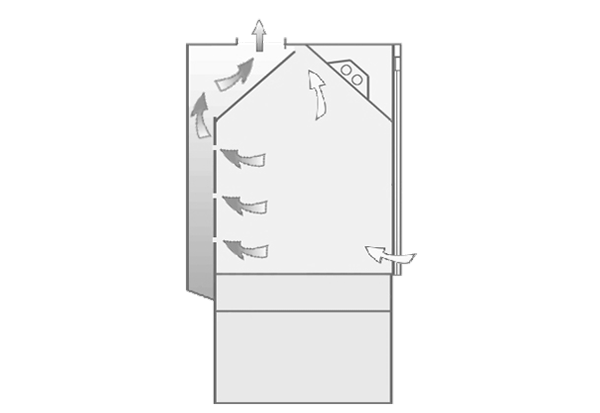

conventional airflow pattern

The NU-162 comes with a standard 18-inch (457mm) access opening that allows the fume hood to create a robust 100 FPM (0.51 m/s) inflow when connected to an appropriate external and provide personnel protection.

COMBINE THE NOMINAL WIDTH AND SURFACE DEPTH OF YOUR CHOICE.

AVAILABLE SIZE CONFIGURATIONS

 MODEL

 NOMINAL WIDTH

WORK SURFACE DEPTH

 NU-162-424  4 ft. (1.2m)  25.5 in (648mm)
 NU-162-430  4 ft. (1.2m)  31.5 in (800mm)
 NU-162-524  5 ft. (1.5m)  25.5 in (648mm)
 NU-162-530  5 ft. (1.5m)  31.5 in (800mm)
 NU-162-624  6 ft. (1.8m)  25.5 in (648mm)
 NU-162-630  6 ft. (1.8m)  31.5 in (800mm)
 NU-162-824  8 ft. (2.4m)  25.5 in (648mm)
 NU-162-830  8 ft. (2.4m)  31.5 in (800mm)

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 1 Year Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Seam Welded Polypropylene Construction
  • 18-inch (457mm) Access Opening
  • Sliding Sash
  • Double Wall Construction for Plumbing Chase
  • LED Lighting
  • Tested to ASHRAE 110-2016
Air Cleanliness (ISO 14644)
Armrest Removable Polypropylene Airfoil
Construction Polypropylene
Diffuser N/A; Removable Rear Baffle Panel with Air Slots
Downflow fpm (m/s) N/A
Electrical Configuration 115V60Hz, 230V50Hz
Inflow fpm (m/s) 100 FPM (0.51 m/s)
Lighting LED
Light Intensity fc (Lux) 100 fc (1076 lux)
Motor(s) N/A
Performance Standard ANSI-ASHRAE
Plenum Type Inquire
Power Cord Length Foot (Meter) Inquire
Safety Certification
Style Benchtop
Supply Filter N/A
Supply Prefilter N/A
Window Opening Max Inches (mm) 18 inch (457)
Work Access Opening(s) 18 inch (457mm)
Work Surface Polypropylene

Dimensions

NU-162-424 NU-162-430 NU-162-524 NU-162-530 NU-162-624 NU-162-630 NU-162-824 NU-162-830
Est. Shipping Width Inches (mm) 53 (1346) 65 (1651) 77 (1956)
Est. Shipping Height Inches (mm) 73 (1854) 73 (1854) 73 (1854)
Est. Shipping Depth Inches (mm) 43 (1092) 43 (1092) 43 (1092)
Exterior Depth Inches (mm) 31 1/2 (800) 37 1/2 (953) 31 1/2 (800) 37 1/2 (953) 31 1/2 (800) 37 1/2 (953) 31 1/2 (800) 37 1/2 (953)
Exterior Height Inches (mm) 60 1/2 (1537) 60 1/2 (1537) 60 1/2 (1537) 60 1/2 (1537) 60 1/2 (1537) 60 1/2 (1537) 60 1/2 (1537) 60 1/2 (1537)
Exterior Width Inches (mm) 48 1/2 (1232) 48 1/2 (1232) 60 1/2 (1536) 60 1/2 (1536) 72 1/2 (1842) 72 1/2 (1842) 96 1/2 (2451) 96 1/2 (2451)
Footprint Depth inches (mm) 31 1/2 (800) 37 1/2 (953) 31 1/2 (800) 37 1/2 (953) 31 1/2 (800) 37 1/2 (953) 31 1/2 (800) 37 1/2 (953)
Footprint Width inches (mm) 48 1/2 (1232) 48 1/2 (1232) 60 1/2 (1536) 60 1/2 (1536) 72 1/2 (1842) 72 1/2 (1842) 96 1/2 (2451) 96 1/2 (2451)
Work Area Depth Inches (mm) 25 1/2 (648) 31 1/2 (800) 25 1/2 (648) 31 1/2 (800) 25 1/2 (648) 31 1/2 (800) 25 1/2 (648) 31 1/2 (800)
Work Area Height Inches (mm) 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak 34 (864) Average; 48 (1219) Peak
Work Area Width Inches (mm) 38 1/2 (978) 38 1/2 (978) 50 1/2 (1283) 50 1/2 (1283) 62 1/2 (1588) 62 1/2 (1588) 86 1/2 (2197) 86 1/2 (2197)


Exhaust

NU-162-424 NU-162-430 NU-162-524 NU-162-530 NU-162-624 NU-162-630 NU-162-824 NU-162-830
Duct Opening 12-inch (305mm) 12-inch (305mm) 12-inch (305mm) 12-inch (305mm) 12-inch (305mm) 12-inch (305mm) 12-inch (305mm) 12-inch (305mm)
Exhaust Air CFM (CMH) 481 (818) 481 (818) 631 (1073) 631 (1073) 781 (1328) 781 (1328) 1081 (1838) 1081 (1838)
Inflow Air CFM (CMH) 481 (818) 481 (818) 631 (1072) 631 (1072) 781 (1328) 781 (1328) 1081 (1838) 1081 (1838)
Makeup Air Requirements CFM (CMH) 481 (818) 481 (818) 631 (1073) 631 (1073) 781 (1328) 781 (1328) 1081 (1838) 1081 (1838)
Plant Duct Static Pressure Inches (mm) 0.8" (20mm) w.g. 0.8" (20mm) w.g. 0.8" (20mm) w.g. 0.8" (20mm) w.g. 0.8" (20mm) w.g. 0.8" (20mm) w.g. 1.5" (38mm) w.g. 1.5" (38mm) w.g.
Supply Air CFM (CMH) 481 (818) 481 (818) 631 (1072) 631 (1072) 781 (1328) 781 (1328) 1081 (1838) 1081 (1838)


Electrical

NU-162-424 NU-162-430 NU-162-524 NU-162-530 NU-162-624 NU-162-630 NU-162-824 NU-162-830
Electrical Configuration 115V60Hz 115V60Hz 115V60Hz 115V60Hz 115V60Hz 115V60Hz 115V60Hz


Weight

NU-162-424 NU-162-430 NU-162-524 NU-162-530 NU-162-624 NU-162-630 NU-162-824 NU-162-830
Net Weight lbs (kg) Inquire Inquire Inquire Inquire N/A Inquire Inquire Inquire
Est. Shipping Weight lbs (kg) Estimated 590 lbs (268 kgs) Inquire Estimated 500 lbs (227 kgs) Inquire Estimated 351 lbs (159 kgs) Inquire Inquire Inquire


Ergonomics

NU-162-424 NU-162-430 NU-162-524 NU-162-530 NU-162-624 NU-162-630 NU-162-824 NU-162-830
Sound Pressure Level per ISO 4871 Inquire Inquire Inquire Inquire N/A Inquire Inquire Inquire


NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
Brochure

Polypropylene Laboratory Equipment

Download the brochure
Warranty

Polypropylene Fume Hoods and Casework Warranty

View the warranty
Specification

Polypropylene Fume Hood NU-162 Specification

View the specification
Manuals

NU-156 and NU-156E Manual

Read the manual
Manuals

NU-162 and NU-164 Manual

Read the manual
