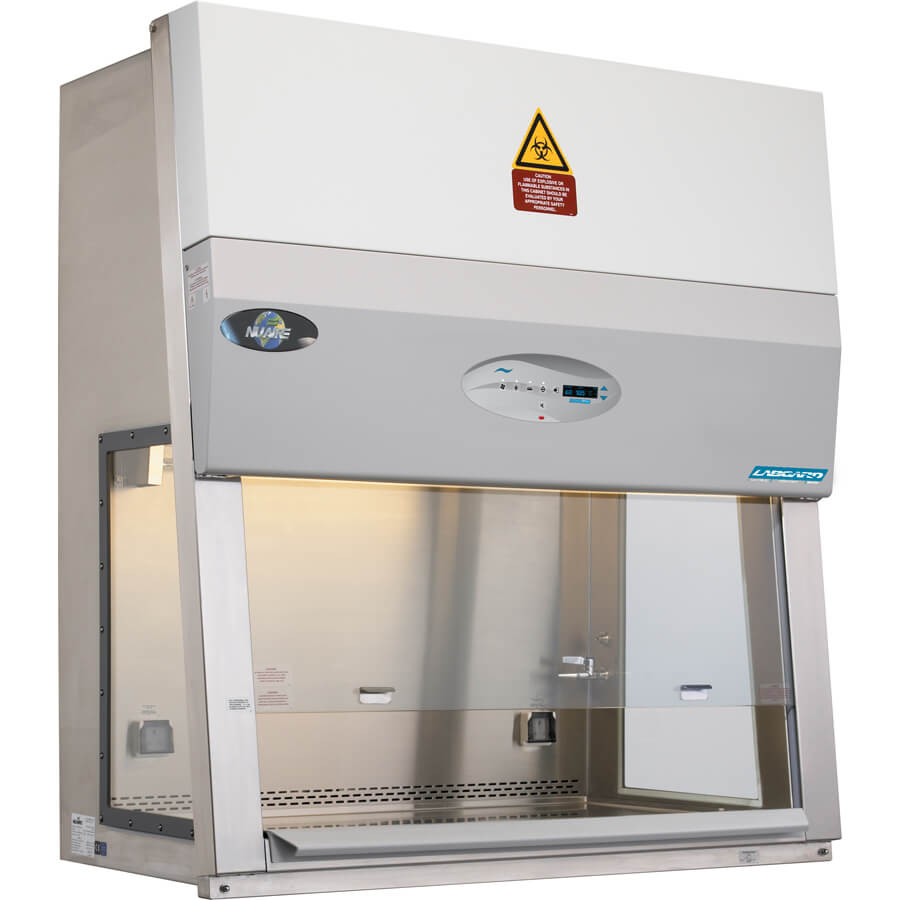

LabGard ES AIRNU-543
Class II Type A2 Biosafety Cabinet

AIRFLOW VELOCITY DISPLAY | 3 NSF LISTED ACCESS HEIGHTS | OPTIONAL SMOOTH INTERIOR | NSF/ANSI 49 & EN 12469 MODELS

The NU-543 carries the LabGard® value proposition across the boundaries of geography and scientific applications by offering the broadest choice of configurations. This model features a dual thermistor airflow sensor and alphanumeric display for laboratories requiring a clear measurement of their cabinet’s performance and a choice of three NSF listed work access openings for procedures needing ergonomic access to the work zone. The cabinet can optionally be made with a smooth interior for procedures such as pharmacy compounding and always includes a prop up work tray to ease regular cleaning under the work surface. Double exhaust filters can be fitted to meet the requirements of an application or national guidelines. A truly global product, models are available that meet NSF/ANSI 49 and EN 12469, feature multilingual displays, and can ship from multiple locations around the world. * *Some options and configurations are only available from North America. Consult NuAire for details.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The LabGard® model NU-543 is available in four different sizes to meet the needs of your laboratory space and application.

Products

NU-543-300

Nominal 3-foot (0.9 m)

NU-543-400

Nominal 4-foot (1.2 m)

NU-543-500

Nominal 5-foot (1.5 m)

NU-543-600

Nominal 6-foot (1.8 m)

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Monitor SingleAirflowSensor
Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design
Control System FlowGard
Downflow fpm (m/s) 60 fpm (0.30 m/s)
Protection [, Product, Personnel, Environmental]
Work Access Opening(s) 8, 10, 12-inches (203, 254, 305 mm)
  • Features
  • Specs
  • Options & Accessories
  • Resources
  • Citations


A versatile solution for microbiology and pharmacy applications.

Experience Unparalleled Safety & Flexibility

Experience a triple layer of protection for personal, product, and environmental safety, backed by a comprehensive warranty. This cabinet has a sleek stainless steel design, an easy-to-clean work surface, and an advanced FlowGard control panel, and it caters to all your lab needs. Choose from four sizes and customize to meet global industry standards. Trust NuAire for a safer, more efficient laboratory experience.

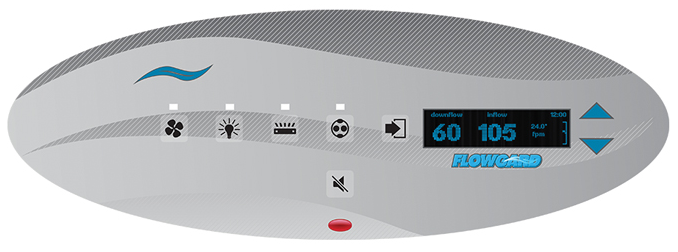

FlowGard Electronic Controls System for Laboratory Equipment

It speaks your language

FlowGard Control System

The FlowGard control system calculates inflow velocity based on the data received from the exhaust airflow sensor and displays it on the front screen. Alphanumeric readouts, nearby membrane buttons, and a choice of 6 world languages all make navigating this system's user and service menus easy.

Choose from 3 access opening heights on a NU-543 Biosafety Cabinet.

Ergonomically Advanced

Choice of 3 Access Openings

A choice of 8, 10, and 12 inch (203, 254, and 305mm) work access openings that are NSF approved allow the user to configure their biosafety cabinet for their specific application while remaining confident of certified containment.

Biosafety Cabinet smooth interior for cleanability.

No Frills Cleanability

Smooth Interior Option

The side and back walls made from one piece of steel already make routine wipe down easy. Go one step further and remove the work zone outlets and service valves to create the ultimate easy to clean steel surface appropriate for applications such as sterile drug compounding.

TAKE MORE THAN JUST OUR WORD FOR IT.

COMPLIANCE TO BIOSAFETY CABINET STANDARDS

Americas: 115V/60Hz (No Suffix) & 230V/50-60Hz (E Suffix)

 MODEL

 ACCESS OPENING

 NSF/ANSI 49

 EN 12469

 NU-543-300   8 in (203mm)  √
 NU-543-300  10 in (254mm)  √
 NU-543-300E  10 in (254mm)  √  √
 NU-543-300  12 in (305mm)  √
 NU-543-400   8 in (203mm)  √
 NU-543-400  10 in (254mm)  √
 NU-543-400E  10 in (254mm)  √  √
 NU-543-400  12 in (305mm)  √
 NU-543-500   8 in (203mm)  √
 NU-543-500  10 in (254mm)  √
 NU-543-500E  10 in (254mm)  √  √
 NU-543-500  12 in (305mm)  √
 NU-543-600   8 in (203mm)  √
 NU-543-600  10 in (254mm)  √
 NU-543-600E  10 in (254mm)  √  √
 NU-543-600  12 in (305mm)  √


Asia: 100V/50-60Hz (J Suffix) & 115V/60Hz (K Suffix) & 230V/50-60Hz (S Suffix)

 MODEL

 ACCESS OPENING

 NSF/ANSI 49

 EN 12469

 NU-543-300J
 NU-543-300K
 10 in (254mm)  √
 NU-543-300S  10 in (254mm)  √  √
 NU-543-400J
 NU-543-400K
 10 in (254mm)  √
 NU-543-400S  10 in (254mm)  √  √
 NU-543-500J
 NU-543-500K
 10 in (254mm)  √
 NU-543-500S  10 in (254mm)  √  √
 NU-543-600J
 NU-543-600K
 10 in (254mm)  √
 NU-543-600S  10 in (254mm)  √  √



NuAire NSF/ANSI 49 Listings

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 5 Years Parts (Filters Included) and Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Single DC ECM Motor
  • Flexible HEPEX™ Plenum
  • Nite Care Mode
  • Single Piece Stainless Steel Work Zone Side & Back Walls
  • Stainless Steel Dished Work Surface
  • Cord Pass Through on Right Side
  • 10-inch (254mm) Work Access Opening
  • PVC Armrest
  • Two Outlets on Back Wall
  • One Service Valve
  • Three Service Couplings
  • Exhaust Airflow Sensor
  • Multilingual FlowGard™ Control Panel
  • Prop Up Work Tray
  • Shipped from North America, Europe, or Asia*
  • *Some options and configurations only available from North America
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Monitor SingleAirflowSensor
Bag In Bag Out N/A
Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design
Casters N/A
Control System FlowGard
Cord Pass Through Standard Right
Data Output Features RS-232
Decontamination Seal-able Window N/A
Diffuser Metal, non-flammable
Downflow fpm (m/s) 60 fpm (0.30 m/s)
Drain Valve Location Front right
Electrical Configuration 100V5060Hz, 115V60Hz, 230V5060Hz
Front & Control Panel Material Painted Steel
Fumigation: per NIH/NSF Procedures True
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Inflow fpm (m/s) 105 fpm (0.53 m/s)
IV Bar with 6 Hooks Optional
Light Intensity fc (Lux) 90-120 (968-1291)
Motorized Base Stand Optional as Separate Accessory
Motorized Window N/A
Other Built-in Exhaust Option(s) N/A
Other Built-in Supply Filter Option(s) N/A
Outlet(s) Standard, two backwall
Performance Standard NSF-ANSI-49, EN-12469
Plenum Type HEPEX
Power Cord Length Foot (Meter) 12 (3.7)
Pre-filter N/A
Protection Product, Personnel, Environmental
Reach into workzone Inches (mm) 6 (152)
Remote Alarm Terminals Standard
Safety Certification UL, UL-C
Style Bench top, optional base stand
Ultraviolet (UV) Light Optional, Backwall
Viewing Window Inches (mm) 21 (533) open to fully closed
Work Access Opening(s) 8, 10, 12-inches (203, 254, 305 mm)
Work Surface One-Piece Dished Stainless Steel with Prop-Up Rod

Dimensions

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Est. Shipping Width Inches (mm) 46 (1168) 46 (1168) 49.2 (1250mm) 49.2 (1250mm) 49.2 (1250mm) 58 (1473) 58 (1473) 57.1 (1450) 57.1 (1450) 57.1 (1450) 70 (1778) 70 (1778) 74.8 (1900) 74.8 (1900) 74.8 (1900) 82 (2083) 82 (2083) 80.3 (2040) 80.3 (2040) 80.3 (2040)
Est. Shipping Height Inches (mm) 70 (1778) 70 (1778) 76.8 (1950mm) 76.8 (1950mm) 76.8 (1950mm) 70 (1778) 70 (1778) 76.8 (1950mm) 76.8 (1950mm) 76.8 (1950mm) 70 (1778) 70 (1778) 76.8 (1950mm) 76.8 (1950mm) 76.8 (1950mm) 70 (1778) 70 (1778) 76.8 (1950mm) 76.8 (1950mm) 76.8 (1950mm)
Est. Shipping Depth Inches (mm) 43 (1092) 43 (1092) 41.3 (1050mm) 41.3 (1050mm) 41.3 (1050mm) 43 (1092) 43 (1092) 41.3 (1050mm) 41.3 (1050mm) 41.3 (1050mm) 43 (1092) 43 (1092) 41.3 (1050mm) 41.3 (1050mm) 41.3 (1050mm) 43 (1092) 43 (1092) 41.3 (1050mm) 41.3 (1050mm) 41.3 (1050mm)
Exterior Depth Inches (mm) 32 1/8 (817) 32 1/8 (817) 32 3/16 (817) 32 3/16 (817) 32 3/16 (817) 32 1/8 (817) 32 1/8 (817) 32 3/16 (817) 32 3/16 (817) 32 3/16 (817) 32 1/8 (817) 32 1/8 (817) 32 3/16 (817) 32 3/16 (817) 32 3/16 (817) 32 1/8 (817) 32 1/8 (817) 32 3/16 (817) 32 3/16 (817) 32 3/16 (817)
Exterior Depth with Armrest Removed Inches (mm) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799) 31 7/16 (799)
Exterior Height Inches (mm) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546) 60 7/8 (1546)
Exterior Height (Minimum for Transport) Inches (mm) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499) 59 (1499)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 87.375 (2219) 88 3/8 (2245) 87 3/8 (2219) 87 3/8 (2219) 87 3/8 (2219) 87.375 (2219) 88 3/8 (2245) 87 3/8 (2219) 87 3/8 (2219) 87 3/8 (2219) 87.375 (2219) 88 3/8 (2245) 87 3/8 (2219) 87 3/8 (2219) 87 3/8 (2219) 87.375 (2219) 88 3/8 (2245) 87 3/8 (2219) 87 3/8 (2219) 87 3/8 (2219)
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 93.375 (2371) 94 3/8 (2397) 93 3/8 (2372) 93 3/8 (2372) 93 3/8 (2372) 93.375 (2371) 94 3/8 (2397) 93 3/8 (2372) 93 3/8 (2372) 93 3/8 (2372) 93.375 (2371) 94 3/8 (2397) 93 3/8 (2372) 93 3/8 (2372) 93 3/8 (2372) 93.375 (2371) 94 3/8 (2397) 93 3/8 (2372) 93 3/8 (2372) 93 3/8 (2372)
Exterior Width Inches (mm) 41 5/8 (1057) 41 5/8 (1057) 41 5/8 (1057) 41 5/8 (1057) 41 5/8 (1056) 53 5/8 (1362) 53 5/8 (1362) 53 5/8 (1362) 53 5/8 (1362) 53 5/8 (1362) 65 5/8 (1669) 65 5/8 (1669) 65 5/8 (1669) 53 5/8 (1362) 65 5/8 (1669) 77 5/8 (1972) 77 5/8 (1972) 77 5/8 (1972) 77 5/8 (1972) 77 5/8 (1972)
Nominal Width Feet (Meters) 3 ft. (0.9m) 3 ft. (0.9m) 3 ft. (0.9m) 3 ft. (0.9m) 3 ft. (0.9m) 4 (1.2) 4 ft. (1.2m) 4 ft. (1.2m) 4 ft. (1.2m) 4 ft. (1.2m) 5 ft. (1.5m) 5 ft. (1.5m) 5 ft. (1.5m) 5 ft. (1.5m) 5 ft. (1.5m) 6 ft. (1.8m) 6 ft. (1.8m) 6 ft. (1.8m) 6 ft. (1.8m) 6 ft. (1.8m)
Work Area Depth Measured at 10-inches (254 mm) Window Height Inches (mm) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654) 25 3/4 (654)
Work Area Depth Measured at 12-inches (305 mm) Window Height Inches (mm) Inquire N/A N/A N/A N/A Inquire N/A N/A N/A N/A Inquire N/A N/A N/A N/A Inquire N/A N/A N/A N/A
Work Area Depth Measured at 14-inches (356 mm) Window Height Inches (mm) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Work Area Depth Measured at 8-inches (203 mm) Window Height Inches (mm) Inquire N/A N/A N/A N/A Inquire N/A N/A N/A N/A Inquire N/A N/A N/A N/A Inquire N/A N/A N/A N/A
Work Area Height Inches (mm) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724)
Work Area Width Inches (mm) 34 3/8 (873) 34 3/8 (873) 34 3/8 (873) 34 3/8 (873) 34 3/8 (872) 46 3/8 (1178) 46 3/8 (1178) 46 3/8 (1178) 46 3/8 (1178) 46 3/8 (1178) 46 3/8 (1178) 46 3/8 (1178) 58 3/8 (1483) 58 3/8 (1483) 58 3/8 (1483) 70 3/8 (1788) 70 3/8 (1788) 70 3/8 (1788) 70 3/8 (1788) 70 3/8 (1788)
Useable Work Tray Area Depth Inches (mm) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530)
Useable Work Tray Area Width Inches (mm) 33 7/8 (860) 33 7/8 (860) 33 7/8 (860) 33 7/8 (860) 33 7/8 (860) 45 7/8 (1165) 45 7/8 (1165) 45 7/8 (1165) 45 7/8 (1165) 45 7/8 (1165) 57 7/8 (1470) 57 7/8 (1470) 57 7/8 (1470) 57 7/8 (1470) 57 7/8 (1470) 69 7/8 (1775) 69 7/8 (1775) 69 7/8 (1775) 69 7/8 (1775) 69 7/8 (1775)


Exhaust

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
10-inch (254 mm) Opening Exhaust Requirement for Fixed Canopy (NU-907/NU-916) CFM (CMH) 320 (544) 320 (544) 320 (544) 320 (544) 320 (544) 426 (724) 426 (724) 426 (724) 426 (724) 426 (724) 531 (902) 531 (902) 531 (902) 531 (902) 531 (902) 634 (1077) 634 (1077) 634 (1077) 634 (1077) 634 (1077)
10-inch (254 mm) Opening Exhaust Requirement for Variable Flow Canopy (NU-911) CFM (CMH) 276-501 (649-851) 276-501 (649-851) 276-501 (649-851) 276-501 (649-851) 276-501 (649-851) 363-588 (617-1000) 363-588 (617-1000) 363-588 (617-1000) 363-588 (617-1000) 363-588 (617-1000) 451-676 (766-1149) 451-676 (766-1149) 451-676 (766-1149) 451-676 (766-1149) 451-676 (766-1149) 538-763 (915-1297) 538-763 (915-1297) 538-763 (915-1297) 538-763 (915-1297) 538-763 (915-1297)
12-inch (305 mm) Opening Exhaust Requirement for Fixed Canopy (NU-907/NU-916) CFM (CMH) 387 (650) N/A N/A N/A N/A 483 (821) N/A N/A N/A N/A 610 (1036) N/A N/A N/A N/A 763 (1251) N/A N/A N/A N/A
12-inch (305 mm) Opening Exhaust Requirement for Variable Flow Canopy (NU-911) CFM (CMH) 341-554 (576-933) N/A N/A N/A N/A 430-655 (731-1113) N/A N/A N/A N/A 531-760 (909-1291) N/A N/A N/A N/A 634-865 (1088-1470) N/A N/A N/A N/A
14-inch (356mm) Opening Exhaust Requirement for Variable Flow Canopy (NU-911) CFM(CMH) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
14-inch (356mm) Opening Exhaust Requirement for Fixed Canopy (NU-926) CFM(CMH) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Heat Rejected 14-inch (356 mm) Access Opening (BTU/Hour) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
8-inch (203 mm) Opening Exhaust Requirement for Fixed Canopy (NU-907/NU-916) CFM (CMH) 269 (457) N/A N/A N/A N/A 359 (610) N/A N/A N/A N/A 445 (756) N/A N/A N/A N/A 532 (904) N/A N/A N/A N/A
8-inch (203 mm) Opening Exhaust Requirement for Variable Flow Canopy (NU-911) CFM (CMH) 255-450 (383-765) N/A N/A N/A N/A 295-520 (502-884) N/A N/A N/A N/A 365-590 (621-1003) N/A N/A N/A N/A 436-661 (741-1124) N/A N/A N/A N/A
Heat Rejected 10-inch (254 mm) Access Opening (BTU/Hour) 903 903 903 903 903 1140 1140 1140 1140 1140 1768 1768 1768 1768 1768 1884 1884 1884 1884 1884
Heat Rejected 12-inch (305 mm) Access Opening (BTU/Hour) Inquire N/A N/A N/A N/A 1256 N/A N/A N/A N/A 1884 N/A N/A N/A N/A 2041 N/A N/A N/A N/A
Heat Rejected 8-inch (203 mm) Access Opening (BTU/Hour) 826 N/A N/A N/A N/A 1020 N/A N/A N/A N/A 1611 N/A N/A N/A N/A 1768 N/A N/A N/A N/A
Heat Rejected Vented (BTU/Hour) 120 120 120 120 120 157 157 157 157 157 198 198 198 198 198 198 198 198 198 198
Plant Duct Static Pressure Inches (mm) 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1" (1.27-2.54) 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1" (1.27-2.54) 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1" (1.27-2.54) 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1"/1.27-2.54mm H2O 0.05-0.1" (1.27-2.54)


Electrical

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Blower/Lights Amps [14-inch (356mm) Access Opening]
Blower/Lights Amps [10-inch (254 mm) Access Opening] 2.3 2.3 2.3 2.3 2.3 2.9 2.9 2.9 2.9 2.9 4.5 4.5 4.5 4.5 4.5 4.8 4.8 4.8 4.8 4.8
Blower/Lights Amps [12-inch (305 mm) Access Opening] 3.2 4.8 5.2
Blower/Lights Amps [8-inch (203 mm) Access Opening] 2.1 2.6 4.1 4.5
Electrical Configuration 115V60Hz 230V5060Hz 100V5060Hz 115V60Hz 230V5060Hz 115V60Hz 230V5060Hz 100V5060Hz 115V60Hz 230V5060Hz 115V60Hz 230V5060Hz 100V5060Hz 115V60Hz 230V5060Hz 115V60Hz 230V5060Hz 100V5060Hz 100V5060Hz 230V5060Hz
Junction Box Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A
Outlet Amps 3 3 2 3 3 3 3 2 3 3 3 3 2 3 3 3 3 2 3 3
Power Cord 14 GA - 3 Wire, 15A 14 GA - 3 Wire, 15A 14 GA - 3 Wire, 15A 14 GA - 3 Wire, 15A Single 12-foot (3.7m) 14 GA - 3 Wire, 15A 12 gauge - 3 Wire, 20A 14 gauge - 3 Wire, 15A 12 GA - 3 Wire, 20A 12 GA - 3 Wire, 20A Single 12-foot (3.7m) 14 GA - 3 Wire, 15A 12 gauge - 3 Wire, 20A 14 gauge - 3 Wire, 15A 12 GA - 3 Wire, 20A 12 GA - 3 Wire, 20A Single 12-foot (3.7m) 14 GA - 3 Wire, 15A 12 gauge - 3 Wire, 20A 14 gauge - 3 Wire, 15A 12 GA - 3 Wire, 20A 12 GA - 3 Wire, 20A Single 12-foot (3.7m) 14 GA - 3 Wire, 15A
Rated Amps 10 8 7 10 8 14 10 11 14 10 16 11 13 16 11 16 11 13 16 11


Construction

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Access Opening Glass Type Tempered Safety Glass Safety Glass Safety Glass Safety Glass Tempered Safety Glass Safety Glass Safety Glass Safety Glass Tempered Safety Glass Safety Glass Safety Glass Safety Glass Tempered Safety Glass Safety Glass Safety Glass Safety Glass
Armrest Standard Plastic with Optional Stainless Steel Standard Plastic with Optional Stainless Steel Plastic Plastic Plastic Standard Plastic with Optional Stainless Steel Standard Plastic with Optional Stainless Steel Plastic Plastic Plastic Standard Plastic with Optional Stainless Steel Standard Plastic with Optional Stainless Steel Plastic Plastic Plastic Standard Plastic with Optional Stainless Steel Standard Plastic with Optional Stainless Steel Plastic Plastic Plastic
Exhaust Filter 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 microns 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 microns 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 microns 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 microns 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS 11 1/2-inch (292 mm) 99.995% Efficiency @ MPPS
Lighting LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED
Main Cabinet Wrap Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction Seam Welded Stainless Steel Side and Back Wall Construction
Motor(s) 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 3/4 HP DC ECM 3/4 HP DC ECM 3/4 HP DC ECM 3/4 HP DC ECM 3/4 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM 1 HP DC ECM
Pre-filter N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS 3-inch (76mm) 99.995% Efficiency @ MPPS
Work Access Opening(s) 8, 10, 12-inch (203, 254, 305 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 8, 10, 12-inch (203, 254, 305 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 8, 10, 12-inch (203, 254, 305 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 8, 10, 12-inch (203, 254, 305 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm) 10-inch (254 mm)
Work Zone Wrap Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction


General

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Australian Test Method N/A Optional N/A N/A Optional N/A Optional N/A N/A Optional N/A Optional N/A N/A Optional N/A Optional N/A N/A Optional
Performance Standard NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ] NSF-ANSI-49 NSF-ANSI-49 [ "", "NSF-ANSI-49, EN-12469" ]
Safety Certification [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ] [ "", "UL, UL-C" ]


Configuration

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Blower Contact Wires Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A
Closure Panels Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets N/A N/A N/A Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets N/A N/A N/A Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets N/A N/A N/A Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets N/A N/A N/A
Double Exhaust HEPA Filter N/A Optional N/A N/A Optional N/A Optional N/A N/A Optional N/A Optional N/A N/A Optional N/A Optional N/A N/A Optional
Gas Supply Interlock with Blower N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Glass Sidewalls Optional with 8 or 10 inch (203 or 254mm) Work Access Openings Optional N/A N/A N/A Optional with 8 or 10 inch (203 or 254mm) Work Access Openings Optional N/A N/A N/A Optional with 8 or 10 inch (203 or 254mm) Work Access Openings Optional N/A N/A N/A Optional with 8 or 10 inch (203 or 254mm) Work Access Openings Optional N/A N/A N/A
Magnifying Glass in Window N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Plumbing Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper N/A N/A N/A Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper N/A N/A N/A Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper N/A N/A N/A Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper N/A N/A N/A
Remote Service Valves N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets N/A N/A N/A Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets N/A N/A N/A Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets N/A N/A N/A Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets N/A N/A N/A
Service Couplings (3/8-inch NPT) Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Two Each Side Wall Optional
Service Valves (3/8-inch NPT) One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Two Each Side Wall Optional
Side Panels Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back N/A N/A N/A Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back N/A N/A N/A Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back N/A N/A N/A Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back N/A N/A N/A
Smooth Interior Optional N/A N/A N/A N/A Optional N/A N/A N/A N/A Optional N/A N/A N/A N/A Optional N/A N/A N/A N/A
Ultraviolet (UV) Light Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Window Edge Protector Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A Optional Optional N/A N/A N/A


Weight

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Net Weight lbs (kg) 410 lbs. / 186 kg. 410 lbs. / 186 kg. 410 lbs. / 186 kg. 410 (186) 410 (186) 480 lbs. / 218 kg. 480 lbs. / 218 kg. 480 (218) 480 (218) 480 (218) 570 lbs. / 258 kg. 570 lbs. / 258 kg. 570 (258) 570 (258) 570 (258) 640 lbs. / 290 kg. 640 lbs. / 290 kg. 640 (290) 640 (290) 640 (290)
Est. Shipping Weight lbs (kg) 460 lbs. / 209 kg. 460 lbs. / 209 kg. 460 lbs. / 209 kg. 460 (209) 460 (209) 530 lbs. / 240 kg. 530 lbs. / 240 kg. 530 (240) 530 (240) 530 (240) 620 lbs. / 281 kg. 620 lbs. / 281 kg. 620 (281) 620 (281) 620 (281) 690 lbs. / 313 kg 690 lbs. / 313 kg 690 (313) 690 (313) 690 (313)


Ergonomics

NU-543-300 NU-543-300E NU-543-300J NU-543-300K NU-543-300S NU-543-400 NU-543-400E NU-543-400J NU-543-400K NU-543-400S NU-543-500 NU-543-500E NU-543-500J NU-543-500K NU-543-500S NU-543-600 NU-543-600E NU-543-600J NU-543-600K NU-543-600S
Sound Pressure Level per ISO 4871 ≤ 55dba ≤ 55dba Inquire Inquire ≤ 55dba ≤ 56 dba ≤ 56 dba Inquire Inquire ≤ 56dba ≤ 58 ≤ 58 Inquire Inquire ≤ 58 dba ≤ 60 dba ≤ 60 dba Inquire Inquire ≤ 60 dba


Access Opening

10 Inch Safety Plate Glass Sliding Window With Glass Sidewalls
10 Inch Tempered Glass Sliding Window With Glass Sidewalls
10" (254 mm) Access Opening Sliding Safety Plate Glass Window, NSF Approved Cord Pass Through (Right Sidewall)
10" (254 mm) Access Opening Tempered Sliding Glass, NSF Approved Cord Pass Through (Right Sidewall)
12" (305 mm) Access Opening Sliding Tempered Glass Window, NSF Approved Cord Pass Through (Right Sidewall)
8 Inch Safety Plate Glass Sliding Window With Glass Sidewalls
8 Inch Tempered Glass Sliding Window With Glass Sidewalls
8" (203 mm) Access Opening Sliding Safety Plate Glass Window, NSF Approved Cord Pass Through (Right Sidewall)
8" (203 mm) Access Opening Tempered Sliding Glass, NSF Approved Cord Pass Through Right Side
Smooth Interior With 10 Inch Window And Right Side Pass-Through
Smooth Interior With 12 Inch Window And Right Side Pass-Through
Smooth Interior With 8 Inch Window And Right Side Pass-Through

Armrest

Plastic Armrest
Stainless Steel Armrest

Exhaust Filter

12-inch (305 mm) Metal Frame Exhaust Separatorless HEPA Filter 99.99% efficient @ 0.3 µ with Permanent Plenum
Double Metal Frame Exhaust Filter
Metal Frame Exhaust Filter
Metal Frame H14 Exhaust Filter 99.995% @ MPPS

IV Bar

IV BAR W/6 HOOKS 3'
IV BAR W/6 HOOKS 4'
IV BAR W/6 HOOKS 5'

Other

AUSTRALIAN TEST METHOD
Blower Contact Wires
IV Bar With 6 Hooks
Left Sidewall NSF Cord Pass-Through
Stainless Steel Window Edge Protector

Outlets

115V 15 Amp Outlet (Type B)
15 Amp South African Outlet (Type M)
230V US Standard Outlet (Type B)
5 Amp Duplex Outlet With GFI Option
5 Amp Old UK Outlet (Type D)
Australian Outlet (Type I)
Current UK Outlet (Type G)
Danish Outlet (Type K)
Dedicated 15 Amp Power Cord
Dedicated 15 Amp Power Cord With Gfi Option
Dedicated 20 Amp Power Cord
Dedicated 20 Amp Power Cord With Gfi Option
Israel Outlet (Type H)
OUTLET - AUSTRALIAN
Outlet - China Type I (Qty 2) (Backwall) (230V)
OUTLET - CURRENT UK TYPE G
OUTLET - SCHUKO
OUTLET - US
Outlet Type E (Qty 2)
Schuko Outlet (Type F)
Swiss Outlet (Type J)
Two Outlets - 1 Standard And 1 GFI

Plumbing

3/8" Black Pipe
3/8" Rigid Copper
3/8" Soft Copper

Power Inputs

115V 60Hz 15 Amp Power Input
115V 60Hz 20 Amp Power Cord
230V Power Cord
Junction Box
Power Cord 115V 60Hz 15A
Power Cord 115V 60Hz 20A
Power Cord 230V

Reduant Exhaust HEPA Filter Upgrade

DOUBLE METAL FR EXHAUST FILTER

Seismic

31 Inch Seismic Floor Brackets
Rear Mount Seismic Brackets For Adjustable Basestand
Rear Mount Seismic Brackets For Fixed Height Basestand
Side Mount Seismic Brackets For Adjustable Basestand
Side Mount Seismic Brackets For Telescoping Basestand

Service Couplings

Bottom Left Plugged Coupling
Bottom Right Plugged Coupling
Middle Left Plugged Coupling
Middle Right Plugged Coupling
Service Coupling Left Bottom
Service Coupling Left Middle
Service Coupling Right Bottom
Service Coupling Right Middle
Top Left Plugged Coupling
Top Right Plugged Coupling

Service Valves

Bottom Left Service Valve
Bottom Right Service Valve
Middle Left Service Valve
Middle Right Service Valve
SERVICE VALVE LEFT BOTTOM
SERVICE VALVE LEFT MIDDLE
Service Valve Right Bottom
SERVICE VALVE RIGHT MIDDLE
Top Left Service Valve
Top Right Service Valve

Side Panels

Side Panels w/o Plumbing NSF Cord Pass Thru Compatible
Side Panels w/Plumbing out Back NSF Cord Pass Thru Compatible
Side Panels w/Plumbing out Bottom NSF Cord Pass Thru Compatible
Side Panels w/Plumbing out Top NSF Cord Pass Thru Compatible
Without Side Panels

Supply Filter

3-inch (76 mm) Metal Frame Supply Separatorless HEPA Filter 99.99% efficient @ 0.3 µ with Permanent Plenum
99.995% Metal Frame Supply Filter
Metal Frame H14 Supply Filter 99.995% @ MPPS

UV Light

115V Ultraviolet Light
230V Ultraviolet Light
ULTRAVIOLET LIGHT 230V
Without Ultraviolet (UV) Light

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
STORAGE TRAY VERTICAL PULL-OUT
STORAGE TRAY HORZ PULL-OUT
WOOD CRATING/INC CSWK 3'CAB
PORTABLE UV LAMP 37" 115VAC
PORTABLE UV LAMP 19" 220/230V
PORTABLE UV LAMP 19" 115VAC
Telescoping Base Stand with Storage with Leg Levelers - 6-foot (1.8 m)
Telescoping Base Stand with Storage and Casters - 6-foot (1.8 m)
Welded Telescoping Base Stand with Leg Levelers - 5-foot (1.5 m)
Welded Telescoping Base Stand with Leg Levelers - 4-foot (1.2 m)
Welded Telescoping Base Stand with Leg Levelers - 3-foot (0.9 m)
Motorized Adjustable Base Stand with Casters - 4-foot (1.2 m) 230V
Motorized Adjustable Base Stand with Casters - 3-foot (0.9 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 6-foot (1.8 m) 230V
Motorized Adjustable Base Stand with Casters - 6-foot (1.8 m) 115V
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 6-foot (1.8 m)
Telescoping Base Stand with Storage and Casters - 5-foot (1.5 m)
Motorized Adjustable Base Stand with Casters - 4-foot (1.2 m) 115V
Motorized Adjustable Base Stand with Casters - 3-foot (0.9 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 6-foot (1.8 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 5-foot (1.5 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 4-foot (1.2 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 3-foot (0.9 m) 115V
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 5-foot (1.5 m)
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 4-foot (1.2 m)
Telescoping Base Stand with Storage and Casters - 4-foot (1.2 m)
Telescoping Base Stand with Storage and Casters - 3-foot (0.9 m)
Motorized Adjustable Base Stand with Casters - 5-foot (1.5 m) 115V
Telescoping Base Stand with Casters - 6-foot (1.8 m)
Telescoping Base Stand with Casters - 4-foot (1.2 m)
Telescoping Base Stand with Casters - 3-foot (0.9 m)
Telescoping Base Stand with Storage with Leg Levelers - 5-foot (1.5 m)
Telescoping Base Stand with Storage with Leg Levelers - 4-foot (1.2 m)
Telescoping Base Stand with Leg Levelers - 4-foot (1.2 m)
Telescoping Base Stand with Leg Levelers - 3-foot (0.9 m) | NuAire
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 3-foot (0.9 m)
Telescoping Base Stand with Casters - 5-foot (1.5 m)
Motorized Adjustable Base Stand with Leg Levelers - 3-foot (0.9 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 5-foot (1.5 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 4-foot (1.2 m) 230V
Welded Telescoping Base Stand with Leg Levelers - 6-foot (1.8 m)
Motorized Adjustable Base Stand with Casters - 6-foot (1.8 m) 230V
Motorized Adjustable Base Stand with Casters - 5-foot (1.5 m) 230V
TRANSITION VARIABLE LOW FLOW
TRANSITION VARIABLE LOW FLOW
TRANSITION VARIABLE LOW FLOW
TRANSITION VARIABLE LOW FLOW
TRANSITION VARIABLE LOW FLOW
TRANSITION VARIABLE LOW FLOW
TRANS FIXED RANGE FLOW CANOPY
TRANS LAY-IN PURAFIL FILTER
TRANS LAY-IN CHARCOAL FILTER
TRANS LAY-IN PURAFIL FILTER
TRANS LAY-IN CHARCOAL FILTER
LAY-IN PURAFIL FILTER(400)
LAY-IN CHARCOAL FILTER(400)
TRANS LAY-IN PURAFIL FILTER
NUAIRE ERGONOMIC ACCESSORY KIT
TRANSITION LOW FLOW
NU-978-002 Large Biosafety Cabinet Elbow Rest | NuAire
NU-978-001 Small Biosafety Cabinet Elbow Rest | NuAire
TURNTABLE
ARMREST PADS FOAM PKG OF 10
PORTABLE UV LAMP 37" 220/230V
Telescoping Base Stand with Leg Levelers - 6-foot (1.8 m) - nu-500-103
Telescoping Base Stand with Leg Levelers - 5-foot (1.5 m)
INT'L DIGITAL MANOMETR MONITOR
INT'L HIGH-LOW BSC AIR MONITOR
HIGH-LOW BSC AIR MONITOR
LOW BSC AIRFLOW MONITOR
PALLET CRATING/FILTERS
WOOD CRATING/5' & 6' CABINETS
WOOD CRATING/4'CABINETS
INT'L LOW BSC AIRFLOW MONITOR
Telescoping Base Stand with Storage with Leg Levelers - 3-foot (0.9 m)
DIGITAL MANOMETER MONITOR
MANUAL AIR-TIGHT B-FLY 10" SST
MANUAL AIR-TIGHT B-FLY 8" SST
Butterly Fly Dampener Valve Manual 8-inch (203 mm) Diameter
TRANS LAY-IN CHARCOAL FILTER
TRANS FIXED RANGE FLOW CANOPY
SILICONE CONNECTION SLEEVE KIT
TRANS FIXED RANGE FLOW CANOPY
TRANS FIXED RANGE FLOW CANOPY
FLEX DUCT KIT 8" DIA.
TRANS FIXED RANGE FLOW CANOPY
TRANS FIXED RANGE FLOW CANOPY
TRANS RD TO RD 8" TO 10"
MANUAL AIR-TIGHT B-FLY 10" SST
TRANS LAY-IN PURAFIL FILTER
TRANS LAY-IN CHARCOAL FILTER
TRANS FIXED RANGE FLOW CANOPY
TRANS FIXED RANGE FLOW CANOPY
FLEX DUCT KIT 10" DIA.
TRANSITION VARIABLE LOW FLOW
Adjustable Footrest SV-973-700 | NuAire
Infographic USP 797 and USP 800 PEC Requirements Flow Chart

USP 797 and USP 800 PEC Requirements

Learn more
Flyer

LabGard AIR NU-543 Class II, Type A2 Biosafety Cabinet

View the flyer
BIM Revit

NU-543E Class II, Type A2 Biosafety Cabinet 3D Model

Learn More
BIM Revit

NU-543 Class II, Type A2 Biosafety Cabinet 3D Model

Learn More
Warranty

Class II, Type A2 Biosafety Cabinet Warranty

View the warranty
Webinar Buying a Biosafety Cabinet Webinar

Buying a Biosafety Cabinet Making an Informed Decision

Watch the Webinar
Video LabGard NU-543 Class II Type A2 Biosafety Cabinet Video Brochure

LabGard NU-543 Class II Type A2 Biosafety Cabinet Video Brochure

Watch the video
BIM Revit

NU-543 Class II, Type A2 Biosafety Cabinet with Configurable Airflow Exhaust Canopy 3D Model

Learn More
Video Nuaire biosafety cabinet armrest and airflow grill close up.

LabGard Biosafety Cabinets

Watch the video
Drawing

NU-543-300E 230-Volt Biosafety Cabinet Spec Drawing

View the drawing
Drawing

NU-543-400E 230-Volt Biosafety Cabinet Spec Drawing

View the drawing
Drawing

NU-543-500E 230-Volt Biosafety Cabinet Spec Drawing

View the drawing
Drawing

NU-543-600E 230-Volt Biosafety Cabinet Spec Drawing

View the drawing
Brochure Biosafety Cabinet Brochure

Biosafety Cabinet Brochure

Download the brochure
Drawing Specification Drawing of NU-543-300 Biosafety Cabinet

NU-543-300 Biosafety Cabinet Cut Sheet

View the drawing
Drawing Product drawing of LabGard Class II, Type A2 Biosafety Cabinet model NU-543-400

NU-543-400 Biosafety Cabinet Spec Drawing

View the drawing
Drawing

NU-543-500 Biosafety Cabinet Spec Drawing

View the drawing
Drawing

NU-543-600 Biosafety Cabinet Spec Drawing

View the drawing
Manuals

NU-543J Manual

Read the manual
Manuals

NU-543S Manual

Read the manual
Drawing NU-543-400S Class II, Type A2 Biosafety Cabinet Cut Sheet

NU-543-400S Class II, Type A2 Biosafety Cabinet Cut Sheet

View the drawing
Drawing NU-543-500S Class II, Type A2 Biosafety Cabinet Cut Sheet

NU-543-500S Class II, Type A2 Biosafety Cabinet Cut Sheet

View the drawing
Drawing NU-543-600S Class II, Type A2 Biosafety Cabinet Cut Sheet

NU-543-600S Class II, Type A2 Biosafety Cabinet Cut Sheet

View the drawing
Manuals NU-545E Class II Biosafety Cabinet OM0322 Manual

NU-545E Operation and Maintenance Manual

Read the manual
Drawing NU-543-300S Class II, Type A2 Biosafety Cabinet Cut Sheet

NU-543-300S Class II, Type A2 Biosafety Cabinet Cut Sheet

View the drawing
Specification

Class II, Type A2 Biosafety Cabinet NU-543 (115V)

View the specification
Specification

Class II, Type A2 Biosafety Cabinet NU-543E (230V)

View the specification
Manuals

Nu-543E ES Series change OM Manual

Read the manual
Manuals

Nu-543 ES Series change OM Manual release

Read the manual
Specification

Class II, Type A2 Biosafety Cabinet NU-543S (230V)

View the specification
Manuals OM0319 NU-543 Biosafety Cabinet Operation and Maintenance Manual

OM0319 NU-543 Biosafety Cabinet Operation and Maintenance Manual

Read the manual
Manuals OM0320 NU-543E Biosafety Cabinet Operation and Maintenance Manual

OM0320 NU-543E Biosafety Cabinet Operation and Maintenance Manual

Read the manual
Drawing 6-foot (1.8m) Biosafety Cabinet with Exhaust Canopy Cut Sheet

6-foot (1.8m) Biosafety Cabinet with Exhaust Canopy Cut Sheet

View the drawing
Brochure LabGard NU-543 Class II, Type A2 Biosafety Cabinet Brochure

LabGard NU-543 Class II, Type A2 Biosafety Cabinet Brochure

Download the brochure

REQUEST A QUOTE

PLEASE FILL OUT THE FORM AND WE’LL GET TO WORK ON GETTING YOU WHAT YOU NEED.

How it works. NuAire sells through a network of knowledge representatives, some who have been selling and servicing NuAire since our inception in 1971. We’ll notify your local representative who will reach out to you. He/She can assist with product selection/configuration, training, installation guidance, support throughout the life of the product, or just provide you pricing in a quick manner. We have some of the best customers who are doing some groundbreaking work. We would love for you to join our family and experience the NuAire Advantage.

Why Your Colleagues Choose NuAire

Let me say that we have come to rely on Nuaire, as a strong partner to Vaccines & it is so because of our valued relationship with George Riley, who is always at our beck and call. God bless him (Keep him for Sure!!) & your Quality BioSafety Cabinets. Service is King & Quality is his side-kick!! So thank you! We look forward to a long and prosperous relationship. Keep up the good work & quality build.

Operations Manager at a Large Pharmaceutical Company
labrepco.com

Cookies help us improve your website experience.
By using our website, you agree to our use of cookies.
Confirm
