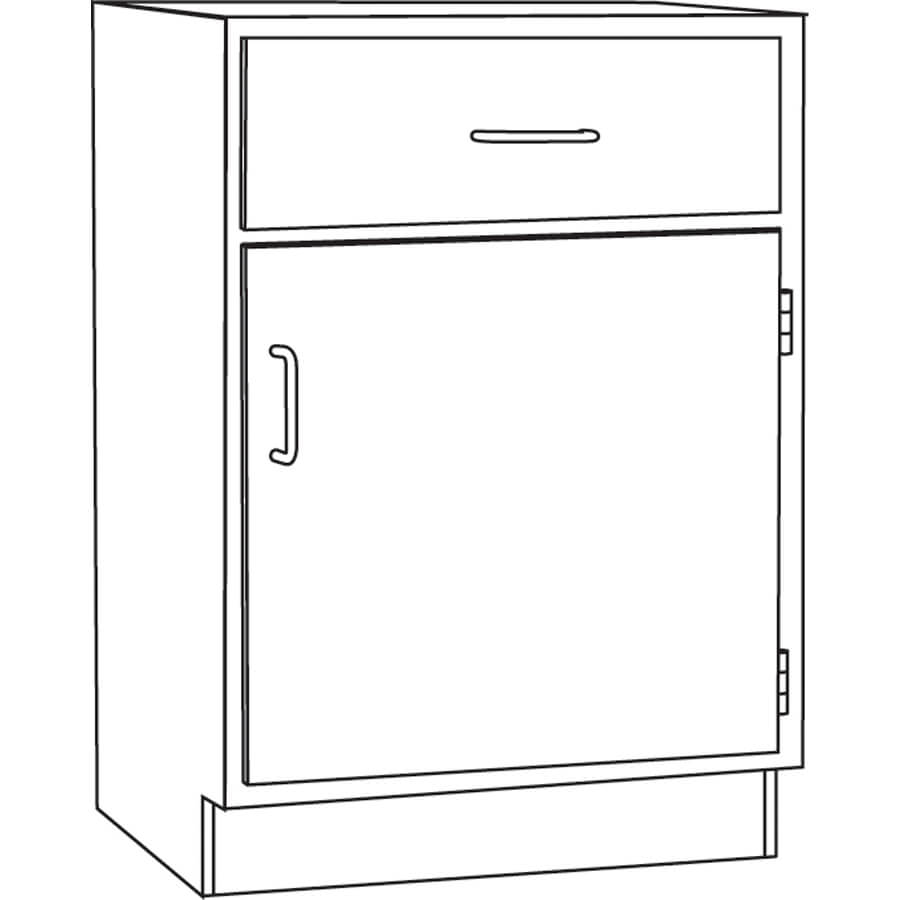

ProGardNU-25
Base Cabinet Polypropylene Casework

The ProGard NU-25 Single Drawer/Door Combination Unit provides storage for materials when working in material science, metallurgy, trace metal analysis facilities, or any laboratory working with highly corrosive agents.

Request a Quote

Designed to Meet Your Application

ProGard casework is available in standard and custom sizes to outfit your laboratory.

Products

NU-25-1830L

18 x 22 x 29 in. (457 x 559 x 737 mm)

NU-25-1830R

18 x 22 x 29 in. (457 x 559 x 737 mm)

NU-25-1836L

18 x 22 x 35 in. (457 x 559 x 889 mm)

NU-25-1836R

18 x 22 x 35 in. (457 x 559 x 889 mm)

NU-25-2430L

24 x 22 x 29 in. (610 x 559 x 737 mm)

NU-25-2430R

24 x 22 x 29 in. (610 x 559 x 737 mm)

NU-25-2436L

24 x 22 x 35 in. (610 x 559 x 889 mm)

NU-25-2436R

24 x 22 x 35 in. (610 x 559 x 889 mm)

Quick Specs

Number of Doors 1 or 2
Number of Drawers 1
  • Features
  • Specs
  • Options & Accessories
  • Resources
Recessed polypropylene casework hinges

Relieve Stress on Screws

Hinge Construction

Polypropylene casework uses a 3-knuclesd hinge with replaceable hinge pin recesses into the case door opening. By recessing the hinge flush into the door panel relieves sheer stress on the PTFE coated screws.

Polypropylene Casework Door Magnets and PTFE Coated Screws

No More Rust

Door and Latch Construction

PTFA coated magnets are embedded into the interior of the top and bottom of the door. Identifies magnets are embedded inside the case frame. All magnets are sealed with a polypropylene plug. Wire pull handles are molded from polypropylene and fastened to the door by PTFE coasted screws.

Polypropylene base cabinet construction

Design to Last

Base Cabinet Construction

ProGard casework is fully seam welded on the interior of the cabinet. Pre-drilled and counter-bored holes can be found on the cabinet's left and right sides to connect cabinetry during installation. The cabinet's interior features a 0.5-inch (13 mm) spill lip on the bottom floor. Standard construction includes a 4-inch (102 mm) high, 3-inch (77 mm) deep toe kick. Base cabinets feature a removable flush-mounted 0.25-inch (7 mm) thick access panel held to perform work on hidden plumbing and electrical running behind the casework.

Polypropylene drawer

Easy Cleaning

Drawer Construction

Interior seams are cemented and tacked to form smooth, easily cleanable interior corners. Sides are bolted (0.25-inch x 20, PVC hex head) to the rear panel for added strength. The front is fully seam welded to the sides and bottom. Wire pulls handles are molded polypropylene fastened by PTFE coated screws.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 1 Year Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Fully Seam Welded Interior
  • Fully Welded Drawer Glide Rails
  • 0.5-inch (13 mm) Reveal Around Drawers
  • Pre-Drilled & Counter-Bored Holes for Installation
  • 4-inch (102) High, 3-inch (77 mm) Deep Toe Kick
  • Molded Wire Pull Handled with PTFE Coated Screws
  • PTFA Coated Embedded Magnets
  • Sealed Magnets with Polypropylene Plug
Number of Doors 1 or 2
Number of Drawers 1

Construction

NU-25-1830L NU-25-1830R NU-25-1836L NU-25-1836R NU-25-2430L NU-25-2430R NU-25-2436L NU-25-2436R
Door Swing/Hinge Location Left Right Left Right Left Right Left Right
Number of Doors 1 1 1 1 1 1 1 1
Number of Drawers 1 1 1 1 1 1 1 1

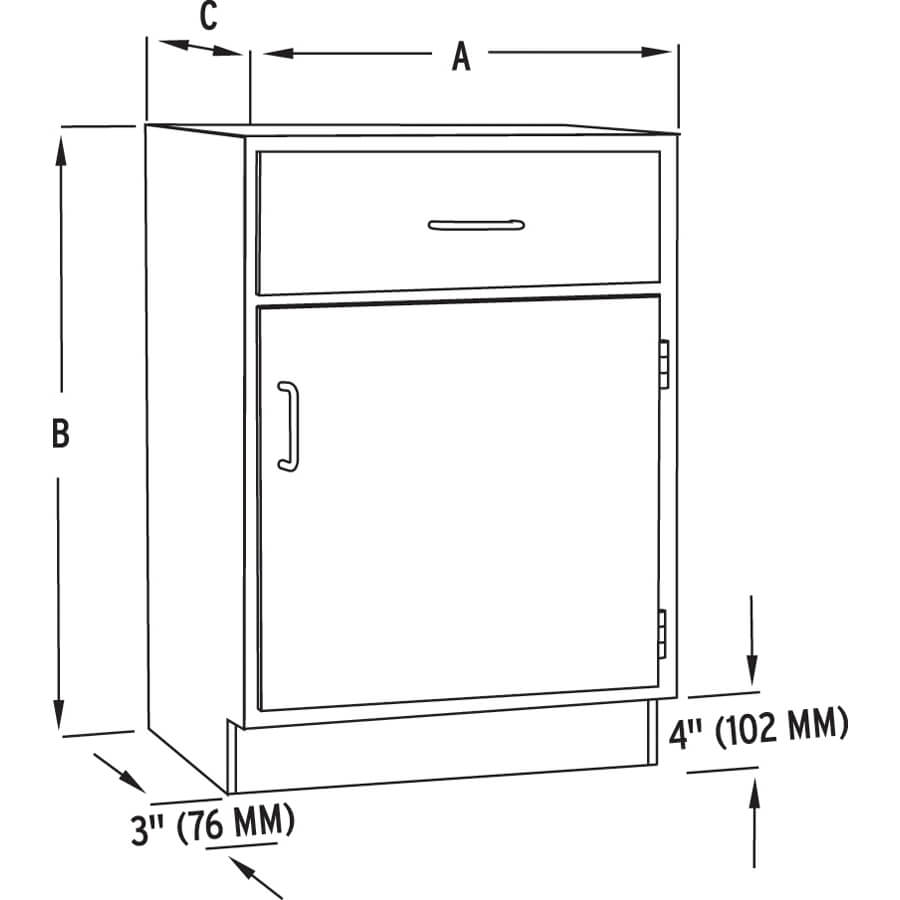

Dimensions

NU-25-1830L NU-25-1830R NU-25-1836L NU-25-1836R NU-25-2430L NU-25-2430R NU-25-2436L NU-25-2436R
Exterior Depth Inches (mm) 22 (559) 22 (559) 22 (559) 22 (559) 22 (559) 22 (559) 22 (559) 22 (559)
Exterior Height Inches (mm) 29 (737) 29 (737) 35 (889) 35 (889) 29 (737) 29 (737) 35 (889) 35 (889)
Exterior Width Inches (mm) 18 (457) 18 (457) 18 (457) 18 (457) 24 (610) 24 (610) 24 (610) 24 (610)


NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
Brochure

Polypropylene Laboratory Equipment

Learn More
Warranty

Polypropylene Fume Hoods and Casework Warranty

Learn More
Specification

Polypropylene Casework

Learn More
