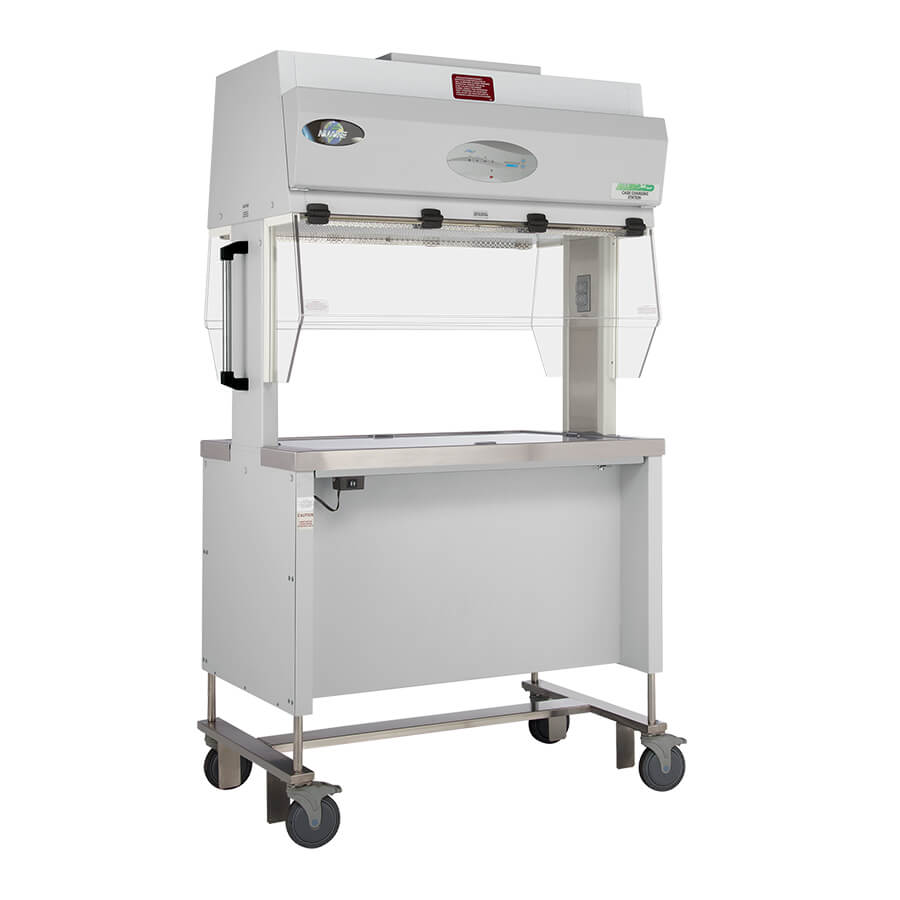

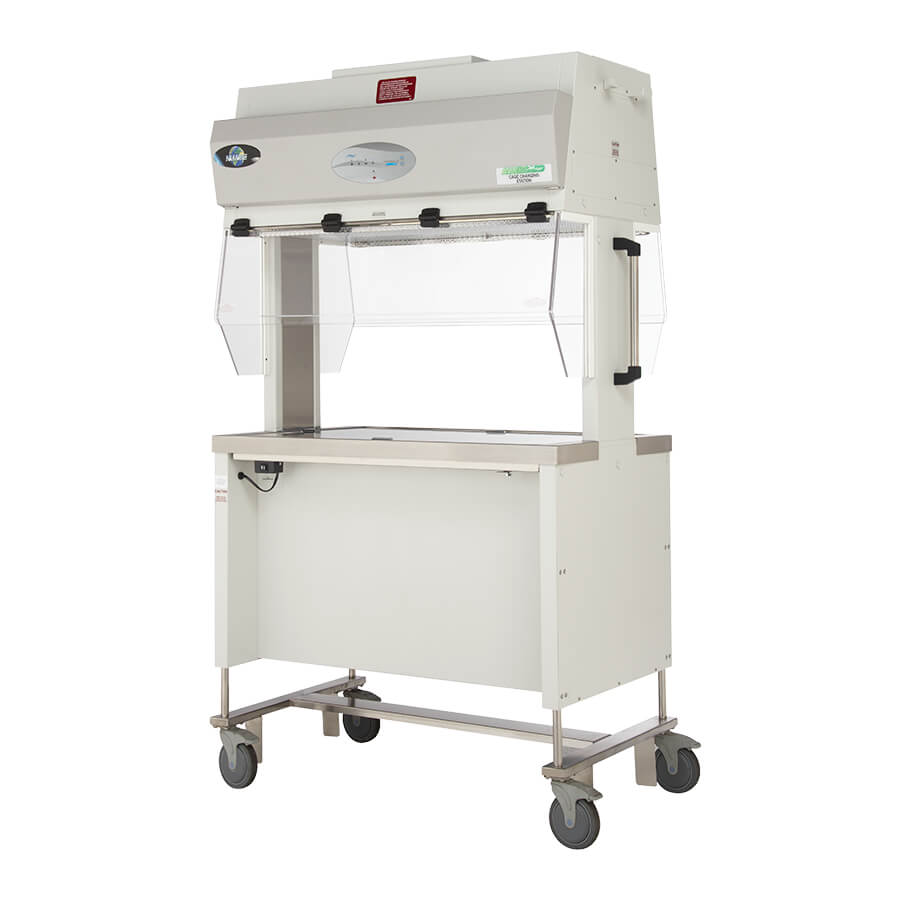

AllerGard ESNU-620
Dual Sided Animal Transfer Station
Dual Sided Configuration | Push-Pull Airflow System | Motorized Adjustable Height | Casters for Mobility
The AllerGard NU-620 Dual Access Animal Transfer Station (ATS) employs a “push-pull” pattern of airflow to provide clean air in the work zone for small animal cage caging and generate suction through air slots on the work surface for allergen containment. A supply impeller creates the “push” in the transfer station by drawing air through a pre-filter and then propelling it past a supply HEPA filter and toward the work zone to create a clean air environment. From there, a powerful DC ECM motor underneath the work zone will “pull” the air down through the air slots in the work surface to contain allergens. The air is then drawn past an exhaust pre-filter and pushed out an exhaust HEPA filter on the bottom of the unit. The Aeromax control system displays the performance of this “piston of air” by visualizing the plenum pressure as a series of multi-colored LED indicators. The NU-620 is designed as a dual-sided cabinet to provide flexibility to vivariums that have little room to maneuver their equipment.
Request a QuoteA Size to Meet Your Needs
Products
NU-620-300
Nominal 3-foot (0.9 m)
Dual Sided
NU-620-400
Nominal 4-foot (1.2 m)
Dual Sided
NU-620-500
Nominal 5-foot (1.5 m)
Dual Sided
Quick Specs
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
|---|---|
| Control System | AeroMax |
| Downflow fpm (m/s) | 60 (0.30) |
| Protection | Product |
| Work Access Opening(s) | 14 (356) |
-
Features
-
Specs
-
Options & Accessories
-
Resources
-
Citations
HEPA Filtered Laminar Downflow Air
Aseptic Work Zone
The primary goal of any Animal Transfer Station is to maintain aseptic conditions inside the work zone. The AllerGard ATS uses HEPA filtered laminar downflow air at 60 FPM (0.30 m/s), minimizing the risk of cross-contamination.
GREEN LIGHT, YELLOW LIGHT, RED LIGHT.
AEROMAX CONTROL SYSTEM
The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever station performance departs from normal parameters.
PUTTING HORSEPOWER INTO THE PISTON OF AIR.
POWERFUL DC ECM MOTOR
After the supply impeller pushes the air towards the work zone, the DC ECM motor pulls the air down through the slots in the work surface with a force that provides significant allergen protection to the user and enough long-term power to overcome exhaust HEPA filter loading for years to come.
HIGH EXPECTATIONS.
14-INch OPENING FOR CAGES
The NU-620 allows the vivarium technician to easily move mouse or even larger rat cages in and out of the workstation through its standard 14-inch (356mm) tall access opening while easily viewing the work area through the clear window just above. Add in the integrated base stand with motorized height adjustability, and the NU-620 design is ready to provide optimized visibility and ergonomic positioning for every technician in your laboratory.
WHEN HEPA FILTERS CALL FOR BACKUP.
PREFILTER UNDER the SURFACE
A normal workstation’s HEPA filters would not last long in a vivarium, where hair and dander can more quickly saturate them. That is, unless it is adapted for this particular environment by using a prefilter to clean out the larger elements and leave the HEPA filters to contend with the smaller particulate. Its position under the work surface makes it easy to maintain as necessary.
COMBINE THE NOMINAL WIDTH AND ACCESS OF YOUR CHOICE.
AVAILABLE SIZE CONFIGURATIONS
115V/60Hz (No Suffix) & 230V/50-60Hz (E Suffix)
MODEL |
NOMINAL WIDTH |
ACCESS CONFIGURATION |
| NU-620-300 NU-620-300E |
3 ft. (0.9m) | Dual Sided |
| NU-620-400 NU-620-400E |
4 ft. (1.2m) | Dual Sided |
| NU-620-500 NU-620-500E |
5 ft. (1.5m) | Dual Sided |
| NU-620-301 NU-620-301E |
3 ft. (0.9m) | Single Sided |
| NU-620-401 NU-620-401E |
4 ft. (1.2m) | Single Sided |
| NU-620-501 NU-620-501E |
5 ft. (1.5m) | Single Sided |
The NuAire© Advantage
NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.Warranty
Backed by the Industry's Best
- 3 Years Parts & Labor (United States and Canada)
- Consult Local Distributor (Global)
Standard Features
- Supply Pre-filter
- Supply EC Impeller
- Supply HEPA Filter
- Steel Main Construction
- Polycarbonate Window
- 14-inch (356mm) Access Opening
- Stainless Steel Work Surface with Prop Rod
- Exhaust Pre-filter
- Exhaust DC ECM Motor
- Exhaust HEPA Filter
- Motorized Height Adjustment
- Castors
- Pull Bars on Both Sides
- LED Lighting
- Outlet on Right Side Support
| Air Cleanliness (ISO 14644) | ISO-Class-5 |
| Built-in Shelf for Stand-Up Option | Option |
| Casters | 4 (102), Lockable |
| Construction | Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen |
| Control System | AeroMax |
| Diffuser | Metal |
| Downflow fpm (m/s) | 60 (0.30) |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Exhaust Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Exhaust Prefilter | Below Work Surface |
| Feeder Holder(s) | Option |
| Folding Shelf Dimensions (W x D) | Option, 14-inch (355mm) x 30-inch (762mm) |
| Free Standing Cage Top Holder | Accessory |
| Fumigation: per NIH/NSF Procedures | Yes |
| Hand Sanitizer Dispenser | Accessory |
| HEPA Filter Seal Type | Neoprene, Spring-loaded |
| Inflow fpm (m/s) | 25 (0.13) |
| Lighting | LED |
| Light Intensity fc (Lux) | Inquire |
| Magnifying Glass in Window | Optional |
| Motorized Base Stand | Included |
| Outlet(s) | One, Right Sidewall |
| Plenum Type | Inquire |
| Power Cord | 15A |
| Power Cord Length Foot (Meter) | 20 ft. (6.1 m) Cord Reel |
| Protection | Product |
| Safety Certification | UL, UL-C |
| Service Valves (3/8-inch NPT) | N/A |
| Style | Console |
| Supply Filter | 3-inch (76mm) 99.99% Efficiency on 0.3 microns |
| Supply Prefilter | Top of Unit |
| Viewing Window Inches (mm) | Hinged |
| Work Access Opening(s) | 14 (356) |
| Work Surface | Stainless Steel |
Dimensions
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Est. Shipping Width Inches (mm) | 52 (1321) | 52 (1321) | 58 (1473) | 58 (1473) | 72 (1829) | 72 (1829) |
| Est. Shipping Height Inches (mm) | 75 (1905) | 75 (1905) | 75 (1905) | 75 (1905) | 75 (1905) | 75 (1905) |
| Est. Shipping Depth Inches (mm) | 38 (965) | 38 (965) | 43 (1092) | 43 (1092) | 43 (1092) | 43 (1092) |
| Exterior Depth Inches (mm) | 30 5/8 (778) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) |
| Exterior Height (Fully Assembled, maximum) Inches (mm) | 92 1/2 (2350) | 92 1/2 (2350) | 92 1/2 (2350) | 92 1/2 (2350) | 92 1/2 (2350) | 92 1/2 (2350) |
| Exterior Height (Fully Assembled, minimum) Inches (mm) | 80 1/2 (2045) | 80 1/2 (2045) | 80 1/2 (2045) | 80 1/2 (2045) | 80 1/2 (2045) | 80 1/2 (2045) |
| Exterior Height Inches (mm) | 80 1/2 (2045) - 92 1/2 (2350) | 80 1/2 (2045) - 92 1/2 (2350) | 80 1/2 (2045) - 92 1/2 (2350) | 80 1/2 (2045) - 92 1/2 (2350) | 80 1/2 (2045) - 92 1/2 (2350) | 80 1/2 (2045) - 92 1/2 (2350) |
| Exterior Height (Minimum for Transport) Inches (mm) | 75 (1905) without castors | 75 (1905) without castors | 75 (1905) without castors | 75 (1905) without castors | 75 (1905) without castors | 75 (1905) without castors |
| Exterior Width Inches (mm) | 42 (1067) without sidebars | 42 (1067) without sidebars | 48 (1219) without sidebars | 48 (1219) without sidebars | 60 (1524) without sidebars | 60 (1524) without sidebars |
| Footprint Depth inches (mm) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) | 30 5/8 (777) |
| Footprint Width inches (mm) | 48 (1220) with sidebars | 48 (1220) with sidebars | 54 (1372) with sidebars | 54 (1372) with sidebars | 66 (1677) with sidebars | 66 (1677) with sidebars |
| Work Area Depth Inches (mm) | 28 1/4 (718) | 28 1/4 (718) | 28 1/4 (718) | 28 1/4 (718) | 28 1/4 (718) | 28 1/4 (718) |
| Work Area Height Inches (mm) | 25 1/2 (648) | 25 1/2 (648) | 25 1/2 (648) | 25 1/2 (648) | 25 1/2 (648) | 25 1/2 (648) |
| Work Area Width Inches (mm) | 36 5/8 (929) | 36 5/8 (929) | 42 5/8 (1081) | 42 5/8 (1081) | 54 5/8 (1387) | 54 5/8 (1387) |
| Useable Work Tray Area Depth Inches (mm) | 24 3/4 (630) | 24 3/4 (630) | 24 3/4 (630) | 24 3/4 (630) | 24 3/4 (630) | 24 3/4 (630) |
| Useable Work Tray Area Width Inches (mm) | 34 3/8 (873) | 34 3/8 (873) | 40 3/8 (1025) | 40 3/8 (1025) | 52 3/8 (1330) | 52 3/8 (1330) |
Electrical
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Blower/Lights Amps | 5 | 3 | 5.5 | 3.5 | 6 | 4 |
| Outlet Amps | 3 | 3 | 3 | 3 | 3 | 3 |
| Rated Amps | 12 | 8 | 12 | 8 | 12 | 8 |
Configuration
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Deep Well(s) | N/A | N/A | N/A | N/A | N/A | N/A |
Performance
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Heat Rejected (BTU/Hour) | 785 | 785 | 785 | 785 | 785 | 785 |
Construction
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Motor(s) | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower | 1 Supply Impeller, 1/2 HP DC ECM Exhaust Blower |
Weight
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Net Weight lbs (kg) | 430 (195) | 430 (195) | 460 (209) | 460 (209) | 530 (240) | 530 (240) |
| Est. Shipping Weight lbs (kg) | 480 (218) | 480 (218) | 510 (231) | 510 (231) | 580 (263) | 580 (263) |
Ergonomics
| NU-620-300 | NU-620-300E | NU-620-400 | NU-620-400E | NU-620-500 | NU-620-500E | |
|---|---|---|---|---|---|---|
| Sound Pressure Level per ISO 4871 | Inquire | Inquire | Inquire | Inquire | N/A | Inquire |
Accessories
| Free Standing Cage Top Holder |
Outlets
| 115V 60Hz Outlet |
| 115V Ground Fault Interrupter |
| 15A South African Outlet (Type M) |
| Australian Outlet (Type I) |
| Current UK Outlet (Type G) |
| Israel Outlet (Type H) |
| Old UK Outlet (Type D) |
| Outlet Type E (Qty 1) |
| Schuko Outlet (Type F) |
| Swiss Outlet (Type J) |
| US Standard Outlet (Type B) |
Prefilter
| Disposable Prefilter |
| Dual Layer Washable Prefilter |
Sanitizer
| Automatic Hand Sanitizer with Solution |
| Automatic Hand Sanitizer-Empty Bottle |
| Hand Sanitizer Dispenser |
| Hand Sanitizer Dispenser with Foam |
Window
| Hinged Window with Magnifying Glass |
| Hinged Window without Magnifying Glass |
