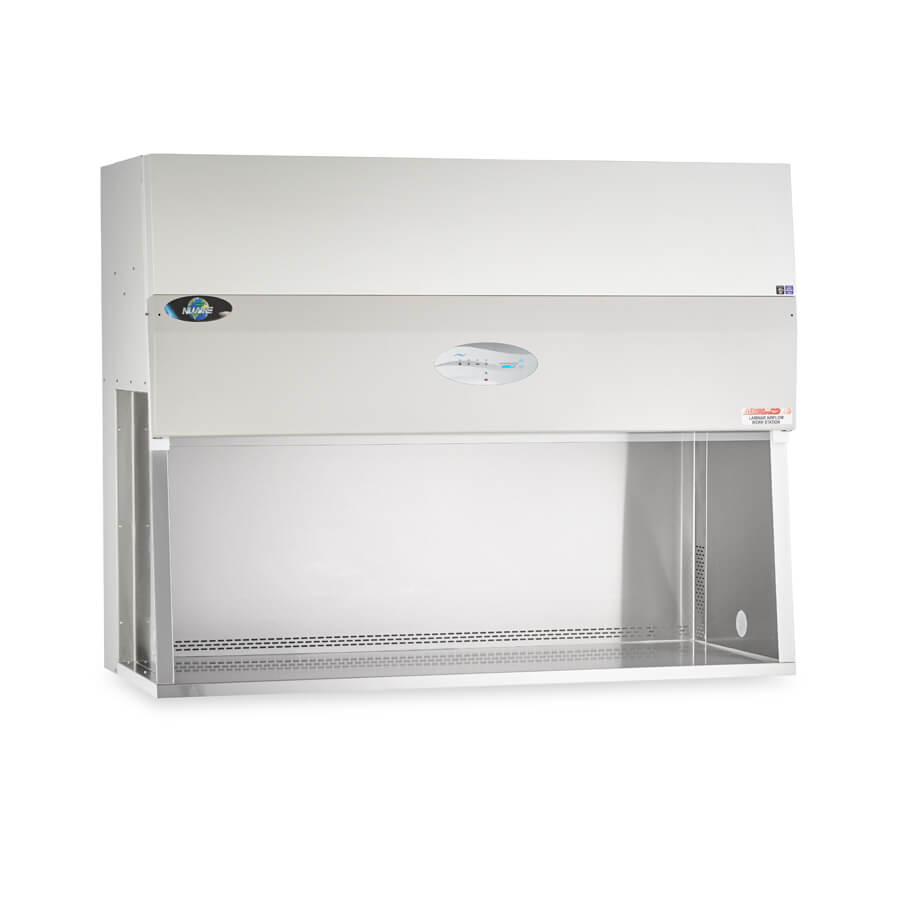

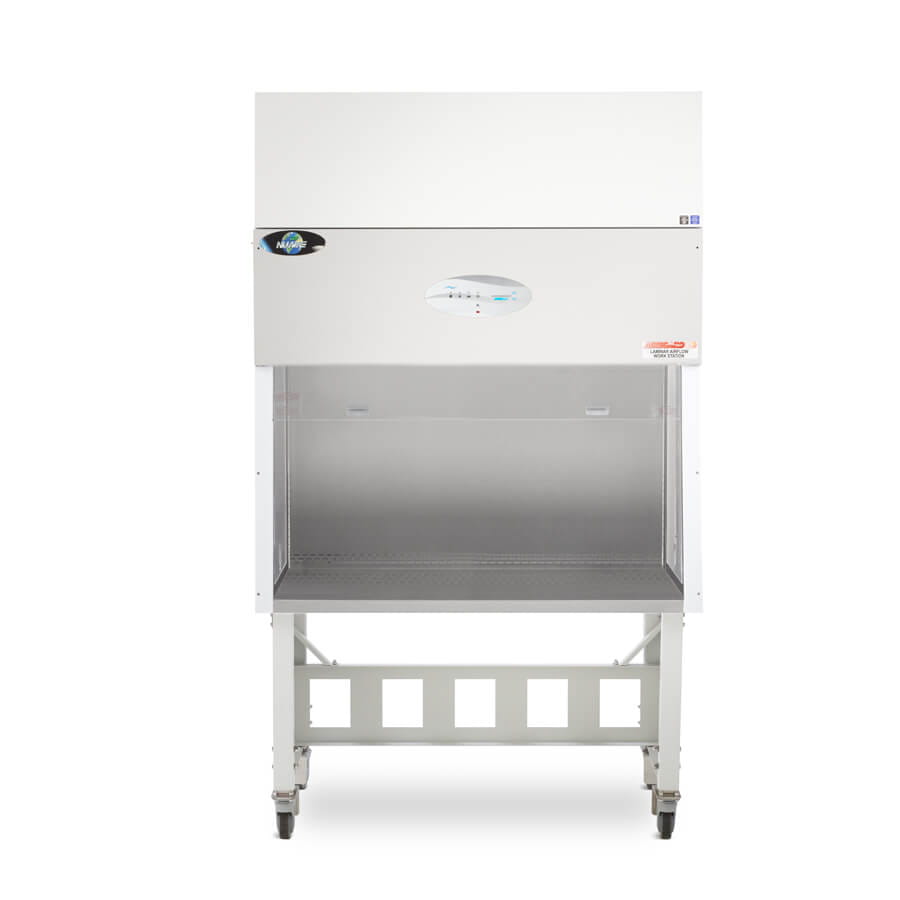

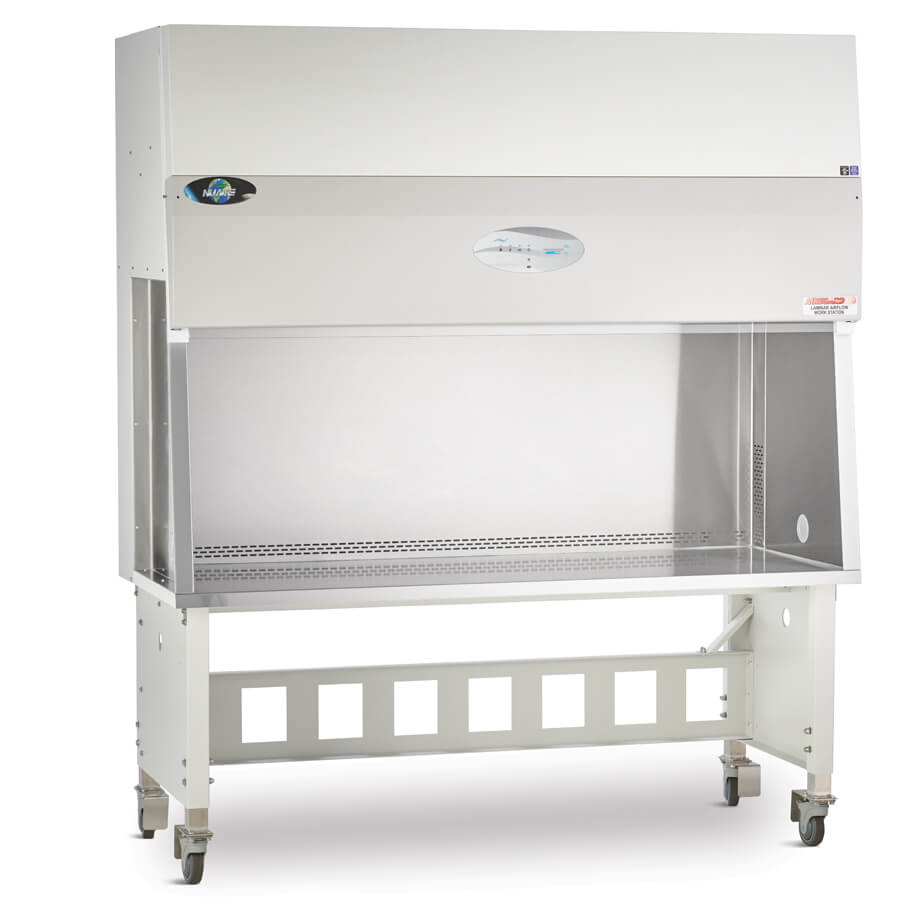

AireGardNU-140
Vertical Laminar Airflow Workstation

VERTICAL LAMINAR AIRFLOW | POWERFUL DC ECM MOTOR | STAINLESS STEEL WORK AREA | USP 797 DRUG COMPOUNDING

The AireGard™ NU-140 generates HEPA-filtered vertical laminar airflow to provide product protection for sterile but non-hazardous drug compounding or non-hazardous work in microbiology and research labs. The DC ECM motor draws air through a pre-filter and propels it through a HEPA filter to create an ISO Class 5 level of air cleanliness inside a work zone surrounded by stainless steel walls and a work surface made of stainless steel with a PVC core. One easily monitors workbench performance through the Aeromax™ control system that visualizes pressure in the internal airflow plenum. The work zone comes standard with cord-pass throughs and fluorescent lighting but can be optionally configured with polycarbonate walls, an IV bar, LED lighting, outlets, and service valves to meet the demands of your pharmacy or lab’s workflow. It is the only model that can be fitted with a UV light and sliding window.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The AireGard™ model NU-140 is available in four different sizes to meet the needs of your laboratory space and application.

Products

NU-140-330

Nominal 3-foot (0.9 m)

NU-140-430

Nominal 4-foot (1.2 m)

NU-140-530

Nominal 5-foot (1.5 m)

NU-140-630

Nominal 6-foot (1.8 m)

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Direction Vertical
Airflow Velocity 90 fpm (0.46 m/s)
Control System AeroMax
Protection Product
  • Features
  • Specs
  • Options & Accessories
  • Resources
AeroMax Electronic Control System for Lab Equipment

Green Light, Yellow Light, Red Light

AeroMax Control System

The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever workbench performance departs from normal parameters.

Ultra high efficiency motor for lab equipment

Powerful Yet Quiet

Ultra High Efficiency Motor

The single DC ECM motor powers the airflow though the workbench while economizing energy and minimizing noise. This motor provides enough power to compensate HEPA filter loading for years to come and thereby minimize your laboratory's lifetime cost of HEPA filter replacement.

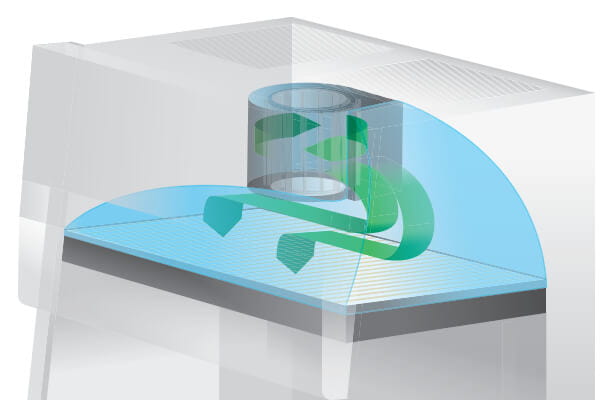

AireGard NU-140 Vertical Laminar Airflow Workstation HEPEX flexible air plenum.

Spreading the Flow

HEPEX Flexible Air Plenum

NuAire's signature flexible plenum design complements the DC ECM motor to uniformly distribute the downflow air across the supply HEPA filter and ensure that the airflow in the work zone is laminar. This distinct design also evenly spreads filter loading to ensure a long HEPA filter life.

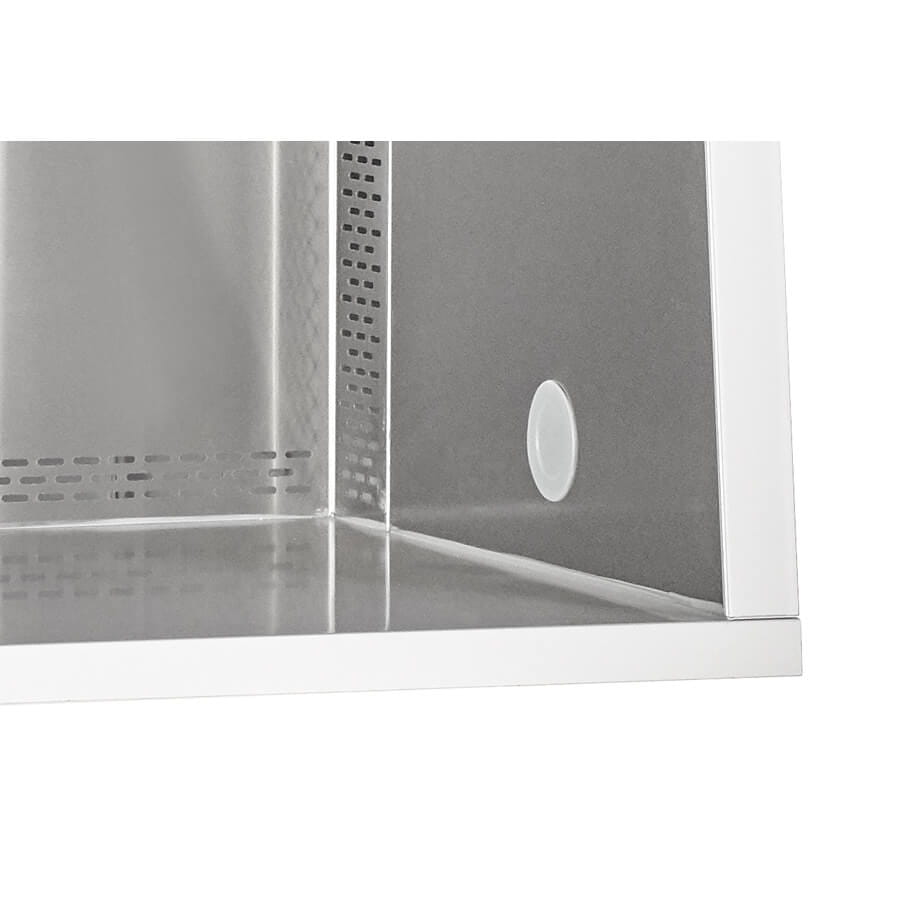

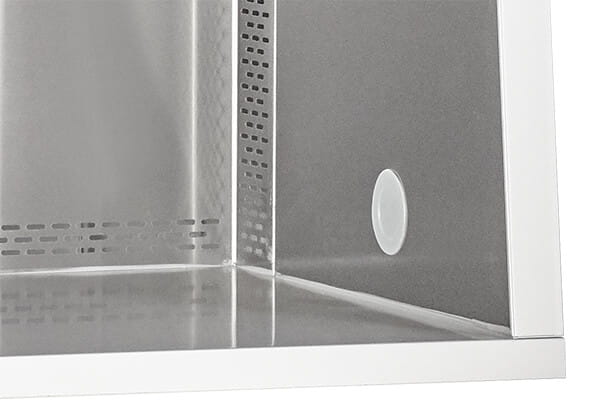

AireGard NU-140 Vertical Laminar Airflow Workstation features a smooth work zone.

Smooth Surfaces for a Smooth Workflow

Stainless Steel Workzone

The stainless steel walls and stainless steel work surface with PVC core provide a work zone that is robust, cleanable, and already provided with two standard cord-pass throughs to make it an ideal primary engineering control for non-hazardous compounding in pharmacies or clean air workbench for a microbiology lab.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 5 Years Parts (Filters Included) and Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Single DC ECM Motor
  • Flexible HEPEX™ Plenum
  • ISO Class 5 Work Zone
  • Prefilter
  • Stainless Steel Sidewalls
  • Stainless Steel Work Surface with PVC Core
  • Cord-Pass Through on Both Sides
  • 25 ¼ inch (642mm) Access Height
  • LED Lighting
  • Digital Pressure Sensor
  • Aeromax™ Control System
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Direction Vertical
Airflow Velocity 90 fpm (0.46 m/s)
Casters N/A
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Control System AeroMax
Cord Pass Through Standard on Right and Left Side Wall
Diffuser Metal Non-flammable
Electrical Configuration 115V50Hz, 230V5060Hz
HEPA Filter Seal Type HEPEX Seal- Neoprene, Spring-loaded
IV Bar with 6 Hooks Optional
Lighting Standard LED
Light Intensity fc (Lux) 90 (968)
Motor(s) DC ECM
Outlet(s) Optional, Under Work Surface
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Plenum Type HEPEX
Power Cord Length Foot (Meter) 12 (3.7)
Pre-filter Top of Unit
Protection Product
Safety Certification UL, UL-C
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional, Up to 3 Each Sidewall
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Ultraviolet (UV) Light Optional
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core

Dimensions

NU-140-330 NU-140-330E NU-140-430 NU-140-430E NU-140-530 NU-140-530E NU-140-630 NU-140-630E
Est. Shipping Width Inches (mm) 46 (1169) 46 (1169) 58 (1474) 58 (1474) 77 (1956) 77 (1956) 82 (2083) 82 (2083)
Est. Shipping Height Inches (mm) 69 (1753) 69 (1753) 69 (1753) 69 (1753) 68 (1728) 68 (1728) 68 (1728) 68 (1728)
Est. Shipping Depth Inches (mm) 43 (1093) 43 (1093) 43 (1093) 43 (1093) 43 (1093) 43 (1093) 43 (1093) 43 (1093)
Exterior Depth Inches (mm) 32 (813) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814)
Exterior Height Inches (mm) 58 (1473) 58 (1473) 58 (1473) 58 (1473) 58 (1473) 58 (1473) 58 (1473) 58 (1473)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 86 1/2 (2197) 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 84 1/2 (2146) with 27 7/8-inch (709mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 92 1/2 (2351) 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 92 1/2 (2350) with 35 7/8-inch (912mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 38 (965) 38 (965) 50 (1270) 50 (1270) 62 (1575) 62 (1575) 74 (1880) 74 (1880)
Footprint Depth inches (mm) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814)
Footprint Width inches (mm) 38 (965) 38 (965) 50 (1270) 50 (1270) 62 (1575) 62 (1575) 74 (1880) 69 7/8 (1775)
Work Area Depth Inches (mm) 26 3/4 (679) 26 3/4 (679) on work surface / 24 7/8 (630) at window access height 26 3/4 (679) on work surface / 24 7/8 (630) at window access height 26 3/4 (679) on work surface / 24 7/8 (630) at window access height 26 3/4 (679) on work surface / 24 7/8 (630) at window access height 26 3/4 (679) on work surface / 24 7/8 (630) at window access height 26 3/4 (679) on work surface / 24 7/8 (630) at window access height 26 3/4 (679) on work surface / 24 7/8 (630) at window access height
Work Area Height Inches (mm) 30 1/8 (765) 30 1/8 (765) 30 1/8 (765) 30 1/8 (765) 30 1/8 (765) 30 1/8 (765) 30 1/8 (765) 30 1/8 (765)
Work Area Width Inches (mm) 33 7/8 (860) 33 7/8 (860) 45 7/8 (1165) 45 7/8 (1165) 57 7/8 (1470) 57 7/8 (1470) 69 7/8 (1775) 69 7/8 (1775)


Performance

NU-140-330 NU-140-330E NU-140-430 NU-140-430E NU-140-530 NU-140-530E NU-140-630 NU-140-630E
Airflow Volume at 90 fpm (0.46 mps) 503 (855) 503 (855) 681 (1158) 681 (1158) 859 (1460) 859 (1460) 1037 (1763) 1037 (1763)
Heat Rejected (BTU/Hour) 863 863 1256 1256 1648 1648 1962 1962


Electrical

NU-140-330 NU-140-330E NU-140-430 NU-140-430E NU-140-530 NU-140-530E NU-140-630 NU-140-630E
Blower/Lights Amps 2.2 1.1 3.2 1.6 4.2 2.1 5 2.1
Power Cord 14 GA - 3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A
Rated Amps 7 5 8 6 8 6 8 6


Construction

NU-140-330 NU-140-330E NU-140-430 NU-140-430E NU-140-530 NU-140-530E NU-140-630 NU-140-630E
Motor(s) 1/3 HP DC ECM 1/3 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM
Work Access Opening(s) 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light 25 1/4-inches (643mm) without UV Light, 20-inches (507mm) with UV Light


Weight

NU-140-330 NU-140-330E NU-140-430 NU-140-430E NU-140-530 NU-140-530E NU-140-630 NU-140-630E
Net Weight lbs (kg) 300 lbs. / 136 kg. 300 (136) 355 (161) 355 (161) 420 (191) 420 (191) 565 (256) 565 (256)
Est. Shipping Weight lbs (kg) 340 lbs. / 154 kg. 340 (154) 405 (184) 405 (184) 470 (213) 470 (213) 595 (270) 595 (270)


Ergonomics

NU-140-330 NU-140-330E NU-140-430 NU-140-430E NU-140-530 NU-140-530E NU-140-630 NU-140-630E
Sound Pressure Level per ISO 4871 N/A N/A Inquire Inquire Inquire Inquire Inquire Inquire


IV Bar

Polycarbonate Side Panel, IV Bar With 6 Hooks
Stainless Steel Side Panel, IV Bar With 6 Hooks

Lighting

115V Fluorescent Lighting
230V Fluorescent Lighting
LED Lighting

Outlet

115V Duplex Outlet
115V Ground Fault Interrupter
Australian Outlet (Type I)
Current UK Outlet (Type G)
Danish Outlet (Type K)
Israel Outlet (Type H)
Old UK Outlet (Type D)
Outlet Type E (Qty 1)
Schuko Outlet (Type F)
South African Outlet (Type M)
Swiss Outlet (Type J)
US Standard Outlet (Type B)

Seismic

28 Inch Seismic Floor Brackets
Rear Mount Seismic Brackets For Adjustable Basestand
Rear Mount Seismic Brackets For Telescoping Basestand
Seismic Brackets For A Fixed Height Basestand
Seismic Brackets For Fixed Height Basestand

Service Valves

Bottom Left Service Valve
Bottom Right Service Valve
Middle Left Service Valve
Middle Right Service Valve
Top Left Service Valve
Top Right Service Valve

Sidewalls

Polycarbonate Sidewalls
Stainless Steel Sidewalls

UV Light

115V Ultraviolet Light
230V Ultraviolet Light
Without Ultraviolet (UV) Light

Work Surface

Nevamar Worksurface With PVC Core
Stainless Steel Worksurface With PVC Core

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
STORAGE TRAY VERTICAL PULL-OUT
STORAGE TRAY HORZ PULL-OUT
WOOD CRATING/INC CSWK 3'CAB
PORTABLE UV LAMP 37" 115VAC
PORTABLE UV LAMP 19" 220/230V
PORTABLE UV LAMP 19" 115VAC
TURNTABLE
ARMREST PADS FOAM PKG OF 10
PORTABLE UV LAMP 37" 220/230V
PALLET CRATING/FILTERS
WOOD CRATING/5' & 6' CABINETS
WOOD CRATING/4'CABINETS
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 4-foot (1.2 m)
Telescoping Base Stand with Casters - 4-foot (1.2 m)
Motorized Adjustable Base Stand with Leg Levelers - 4-foot (1.2 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 4-foot (1.2 m) 115V
Motorized Adjustable Base Stand with Casters - 6-foot (1.8 m) 230V
Motorized Adjustable Base Stand with Casters - 6-foot (1.8 m) 115V
Motorized Adjustable Base Stand with Casters - 3-foot (0.9 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 6-foot (1.8 m) 230V
Motorized Adjustable Base Stand with Casters - 3-foot (0.9 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 6-foot (1.8 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 3-foot (0.9 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 3-foot (0.9 m) 115V
Motorized Adjustable Base Stand with Casters - 5-foot (1.5 m) 230V
Motorized Adjustable Base Stand with Casters - 4-foot (1.2 m) 230V
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 6-foot (1.8 m)
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 5-foot (1.5 m)
Motorized Adjustable Base Stand with Casters - 4-foot (1.2 m) 115V
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 3-foot (0.9 m)
Telescoping Base Stand with Casters - 6-foot (1.8 m)
Telescoping Base Stand with Casters - 3-foot (0.9 m)
Telescoping Base Stand with Leg Levelers - 6-foot (1.8 m) - nu-200-136
Telescoping Base Stand with Leg Levelers - 5-foot (1.5 m)
Motorized Adjustable Base Stand with Casters - 5-foot (1.5 m) 115V
Telescoping Base Stand with Casters - 5-foot (1.5 m)
Telescoping Base Stand with Leg Levelers - 4-foot (1.2 m)
Motorized Adjustable Base Stand with Leg Levelers - 5-foot (1.5 m) 230V
Telescoping Base Stand with Leg Levelers - 3-foot (0.9 m)
Motorized Adjustable Base Stand with Leg Levelers - 5-foot (1.5 m) 115V
Adjustable Footrest SV-973-700 | NuAire
Brochure

Laminar Airflow Workstation Brochure

Download the brochure
Infographic USP 797 and USP 800 PEC Requirements Flow Chart

USP 797 and USP 800 PEC Requirements

Learn more
Manuals

NU-140 Series A Manual

Read the manual
Manuals

NU-140E Series A Manual

Read the manual
Warranty

Laminar Flow Work Station Warranty

View the warranty
BIM Revit

NU-140 Laminar Airflow Workstation 3D Model

Learn More
Drawing

NU-140-330 Laminar Airflow Workstation 115V Cut Sheet

View the drawing

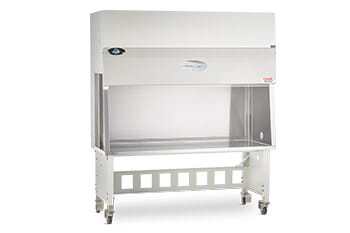

Flyer AireGard NU-140 Vertical Laminar Airflow Workstation Flyer
