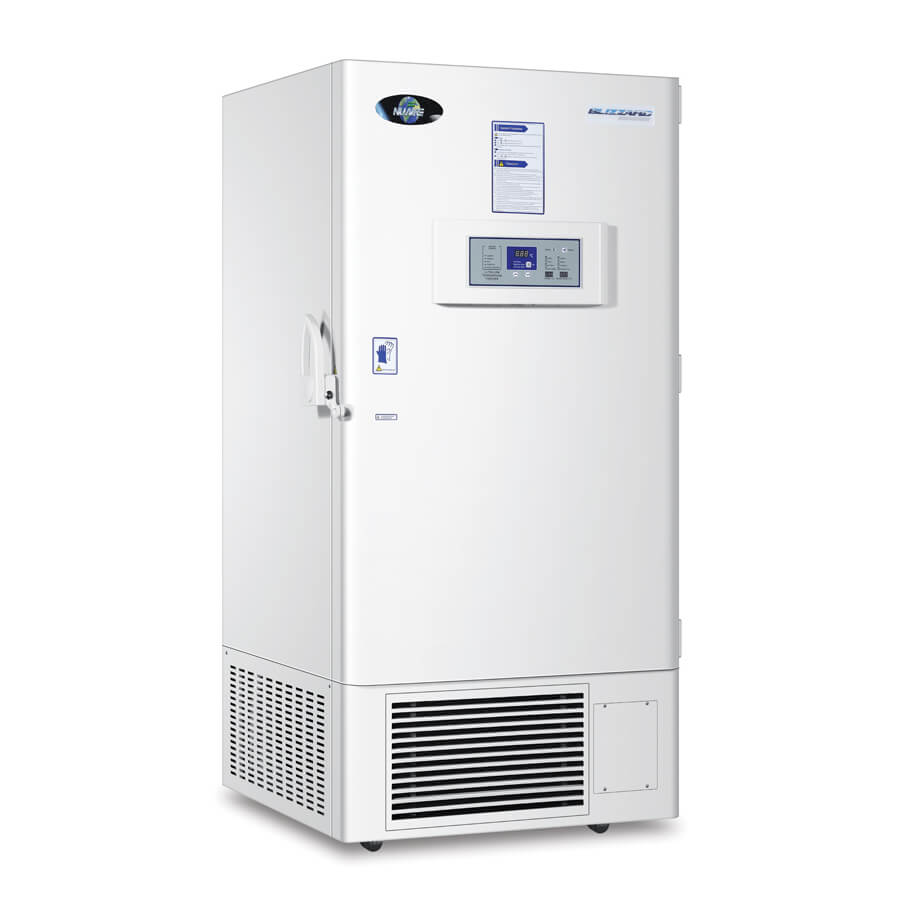

Blizzard HC NU-99728J -80°C Ultralow Freezer
The Blizzard™ range of vertical ultra-low freezers enables low temperature storage in a variety of sizes that feature efficient HC refrigerants, composite insulation, gasketed doors, and downloadable data.
- Overview
- Specifications
- Reviews
- Resources
- Accessories
Overview
The Blizzard™ range of vertical ultra-low freezers efficiently stores samples by using HC refrigerants and protects them within a structure using steel walls and a composite VIP and polyurethane insulation. Multiple, polyurethane foam insulated interior doors allow easy access with minimal temperature loss to racks set on the stainless-steel shelves inside. Running parameters are clearly displayed on the front electronic control panel at all times and can be downloaded via the USB port for long term datalogging.
Specifications
| 2-inch Box Capacity | 500 |
| Rack Capacity | 20 |
| Access Port Location | Back Wall |
| Back Up Battery for Alarm Functions | High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms |
| Cabinet Thickness Inches (mm) | 3.5 (90) |
| Casters | All-direction caster with fixing stand |
| Door Thickness Inches (mm) | 3.5 (90) |
| Exterior Door | Single Door |
| Exterior Door Seal | Quadruple Seal on the Outside Door |
| Exterior Material | Color Coating Cold Plate Steel |
| Fan Brand | EBM |
| Inner Doors | 4 |
| Insulation | VIP+CFC Free Foaming Agent |
| Interior Door Seal | Single Seal on all Interior Doors |
| Interior Material | Color Coating Electric Zinc Steel Plate |
| Leg Levelers | 2 |
| Locking Mechanism | Key |
| Shelf Capacity lbs (kg) | 199 (90) |
| Shelf Material | Stainless Steel |
| Shelves | 3 Shelves, 4 Locations |
| Style | Upright |
| Adjustable High/Low Temperature Alarms | True |
| Alarms | Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc. |
| Auto Voltage Safeguard | Included |
| Data Output Features | USB, RS-232/485 |
| Power Switch | On-Off with Circuit Breaker |
| Remote Alarm Terminals | Remote Alarm Port, RS232 / RS485 (Optional) |
| Setpoint Security | Yes |
| Est. Shipping Depth Inches (mm) | 42 (1067) |
| Est. Shipping Height Inches (mm) | 84 (2137) |
| Est. Shipping Width Inches (mm) | 44 (1118) |
| Exterior Depth Inches (mm) | 38.6 (980) |
| Exterior Depth with Door Open Inches (mm) | 74.80 (1900) |
| Exterior Height Inches (mm) | 78 (1980) |
| Exterior Width Inches (mm) | 41 (1041) |
| Footprint Depth inches (mm) | 38.6 (980) |
| Footprint Width inches (mm) | 41 (1041) |
| Interior Depth Inches (mm) | 28.2 (716) |
| Interior Height Inches (mm) | 51.6 (1310) |
| Interior Volume Cubic Feet (Liters) | 25.7 (728) |
| Interior Width Inches (mm) | 30.2 (766) |
| Shelf Depth Inches (mm) | 26.6 (677) |
| Shelf Width Inches (mm) | 29.5 (750) |
| Electric Protection Type | |
| Electrical Configuration | 230V50Hz |
| Input Power (W) | 1650 |
| Power Consumption KWh/day | 10.5 |
| Power Cord | Grounded Three Prong Power Plug, Rated 16A |
| Power Cord Length Foot (Meter) | 8.2 ft (2.5m) |
| Rated Current (A) | 9.0 |
| Rated Frequency (Hz) | 50 |
| Rated Voltage (V) | 230 |
| Stable Current (A) | 7.5 |
| Sound Level | 50 dB(A) |
| Performance Standard |
| 1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes | 45 |
| Cool Down Time (25°C ambient to -80°C) in Minutes | 310 |
| Heat Rejected (BTU/Hour) | 1404 |
| Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes | 270 |
| Compressor Capacity Watt | 950 |
| Compressor Type/Brand/Number | Hermetic Reciprocating Type / SECOP / 2 |
| Condenser Type | Enhanced Micro-Channel & Forced-Air Cooled |
| Defrost Method | Manual |
| Evaporator Type | Cold Wall With Enhanced Heat Transfer Treatment |
| Refrigerant Charge/Flammable | R290 in 1st Stage / R290 + R170 Mix in 2nd Stage / Flammable in JE Version; R290 in 1st Stage / R170 in 2nd Stage / Flammable in JG & JGA Versions |
| Refrigeration System Type | Direct cooling |
| Ambient Temperature (°C) | 10 to 32 |
| Temperature Accuracy °C | ±1 |
| Temperature Control | Microprocessor Controller |
| Temperature Range °C | -40 to -86 |
| Temperature Sensor Type | RTD (Pt100) |
| Temperature Uniformity °C | ±5 |
| Est. Shipping Weight lbs (kg) | Estimated 849 lbs (385 kgs) |
| Net Weight lbs (kg) | 761 lbs (345 kg) |
| 2-inch Box Capacity | 500 |
| Rack Capacity | 20 |
| Access Port Location | Back Wall |
| Back Up Battery for Alarm Functions | High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms |
| Cabinet Thickness Inches (mm) | 3.5 (90) |
| Casters | All-direction caster with fixing stand |
| Door Thickness Inches (mm) | 3.5 (90) |
| Exterior Door | Single Door |
| Exterior Door Seal | Quadruple Seal on the Outside Door |
| Exterior Material | Color Coating Cold Plate Steel |
| Fan Brand | EBM |
| Inner Doors | 4 |
| Insulation | VIP+CFC Free Foaming Agent |
| Interior Door Seal | Single Seal on all Interior Doors |
| Interior Material | Color Coating Electric Zinc Steel Plate |
| Leg Levelers | 2 |
| Locking Mechanism | Key |
| Shelf Capacity lbs (kg) | 199 (90) |
| Shelf Material | Stainless Steel |
| Shelves | 3 Shelves, 4 Locations |
| Style | Upright |
| Adjustable High/Low Temperature Alarms | True |
| Alarms | Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc. |
| Auto Voltage Safeguard | Included |
| Data Output Features | USB, RS-232/485 |
| Power Switch | On-Off with Circuit Breaker |
| Remote Alarm Terminals | Remote Alarm Port, RS232 / RS485 (Optional) |
| Setpoint Security | Yes |
| Est. Shipping Depth Inches (mm) | 42 (1067) |
| Est. Shipping Height Inches (mm) | 84 (2137) |
| Est. Shipping Width Inches (mm) | 44 (1118) |
| Exterior Depth Inches (mm) | 38.6 (980) |
| Exterior Depth with Door Open Inches (mm) | 74.80 (1900) |
| Exterior Height Inches (mm) | 78 (1980) |
| Exterior Width Inches (mm) | 41 (1041) |
| Footprint Depth inches (mm) | 38.6 (980) |
| Footprint Width inches (mm) | 41 (1041) |
| Interior Depth Inches (mm) | 28.2 (716) |
| Interior Height Inches (mm) | 51.6 (1310) |
| Interior Volume Cubic Feet (Liters) | 25.7 (728) |
| Interior Width Inches (mm) | 30.2 (766) |
| Shelf Depth Inches (mm) | 26.6 (677) |
| Shelf Width Inches (mm) | 29.5 (750) |
| Electric Protection Type | |
| Electrical Configuration | 220V60Hz |
| Input Power (W) | 1650 |
| Power Consumption KWh/day | 10.5 |
| Power Cord | Grounded Three Prong Power Plug, Rated 16A |
| Power Cord Length Foot (Meter) | 8.2 ft (2.5m) |
| Rated Current (A) | 9.0 |
| Rated Frequency (Hz) | 60 |
| Rated Voltage (V) | 220 |
| Stable Current (A) | 7.5 |
| Sound Level | 50 dB(A) |
| Performance Standard |
| 1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes | 45 |
| Cool Down Time (25°C ambient to -80°C) in Minutes | 310 |
| Heat Rejected (BTU/Hour) | 1574 |
| Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes | 270 |
| Compressor Capacity Watt | 950 |
| Compressor Type/Brand/Number | Hermetic Reciprocating Type / SECOP / 2 |
| Condenser Type | Enhanced Micro-Channel & Forced-Air Cooled |
| Defrost Method | Manual |
| Evaporator Type | Cold Wall With Enhanced Heat Transfer Treatment |
| Refrigerant Charge/Flammable | R290 in 1st Stage / R290 + R170 Mix in 2nd Stage / Flammable in JE Version; R290 in 1st Stage / R170 in 2nd Stage / Flammable in JG & JGA Versions |
| Refrigeration System Type | Direct cooling |
| Ambient Temperature (°C) | 10 to 32 |
| Temperature Accuracy °C | ±1 |
| Temperature Control | Microprocessor Controller |
| Temperature Range °C | -40 to -86 |
| Temperature Sensor Type | RTD (Pt100) |
| Temperature Uniformity °C | ±5 |
| Est. Shipping Weight lbs (kg) | Estimated 849 lbs (385 kgs) |
| Net Weight lbs (kg) | 761 lbs (345 kg) |
| 2-inch Box Capacity | 500 |
| Rack Capacity | 20 |
| Access Port Location | Back Wall |
| Back Up Battery for Alarm Functions | High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms |
| Cabinet Thickness Inches (mm) | 3.5 (90) |
| Casters | All-direction caster with fixing stand |
| Door Thickness Inches (mm) | 3.5 (90) |
| Exterior Door | Single Door |
| Exterior Door Seal | Quadruple Seal on the Outside Door |
| Exterior Material | Color Coating Cold Plate Steel |
| Fan Brand | EBM |
| Inner Doors | 4 |
| Insulation | VIP+CFC Free Foaming Agent |
| Interior Door Seal | Single Seal on all Interior Doors |
| Interior Material | Color Coating Electric Zinc Steel Plate |
| Leg Levelers | 2 |
| Locking Mechanism | Key |
| Shelf Capacity lbs (kg) | 199 (90) |
| Shelf Material | Stainless Steel |
| Shelves | 3 Shelves, 4 Locations |
| Style | Upright |
| Adjustable High/Low Temperature Alarms | True |
| Alarms | Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc. |
| Auto Voltage Safeguard | Included |
| Data Output Features | USB, RS-232/485 |
| Power Switch | On-Off with Circuit Breaker |
| Remote Alarm Terminals | Remote Alarm Port, RS232 / RS485 (Optional) |
| Setpoint Security | Yes |
| Est. Shipping Depth Inches (mm) | 42 (1067) |
| Est. Shipping Height Inches (mm) | 84 (2137) |
| Est. Shipping Width Inches (mm) | 44 (1118) |
| Exterior Depth Inches (mm) | 38.6 (980) |
| Exterior Depth with Door Open Inches (mm) | 74.80 (1900) |
| Exterior Height Inches (mm) | 78 (1980) |
| Exterior Width Inches (mm) | 41 (1041) |
| Footprint Depth inches (mm) | 38.6 (980) |
| Footprint Width inches (mm) | 41 (1041) |
| Interior Depth Inches (mm) | 28.2 (716) |
| Interior Height Inches (mm) | 51.6 (1310) |
| Interior Volume Cubic Feet (Liters) | 25.7 (728) |
| Interior Width Inches (mm) | 30.2 (766) |
| Shelf Depth Inches (mm) | 26.6 (677) |
| Shelf Width Inches (mm) | 29.5 (750) |
| Electric Protection Type | |
| Electrical Configuration | 115V60Hz |
| Input Power (W) | 935 |
| Power Consumption KWh/day | 10.5 |
| Power Cord | Grounded Three Prong Power Plug, Rated 20A |
| Power Cord Length Foot (Meter) | 8.2 ft (2.5m) |
| Rated Current (A) | 18.0 |
| Rated Frequency (Hz) | 60 |
| Rated Voltage (V) | 115 |
| Stable Current (A) | 8.1 |
| Sound Level | 50 dB(A) |
| Performance Standard |
| 1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes | 45 |
| Cool Down Time (25°C ambient to -80°C) in Minutes | 310 |
| Heat Rejected (BTU/Hour) | 1200 |
| Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes | 270 |
| Compressor Capacity Watt | 950 |
| Compressor Type/Brand/Number | Hermetic Reciprocating Type / SECOP / 2 |
| Condenser Type | Enhanced Micro-Channel & Forced-Air Cooled |
| Defrost Method | Manual |
| Evaporator Type | Cold Wall With Enhanced Heat Transfer Treatment |
| Refrigerant Charge/Flammable | R290 in 1st Stage / R290 + R170 Mix in 2nd Stage / Flammable in JE Version; R290 in 1st Stage / R170 in 2nd Stage / Flammable in JG & JGA Versions |
| Refrigeration System Type | Direct cooling |
| Ambient Temperature (°C) | 10 to 32 |
| Temperature Accuracy °C | ±1 |
| Temperature Control | Microprocessor Controller |
| Temperature Range °C | -40 to -86 |
| Temperature Sensor Type | RTD (Pt100) |
| Temperature Uniformity °C | ±5 |
| Est. Shipping Weight lbs (kg) | Estimated 849 lbs (385 kgs) |
| Net Weight lbs (kg) | 761 lbs (345 kg) |
