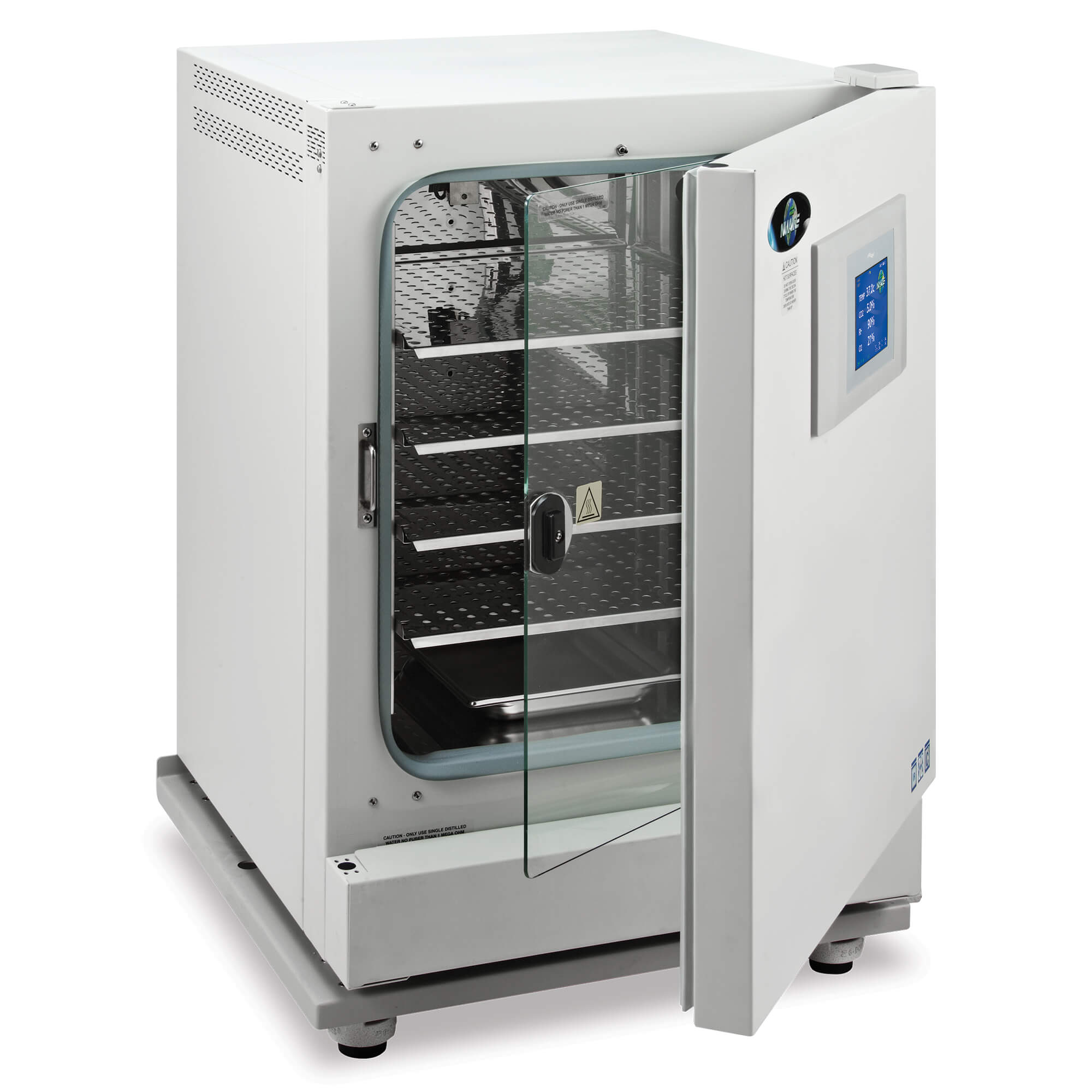

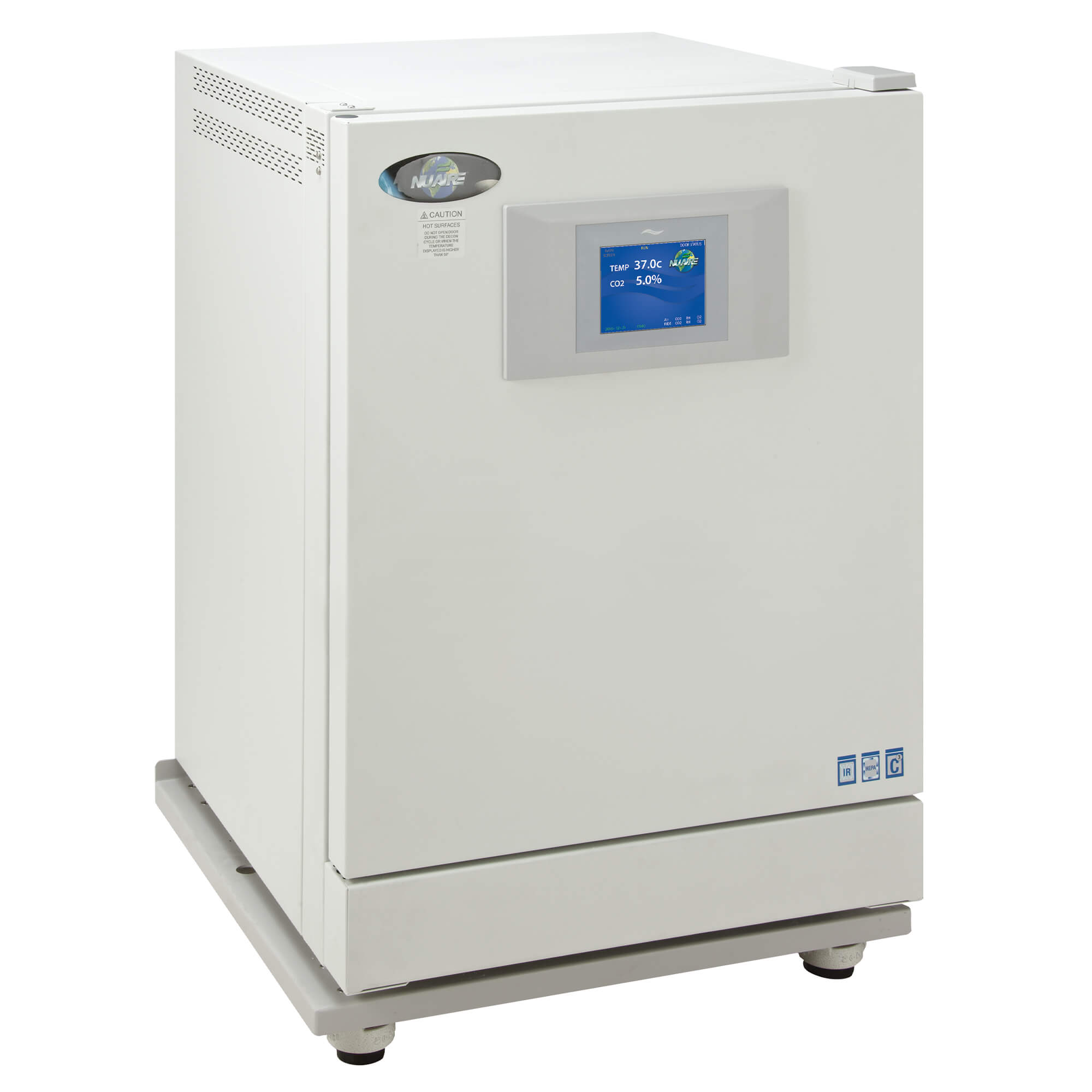

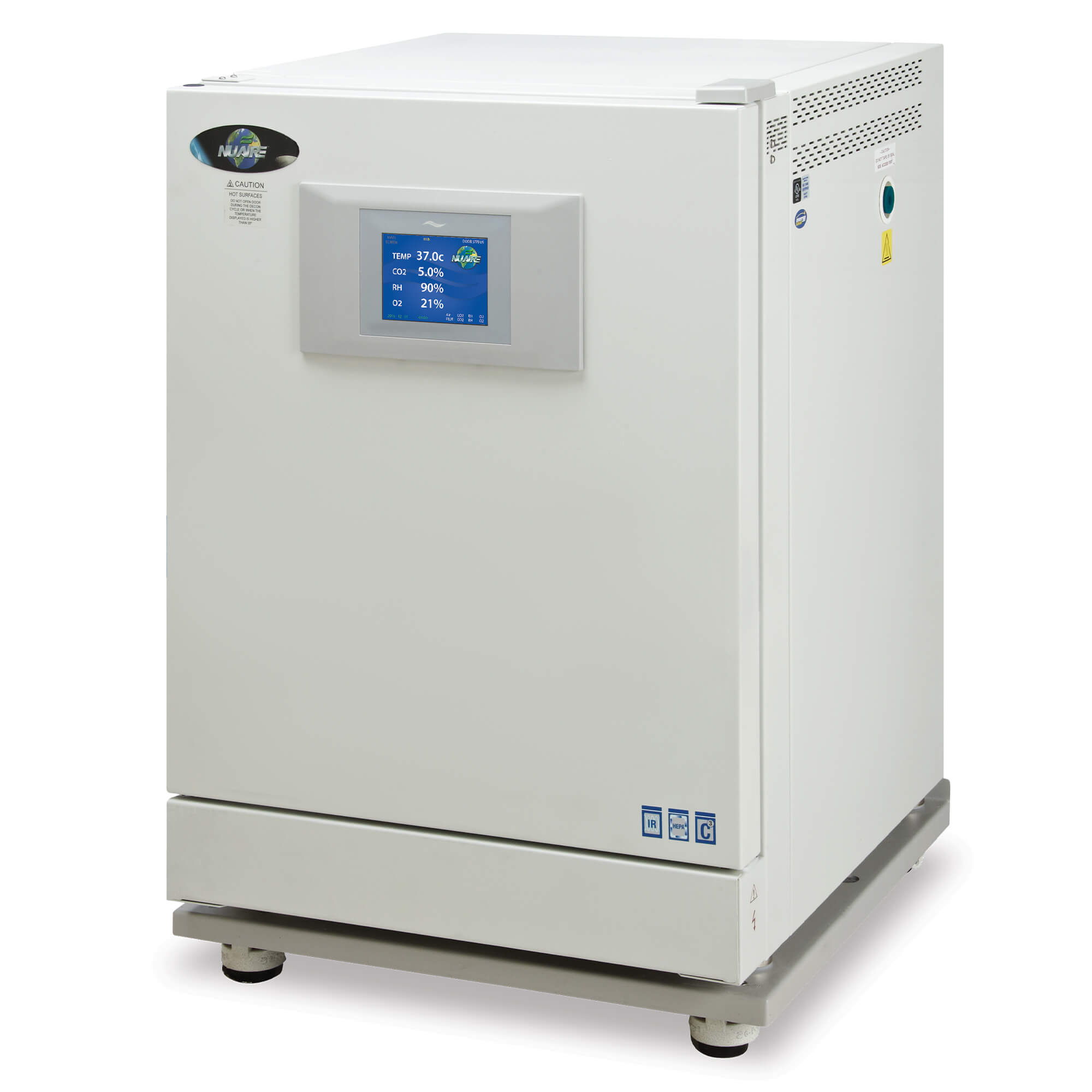

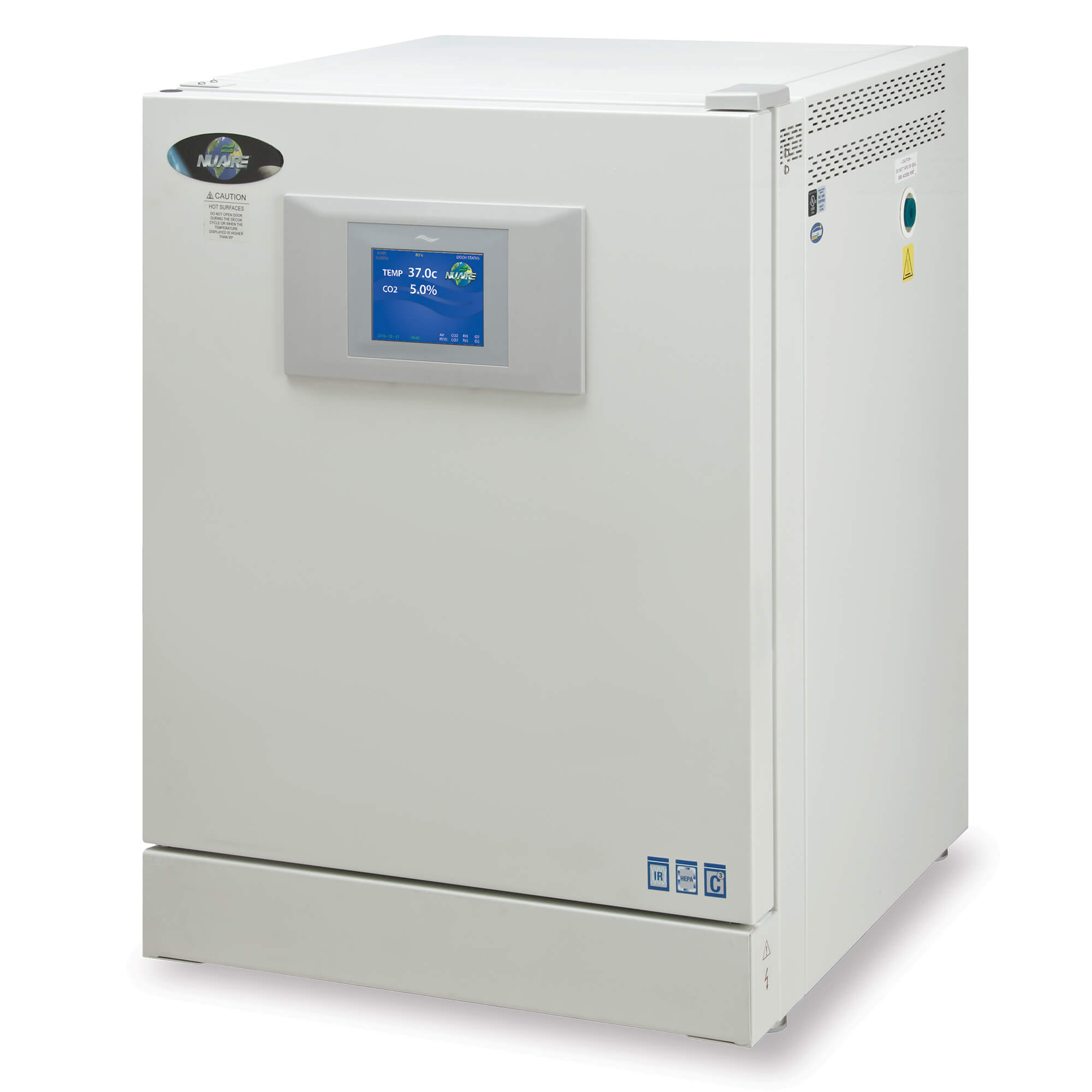

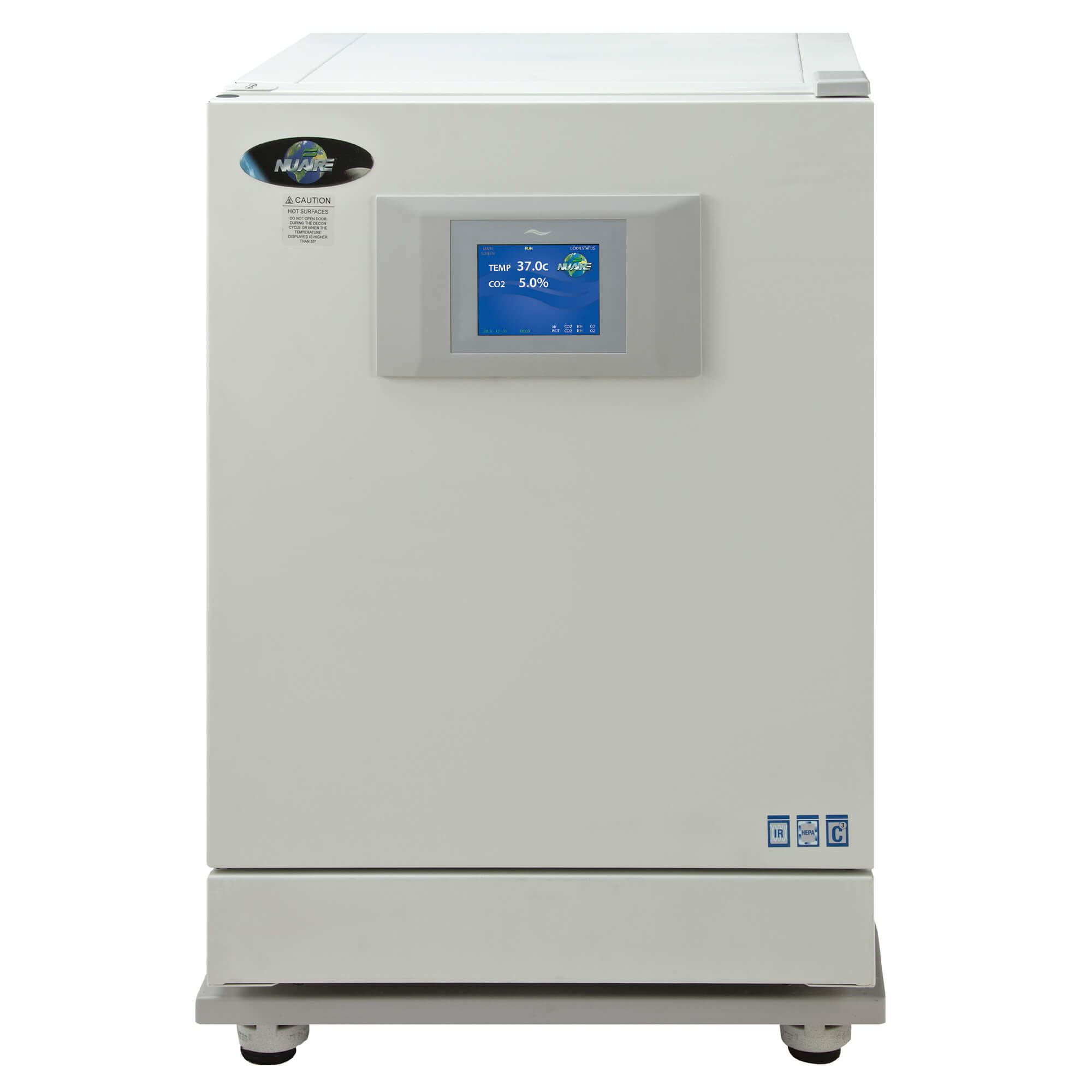

In-VitroCell NU-5710 Direct Heat CO2 Incubator

The In-VitroCell model NU-5710 is a Direct Heat CO2 Incubator featuring a chamber capacity of 5.65 cubic feet (160L) and dual decontamination (Dry and Humidified) cycles.

Overview

The NU-5710 CO2 incubator ensures ideal cell growth with its five-sided heating elements and independent door heater, maintaining consistent temperature and reducing condensation. Its direct heat technology provides up to 95% humidity, precise CO2 and temperature control, while effectively minimizing contamination risks.

Effortless Overnight Decontamination

Experience hassle-free contamination control with our Direct Heat Technology, featuring an efficient 8-hour overnight decontamination cycle at 145°C dry and 95°C humidified settings. This advanced system allows you to run full decontamination without removing CO2 or temperature sensors, ensuring minimal downtime. The intuitive NuTouch control system guides you through each phase with on-screen instructions and progress updates, simplifying the entire process and enhancing your laboratory workflow.

Advanced Contamination Control for Optimal Cell Culture Integrity

Enhance your cell culture protection with In-VitroCell's Constant Contamination Control. This advanced system merges continual HEPA filtration with high heat decontamination to maintain an ISO Class 5 clean air environment and slight positive pressure inside the chamber. By consistently cycling air through an external HEPA filter, In-VitrCcell ensures a robust, multi-layered defense against contamination, safeguarding the integrity and vitality of your cell cultures.

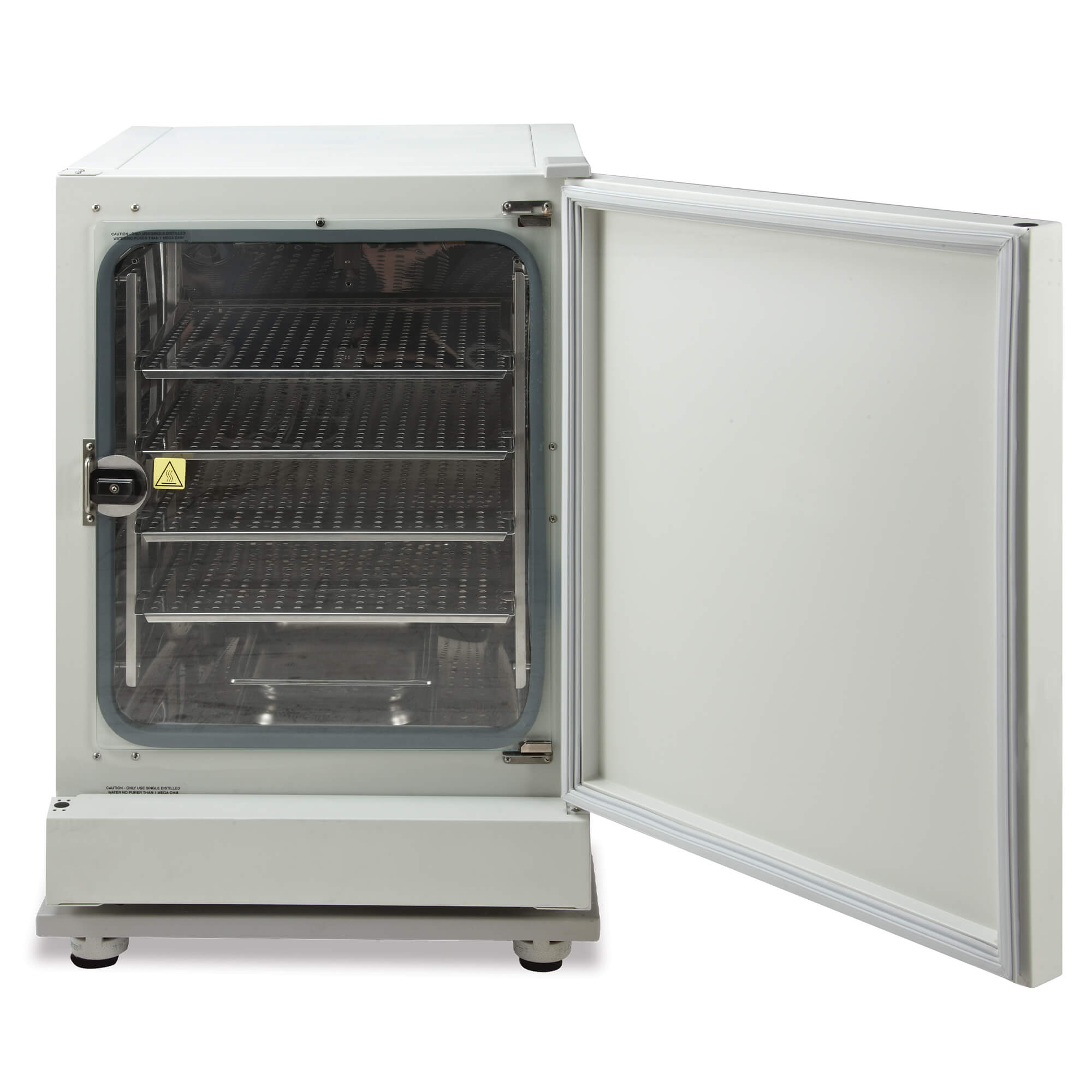

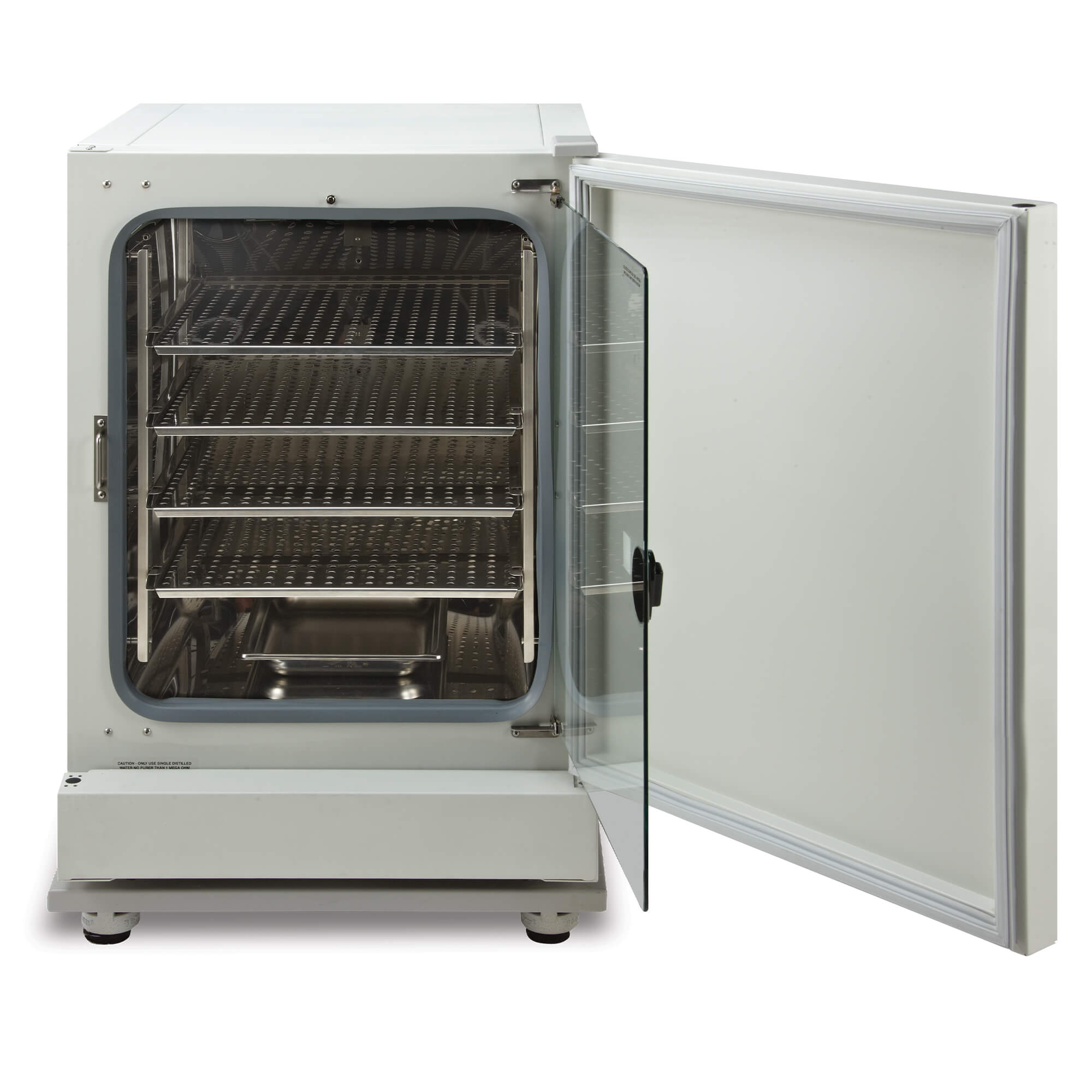

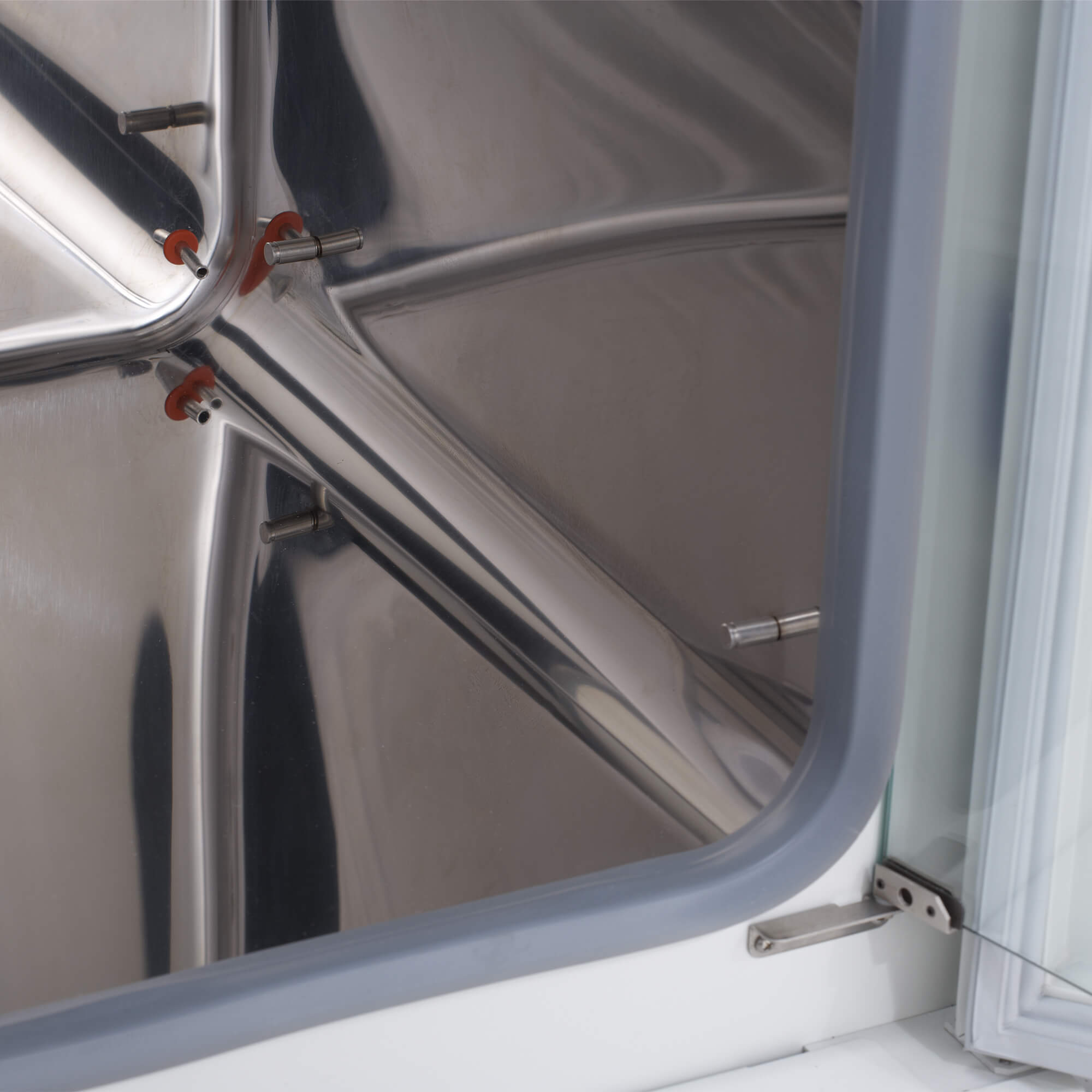

Easy to Clean Chamber

Optimize cleanability with NuAire CO2 Incubators, showcasing a crevice-free interior and coved corners. Their streamlined design facilitates easy cleaning, effectively minimizing contamination risks for a reliably pristine research environment.

Precision CO2 Control with Minimal Drift

NuAire's CO2 Incubators feature a cutting-edge dual wave infrared (IR) sensor meticulously engineered for precise CO2 level control within the growth chamber. This innovative sensor uses unique wavelengths absorbed exclusively by CO2, ensuring accurate measurements unaffected by other elements like water vapor. Its advanced design promises stable output with minimal drift, reducing the need for frequent recalibrations and maintaining optimal pH levels for superior cell culture conditions.

Specifications

In-VitroCell NU-5710 Direct Heat CO2 Incubator with Dual Decontamination Cycles
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)

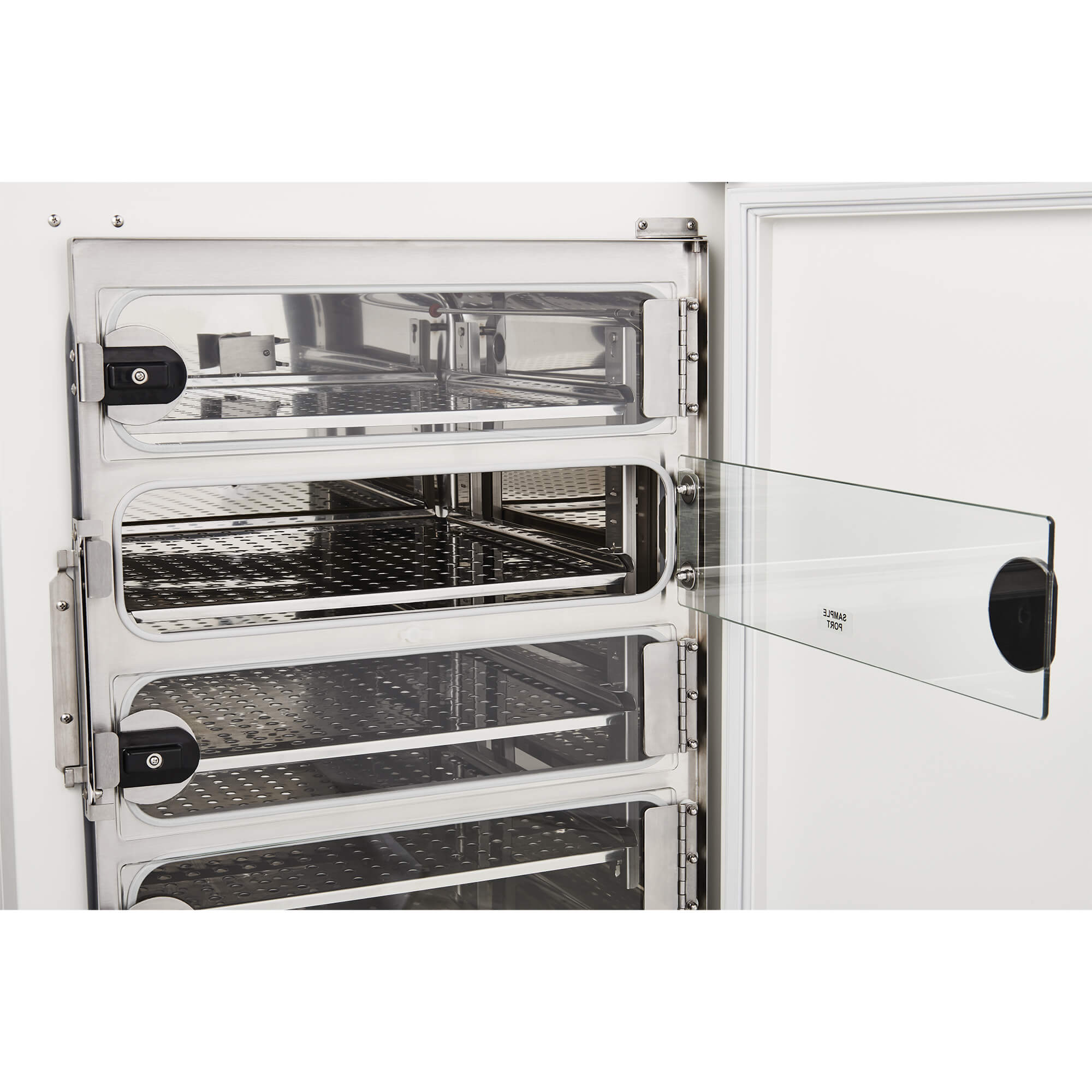

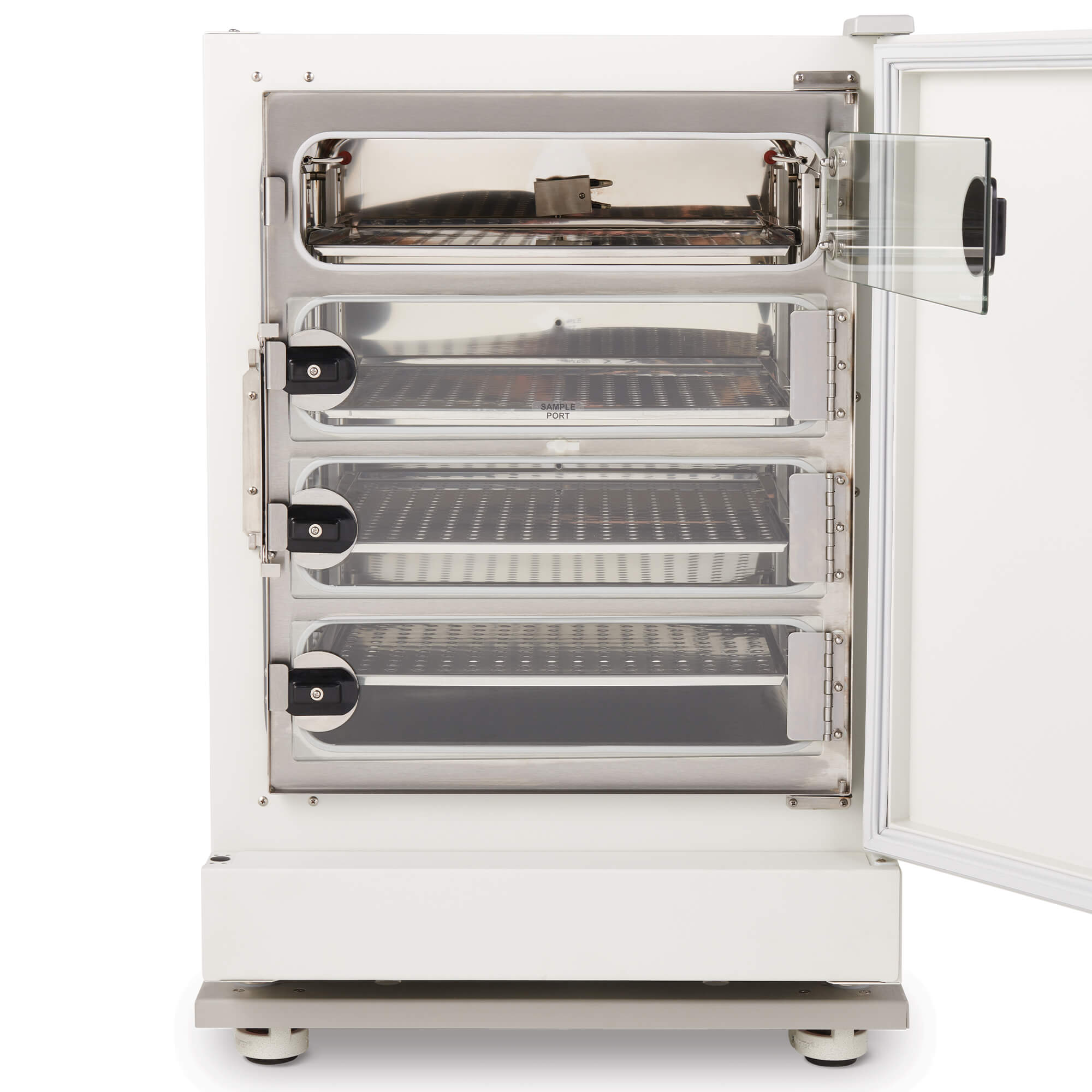

Segmented Doors Optional Set of 4 Inner Doors

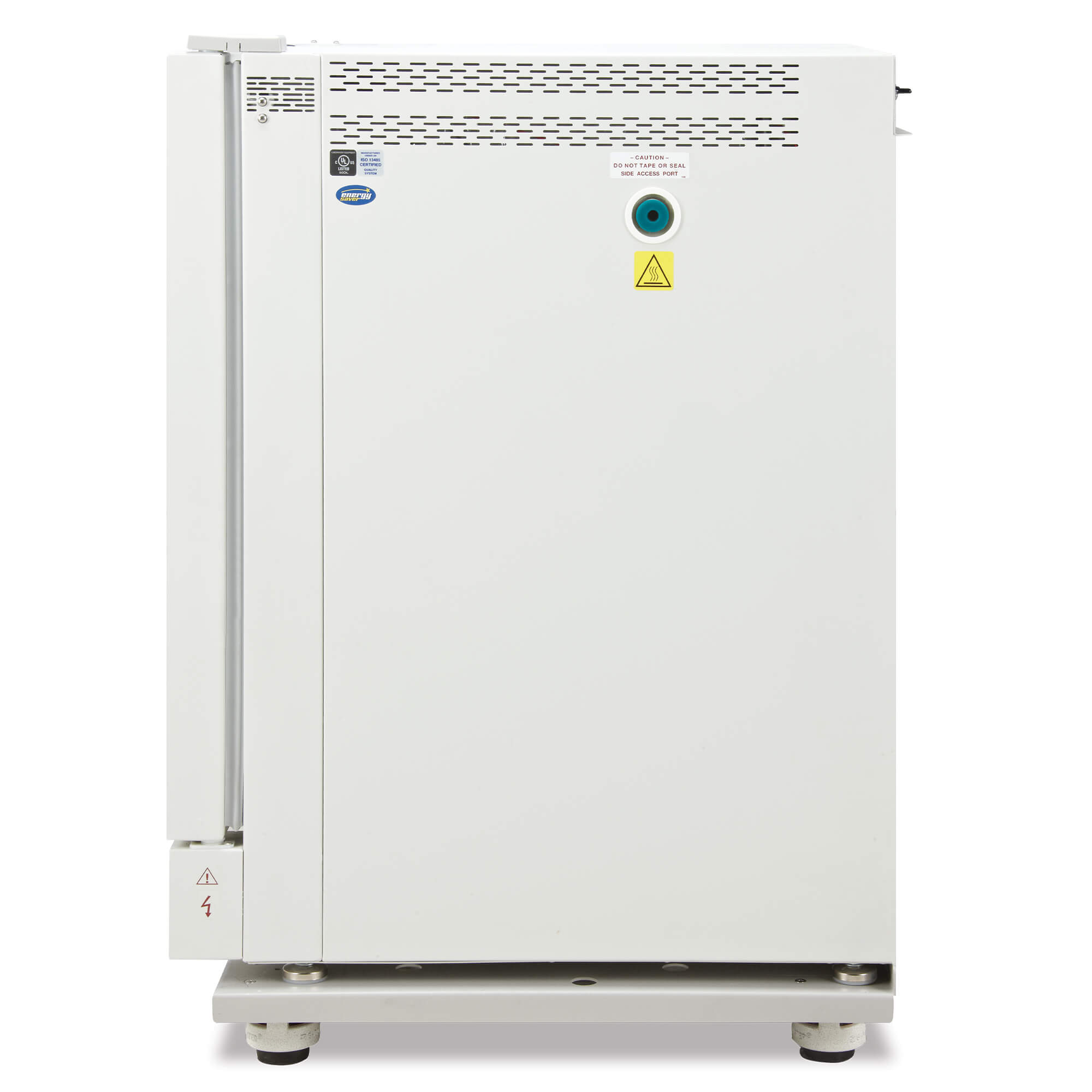

Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay

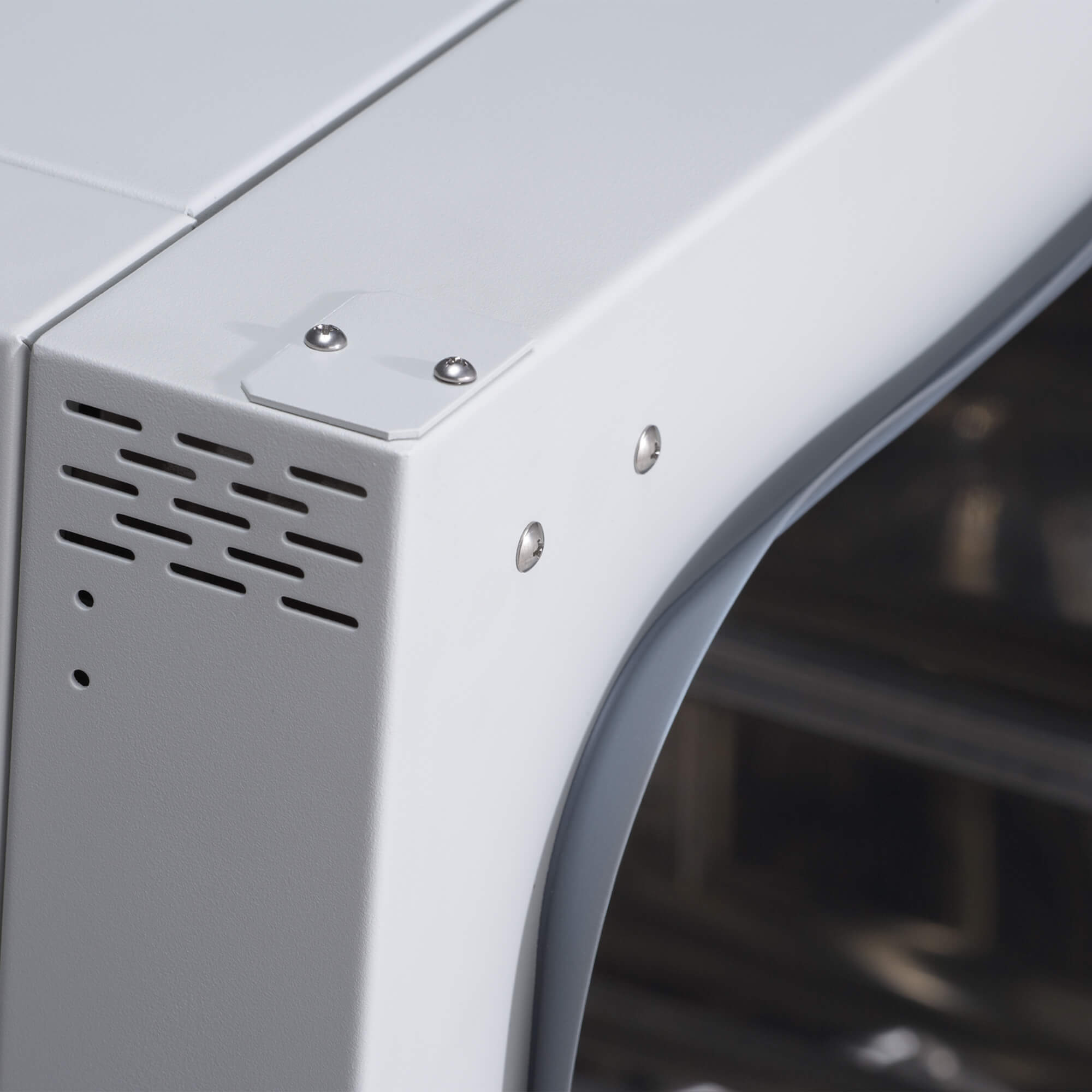

Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One, Sectioned Optional
Insulation High Density Insulation with High "R" Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity

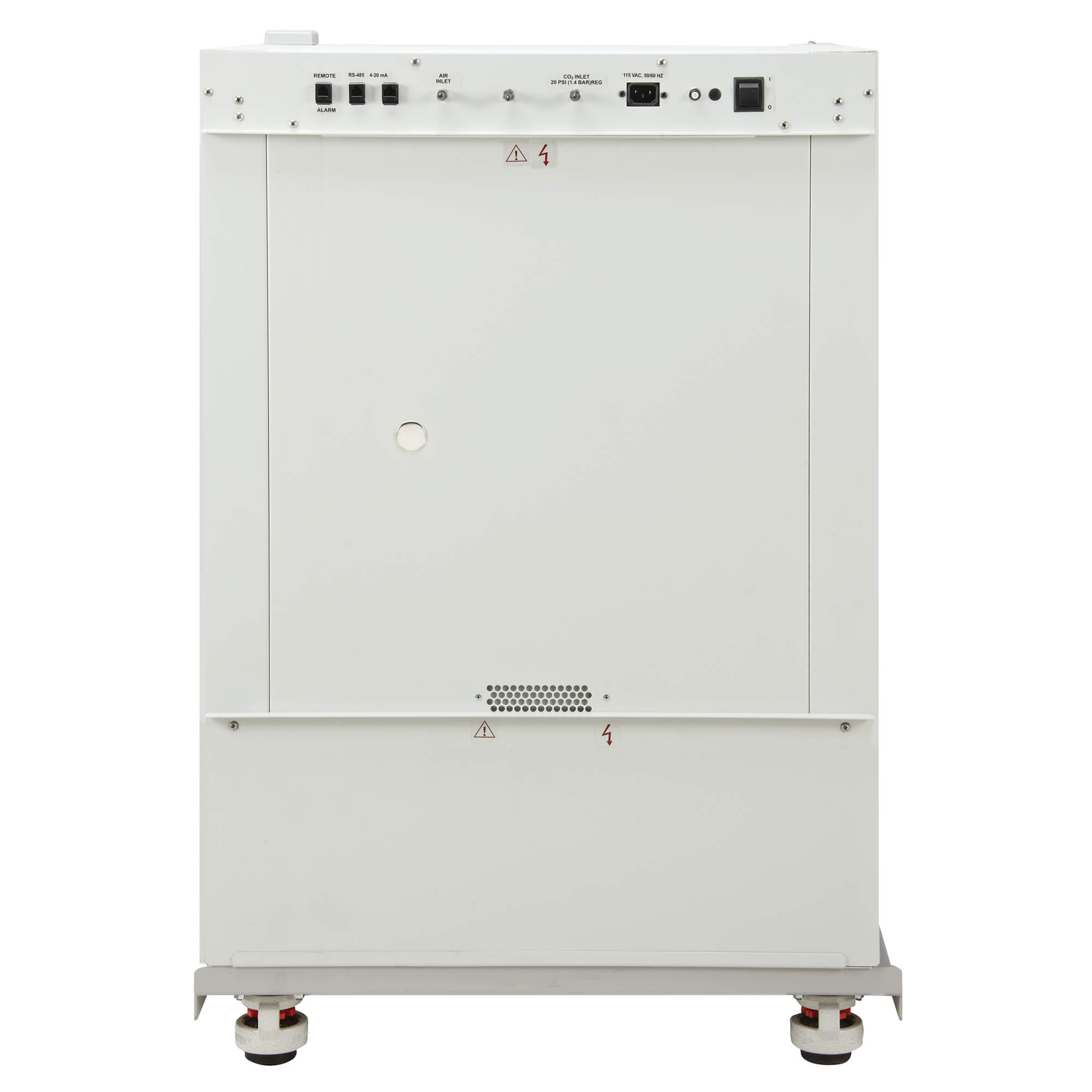

Data Output Features RS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm)
Est. Shipping Height Inches (mm)
Est. Shipping Width Inches (mm)
Exterior Depth Inches (mm) 27.500 (699)
Exterior Height Inches (mm) 36.188 (894)
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
Interior Depth Inches (mm) 20.678 (525)
Interior Height Inches (mm) 24.000 (610)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 (457)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)
Electrical Configuration 115V60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
O2 Accuracy
O2 Control Logic
O2 Display Resolution
O2 Measuring Range
O2 Recovery
O2 Sensor Type
O2 Set Point Range
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy
RH Control Logic
RH Control Method
RH Control Range
RH Display Resolution
RH Evaporator Box Capacity
RH Recovery
RH Sensor Type
RH Water Pan Capacity
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
Control System NuTouch
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Est. Shipping Weight lbs (kg) Inquire
Net Weight lbs (kg) 220 (100)
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Optional Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One, Sectioned Optional
Insulation High Density Insulation with High "R" Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Data Output Features RS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm)
Est. Shipping Height Inches (mm)
Est. Shipping Width Inches (mm)
Exterior Depth Inches (mm) 27.500 (699)
Exterior Height Inches (mm) 36.188 (894)
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
Interior Depth Inches (mm) 20.678 (525)
Interior Height Inches (mm) 24.000 (610)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 (457)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)
Electrical Configuration 230V5060Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
O2 Accuracy
O2 Control Logic
O2 Display Resolution
O2 Measuring Range
O2 Recovery
O2 Sensor Type
O2 Set Point Range
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy
RH Control Logic
RH Control Method
RH Control Range
RH Display Resolution
RH Evaporator Box Capacity
RH Recovery
RH Sensor Type
RH Water Pan Capacity
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
Control System NuTouch
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Est. Shipping Weight lbs (kg) Inquire
Net Weight lbs (kg) 220 (100)

Review

Options

  • Copper Alloy Chamber 115V
  • Copper Alloy Chamber 230V
  • Stainless Steel Chamber 115V
  • Stainless Steel Chamber 230V
  • Sectioned Inner Door
  • Standard Glass Inner Door
  • Left Side Door Hinge
  • Euro Power Cord Option Shipping Kit
  • UK Power Cord Option
