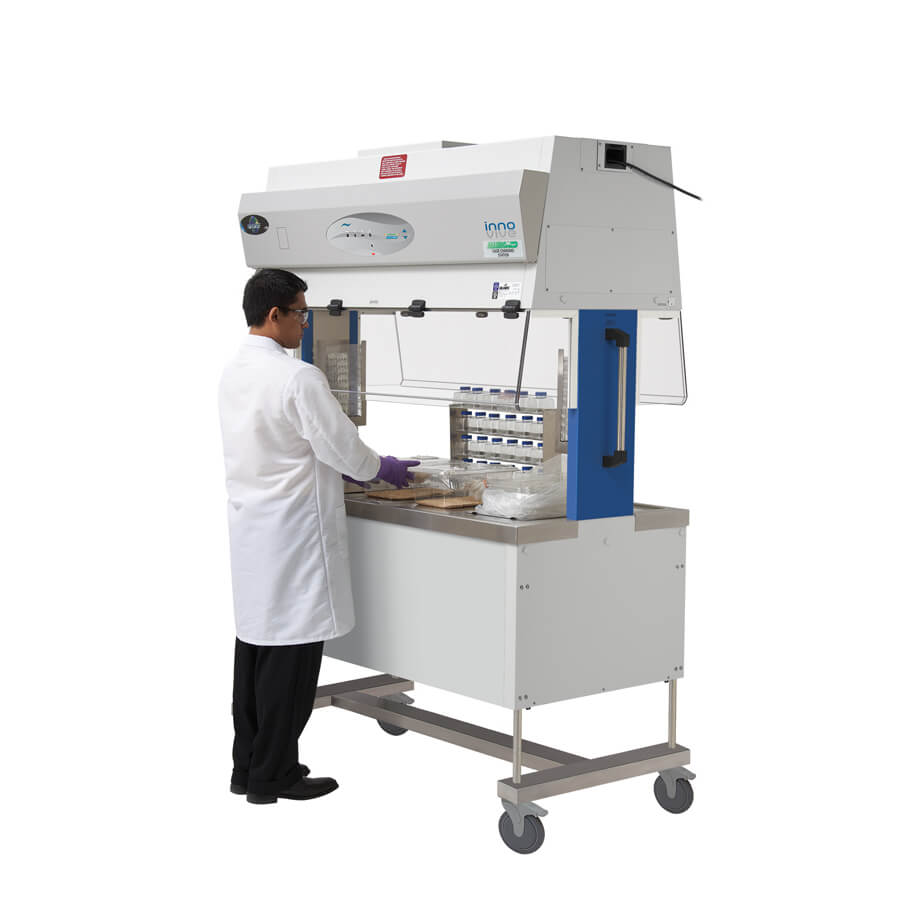

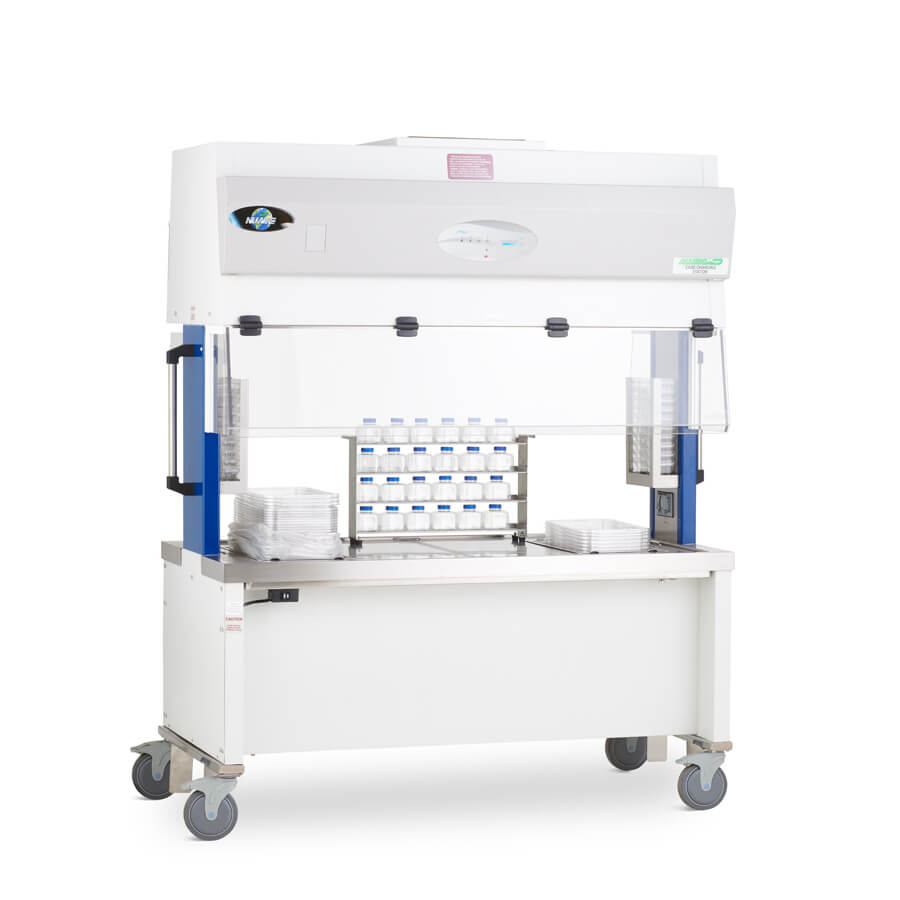

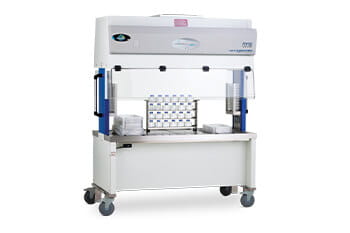

AllerGard ESNU-620M
Innovive Mouse Animal Transfer Station

OPTIMIZED FOR INNOVIVE® MOUSE CAGES | DIVIDED WORK SURFACE FOR WORKFLOW | POWERFUL PUSH-PULL AIRFLOW DESIGN

The NU-620M uses an impeller and HEPA filter in both the supply module at the top of the unit as well as in the exhaust module at the bottom to turn the work zone in between into a vertical “piston of air.” The transfer station’s supply impeller at the top of the “piston” draws air down through a prefilter and propels it past a supply HEPA filter and towards the work zone to create a clean air environment. From there, the exhaust impeller at the bottom of the “piston” pulls the downflow air through the slots in the work surface to provide allergen containment. It continues to suck all the air past an exhaust pre-filter before pushing it out an exhaust HEPA filter at the bottom of the transfer station. This “push-pull” airflow passes through a work surface divided by air grills into clean and dirty areas and a work zone configured with the deep wells and feeder holders that the Innovive™ cage changing process requires.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The AllerGard™ model NU-620M is available in two different sizes to meet the needs of your vivarium space and application.

Products

NU-S620-400M

Nominal 4-foot (1.2 m)

NU-S620-500M

Nominal 5-foot (1.5 m)

Quick Specs

Control System AeroMax
Downflow fpm (m/s) 80 FPM (0.38 m/s)
Protection Product
Work Access Opening(s) 14-inch (356mm)
  • Features
  • Specs
  • Options & Accessories
  • Resources
AeroMax Electronic Control System for Lab Equipment

GREEN LIGHT, YELLOW LIGHT, RED LIGHT.

AEROMAX CONTROL SYSTEM

The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever station performance departs from normal parameters.

A MATCH MADE IN HEAVEN, OR PERHAPS JUST IN YOUR VIVARIUM.

CONFIGURED JUST FOR INNOVIVE

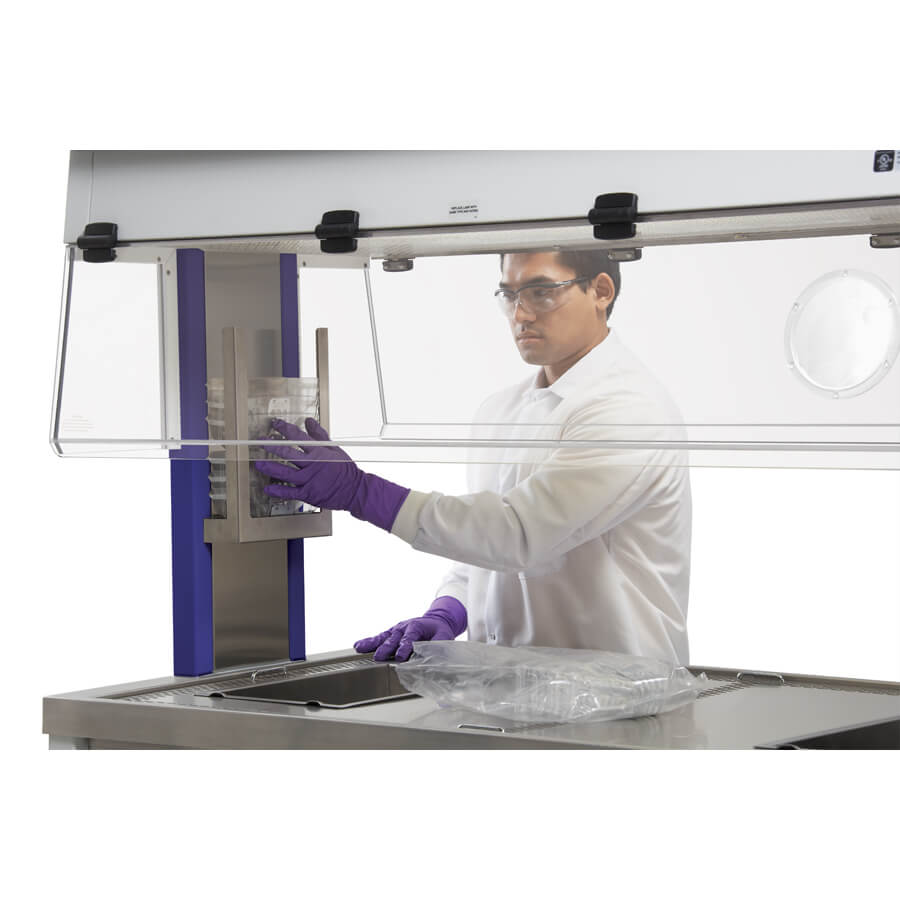

The Innovive® edition NU-620M is configured specifically for technicians to carry out the Innovive® disposable mouse cage changing process with the greatest ease and efficiency. The placement of the deep well(s), the feeder holders, and the optional water bottle rack are purposefully engineered to fit seamlessly with the user's workflow to create the most streamlined and ergonomic experience possible when working with these disposable cages.

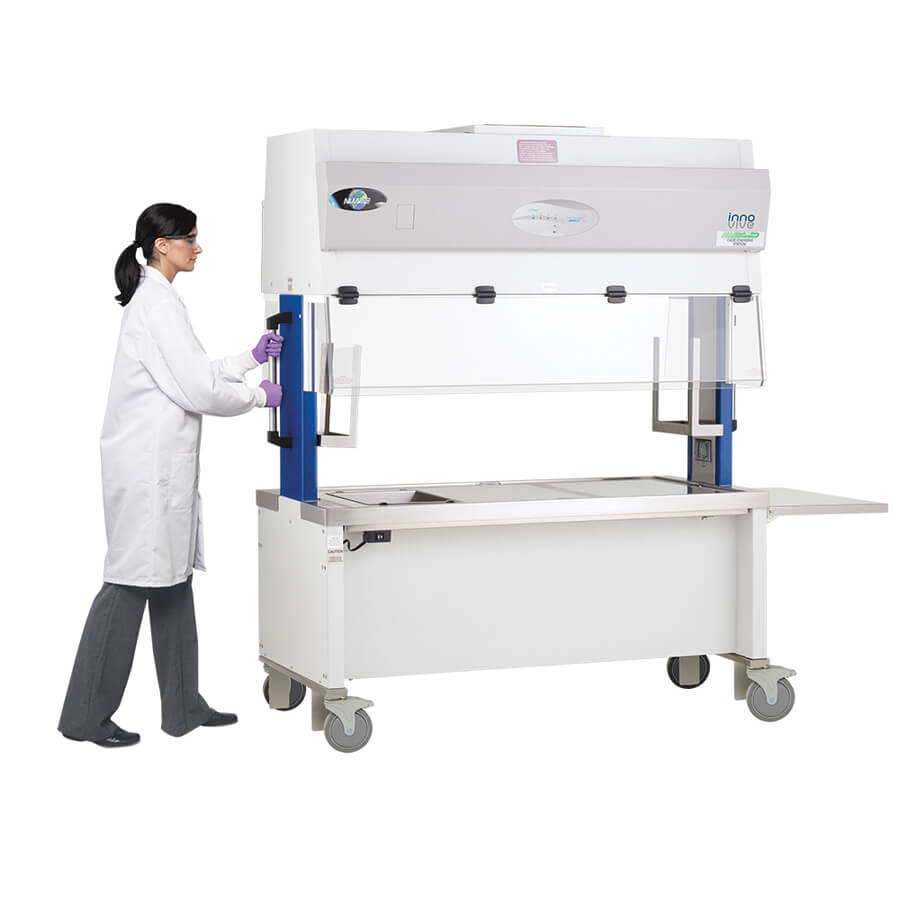

Shown: NU-S620-500M

RARELY HAS FORM FOLLOWED FUNCTION SO CLOSELY.

SEGMENTED AIR FLOW ZONES

The Innovive® edition’s customization for your workflow does not end with adapting the physical features of the work area. The design of the work area must channel the very airflow dynamics themselves to serve the needs of your cage changing procedure. The work surface is designed with airflow slots that harness the power of the vertical “piston of air” to create clean and dirty cage areas that are separately from each other by an air barrier.

Shown: NU-S620-500M

A WORK SURFACE SEGMENTED JUST FOR YOU.

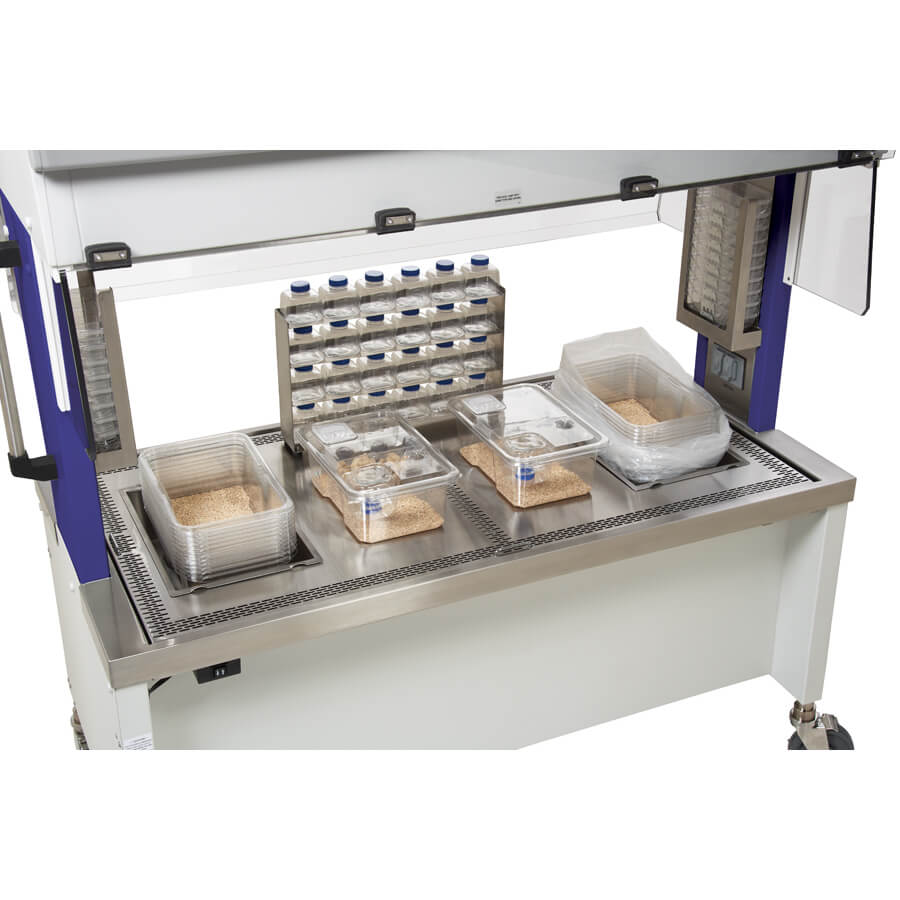

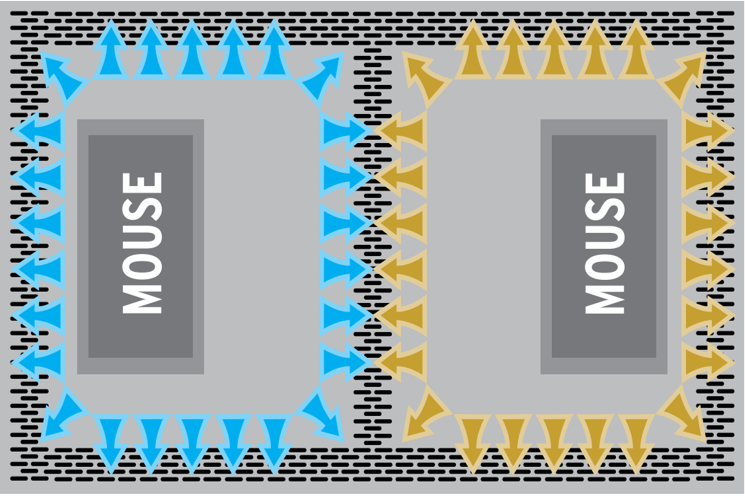

NU-S620-500M WORK SURFACE

The 5 ft. (1.5m) nominal width model features a pattern of air slots along the perimeter and across the centerline of the work surface. This pattern outlines
the clean and dirty cage areas around two deep wells that allow for an easy to reach and space saving way to stack mouse cages.

A WORK SURFACE FOR SPACE CONSTRAINED VIVARIUMS.

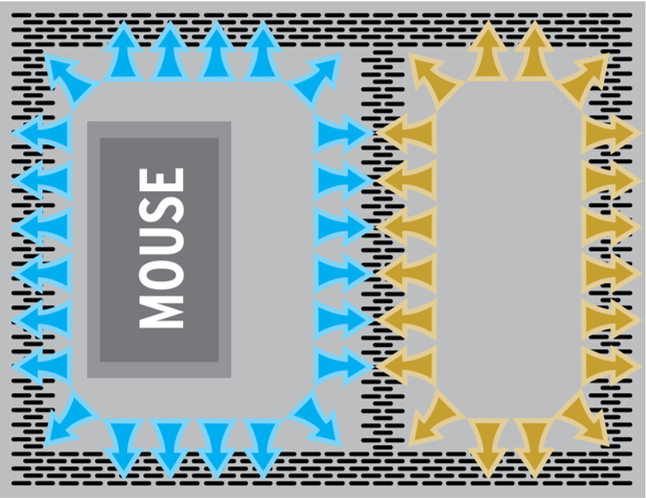

NU-s620-400M WORK SURFACE

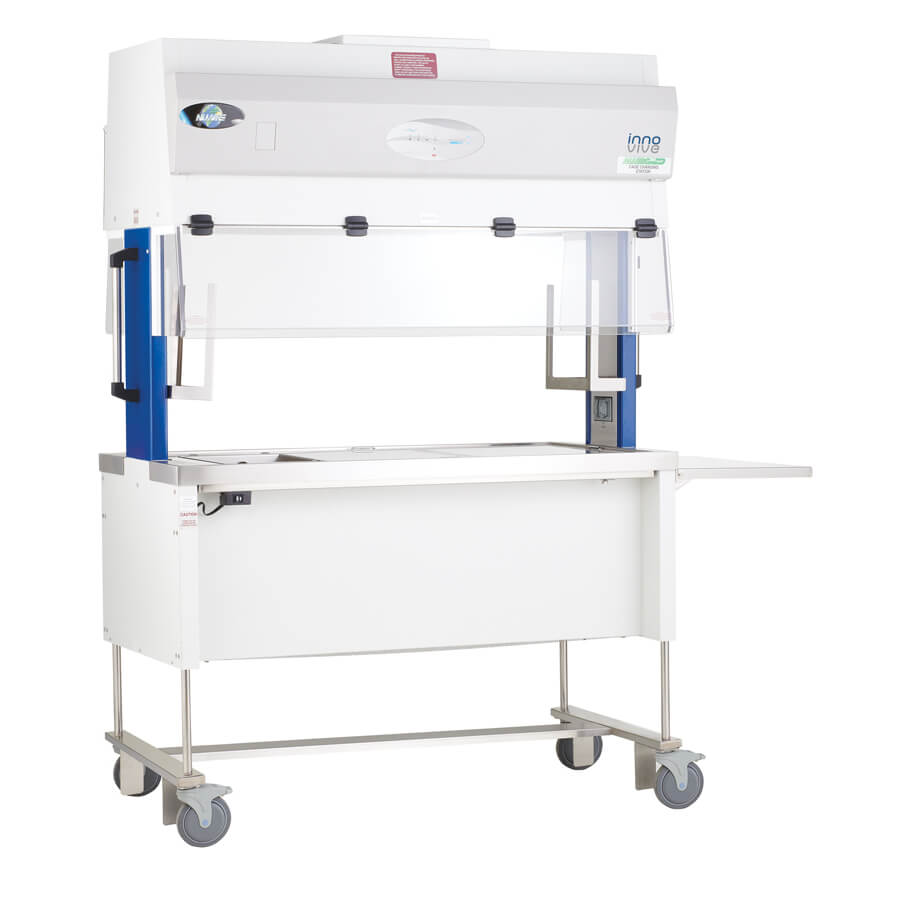

The 4 ft. (1.2m) nominal width model features a pattern of air slots along the perimeter and across the interior of the work surface. This pattern outlines the clean and dirty cage areas while a left side deep well allows for an easy to reach and space saving way to stack mouse cages. A foldable shelf on the right side of the transfer station (not shown) holds stacked cages when necessary but folds up to save room in small vivariums.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Supply Pre-filter
  • Supply Impeller
  • Supply HEPA Filter
  • Steel Construction
  • Polycarbonate Window
  • Magnifying Glass Window
  • 14-inch (356mm) Access Opening
  • Stainless Steel Work Surface with Prop Rod
  • Work Surface Divided into Clean / Dirty with Air Slots
  • Exhaust Pre-filter
  • Exhaust Impeller
  • Exhaust HEPA Filter
  • Motorized Height Adjustment
  • Castors
  • Pull Bars on Both Sides
  • LED Lighting
  • Outlet on Right Side Support
  • 1 Deepwell on 4 ft. (1,2m) Unit
  • 2 Deepwells on 5 ft. (1,5m) Unit
  • Feeder Holders on Right and Left Side
  • Shelf on Right Side
Air Cleanliness (ISO 14644) ISO-Class-5
Built-in Shelf for Stand-Up Option N/A
Casters 6" (152mm)
Construction Painted Steel Main Cabinet, Stainless Steel Plenum & Work Surface, Polycarbonate View Screen
Control System AeroMax
Diffuser Aluminum
Downflow fpm (m/s) 80 FPM (0.38 m/s)
Electrical Configuration 115V60Hz
Exhaust Filter 6-inch (152mm)
Exhaust Prefilter Below Work Surface
Feeder Holder(s) Standard on Right and Left Side Wall
Folding Shelf Dimensions (W x D) Standard, 14-inch (355mm) x 30-inch (762mm)
Free Standing Cage Top Holder N/A
Fumigation: per NIH/NSF Procedures Yes
Hand Sanitizer Dispenser N/A
HEPA Filter Seal Type Inquire
Inflow fpm (m/s) Inquire
Lighting LED
Light Intensity fc (Lux) Inquire
Magnifying Glass in Window Standard
Motorized Base Stand Included
Outlet(s) On Right Side
Plenum Type Inquire
Power Cord Power Cord Reel
Power Cord Length Foot (Meter) Inquire
Protection Product
Safety Certification
Service Valves (3/8-inch NPT) N/A
Style Console
Supply Filter 6-inch (152mm)
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Work Access Opening(s) 14-inch (356mm)
Work Surface Stainless Steel with Prop Rod, Divided into Clean & Dirty via Slots

Dimensions

NU-S620-400M NU-S620-500M
Est. Shipping Width Inches (mm)
Est. Shipping Height Inches (mm)
Est. Shipping Depth Inches (mm)
Exterior Depth Inches (mm) 30 3/4 (780) 30 3/4 (780)
Exterior Height (Fully Assembled, maximum) Inches (mm) 90 1/8 (2289) 90 1/8 (2289)
Exterior Height (Fully Assembled, minimum) Inches (mm) 78 1/8 (1983) 78 1/8 (1983)
Exterior Height Inches (mm) 78 1/8 (1983) - 90 1/8 (2289) 78 1/8 (1983) - 90 1/8 (2289)
Exterior Height (Minimum for Transport) Inches (mm) 78 1/8 (1983) 78 1/8 (1983)
Exterior Width Inches (mm) 48 1/8 (1224) without sidebars 60 1/8 (1527)
Footprint Depth inches (mm) 30 3/4 (780) 30 3/4 (780)
Footprint Width inches (mm) 53 7/8 (1368) with sidebars 65 7/8 (1673)
Work Area Depth Inches (mm) 28 1/4 (718) 28 1/4 (718)
Work Area Height Inches (mm) 25 7/8 (659) 25 7/8 (659)
Work Area Width Inches (mm) 42 5/8 (1081) 54 1/2 (1385)
Useable Work Tray Area Depth Inches (mm) 24 1/4 (614) 24 1/4 (614)
Useable Work Tray Area Width Inches (mm) 24 5/8 (625) Clean Area (including deep well); 12 3/8 (314) Dirty Area 24 5/8 (625) Clean Area; 24 5/8 (625) Dirty Area (including deep wells in each)


Electrical

NU-S620-400M NU-S620-500M
Blower/Lights Amps
Outlet Amps
Rated Amps 15


Configuration

NU-S620-400M NU-S620-500M
Deep Well(s) 1 Deepwell 2 Deepwells


Performance

NU-S620-400M NU-S620-500M
Heat Rejected (BTU/Hour) Inquire Inquire


Construction

NU-S620-400M NU-S620-500M
Motor(s) 1 Supply Impeller, 1 Exhaust Impeller 1 Supply Impeller, 1 Exhaust Impeller


Weight

NU-S620-400M NU-S620-500M
Net Weight lbs (kg) Inquire Inquire
Est. Shipping Weight lbs (kg) Inquire Inquire


Ergonomics

NU-S620-400M NU-S620-500M
Sound Pressure Level per ISO 4871 Inquire Inquire
