PharmaGardNU-NTE800
Compounding Aseptic Containment Isolator Restricted Access Barrier System

USP 800 Compliant | Sterile Hazardous Compounding | Negative Pressure Total Exhaust | ISO Class 5 Environment

The NU-NTE800 is a Compounding Aseptic Containment Isolator (CACI) composed of a stainless-steel enclosure and polycarbonate front window with gloves that provides 20 air changes per minute of ISO Class 5 HEPA filtered air for the preparation of sterile but hazardous drugs. The isolator is sub-divided into an interchange chamber that is kept at a stronger negative pressure than the adjoining work chamber, which is itself at negative pressure to the room. This cascade of pressure simultaneously prevents contamination into the interior and the escape of hazardous material from it. A sliding door and work tray allow the passage of items within the isolator before compounding, while the hinged front window allows easy access for maintenance. Standard minihelic gauges display the pressure in both the work and interchange chambers while the built in PharmaGard™ digital monitor alerts the operator when the work chamber negative pressure has departed from its acceptable parameters. An exhaust monitor with alarm is included, and various accessories are available to facilitate connection to external exhaust.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The PharmaGard™ model NU-NTE800 is available in two different sizes to meet the needs of your pharmacy space and application.

Products

NU-NTE800-400

Nominal 4-foot (1.2 m)

NU-NTE800-600

Nominal 6-foot (1.8 m)

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
Chamber Pressurization Negative
Control System FlowGard
Downflow fpm (m/s) 45-55 FPM (0.23 - 0.28 m/s)
Protection [, Product, Personnel, Environmental]
  • Features
  • Specs
  • Options & Accessories
  • Resources

BUILT IN AUDIBLE AND VISUAL ALARM FOR USER SAFETY

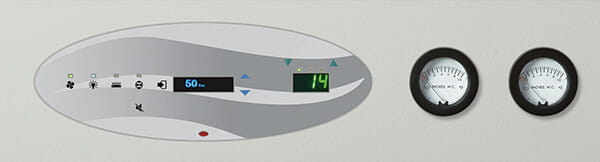

FLOWGARD CONTROL SYSTEM

The FlowGard control panel features one minihelic gauge for each chamber. This allows the user to quickly monitor and compare the negative pressures in each one and ensure that the correct differential is being maintained between the work and interchange chambers. A PharmaGard digital monitor activates an alarm if the negative pressure in the work chamber departs from normal parameters. This monitor is also interlocked with the downflow impeller(s) to shut them off if negative pressure is lost due to an external exhaust failure. The panel membrane buttons control the blower and lights.

PRESSURE DIFFERENTIALS FOR A PURPOSE

INSIDE PRESSURE DIFFERENTIALS

The entire compounding aseptic containment isolator is maintained at negative pressure compared to the room in which it is installed in order to protect against the escape of particulates. Inside, a downflow of 45-55 fpm (0.23-0.28 m/s) of HEPA filtered air creates 20 air changes per minute and an ISO class 5 environment. The interior is sub-divided into an interchange area that is kept at a stronger negative pressure than the adjoining work area in order to protect the sterile drugs compounded inside the work area from contamination floating in. All downflow air is exhausted by connection to an external blower to avoid recirculation and maintain negative pressure.

CACI Airflow Pattern

connect EASILY to REQUIRED external exhaust

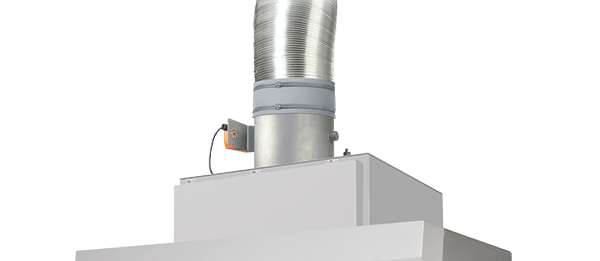

MANUAL EXHAUST DAMPER

NuAire offers the NU-940-010 manual exhaust damper with a 10 inch (254 mm) collar to enable pharmacies to connect the compounding aseptic containment isolator (CACI) to an external exhaust blower in compliance with the requirements of USP 800 for the preparation of hazardous drugs.

Note: This accessory is sold separately.

MONITOR EXTERNAL EXHAUST TO ENSURE USER SAFETY

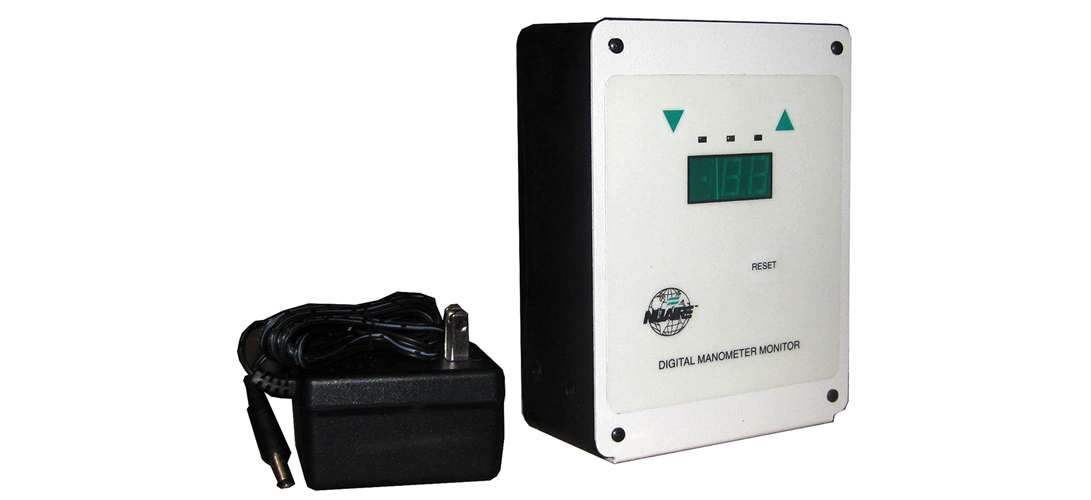

DIGITAL MANOMETER MONITOR

NuAire includes the digital manometer monitor and alarm with the standard NU-NTE800 model, which will activate if the external exhaust to which the equipment is connected departs from its normal parameters.

The NuAire Advantage

NuAire utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • 1 Supply EC Impeller on 4 ft (1,2m) Model
  • 2 Supply EC Impellers on 6 ft (1,8m) Model
  • Stainless Steel Work Zone
  • One Outlet on Back Wall
  • Intake Prefilters
  • Supply HEPA Filter
  • Bag-In/Bag-Out Exhaust HEPA Filter
  • ISO Class 5 Work Zone
  • 20 Air Changes per Minute
  • Hinged, Polycarbonate Front Window
  • Sliding Transfer Door
  • Sliding Chamber Transfer Tray
  • Two Glove Ports on 4 ft (1,2m) model
  • Three Glove Ports on 6 ft (1,8m) model
  • Fluorescent Lighting
Air Changes 20 Air Changes per Minute
Air Cleanliness (ISO 14644) ISO-Class-5
Chamber Pressurization Negative
Construction Welded stainless steel 16GA, Type 304 pressure tight design
Control System FlowGard
Cord Pass Through Optional
Diffuser Metal Non-flammable
Downflow fpm (m/s) 45-55 FPM (0.23 - 0.28 m/s)
Electrical Configuration 115V60Hz
Exhaust Filter 5 7/8-inch (149mm) 99.995% Efficiency @ 0.3 Microns
HEPA Filter Seal Type Neoprene, Spring loaded Under Negative Pressure
Interchange Chamber ISO Class 5 With Internal/External Sealed Doors
Interchange Pressure Maximum -0.25" w.g. (0.05" More Negative than Work Area)
IV Bar with 6 Hooks One Bar Included, Additional Bar Optional
Lighting Fluorescent
Light Intensity fc (Lux) 40 (430)
Outlet(s) One on Back Wall of Work Area
Performance Standard CETA-CAG-002-2006
PharmaGard Pressure Monitor Standard
Power Cord Length Foot (Meter) 12 (3.7)
Protection Product, Personnel, Environmental
Safety Certification UL, UL-C
Seismic Brackets or Studs Optional Side, Rear or Floor Mount Seismic Brackets
Service Valves (3/8-inch NPT) N/A
Style Bench top/console Isolator
Supply Filter 1 11/16-inch (43mm) 99.995% Efficiency @ 0.3 Microns
Supply Prefilter Top of Unit
Viewing Window Inches (mm) Hinged
Waste/Sharps Disposal System Optional
Work Area Pressure -0.25" w.g. +/-0.05" w.g.

Dimensions

NU-NTE800-400 NU-NTE800-600
Est. Shipping Width Inches (mm) 62 (1575) Inquire
Est. Shipping Height Inches (mm) 85 (2159) Inquire
Est. Shipping Depth Inches (mm) 39 (991) Inquire
Exterior Depth Inches (mm) 32.5 (826) 32.5 (826)
Exterior Height Inches (mm) 61 (1550) 61 (1550)
Exterior Height (Minimum with optional base stand) Inches (mm) 92.5 (2350) 92.5 (2350)
Exterior Width Inches (mm) 50 (1270) 74 (1880)
Interchange Interior Depth Inches (mm) 27.375 (695) 24 (610)
Interchange Interior Height Inches (mm) 24 (610) 27.375 (695)
Interchange Interior Width Inches (mm) 14.125 (359) 14.125 (359)
Interchange Work Tray Depth Inches (mm) 17 3/4 (451) 17 3/4 (451)
Interchange Work Tray Width Inches (mm) 12 1/2 (318) 12 1/2 (318)
Work Area Depth Inches (mm) 23.25 (591) 23.25 (591)
Work Area Height Inches (mm) 27.375 (695) 27.375 (695)
Work Area Width Inches (mm) 35.25 (895) 59.25 (1505)


Electrical

NU-NTE800-400 NU-NTE800-600
Blower/Lights Amps 5 5
Outlet Amps 3 3
Power Cord 14 GA - 3 Wire, 15A 14 GA - 3 Wire, 15A
Rated Amps 8 8


Exhaust

NU-NTE800-400 NU-NTE800-600
Exhaust Requirement CFM (CMH) 550 (934) 725 (1232)
Exhaust Requirement for Fixed Canopy (NU-916-797) CFM (CMH) N/A N/A
Plant Duct Static Pressure Inches (mm) 2.0 (50.8) 2.0 (50.8)


Construction

NU-NTE800-400 NU-NTE800-600
Glove Ports Two Three
Motor(s) 1 Supply Impeller 2 Supply Impellers


Performance

NU-NTE800-400 NU-NTE800-600
Heat Rejected (BTU/Hour) 539 880


Weight

NU-NTE800-400 NU-NTE800-600
Net Weight lbs (kg) 465 (211) 615 (279)
Est. Shipping Weight lbs (kg) 515 (234) 665 (302)


Ergonomics

NU-NTE800-400 NU-NTE800-600
Sound Pressure Level per ISO 4871 Inquire Inquire
