In-VitroCellNU-5700
Direct Heat CO2 Incubator

Direct Heat | 160-Liter Capacity | Closed Loop HEPA Filtration | IR Sensor CO2 Control

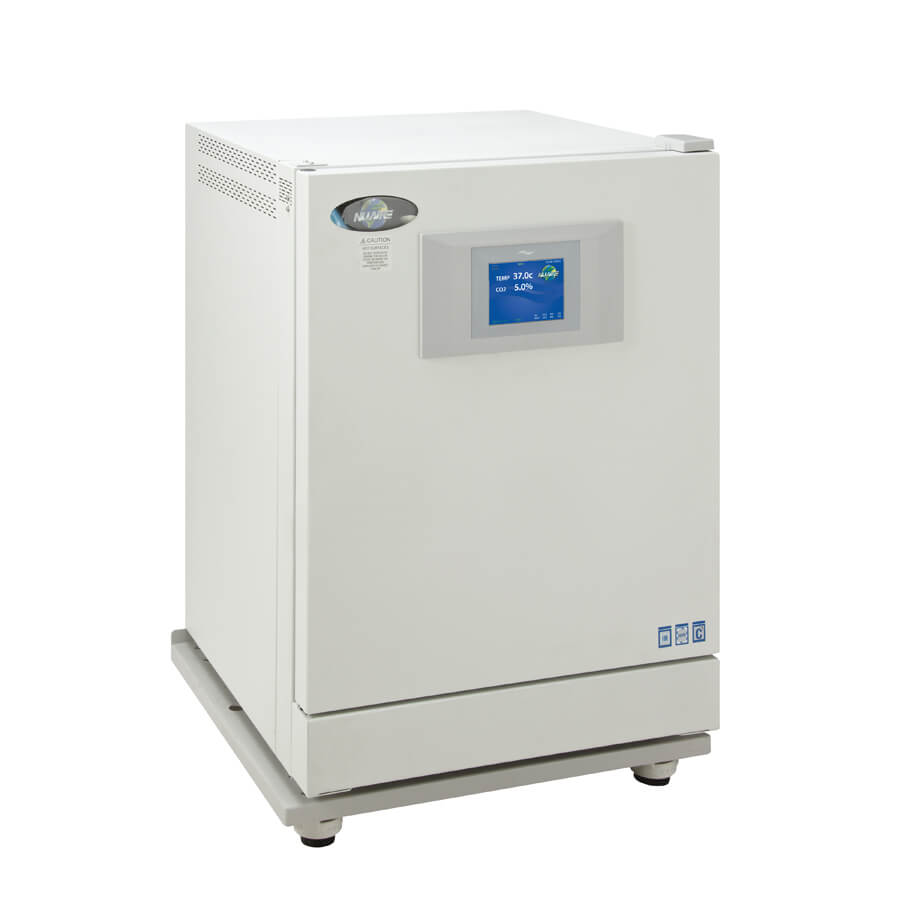

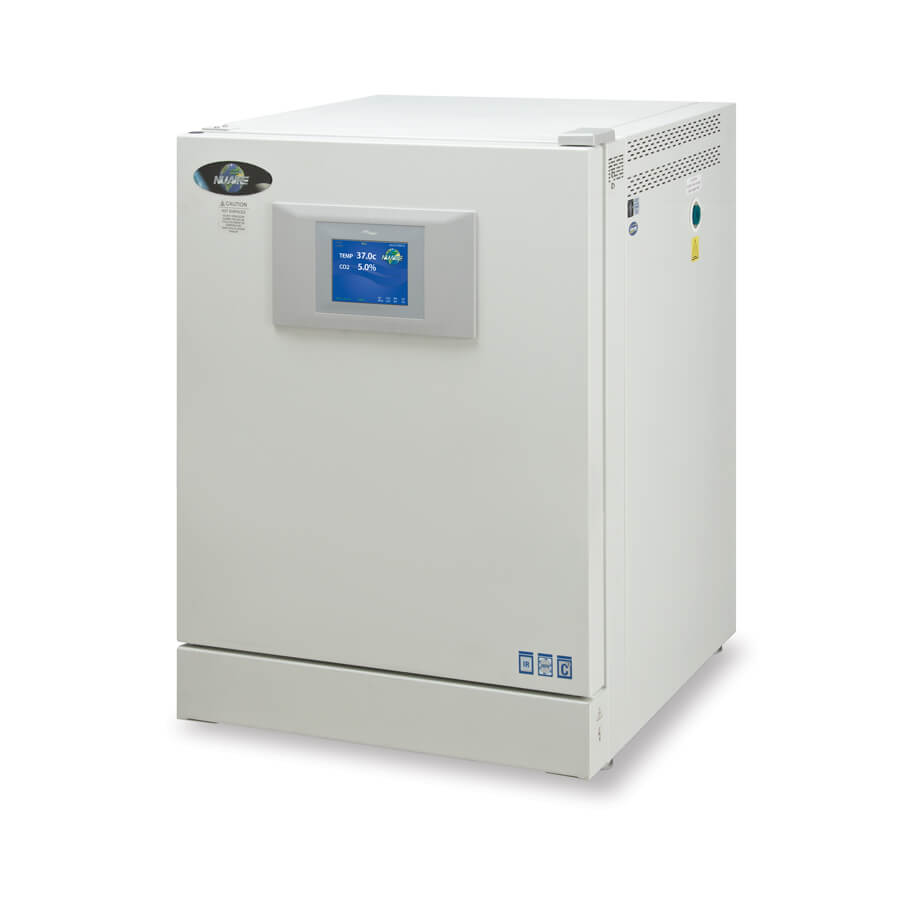

The NU-5700 CO2 incubator offers touch panel control and monitoring of temperature and CO2 levels to meet the demands of a broad range of cell culture applications. Beyond using an infrared sensor for precise control of CO2 and separately adjustable door and perimeter heaters to balance internal temperature. The air pump outside the 160L growth chamber also constantly draws air through a HEPA filter and cycles it back to create ISO Class 5 quality air at positive pressure and minimize contamination. A touch screen makes it easy to enter set points and view or download historical performance. In addition, this moderately sized incubator can be stacked and still allow the user easy access to the top chamber.

Request a Quote

A Product to Meet Your Need

Model NU-5700 is available in two electrical configurations.

Products

NU-5700

115V

NU-5700E

230V

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
CO2 Accuracy ± 0.1%
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
Control System NuTouch
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Recovery 0.12°C/min. on Average
Temperature Uniformity °C ± 0.35°C @ 37°C
  • Features
  • Specs
  • Options & Accessories
  • Resources
  • Citations


The Modern User Experience you Expect

NuTouch Control System

The NuTouch control system provides you with the user experience you have come to expect from any piece of modern equipment. Change set points, view chamber history, start a decontamination cycle, or perform a calibration procedure from this simple interface. All NuAire CO2 incubators standardize on the NuTouch control system, meaning that once users learn to navigate one incubator they can move seamlessly to any other in the lab.



The Warm Embrace of Direct Heat Technology

Direct Heat Chamber

The direct heat incubator uses heating elements placed around the chamber, in the door perimeter, and in the door itself to provide balanced temperature within a steel, insulated chamber environment. Door and perimeter heaters can be adjusted independently to ensure uniformity even when the incubator is installed in more demanding ambient temperatures.



Cell Cultures Deserve Their Own Clean Room

Closed Loop HEPA Filtration

Continual HEPA filtration of chamber air complements periodic high heat decontamination to provide Constant Contamination Control. InVitrocell’s design constantly takes a sample of air from the chamber, routes it through a HEPA filter in a compartment outside that inner chamber, and ultimately returns it to create an ISO Class 5 level of clean air in the interior as well as a slight positive pressure. Inside the InVitrocell, your cell cultures are protected by a multi-tiered defense against contamination.



Optimal CO2 Levels

Infrared (IR) Sensor

A single source dual wave infrared (IR) sensor controls CO2 levels within the growth chamber to maintain an optimal PH. The wavelengths used are absorbed only by CO2, making the measurements insensitive to other components such as water vapor. Advanced design provides a stable output minimizing drift, and requires less frequent calibrations.

CHOOSE THE MODEL WITH THE CAPABILITIES YOUR WORK REQUIRES.

CONTROL OF CHAMBER PARAMETERS

115V/50-60Hz & 230V/50-60Hz (E Suffix)

 MODEL

 TEMPERATURE

 CO2

 DECONTAMINATION

 RELATIVE HUMIDITY

 O2

 NU-5700
 NU-5700E
 √  √  Not Available   Not Available   Not Available

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (5 Years Parts IR Sensor) (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Cold Rolled Steel with Powder Coated Finish Exterior
  • Polished, 16 Gauge Type 304L Stainless-Steel Chamber

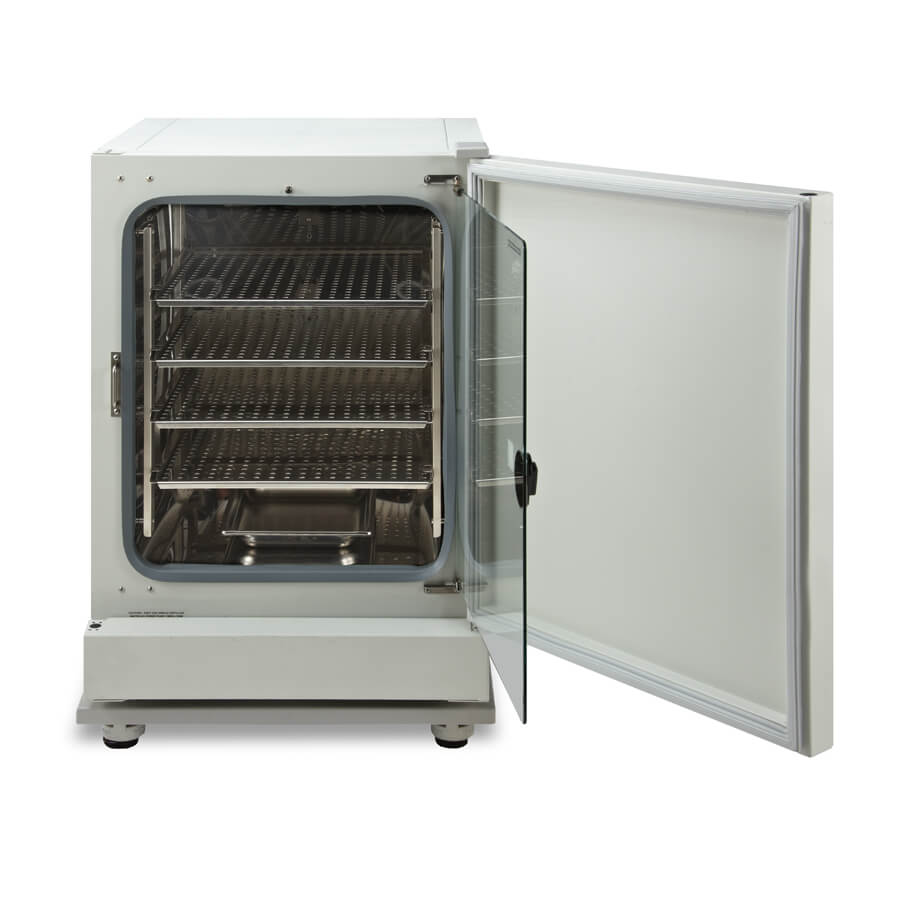

  • Set of 4 Shelves
  • Inner Glass Door
  • Separately Adjustable Perimeter & Door Heaters
  • Infrared CO2 Sensor
  • Dual Temperature Sensors
  • Air Pump External to Chamber
  • HEPA Filter External to Chamber
  • Multilingual Touch Screen
  • USB Port for Data Download
Est. Shipping Width Inches (mm) 30 (762)
Est. Shipping Height Inches (mm) 47 (1194)
Est. Shipping Depth Inches (mm) 31 (787)

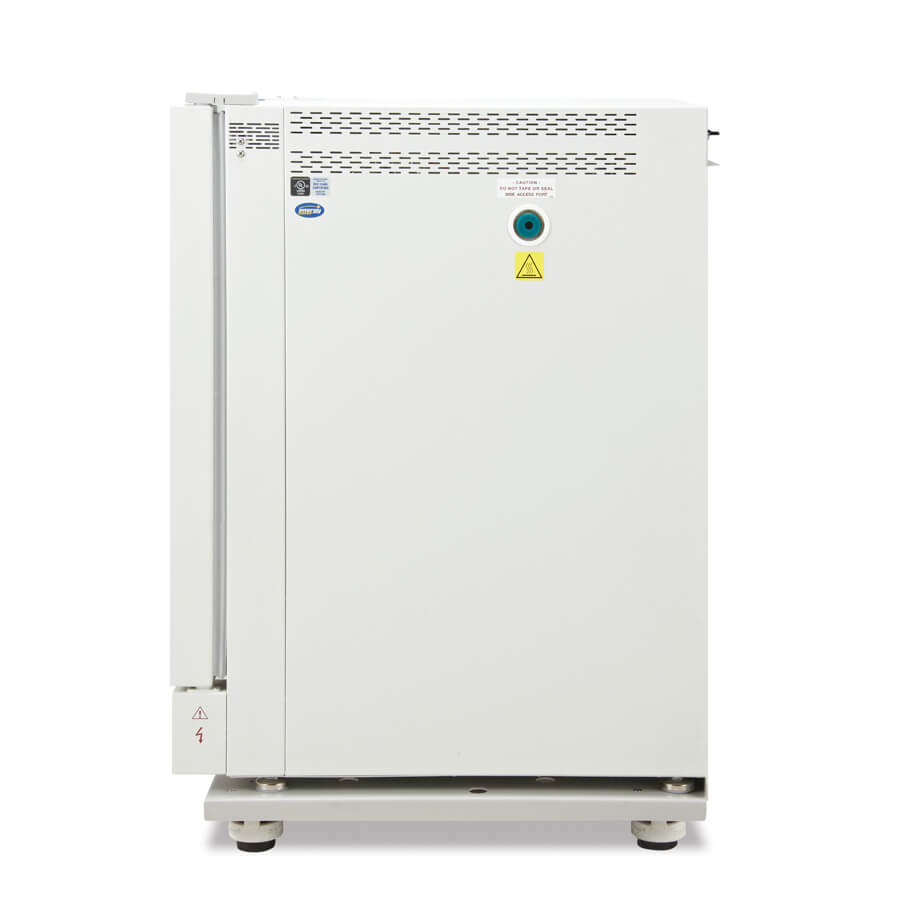

Access Port Location Right Side
Air Cleanliness (ISO 14644) ISO-Class-5
Chamber Air Circulation Method Air Pump
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Control System NuTouch

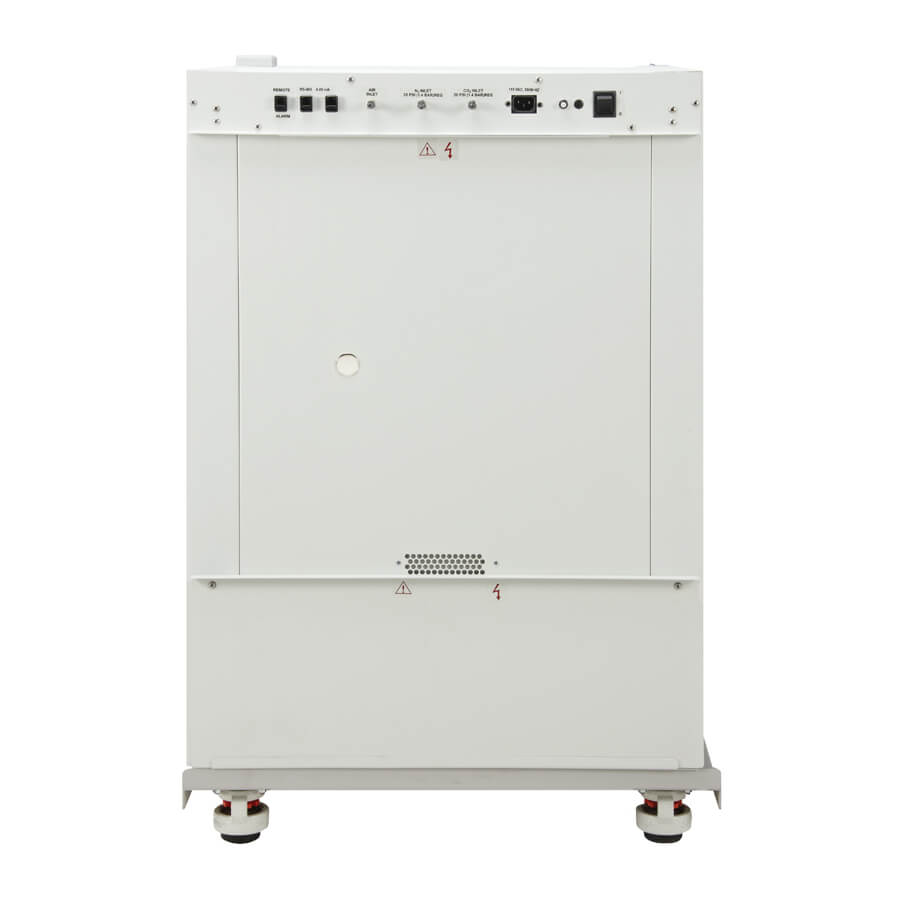

Data Output Features RS-485, USB, 4-20mA
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable
Electrical Configuration 115V50Hz, 230V5060Hz
Exterior Depth Inches (mm) 27.500 (699)
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Height Inches (mm) 36.188 (894)
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)

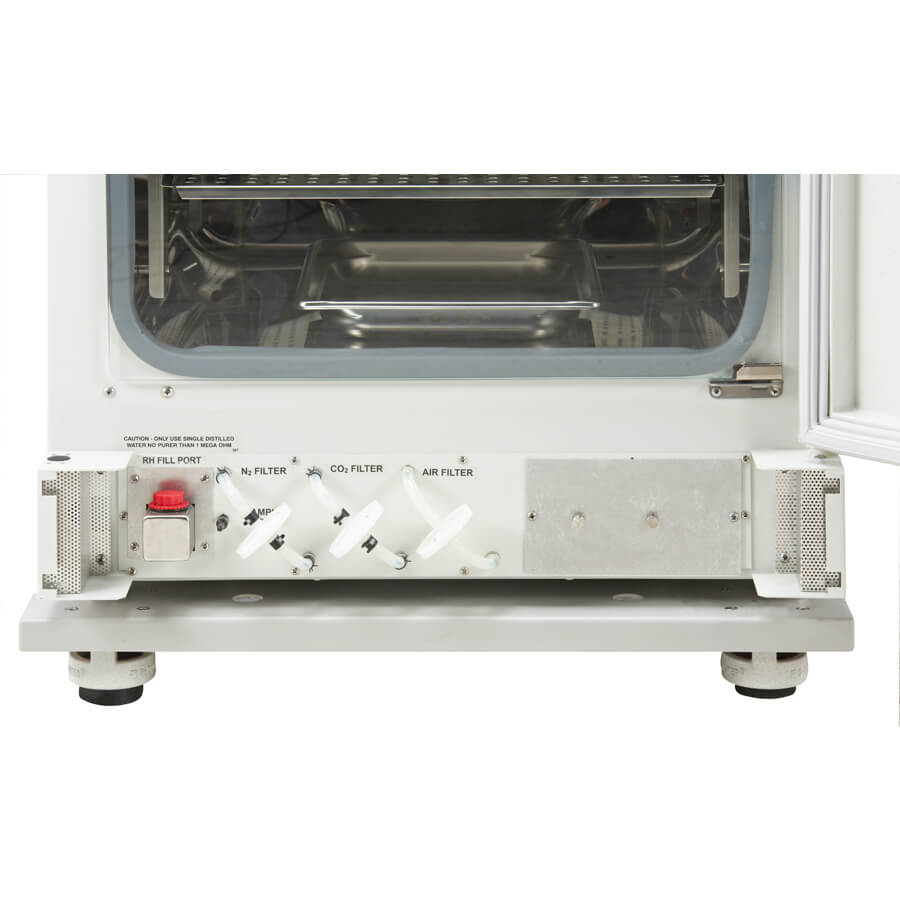

In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Segmented Doors Optional Set of 4 Inner Doors
Inner Doors One, Sectioned Optional
Insulation High Density Insulation with High "R" Rating
Interior Depth Inches (mm) 20.678 (525)
Interior Door Seal Silicone Rubber Gasket
Interior Height Inches (mm) 24.000 (610)
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Net Weight lbs (kg) 220 (100)
O2 Accuracy ± 0.25%
O2 Control Logic Fixed algorithm/ manual environmental adaptable
O2 Display Resolution 0.1%
O2 Measuring Range 0 - 25%
O2 Set Point Range 0.5 - 1.0% (ambient) (21.0% Default) (2.0 to 21.0% when RH setpoint is above 90%)
O2 Recovery 5.0 ± 0.5% 20 minutes on Average
O2 Sensor Type Zirconia Ceramic
Power Cord Length Foot (Meter) 8 (2.5)
Remote Alarm Terminals Standard
RH Accuracy 95% +5% / -3%
RH Control Method Water Pan or Evaporator Box, Depending on Model
RH Control Logic Fixed algorithm/ manual environmental adaptable
RH Control Range Ambient dependent to 95%
RH Display Resolution 0.1%
RH Evaporator Box Capacity 3L
RH Recovery 90% +5% / -3% within 25 minutes on average
RH Sensor Type Precision capacitance bulk-polymer
RH Water Pan Capacity 2L (Recommended Fill 1.5L)
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Material Stainless Steel
Shelf Width Inches (mm) 18 (457)
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Est. Shipping Weight lbs (kg) Estimated 275 lbs (125 kgs)
Decontamination Cycle Not Available
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)

Electrical

NU-5700 NU-5700E
Electrical Configuration 115V60Hz 230V5060Hz


General

NU-5700 NU-5700E
Safety Certification [ "", "UL, UL-C" ] [ "", "UL, UL-C" ]


Chamber

Copper Alloy Chamber 115V
Copper Alloy Chamber 230V
Stainless Steel Chamber 115V No Decontamination
Stainless Steel Chamber 230V No Decontamination

Inner Door

Sectioned Inner Door
Standard Glass Inner Door

Outer Door (Right Hinge Standard)

Left Side Door Hinge

Power Cord

Euro Power Cord Option Shipping Kit
UK Power Cord Option

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
Flyer

In-VitroCell NU-5700 CO2 Incubator Product Flyer

View the flyer
Warranty NuAire Standard CO2 Incubator Warranty in United States and Canada

CO2 Incubator Standard Warranty for US and CA

View the warranty
White Paper CO2 Incubator Buying Guide

CO2 Incubator Buying Guide

Learn More
Video In-VitroCell CO2 Incubators Temperature Uniformity

In-VitroCell CO2 Incubators Temperature Uniformity

Watch the video
Video In-VitroCell CO2 Incubator Closed Loop HEPA Filtration

In-VitroCell CO2 Incubator Closed Loop HEPA Filtration

Watch the video
Video CO2 Incubators NuTouch Electronic Control System

In-VitroCell CO2 Incubators NuTouch Electronic Control System

Watch the video
BIM Revit

NU-5700 Family of Direct Heat CO2 Incubators 3D Model

Learn More
BIM Revit

NU-5700 Family Stacked on NU-5800 Family of Direct Heat CO2 Incubator 3D Model

Learn More
Video In-VitroCell CO2 Incubators IR Sensor

In-VitroCell CO2 Incubators IR Sensor

Watch the video
Video In-VitroCell CO2 Incubators from NuAire Lab Equipment

In-VitroCell CO2 Incubators from NuAire

Watch the video
Video CO2 Incubator Contamination Control

CO2 Incubators Constant Contamination Control

Watch the video
Manuals OM0245 CO2 Incubator Manual for models NU-5810, NU-5820, NU-5831, and NU-5841

OM0246 CO2 Incubator Manual for NU-5810/E through NU-5841/E

Read the manual
Specification CO2 Incubator Direct Heat NU-5700 Family Specification

CO2 Incubator Direct Heat NU-5700 Family Specification

View the specification
Manuals OM0250 NU-5700 and NU-5700E CO2 Incubator Manual

OM0250 NU-5700 and NU-5700E CO2 Incubator Manual

Read the manual
Manuals Operation and maintenance manual for NU-5800 and NU-5800E Series 12 CO2 Incubator

OM0245 NU-5800 and NU-5800E Series 12 CO2 Incubator Manual

Read the manual
Brochure In-VitroCell CO2 Incubator Brochure

In-VitroCell CO2 Incubator Brochure

Download the brochure
Drawing

NU-5700 CO2 Incubator Cut Sheet

View the drawing
Drawing

NU-5700 CO2 Incubator Stacked Cut Sheet

View the drawing
Drawing

NU-5700 stacked on NU-5800 CO2 Incubator

View the drawing
