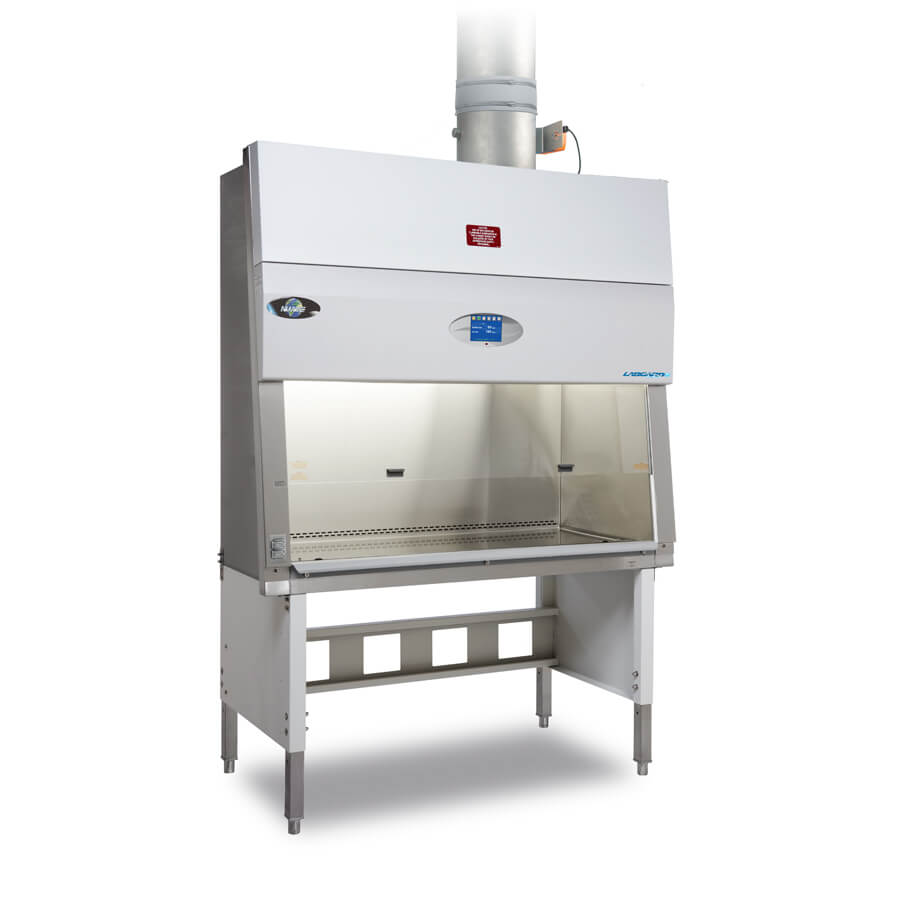

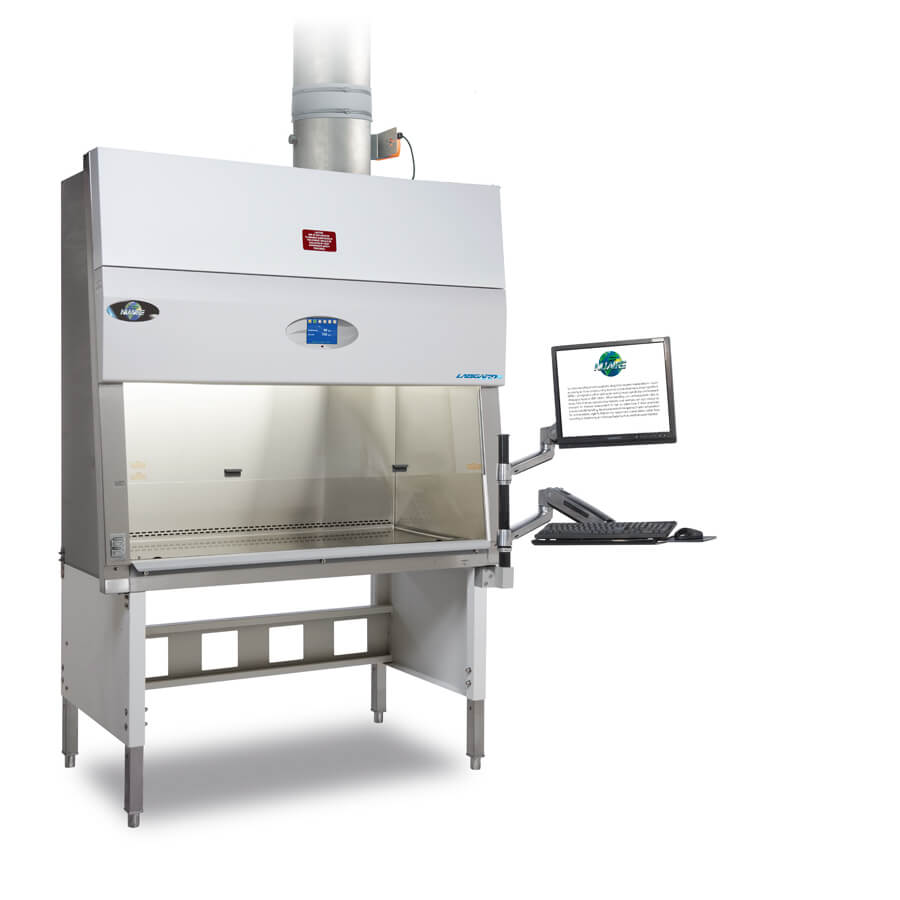

LabGard ES TENU-560
Class II Type B2 Biosafety Cabinet

AIRFLOW VELOCITY ALARM | EXHAUST VOLUME DISPLAY | NSF/ANSI 49 MODELS | TOUCH PANEL INTERFACE

The NU-560 biological safety cabinet uses a DC ECM motor that economizes energy while evenly distributing laminar downflow air through a flexible plenum and retaining enough power to overcome supply HEPA filter loading and minimize filter changes. This cabinet’s construction provides the user with a work zone whose side and back walls are constructed from a single piece of stainless steel for enhanced containment and easy cleanability. The LED bulbs efficiently illuminate the procedure inside while a single-piece dished work tray traps most spills above it but includes a prop rod to allow cleaning underneath. An outlet is placed on the left front faring and a cord-pass through is built into the right sidewall for the user’s convenience. The exhaust is powered by an external facility blower that is interlocked with the cabinet’s own motor through a redundant system to provide two layers of protection that minimize the risk of blowing air out of the cabinet should the external blower fail: cabinet exhaust is monitored by not only a mechanical pressure switch but also a differential velocity pressure flow grid. A touch screen displays the readings from both this flow grid and a down flow sensor in the work zone at all times for the cabinet operator. Models are available that meet the commonly respected NSF/ANSI 49 standard for biosafety cabinets.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The LabGard® model NU-560 is available in two different sizes to meet the needs of your laboratory space and application.

Products

NU-560-400

Nominal 4-foot (1.2 m)

NU-560-600

Nominal 6-foot (1.8 m)

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Monitor AirflowSensorPressureGrid
Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design
Control System TouchLink
Downflow fpm (m/s) 60 fpm (0.30 m/s)
Protection [, Product, Personnel, Environmental]
Work Access Opening(s) 8-inches (203 mm)
  • Features
  • Specs
  • Options & Accessories
  • Resources

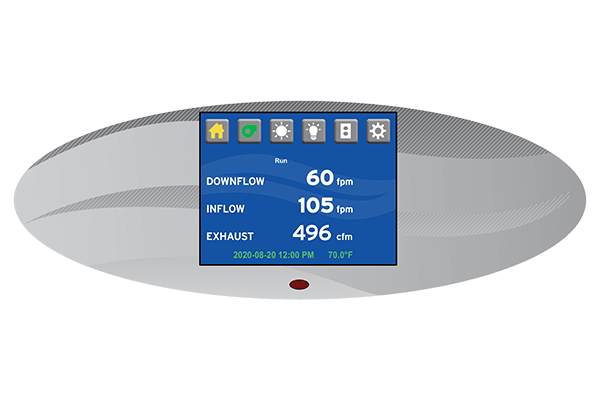

TouchLink Electronic Control System for Class II, Type B2 Biosafety Cabinets

Manage Airflow Performance and Safety

TouchLink Control System

The airflow dynamics in an externally exhausted type B2 cabinet need to work in constant harmony. The TouchLink control system displays inflow velocity, downflow velocity, and exhaust volume on a single, easy to read front screen. The digital control system interlocks the downflow blower with the external exhaust to shut down the motor if an exhaust failure occurs—a safeguard that is further backed up by a mechanical pressure switch.

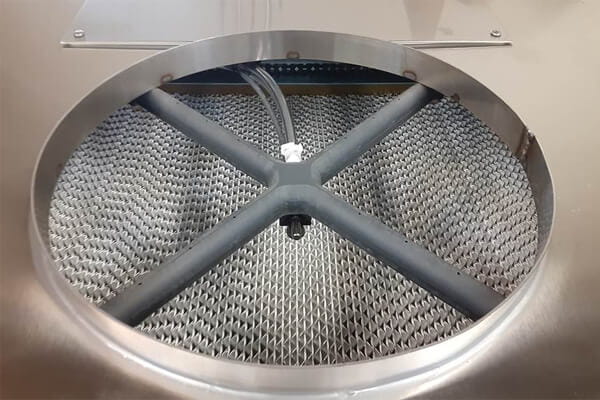

Digital exhaust flow grid for Class II, Type B Biosafety Cabinets

Ensuring Your Cabinet is in its flow

Digital Exhaust Flow Grid

The digital differential velocity pressure flow monitors exhaust to enable the TouchLink to derive not only inflow velocity but also the critical parameter of exhaust volume for display to the cabinet operator.

Biosafety Cabinet downflow thermistor airflow sensor.

Precision Product Protection

Downflow Air Sensor

The downflow sensor measures velocity inside the work zone and passes the data to the TouchLink display to assure users of product protection, a critical aspect in many pharmaceutical and biotechnology applications.

Biosafety Cabinet historical performance graph on TouchLink Control System

Keeping a Track Record

Performance History

The TouchLink control panel not only displays one week of cabinet performance on screen but also allows a full month of history to be downloaded to USB for procedures that must be carried out under documented airflow conditions.

TAKE MORE THAN JUST OUR WORD FOR IT.

COMPLIANCE TO BIOSAFETY CABINET STANDARDS

15V/60Hz (No Suffix) & 230V/50-60Hz (E Suffix)

 MODEL

 ACCESS OPENING

 NSF/ANSI 49

 NU-560-400
 NU-560-400E
 8 in (203mm)  √
 NU-560-600
 NU-560-600E
 8 in (203mm)  √


NuAire NSF/ANSI 49 Listings

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 5 Years Parts & Labor (Supply Filter Included) (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Single DC ECM Motor
  • Flexible HEPEX™ Plenum
  • Nite Setback Mode
  • Single Piece Stainless Steel Work Zone Side & Back Walls
  • Stainless Steel Dished Work Surface
  • Cord Pass Through on Right Side
  • 8-inch (203mm) Work Access Opening
  • PVC Armrest
  • One Outlet on Left Faring
  • One Service Valve
  • Three Service Couplings
  • LED Lighting
  • Differential Velocity Pressure Flow Grid
  • Downflow Airflow Sensor
  • TouchLink™ Control Panel
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Monitor AirflowSensorPressureGrid
Bag In Bag Out Optional
Cabinet Construction All welded stainless steel 16/18 GA, Type 304 pressure tight design
Casters N/A
Control System TouchLink
Cord Pass Through Standard Right
Data Output Features RS-232, USB
Decontamination Seal-able Window N/A
Diffuser Metal, non-flammable
Downflow fpm (m/s) 60 fpm (0.30 m/s)
Drain Valve Location Front right
Electrical Configuration 115V60Hz, 230V5060Hz
Front & Control Panel Material Painted Steel
Fumigation: per NIH/NSF Procedures True
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
Inflow fpm (m/s) 105 fpm (0.53 m/s)
IV Bar with 6 Hooks Optional
Light Intensity fc (Lux) 90-120 (968-1291)
Motorized Base Stand Optional as Separate Accessory
Motorized Window N/A
Other Built-in Exhaust Option(s) N/A
Other Built-in Supply Filter Option(s) N/A
Outlet(s) One Left Front Faring, Optional One Right Front Faring
Performance Standard NSF-ANSI-49
Plenum Type HEPEX
Power Cord Length Foot (Meter) 12 (3.7)
Pre-filter N/A
Protection Product, Personnel, Environmental
Reach into workzone Inches (mm) 6 (152)
Remote Alarm Terminals Standard
Safety Certification UL, UL-C
Style Bench top, optional base stand
Ultraviolet (UV) Light Optional, Backwall
Viewing Window Inches (mm) 18.5 (470) open to fully closed
Work Access Opening(s) 8-inches (203 mm)
Work Surface One-Piece Dished Stainless Steel with Prop-Up Rod

Dimensions

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Est. Shipping Width Inches (mm) 58 (1473) 58 (1473) 82 (2083) 82 (2083)
Est. Shipping Height Inches (mm) 72 (1829) 72 (1829) 73 (1854) 73 (1854)
Est. Shipping Depth Inches (mm) 43 (1092) 43 (1092) 43 (1092) 43 (1092)
Exterior Depth with Armrest Removed Inches (mm) 32 3/8 (823) 32 3/8 (823) 32 3/8 (823) 32 3/8 (823)
Exterior Height Inches (mm) 62 (1575) 62 (1575) 62 (1575) 62 (1575)
Exterior Height (Minimum for Transport) Inches (mm) 62 (1575) 62 (1575) 62 (1575) 62 (1575)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 88 1/2 (2248) 88 1/2 (2248) 88 1/2 (2248) 88 1/2 (2248)
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 94 1/2 (2401) 94 1/2 (2401) 94 1/2 (2401) 94 1/2 (2401)
Exterior Width Inches (mm) 53 5/8 (1362) 53 5/8 (1362) 77 5/8 (1972) 77 5/8 (1972)
Nominal Width Feet (Meters) 4 ft. (1.2m) 4 ft. (1.2m) 6 ft. (1.2m) 6 ft. (1.2m)
Work Area Depth Measured at 8-inches (203 mm) Window Height Inches (mm) 26 (660) 26 (660) 26 (660) 26 (660)
Work Area Height Inches (mm) 25 3/16 (640) 25 3/16 (640) 25 3/16 (640) 25 3/16 (640)
Work Area Width Inches (mm) 46 3/8 (1178) 46 3/8 (1178) 70 3/8 (1788) 70 3/8 (1788)
Useable Work Tray Area Depth Inches (mm) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530) 20 7/8 (530)
Useable Work Tray Area Width Inches (mm) 45 7/8 (1165) 45 7/8 (1165) 69 7/8 (1775) 69 7/8 (1775)


Construction

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Access Opening Glass Type Tempered Glass Safety Glass Tempered Glass Safety Glass
Exhaust Filter 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 Microns 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 Microns 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 Microns 11 1/2-inch (292 mm) 99.99% Efficiency on 0.3 Microns
Lighting LED LED LED LED
Main Cabinet Wrap Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction
Motor(s) 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM
Supply Filter 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.99% Efficiency on 0.3 microns 3-inch (76mm) 99.99% Efficiency on 0.3 microns
Work Access Opening(s) 8-inch (203mm) 8-inch (203mm) 8-inch (203mm) 8-inch (203mm)
Work Zone Wrap Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction Single Piece Stainless Steel Side and Back Wall Construction


Configuration

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Airflow Control Options Air Supply On/Off (Requires NU-952-012), Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override Air Supply On/Off (Requires NU-952-012), Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override Air Supply On/Off (Requires NU-952-012), Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override Air Supply On/Off (Requires NU-952-012), Cabinet Off Override, Delay Off Exhaust Airflow, Exhaust Airflow Loss Override
Blower Contact Wires N/A N/A N/A N/A
Closure Panels Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets Optional Rear Closure Panels for Seismic Brackets
Gas Supply Interlock with Blower N/A N/A N/A N/A
Glass Sidewalls N/A N/A N/A N/A
Plumbing Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper Optional 3/8" Soft Copper, 3/8" Black Pipe (Gas Only), or 1/2" Rigid Copper
Remote Service Valves Maximum of Three Each Side Wall Optional Maximum of Three Each Side Wall Optional Maximum of Three Each Side Wall Optional Maximum of Three Each Side Wall Optional
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional Two Couplings on Left Side Wall and One on Right Side Wall are Standard, Maximum of Three Each Side Wall Optional
Service Valves (3/8-inch NPT) One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional One Valve on Right Side Wall is Standard, Maximum of Three Each Side Wall Optional
Side Panels Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back Optional with Plumbing out Bottom, Top or Back
Smooth Interior Optional (UV will not be available) N/A Optional (UV will not be available) N/A
Ultraviolet (UV) Light Optional Optional Optional Optional
Window Edge Protector Optional Optional Optional Optional


Electrical

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Blower/Lights Amps 2.1 1 2.6 1.3
Electrical Configuration 115V60Hz 230V5060Hz 115V60Hz 230V5060Hz
Junction Box Optional Optional Optional Optional
Outlet Amps 3 3 3 3
Power Cord 14 GA - 3 Wire, 15A 14 GA - 3 Wire, 16A 14 GA - 3 Wire, 15A 14 GA - 3 Wire, 16A
Rated Amps 8 7 10 7


Exhaust

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Direct Connection Exhaust Requirement Concurrent Balance Value, CFM(CMH) 815 (1385) 815 (1385) 1275 (2166) 1275 (2166)
Plant Duct Static Pressure Inches (mm) 1.7 w.g. (43mm w.g.) 1.7 w.g. (43mm w.g.) 1.8 w.g. (46mm w.g.) 1.8 w.g. (46mm w.g.)


Performance

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Heat Rejected (BTU/Hour) 474 474 584 584


Weight

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Net Weight lbs (kg) 490 (222) 490 (222) 680 (308) 680 (308)
Est. Shipping Weight lbs (kg) 540 (245) 540 (245) 730 (331) 730 (331)


General

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Performance Standard NSF-ANSI-49 NSF-ANSI-49 NSF-ANSI-49 NSF-ANSI-49
Safety Certification [ "", "UL, UL-C" ] [ "", "UL, UL-C" ]


Ergonomics

NU-560-400 NU-560-400E NU-560-600 NU-560-600E
Sound Pressure Level per ISO 4871 Inquire Inquire Inquire Inquire


Access Opening

8" (203 mm) Access Opening Tempered Sliding Glass, NSF Approved Cord Pass Through Right Side
Smooth Interior With 8 Inch Window And Right Side Pass-Through

Airflow Control

Air Supply On/Off Control
Cabinet Off Override
Delay Off Exhaust Airflow
Exhaust Airflow Loss Override

Armrest

Plastic Armrest
Stainless Steel Armrest

BIBO Filter

Bag-In/Bag-Out Exhaust HEPA Filter
Standard Option Without Bag-In/Bag-Out Exhaust Filter

Exhaust Filter

12-inch (305 mm) Metal Frame Exhaust Separatorless HEPA Filter 99.99% efficient @ 0.3 µ with Permanent Plenum

Other

IV Bar With 6 Hooks
Left Sidewall NSF Cord Pass-Through
Stainless Steel Window Edge Protector

Outlets

230V Select 2 Faring Outlets
Australian Outlet (Type I)
Current UK Outlet (Type G)
Danish Outlet (Type K)
Faring Outlets - 115V Left Side With 115V Right Side
Faring Outlets - 115V Left Side With Right Side Plate
Faring Outlets - GFI Left Side With Right Side Plate
Faring Outlets with GFI Right Side and 115V Left Side
Israel Outlet (Type H)
Old UK Outlet (Type D)
Outlet Plate
Outlet Type E (Qty 2)
Schuko Outlet (Type F)
South African Outlet (Type M)
Swiss Outlet (Type J)
US Standard Outlet (Type B)

Plumbing

1/2" RIGID COPPER
3/8" Black Pipe
3/8" Soft Copper

Power Inputs

115V 60Hz 15 Amp Power Cord
230V Power Cord
Junction Box

Remote Controlled Service Valves

Bottom Left Remote Control Valve
Bottom Right Remote Control Valve
Middle Left Remote Control Valve
Middle Right Remote Control Valve
Top Left Remote Control Valve
Top Right Remote Control Valve

Seismic

31 Inch Seismic Floor Brackets
Rear Mount Seismic Brackets For Adjustable Basestand
Rear Mount Seismic Brackets For Fixed Height Basestand
Rear Mount Seismic Brackets For Telescoping Basestand

Service Couplings

Bottom Left Plugged Coupling
Bottom Right Plugged Coupling
Middle Left Plugged Coupling
Middle Right Plugged Coupling
Top Left Plugged Coupling
Top Right Plugged Coupling

Service Valves

Bottom Left Service Valve
Bottom Right Service Valve
Middle Left Service Valve
Middle Right Service Valve
Top Left Service Valve
Top Right Service Valve

Side Panels

Side Panels w/o Plumbing NSF Cord Pass Thru Compatible
Side Panels w/Plumbing out Back NSF Cord Pass Thru Compatible
Side Panels w/Plumbing out Bottom NSF Cord Pass Thru Compatible
Side Panels w/Plumbing out Top NSF Cord Pass Thru Compatible
Without Side Panels

Supply Filter

3-inch (76 mm) Metal Frame Supply Separatorless HEPA Filter 99.99% efficient @ 0.3 µ with Permanent Plenum

UV Light

115V Ultraviolet Light
220V Ultraviolet Light
Without Ultraviolet (UV) Light

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
STORAGE TRAY VERTICAL PULL-OUT
STORAGE TRAY HORZ PULL-OUT
Motorized Adjustable Base Stand with Casters - 4-foot (1.2 m) 230V
Motorized Adjustable Base Stand with Casters - 6-foot (1.8 m) 230V
SILICONE CONNECTION SLEEVE KIT
FLEX DUCT KIT 12" DIA.
MANUAL AIR-TIGHT B-FLY 12" SST
DIGITAL MANOMETER MONITOR
MOTR B-FLY DAMPR DC MOD H TORQ
PORTABLE UV LAMP 19" 115VAC
PORTABLE UV LAMP 19" 220/230V
PORTABLE UV LAMP 37" 115VAC
PORTABLE UV LAMP 37" 220/230V
POSITION END SWITCH
WOOD CRATING/4'CABINETS
WOOD CRATING/5' & 6' CABINETS
PALLET CRATING/FILTERS
ARMREST PADS FOAM PKG OF 10
TURNTABLE
NU-978-001 Small Biosafety Cabinet Elbow Rest | NuAire
NU-978-002 Large Biosafety Cabinet Elbow Rest | NuAire
NUAIRE ERGONOMIC ACCESSORY KIT
Telescoping Base Stand with Leg Levelers - 4-foot (1.2 m)
Telescoping Base Stand with Leg Levelers - 6-foot (1.8 m) - nu-500-103
Telescoping Base Stand with Storage with Leg Levelers - 4-foot (1.2 m)
Telescoping Base Stand with Storage with Leg Levelers - 6-foot (1.8 m)
Telescoping Base Stand with Casters - 4-foot (1.2 m)
Telescoping Base Stand with Casters - 6-foot (1.8 m)
Telescoping Base Stand with Storage and Casters - 4-foot (1.2 m)
Telescoping Base Stand with Storage and Casters - 6-foot (1.8 m)
Telescoping Base Stand OPM Preapproved Seismic Design with Leg Levelers - 4-foot (1.2 m)
Motorized Adjustable Base Stand with Leg Levelers - 4-foot (1.2 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 6-foot (1.8 m) 115V
Motorized Adjustable Base Stand with Casters - 4-foot (1.2 m) 115V
Motorized Adjustable Base Stand with Casters - 6-foot (1.8 m) 115V
Motorized Adjustable Base Stand with Leg Levelers - 4-foot (1.2 m) 230V
Motorized Adjustable Base Stand with Leg Levelers - 6-foot (1.8 m) 230V
Adjustable Footrest SV-973-700 | NuAire
Infographic USP 797 and USP 800 PEC Requirements Flow Chart

USP 797 and USP 800 PEC Requirements

Learn more
Specification

Class II, Type B2 Biosafety Cabinet NU-560 (115V)

View the specification
Specification

Class II, Type B2 Biosafety Cabinet NU-560E (230V)

View the specification
Flyer

LabGard NU-560 Class II, Type B2 Biosafety Cabinet

View the flyer
Warranty

Class II, Type B2 Biosafety Cabinet Warranty

View the warranty
Webinar Buying a Biosafety Cabinet Webinar

Buying a Biosafety Cabinet Making an Informed Decision

Watch the Webinar
BIM Revit

NU-560 Class II, Type B2 Biosafety Cabinet 3D Model

Learn More
Video Nuaire biosafety cabinet armrest and airflow grill close up.

LabGard Biosafety Cabinets

Watch the video
Drawing

NU-560-400 Biosafety Cabinet Spec Drawing

View the drawing
Drawing

NU-560-600 Biosafety Cabinet Spec Drawing

View the drawing
Brochure Biosafety Cabinet Brochure

Biosafety Cabinet Brochure

Download the brochure
Manuals NU-560 Series C Class II Biosafety Cabinet Manual

NU-560 Series C Class II, Type B2 Biosafety Cabinet Manual

Read the manual
Manuals NU-560E Series C Class II, Type B2 Biosafety Cabinet Manual

NU-560E Series C Class II, Type B2 Biosafety Cabinet Manual

Read the manual

REQUEST A QUOTE

PLEASE FILL OUT THE FORM AND WE’LL GET TO WORK ON GETTING YOU WHAT YOU NEED.

How it works. NuAire sells through a network of knowledge representatives, some who have been selling and servicing NuAire since our inception in 1971. We’ll notify your local representative who will reach out to you. He/She can assist with product selection/configuration, training, installation guidance, support throughout the life of the product, or just provide you pricing in a quick manner. We have some of the best customers who are doing some groundbreaking work. We would love for you to join our family and experience the NuAire Advantage.

Why Your Colleagues Choose NuAire

Let me say that we have come to rely on Nuaire, as a strong partner to Vaccines & it is so because of our valued relationship with George Riley, who is always at our beck and call. God bless him (Keep him for Sure!!) & your Quality BioSafety Cabinets. Service is King & Quality is his side-kick!! So thank you! We look forward to a long and prosperous relationship. Keep up the good work & quality build.

Operations Manager at a Large Pharmaceutical Company
labrepco.com

Cookies help us improve your website experience.
By using our website, you agree to our use of cookies.
Confirm
