In-VitroCell NU-8625 Water Jacket CO2 Incubator

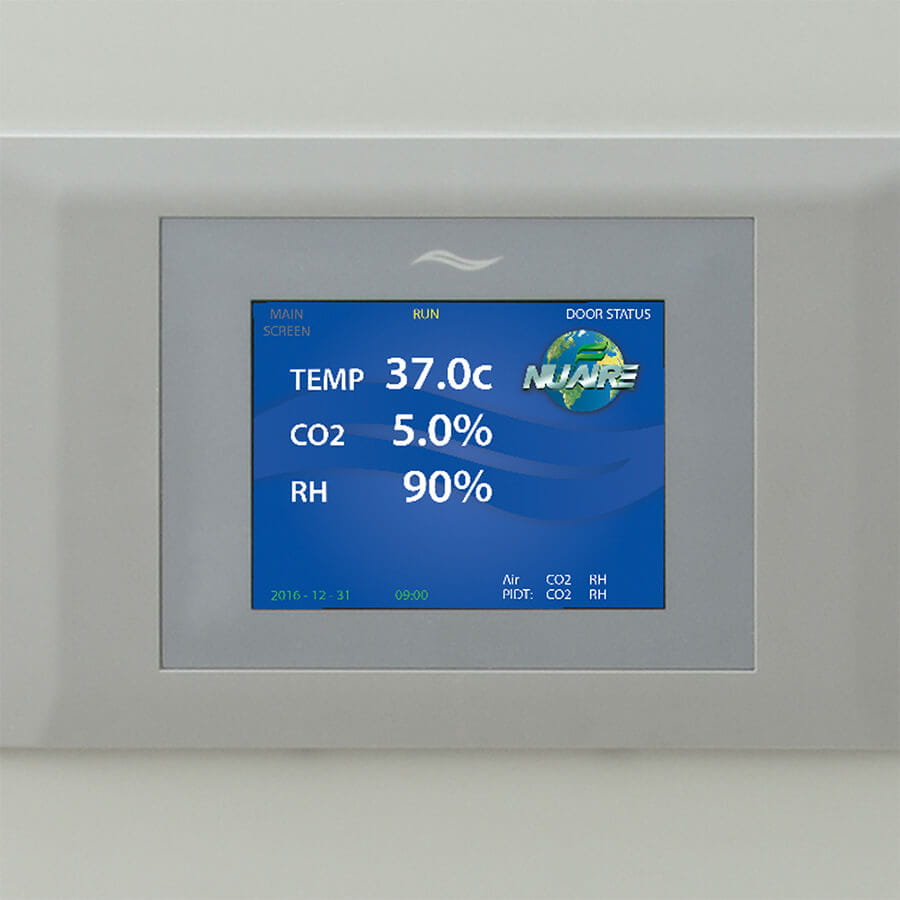

The In-VitroCell NU-8625 stands out as a high-precision water jacket CO2 incubator. Equipped with an advanced humidity sensor and a 160-liter stainless steel chamber featuring easy-clean coved corners, it ensures the ideal environment for sensitive cell cultures. Manage your cell growth conditions effortlessly with its intuitive touch interface.
Request Your Quote
Ask a Question
  • Overview
  • Specifications
  • Reviews
  • Resources
  • Options

Overview

Discover the pinnacle of cell culture growth with the In-VitroCell NU-8625 Water Jacket CO2 Incubator. This state-of-the-art incubator features a sophisticated humidity sensor for monitoring RH levels within its 160-liter stainless steel growth chamber. Enhanced with coved interior corners, the chamber facilitates effortless surface cleaning and decontamination. Accommodating diverse needs, the NU-8625 comes standard with four shelves, offering options in stainless steel, copper alloy, or heavy-duty stainless steel. Precision-engineered to maintain temperature accuracy within 0.1% and equipped with a reliable humidity monitor, the NU-8625 is an ideal solution for sensitive cell lines at risk of desiccation. Its intuitive touch interface allows for seamless control, ensuring your cell cultures thrive under optimal conditions.

Track RH Levels for Optimal Cell Culture Growth

Discover the precision of our humidity monitor in CO2 incubators, tailored for the most sensitive cell cultures. With an advanced RH sensor, it meticulously tracks relative humidity levels up to 90% in the growth chamber. This feature is a boon for lab technicians working with delicate cell cultures susceptible to desiccation. The monitor ensures optimal humidity conditions and allows for real-time tracking. This careful control of the microenvironment is critical in preserving the integrity and viability of your cell cultures, facilitating successful and reproducible results in your scientific endeavors.

Precision Temperature Control in CO2 Incubators

Experience the precision of In-VitroCell Water Jacket CO2 Incubators, expertly designed to maintain a consistent temperature for cell culture growth. The 18-gallon (68.1-liter) water jacket envelops the inner chamber, ensuring uniform temperature distribution within ±0.2°C. Enhanced by R5 insulation, these incubators adeptly minimize heat loss, bolstering efficient temperature maintenance. Equipped with microprocessor-controlled door and perimeter heaters, they adapt to ambient room temperatures with a manual adjustment option of ±20 percent, further reducing condensation for optimal cell culture conditions.

Optimize Cell Growth with Advanced IR Sensor Technology

Experience unparalleled accuracy in mammalian cell culture growth with our cutting-edge IR sensor technology. This sophisticated system precisely regulates CO2 levels in the growth chamber, maintaining the ideal pH for cell cultures. Specially designed to absorb only CO2-specific wavelengths, our sensor ensures measurements are unaffected by extraneous elements like water vapor. The result? A stable, drift-free output that demands fewer calibrations, providing your cell cultures thrive in a consistent and reliable environment.

Minimize Risk with a Crevice-Free Chamber Design

Our meticulously crafted growth chamber enhances cell growth reproducibility in an environment designed to minimize the risk of contamination. The chamber is constructed from 16 gauge, type 304L polished stainless steel and boasts a crevice-free design. Its smooth walls and rounded corners ensure thorough contact with cleaning solutions, surpassing the efficacy of conventional 90-degree corners. This design not only simplifies cleaning but significantly reduces contamination risks. Additionally, the shelving, supports, and guide rails are effortlessly removable, offering the convenience of autoclaving or retaining them during sterilization cycles, ensuring a pristine environment for your cell cultures.

Specifications

In-VitroCell NU-8625 Water Jacket CO2 Incubator with Humidity Display
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Option, Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material 16 Gauge Steel with Textured Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One Standard, Sectional optional
Insulation Insulation with R5.0 Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel or Copper Alloy
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Data Output Features RS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm) 33 (838)
Est. Shipping Height Inches (mm) 49 (1245)
Est. Shipping Width Inches (mm) 31 (787)
Exterior Depth Inches (mm) 27 (685)
Exterior Height Inches (mm) 37.75 (958)
Exterior Width Inches (mm) 25.625 (649)
Footprint Depth inches (mm) 17.5 (445)
Footprint Width inches (mm) 22 (557)
Interior Depth Inches (mm) 20.625 (524)
Interior Height Inches (mm) 24 (611)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.375 (518)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 (457)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)
Electrical Configuration 115V 60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C, UK CA
RH Accuracy +5% / -3%
RH Control Method Water Pan
RH Control Range 0 - 100% (RH) / -40°C - +60°C (Temp)
RH Display Resolution 0.1%
RH Sensor Type Precision capacitance bulk-polymer
RH Water Pan Capacity 2L (Recommended Fill 1.5L)
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Water Jacket, 20 Gallon (75.7L)
Control System NuTouch
Chamber Heater(s) Location Bottom of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Water Jacket
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.20°C @ 37°C
Est. Shipping Weight lbs (kg) 370 (168)
Net Weight lbs (kg) 403 (183) includes full water jacket and shelves
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Option, Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material 16 Gauge Steel with Textured Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One Standard, Sectional optional
Insulation Insulation with R5.0 Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel or Copper Alloy
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Data Output Features RS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm) 33 (838)
Est. Shipping Height Inches (mm) 49 (1245)
Est. Shipping Width Inches (mm) 31 (787)
Exterior Depth Inches (mm) 27 (685)
Exterior Height Inches (mm) 37.75 (958)
Exterior Width Inches (mm) 25.625 (649)
Footprint Depth inches (mm) 17.5 (445)
Footprint Width inches (mm) 22 (557)
Interior Depth Inches (mm) 20.625 (524)
Interior Height Inches (mm) 24 (611)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.375 (518)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 (457)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)
Electrical Configuration 230V 50/60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C, UK CA
RH Accuracy +5% / -3%
RH Control Method Water Pan
RH Control Range 0 - 100% (RH) / -40°C - +60°C (Temp)
RH Display Resolution 0.1%
RH Sensor Type Precision capacitance bulk-polymer
RH Water Pan Capacity 2L (Recommended Fill 1.5L)
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Water Jacket, 20 Gallon (75.7L)
Control System NuTouch
Chamber Heater(s) Location Bottom of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Water Jacket
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.20°C @ 37°C
Est. Shipping Weight lbs (kg) 370 (168)
Net Weight lbs (kg) 403 (183) includes full water jacket and shelves

Review

Resources

Brochures

Manuals

Drawings

Videos

Specifications

BIM Revit

Warranty

Options

  • 115V, 60Hz, 15 Amp, NEMA 5-15P, Made in USA
  • 230V, 50/60 Hz, 15 Amp, Type F Plug, Made in USA
  • 230V, 50/60 Hz, 15 Amp, Plug Type G, Made in USA
  • Stainless Steel Chamber with Floor Mounted Water Pan
  • Stainless Steel Chamber with Coiling Coil and Floor Mounted Water Pan
  • Stainless Steel Shelves (Qty 4)
  • Heavy Duty Stainless Steel Shelves (Qty 4)
  • Copper Alloy Shelves (Qty 4)
  • Left Side Door Hinge
  • Right Hinged Door Swing
  • Standard Glass Door with Cam Action Lock
  • Sectioned Inner Door with Cam Action Locks (4 Vertical Sections)
  • Factory Stacked CO2 Incubators with Qty 1 Castered Platform, Ships Stacked
  • Stacking Brackets for Water Jacket Models
  • Stacking Rack, Floor Mount
  • Platform with Combination Leg Levelers and Casters
  • Regulator CO2 - Two Stage
  • Tank Switch, External, CO2 or N2
  • Tubing Kit (1)
  • Water Pan, Copper Alloy, Qty 1
  • Water Pan, Stainless Steel, Shelf Mount, Qty 1
  • Water Pan, Copper Alloy, Shelf Mounted Qty 1
  • Water Pan, Stainless Steel, Qty 1
  • CO2 Incubator Copper Alloy Shelf (Qty 1) with Guide Brackets (Qty 2)
  • CO2 Incubator Shelf, Stainless Steel (Qty 1) with Guide Brackets (Qty 2)
  • CO2 Incubator Shelf, Stainless Steel, Heavy Duty (Qty 1) with Guide Brackets (Qty 2)
