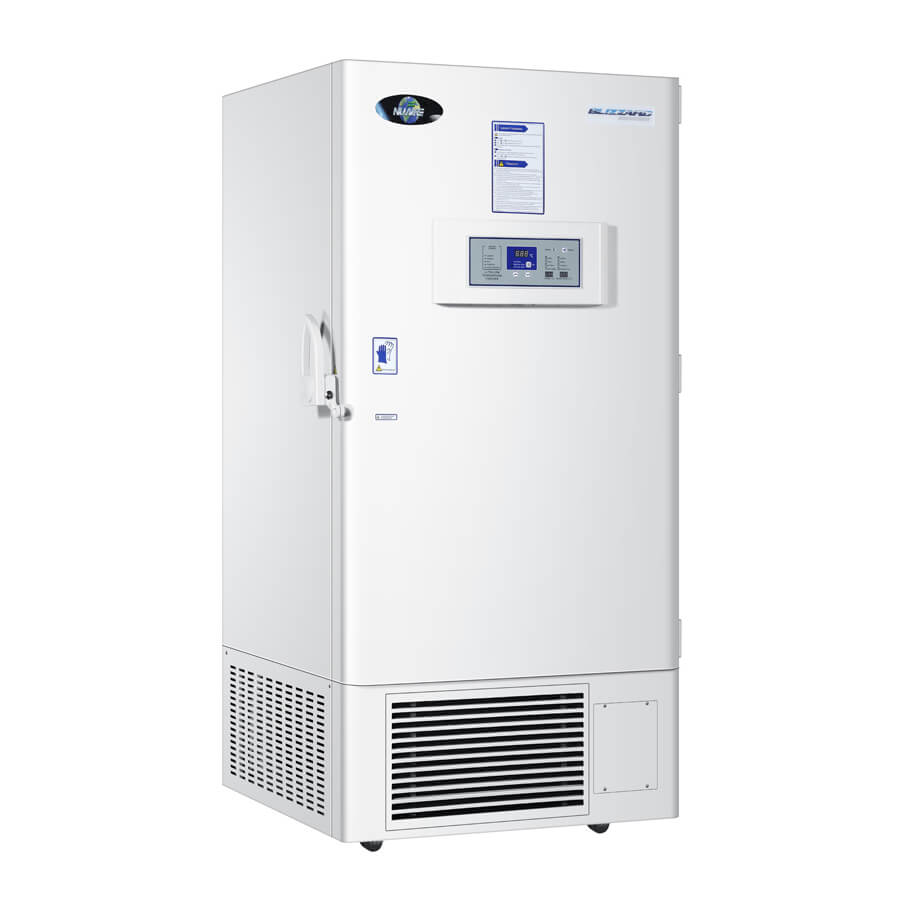

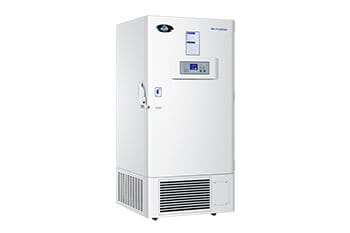

Blizzard HC NU-99828J -80°C Ultralow Freezer

The Blizzard™ range of vertical ultra-low freezers enables low temperature storage in a variety of sizes that feature efficient HC refrigerants, composite insulation, gasketed doors, and downloadable data.

Overview

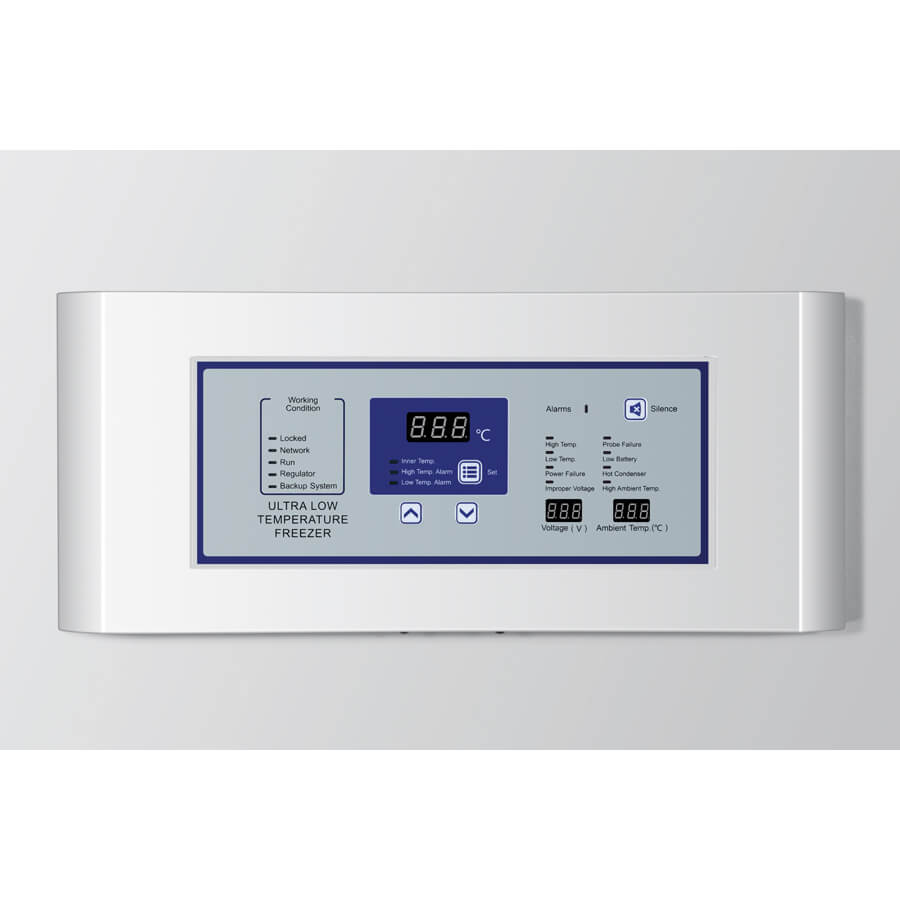

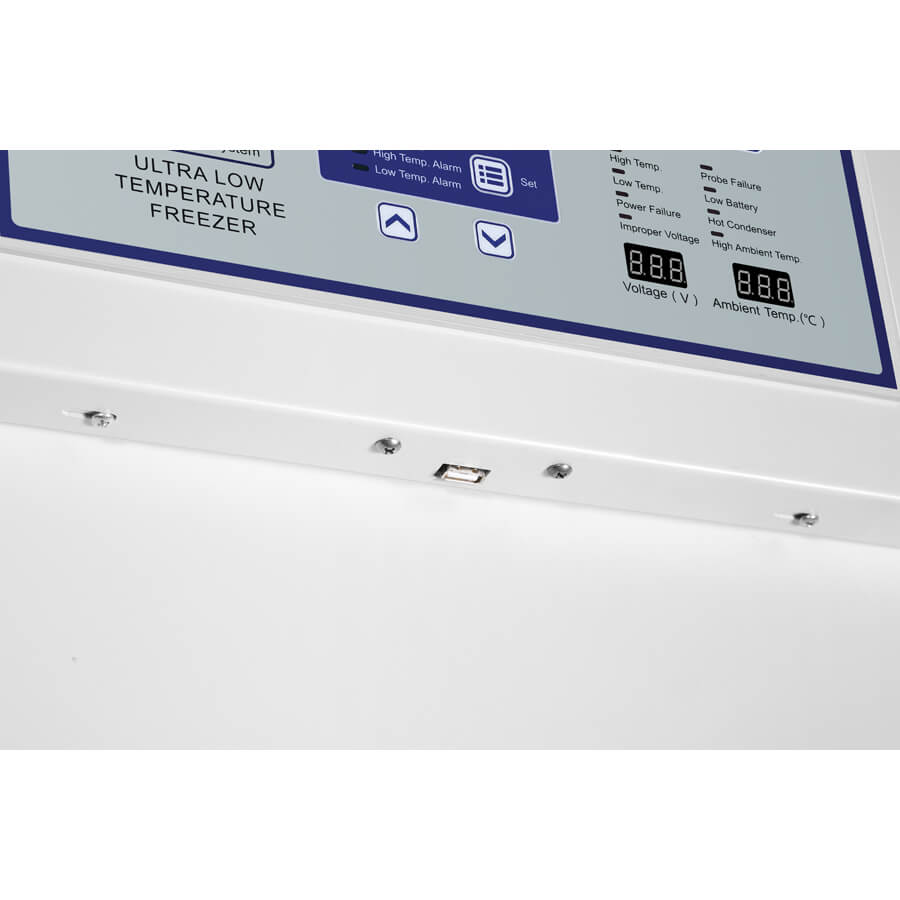

The Blizzard™ range of vertical ultra-low freezers efficiently stores samples by using HC refrigerants and protects them within a structure using steel walls and a composite VIP and polyurethane insulation. Multiple, polyurethane foam insulated interior doors allow easy access with minimal temperature loss to racks set on the stainless-steel shelves inside. Running parameters are clearly displayed on the front electronic control panel at all times and can be downloaded via the USB port for long term datalogging.

Specifications

2-inch Box Capacity 600
Rack Capacity 24
Access Port Location Back Wall
Back Up Battery for Alarm Functions High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms
Cabinet Thickness Inches (mm) 3.5 (90)
Casters All-direction caster with fixing stand
Door Thickness Inches (mm) 3.5 (90)
Exterior Door Single Door
Exterior Door Seal Quadruple Seal on the Outside Door
Exterior Material Color Coating Cold Plate Steel
Fan Brand EBM

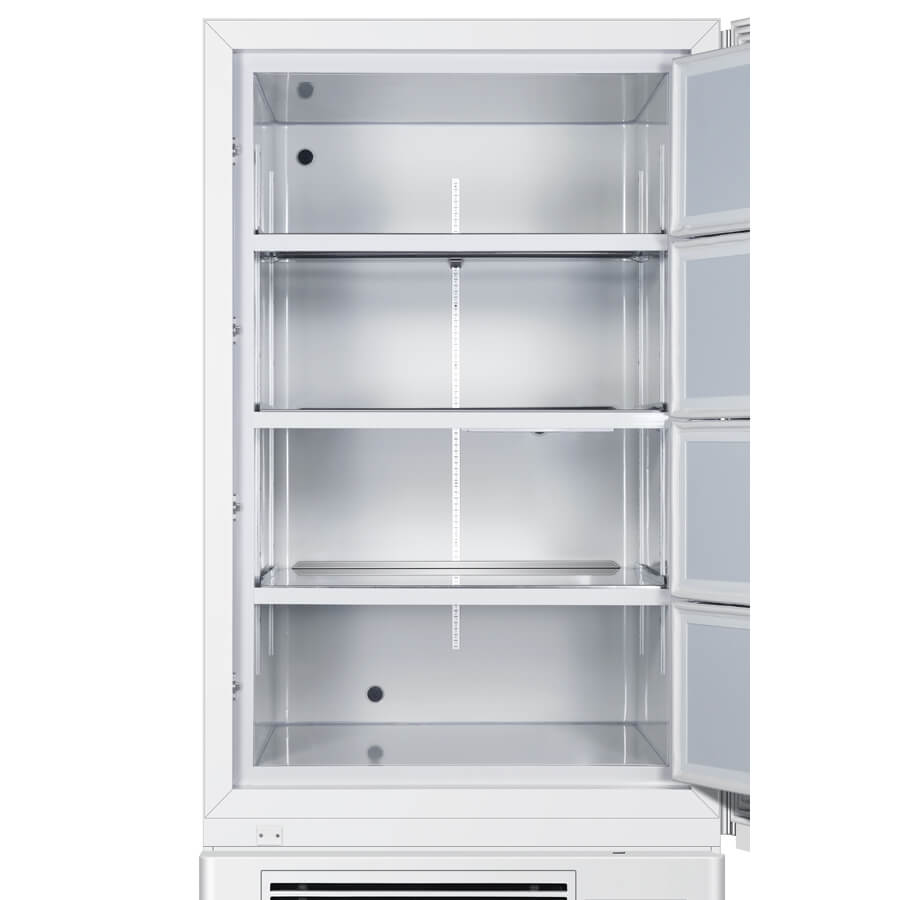

Inner Doors 4
Insulation VIP+CFC Free Foaming Agent
Interior Door Seal Single Seal on all Interior Doors
Interior Material Color Coating Electric Zinc Steel Plate
Leg Levelers 2

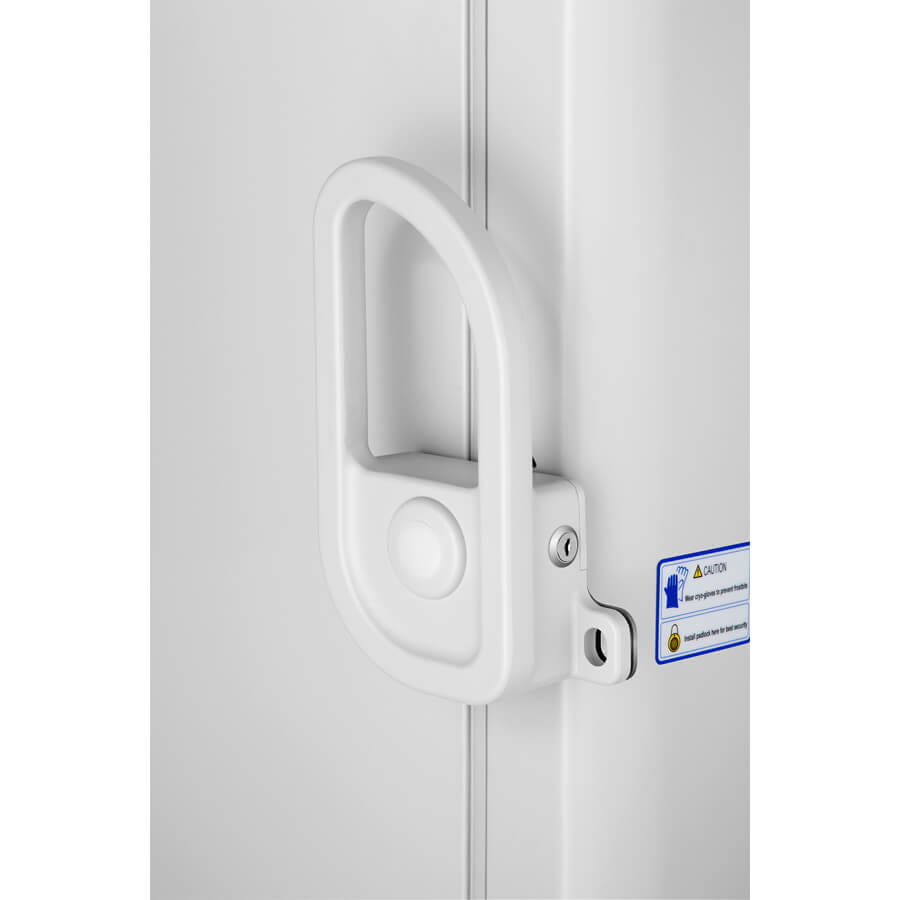

Locking Mechanism Key
Shelf Capacity lbs (kg) 238 (108)
Shelf Material Stainless Steel
Shelves 3 Shelves, 4 Locations
Style Upright
Adjustable High/Low Temperature Alarms True
Alarms Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc.
Auto Voltage Safeguard Included

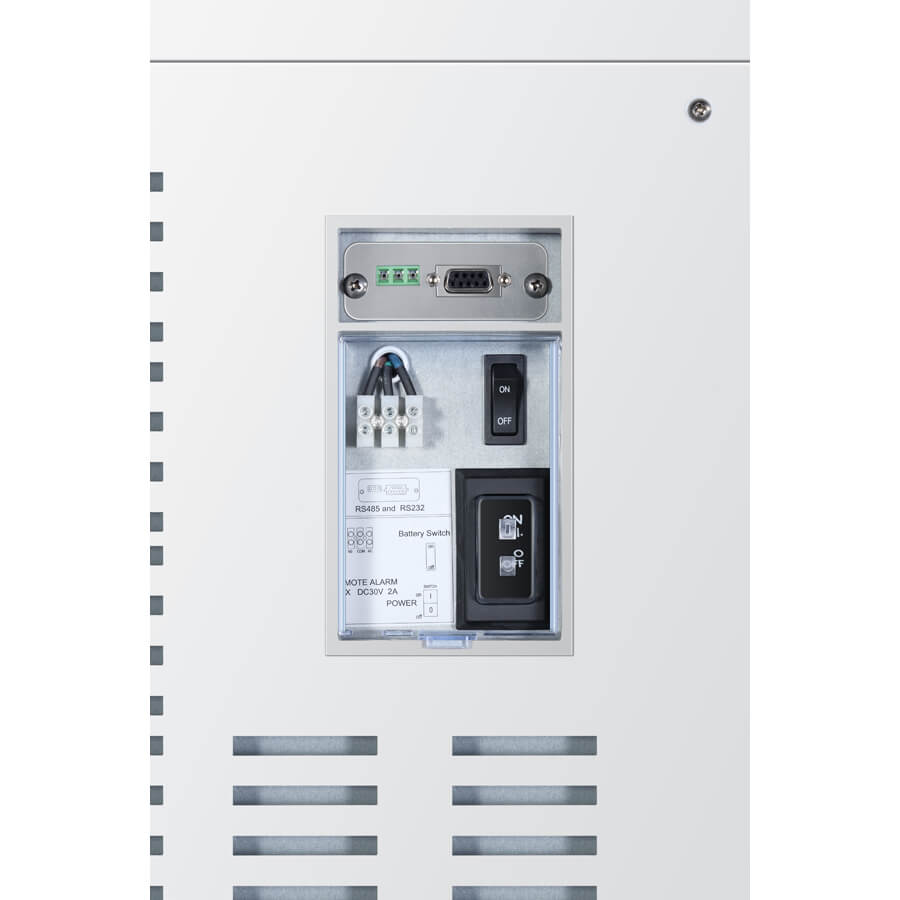

Data Output Features USB, RS-232/485
Power Switch On-Off with Circuit Breaker
Remote Alarm Terminals Remote Alarm Port, RS232 / RS485 (Optional)
Setpoint Security Yes
Est. Shipping Depth Inches (mm) 41 (1041)
Est. Shipping Height Inches (mm) 84 (2137)
Est. Shipping Width Inches (mm) 47 (1194)
Exterior Depth Inches (mm) 38.6 (980)
Exterior Depth with Door Open Inches (mm) 79.10 (2009)
Exterior Height Inches (mm) 78 (1980)
Exterior Width Inches (mm) 45.1 (1145)
Footprint Depth inches (mm) 38.6 (980)
Footprint Width inches (mm) 45.1 (1145)
Interior Depth Inches (mm) 28.2 (716)
Interior Height Inches (mm) 51.6 (1310)
Interior Volume Cubic Feet (Liters) 29.2 (828)
Interior Width Inches (mm) 34.3 (870)
Shelf Depth Inches (mm) 26.6 (677)
Shelf Width Inches (mm) 33.7 (856)
Electric Protection Type
Electrical Configuration 230V50Hz
Input Power (W) 1650
Power Consumption KWh/day 12
Power Cord Grounded Three Prong Power Plug, Rated 16A
Power Cord Length Foot (Meter) 8.2 ft (2.5m)
Rated Current (A) 10.0
Rated Frequency (Hz) 50
Rated Voltage (V) 230
Stable Current (A) 7.5
Sound Level 50 dB(A)
Performance Standard
1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes 35
Cool Down Time (25°C ambient to -80°C) in Minutes 320
Heat Rejected (BTU/Hour) 1553
Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes 300
Compressor Capacity Watt 950
Compressor Type/Brand/Number Hermetic Reciprocating Type / SECOP / 2
Condenser Type Enhanced Micro-Channel & Forced-Air Cooled
Defrost Method Manual
Evaporator Type Cold Wall With Enhanced Heat Transfer Treatment
Refrigerant Charge/Flammable R290 in 1st Stage / R290 + R170 Mix in 2nd Stage / Flammable in JE Version; R290 in 1st Stage / R170 in 2nd Stage / Flammable in JG Version
Refrigeration System Type Direct cooling
Ambient Temperature (°C) 10 to 32, Ideal Ambient Temperature 18 to 25
Temperature Accuracy °C ±1
Temperature Control Microprocessor Controller
Temperature Range °C -40 to -86
Temperature Sensor Type RTD (Pt100)
Temperature Uniformity °C ±5
Est. Shipping Weight lbs (kg) Estimated 903 lbs (410 kgs)
Net Weight lbs (kg) 836 lbs (380 kg)
2-inch Box Capacity 600
Rack Capacity 24
Access Port Location Back Wall
Back Up Battery for Alarm Functions High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser and low battery alarms
Cabinet Thickness Inches (mm) 3.5 (90)
Casters All-direction caster with fixing stand
Door Thickness Inches (mm) 3.5 (90)
Exterior Door Single Door
Exterior Door Seal Quadruple Seal on the Outside Door
Exterior Material Color Coating Cold Plate Steel
Fan Brand EBM
Inner Doors 4
Insulation VIP+CFC Free Foaming Agent
Interior Door Seal Single Seal on all Interior Doors
Interior Material Color Coating Electric Zinc Steel Plate
Leg Levelers 2
Locking Mechanism Key
Shelf Capacity lbs (kg) 238 (108)
Shelf Material Stainless Steel
Shelves 3 Shelves, 4 Locations
Style Upright
Adjustable High/Low Temperature Alarms True
Alarms Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc.
Auto Voltage Safeguard Included
Data Output Features USB, RS-232/485
Power Switch On-Off with Circuit Breaker
Remote Alarm Terminals Remote Alarm Port, RS232 / RS485 (Optional)
Setpoint Security Yes
Est. Shipping Depth Inches (mm) 41 (1041)
Est. Shipping Height Inches (mm) 84 (2137)
Est. Shipping Width Inches (mm) 47 (1194)
Exterior Depth Inches (mm) 38.6 (980)
Exterior Depth with Door Open Inches (mm) 79.10 (2009)
Exterior Height Inches (mm) 78 (1980)
Exterior Width Inches (mm) 45.1 (1145)
Footprint Depth inches (mm) 38.6 (980)
Footprint Width inches (mm) 45.1 (1145)
Interior Depth Inches (mm) 28.2 (716)
Interior Height Inches (mm) 51.6 (1310)
Interior Volume Cubic Feet (Liters) 29.2 (828)
Interior Width Inches (mm) 34.3 (870)
Shelf Depth Inches (mm) 26.6 (677)
Shelf Width Inches (mm) 33.7 (856)
Electric Protection Type
Electrical Configuration 220V60Hz
Input Power (W) 1650
Power Consumption KWh/day 12
Power Cord Grounded Three Prong Power Plug, Rated 16A
Power Cord Length Foot (Meter) 8.2 ft (2.5m)
Rated Current (A) 10.0
Rated Frequency (Hz) 60
Rated Voltage (V) 220
Stable Current (A) 7.5
Sound Level 50 dB(A)
Performance Standard
1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes 35
Cool Down Time (25°C ambient to -80°C) in Minutes 320
Heat Rejected (BTU/Hour) 1437
Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes 300
Compressor Capacity Watt 950
Compressor Type/Brand/Number Hermetic Reciprocating Type / SECOP / 2
Condenser Type Enhanced Micro-Channel & Forced-Air Cooled
Defrost Method Manual
Evaporator Type Cold Wall With Enhanced Heat Transfer Treatment
Refrigerant Charge/Flammable R290 in 1st Stage / R290 + R170 Mix in 2nd Stage / Flammable in JE Version; R290 in 1st Stage / R170 in 2nd Stage / Flammable in JG Version
Refrigeration System Type Direct cooling
Ambient Temperature (°C) 10 to 32, Ideal Ambient Temperature 18 to 25
Temperature Accuracy °C ±1
Temperature Control Microprocessor Controller
Temperature Range °C -40 to -86
Temperature Sensor Type RTD (Pt100)
Temperature Uniformity °C ±5
Est. Shipping Weight lbs (kg) Estimated 903 lbs (410 kgs)
Net Weight lbs (kg) 836 lbs (380 kg)
