Blizzard HC NU-99338J -80°C Ultralow Freezer

The Blizzard NU-99338J is a compact, energy-efficient -86°C Ultralow Freezer, ideal for labs needing reliable sample storage. It features advanced insulation, easy-access interiors, and a user-friendly control panel with USB data logging.

Overview

Introducing the Blizzard NU-99338J, an 11.9 cu. Ft. (338 L) -86°C Ultralow Freezer is expertly designed for laboratories requiring cost-effective, ultra-low temperature storage in a compact form. This freezer utilizes HC refrigerants, ensuring energy-efficient operation. Its robust structure, combining steel walls with composite VIP and polyurethane insulation, guarantees optimal thermal protection. The internal layout features multiple insulated doors and stainless-steel shelves, facilitating easy access while maintaining temperature stability. The front electronic control panel constantly displays running parameters, with a USB port enabling extensive data logging. The NU-99338J is the perfect solution for labs needing reliable, ultra-low-temperature storage in a space-conscious, energy-efficient model.

Reliable Control & Monitoring

Our -86°C ultralow temperature freezer features an eye-level electronic control system, offering clear visibility and easy access to crucial data. This reliable system displays internal and ambient temperatures, voltage levels, and more. In case of any irregularities, it promptly alerts users with audible and visual alarms. Informative indicator lights provide insights into the freezer's condition, including alarms and maintenance needs. User-friendly navigation and a secure passcode feature allow for personalized temperature settings, alarms, and other preferences, ensuring optimal performance and sample safety.

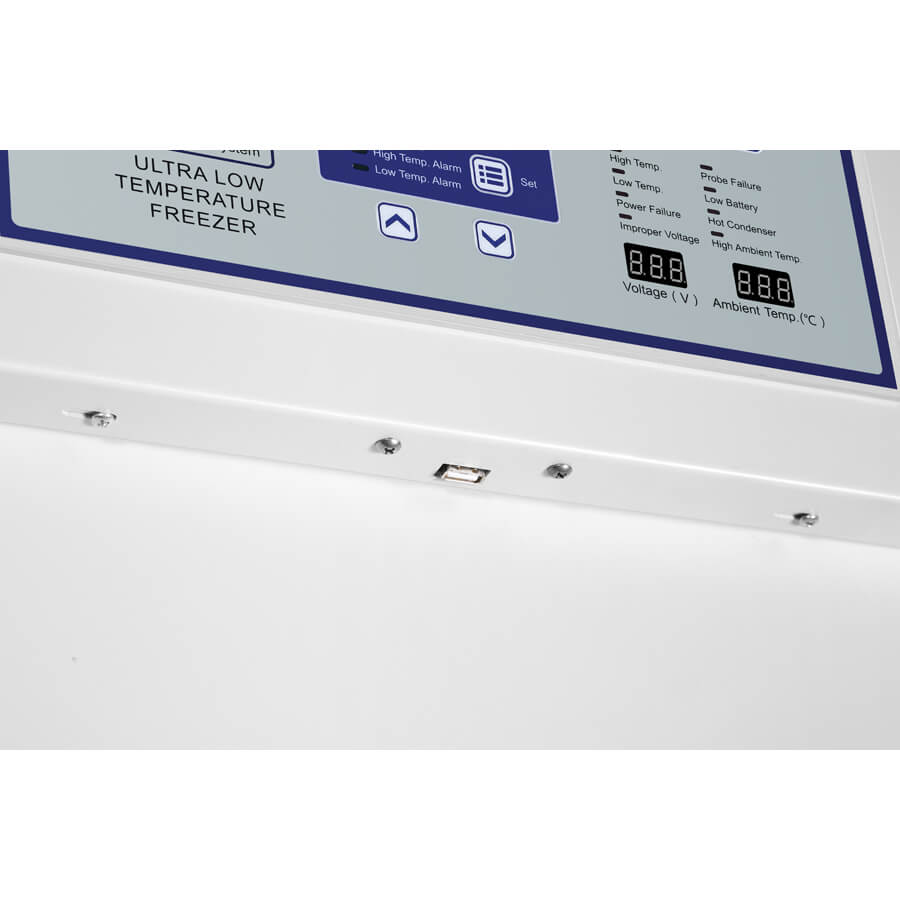

Streamlined Data Export with Integrated USB Port

The integrated USB port makes downloading extensive data effortless. It is ideal for facilities with strict reporting protocols and allows easy access to several years of temperature and operational records.

Enhanced Insulation for Optimal Cold Storage

Revolutionize Cold Storage: This -86°C ultralow temperature freezer boasts state-of-the-art insulation technology. Its main body integrates polyurethane and VIP insulation, providing a formidable barrier to preserve low temperatures. The outer door features a quadruple gasket to prevent cold air loss, complementing a sturdy latch for a secure seal. Inside, the segmented inner doors, each insulated and single-gasket, offer an additional layer of temperature control. Stainless steel shelves, aligned with these segmented doors, allow quick access to specific samples while maintaining the integrity of other compartments.

Specifications

Blizzard NU-99338J 11.9 cu. ft. (338 L) -86°C Ultralow Freezer
2-inch Box Capacity 216
Rack Capacity 12
Access Port Location Back Wall
Back Up Battery for Alarm Functions High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser, and low battery alarms
Cabinet Thickness Inches (mm) 5 (130)
Casters All-direction caster with fixing stand
Door Thickness Inches (mm) 3.5 (90)
Exterior Door Single Door
Exterior Door Seal Quadruple Seal on the Outside Door
Exterior Material Color Coating Cold Plate Steel
Fan Brand EBM
Inner Doors Two
Insulation VIP+CFC Free Foaming Agent
Interior Door Seal Single Seal on all Interior Doors
Interior Material Color Coating Electric Zinc Steel Plate
Leg Levelers 2
Locking Mechanism Key
Shelf Capacity lbs (kg) 110 (50)
Shelf Material Stainless Steel
Shelves 3 Adjustable, 4 Locations
Style Upright
Adjustable High/Low Temperature Alarms True
Alarms Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc.
Auto Voltage Safeguard Included
Data Output Features USB, RS-232/485
Power Switch On-Off with Circuit Breaker
Remote Alarm Terminals Standard
Setpoint Security Yes
Est. Shipping Depth Inches (mm) 38 (965)
Est. Shipping Height Inches (mm) 79 (2007)
Est. Shipping Width Inches (mm) 34 (864)
Exterior Depth Inches (mm) 35.2 (893)
Exterior Depth with Door Open Inches (mm) 62.8 (1596)
Exterior Height Inches (mm) 72.7 (1846)
Exterior Width Inches (mm) 32 (812)
Footprint Depth inches (mm) 35.2 (893
Footprint Width inches (mm) 32 (812)
Interior Depth Inches (mm) 24.8 (630)
Interior Height Inches (mm) 45.9 (1165)
Interior Volume Cubic Feet (Liters) 11.9 (338)
Interior Width Inches (mm) 18.3 (465)
Shelf Depth Inches (mm) 23.5 (597)
Shelf Width Inches (mm) 17.75 (441)
Electric Protection Type Class I
Electrical Configuration 230V50Hz
Input Power (W) 920
Power Consumption KWh/day 7.5
Power Cord Grounded Three Prong Power Plug, Rated 16A
Power Cord Length Foot (Meter) 8.2 ft (2.5m)
Rated Current (A) 7.5
Rated Frequency (Hz) 50
Rated Voltage (V) 230
Stable Current (A) 4
Sound Level 50 dB(A)
Performance Standard
1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes 25
Cool Down Time (25°C ambient to -80°C) in Minutes 195
Heat Rejected (BTU/Hour) 1239 (Average)
Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes 200
Compressor Capacity Watt 950
Compressor Type/Brand/Number Hermetic Reciprocating Type / SECOP / 2
Condenser Type Enhanced Micro-Channel & Forced-Air Cooled
Defrost Method Manual
Evaporator Type Cold Wall With Enhanced Heat Transfer Treatment
Refrigerant Charge/Flammable R290 in 1st Stage / R170 in 2nd Stage / Flammable
Refrigeration System Type Direct cooling
Ambient Temperature (°C) 10 to 32
Temperature Accuracy °C ±1
Temperature Control Microprocessor Controller
Temperature Range °C -40 to -86
Temperature Sensor Type RTD (Pt100)
Temperature Uniformity °C ±5
Est. Shipping Weight lbs (kg) 612 (278)
Net Weight lbs (kg) 525 (238)
2-inch Box Capacity 216
Rack Capacity 12
Access Port Location Back Wall
Back Up Battery for Alarm Functions High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser, and low battery alarms
Cabinet Thickness Inches (mm) 5 (130)
Casters All-direction caster with fixing stand
Door Thickness Inches (mm) 3.5 (90)
Exterior Door Single Door
Exterior Door Seal Quadruple Seal on the Outside Door
Exterior Material Color Coating Cold Plate Steel
Fan Brand EBM
Inner Doors Two
Insulation VIP+CFC Free Foaming Agent
Interior Door Seal Single Seal on all Interior Doors
Interior Material Color Coating Electric Zinc Steel Plate
Leg Levelers 2
Locking Mechanism Key
Shelf Capacity lbs (kg) 110 (50)
Shelf Material Stainless Steel
Shelves 3 Adjustable, 4 Locations
Style Upright
Adjustable High/Low Temperature Alarms True
Alarms Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc.
Auto Voltage Safeguard Included
Data Output Features USB, RS-232/485
Power Switch On-Off with Circuit Breaker
Remote Alarm Terminals Standard
Setpoint Security Yes
Est. Shipping Depth Inches (mm) 38 (965)
Est. Shipping Height Inches (mm) 79 (2007)
Est. Shipping Width Inches (mm) 34 (864)
Exterior Depth Inches (mm) 35.2 (893)
Exterior Depth with Door Open Inches (mm) 62.8 (1596)
Exterior Height Inches (mm) 72.7 (1846)
Exterior Width Inches (mm) 32 (812)
Footprint Depth inches (mm) 35.2 (893
Footprint Width inches (mm) 32 (812)
Interior Depth Inches (mm) 24.8 (630)
Interior Height Inches (mm) 45.9 (1165)
Interior Volume Cubic Feet (Liters) 11.9 (338)
Interior Width Inches (mm) 18.3 (465)
Shelf Depth Inches (mm) 23.5 (597)
Shelf Width Inches (mm) 17.75 (441)
Electric Protection Type Class I
Electrical Configuration 220V60Hz
Input Power (W) 1540
Power Consumption KWh/day 8.2
Power Cord Grounded Three Prong Power Plug, Rated 16A
Power Cord Length Foot (Meter) 8.2 ft (2.5m)
Rated Current (A) 7.5
Rated Frequency (Hz) 60
Rated Voltage (V) 220
Stable Current (A) 7
Sound Level 50 dB(A)
Performance Standard
1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes 25
Cool Down Time (25°C ambient to -80°C) in Minutes 195
Heat Rejected (BTU/Hour) 1166
Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes 200
Compressor Capacity Watt 950
Compressor Type/Brand/Number Hermetic Reciprocating Type / SECOP / 2
Condenser Type Enhanced Micro-Channel & Forced-Air Cooled
Defrost Method Manual
Evaporator Type Cold Wall With Enhanced Heat Transfer Treatment
Refrigerant Charge/Flammable R290 in 1st Stage / R170 in 2nd Stage / Flammable
Refrigeration System Type Direct cooling
Ambient Temperature (°C) 10 to 32
Temperature Accuracy °C ±1
Temperature Control Microprocessor Controller
Temperature Range °C -40 to -86
Temperature Sensor Type RTD (Pt100)
Temperature Uniformity °C ±5
Est. Shipping Weight lbs (kg) 612 (278)
Net Weight lbs (kg) 525 (238)
2-inch Box Capacity 216
Rack Capacity 12
Access Port Location Back Wall
Back Up Battery for Alarm Functions High/low temperature, power failure, door open, sensor failure, high ambient temperature, hot condenser, and low battery alarms
Cabinet Thickness Inches (mm) 5 (130)
Casters All-direction caster with fixing stand
Door Thickness Inches (mm) 3.5 (90)
Exterior Door Single Door
Exterior Door Seal Quadruple Seal on the Outside Door
Exterior Material Color Coating Cold Plate Steel
Fan Brand EBM
Inner Doors Two
Insulation VIP+CFC Free Foaming Agent
Interior Door Seal Single Seal on all Interior Doors
Interior Material Color Coating Electric Zinc Steel Plate
Leg Levelers 2
Locking Mechanism Key
Shelf Capacity lbs (kg) 110 (50)
Shelf Material Stainless Steel
Shelves 3 Adjustable, 4 Locations
Style Upright
Adjustable High/Low Temperature Alarms True
Alarms Temperature, Power Failure, Probe Failure, Condenser, Ambient Temperature, Door Ajar, Low Battery, etc.
Auto Voltage Safeguard Included
Data Output Features USB, RS-232/485
Power Switch On-Off with Circuit Breaker
Remote Alarm Terminals Standard
Setpoint Security Yes
Est. Shipping Depth Inches (mm) 38 (965)
Est. Shipping Height Inches (mm) 79 (2007)
Est. Shipping Width Inches (mm) 34 (864)
Exterior Depth Inches (mm) 35.2 (893)
Exterior Depth with Door Open Inches (mm) 62.8 (1596)
Exterior Height Inches (mm) 72.7 (1846)
Exterior Width Inches (mm) 32 (812)
Footprint Depth inches (mm) 35.2 (893
Footprint Width inches (mm) 32 (812)
Interior Depth Inches (mm) 24.8 (630)
Interior Height Inches (mm) 45.9 (1165)
Interior Volume Cubic Feet (Liters) 11.9 (338)
Interior Width Inches (mm) 18.3 (465)
Shelf Depth Inches (mm) 23.5 (597)
Shelf Width Inches (mm) 17.75 (441)
Electric Protection Type Class I
Electrical Configuration 115V60Hz
Input Power (W) 935
Power Consumption KWh/day 7.5
Power Cord Grounded Three Prong Power Plug, Rated 20A
Power Cord Length Foot (Meter) 8.2 ft (2.5m)
Rated Current (A) 18.0
Rated Frequency (Hz) 60
Rated Voltage (V) 115
Stable Current (A) 6.8
Sound Level 50 dB(A)
Performance Standard
1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes 25
Cool Down Time (25°C ambient to -80°C) in Minutes 195
Heat Rejected (BTU/Hour) 1032
Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes 200
Compressor Capacity Watt 950
Compressor Type/Brand/Number Hermetic Reciprocating Type / SECOP / 2
Condenser Type Enhanced Micro-Channel & Forced-Air Cooled
Defrost Method Manual
Evaporator Type Cold Wall With Enhanced Heat Transfer Treatment
Refrigerant Charge/Flammable R290 in 1st Stage / R170 in 2nd Stage / Flammable
Refrigeration System Type Direct cooling
Ambient Temperature (°C) 10 to 32
Temperature Accuracy °C ±1
Temperature Control Microprocessor Controller
Temperature Range °C -40 to -86
Temperature Sensor Type RTD (Pt100)
Temperature Uniformity °C ±5
Est. Shipping Weight lbs (kg) 612 (278)
Net Weight lbs (kg) 525 (238)
