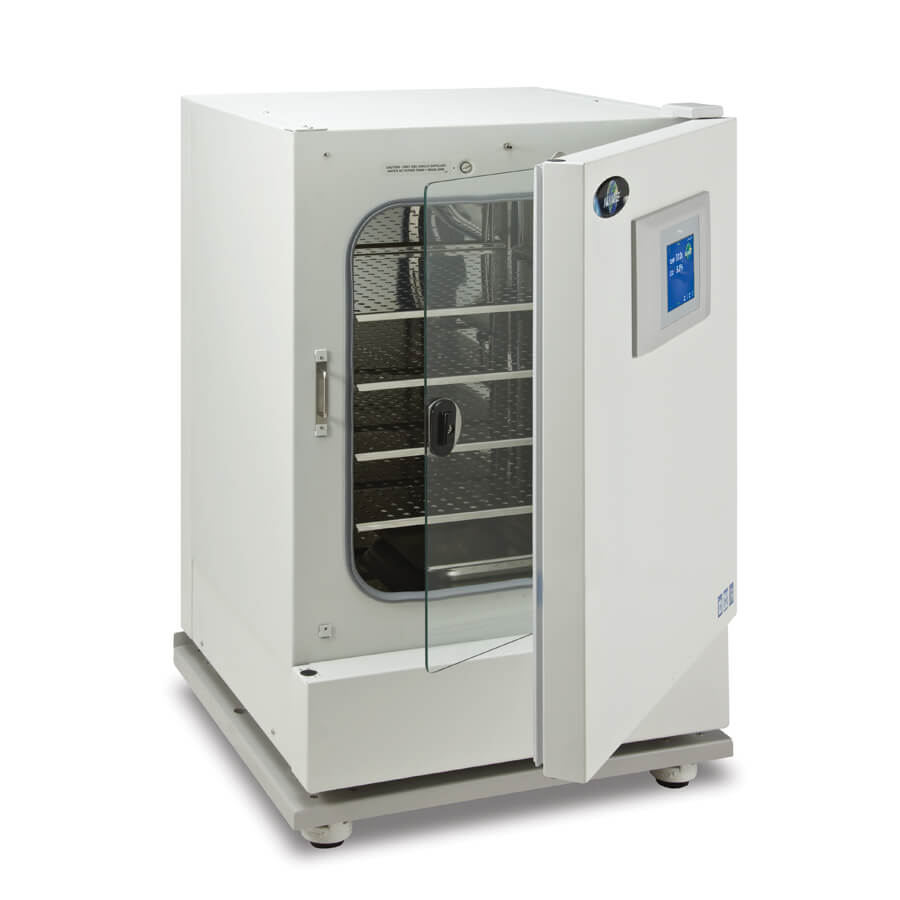

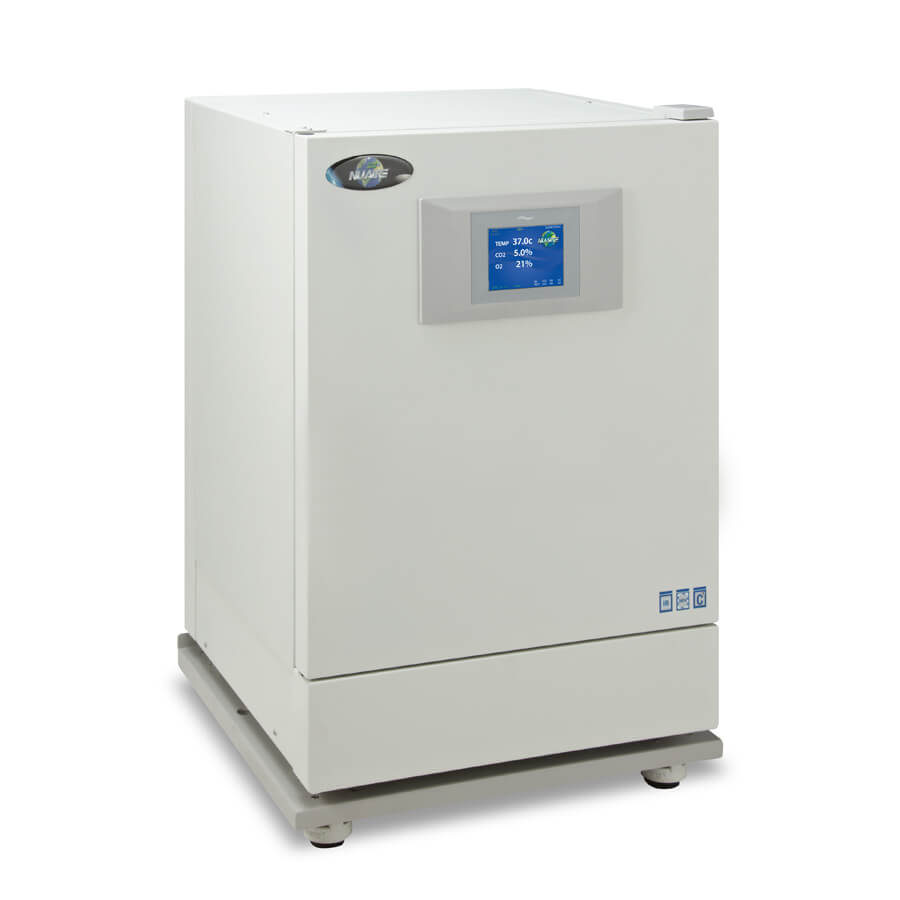

In-VitroCellNU-8600
Water Jacket CO2 Incubator

Water Jacket | 160-Liter Capacity | Temperature & CO2 Control | HEPA Filtration

The In-VitroCell NU-8600 Water Jacket CO2 incubator offers modern control and monitoring of temperature and CO2 levels inside a traditional water jacket design for applications prioritizing stability and security. Beyond using an infrared sensor for precise control of CO2 and a 68-liter water jacket for reliable and uniform internal temperature. The air pump is located outside the 160-liter stainless steel chamber that constantly draws air through a HEPA filter and cycles it back to the growth chamber. This closed-loop HEPA filtration system helps to create ISO Class 5 quality air at positive pressure to minimize contamination. A touch screen makes it easy to enter set points and view or download historical performance. In addition, this moderately sized incubator can be stacked to efficiently use the valuable space in your laboratory.

Request a Quote

A Product to Meet Your Need

Model NU-8600 is available in two electrical configurations.

Products

NU-8600

115V

NU-8600E

230V

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
CO2 Accuracy ± 0.1%
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
Control System NuTouch
Temperature Accuracy °C ± 0.1%
Temperature Control Water Jacket
Temperature Recovery 0.12°C/min. on Average
Temperature Uniformity °C ± 0.20°C @ 37°C
  • Features
  • Specs
  • Options & Accessories
  • Resources
  • Citations


The Modern User Experience you Expect

NuTouch Control System

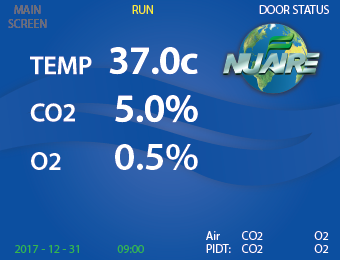

The NuTouch control system provides you with the user experience you have come to expect from any piece of modern equipment. Change set points, view chamber history, start a decontamination cycle, or perform a calibration procedure from this simple interface. All NuAire CO2 incubators standardize on the NuTouch control system, meaning that once users learn to navigate one incubator they can move seamlessly to any other in the lab.

CO2 Incubator Water Jacket Temperature Control

Precise Uniformity

Water Jacket Temperature Control

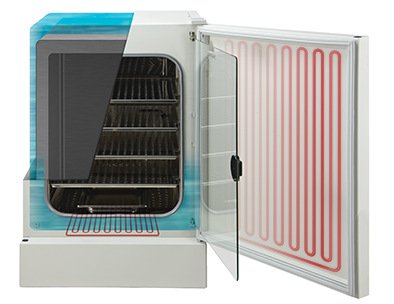

In-VitroCell Water Jacket CO2 Incubators maintain accurate temperature with the large 18 gallons (68.1-liter) water jacket that surrounds the inner chamber. Heated water in this jacket circulates around the growth chamber, keeping the temperature uniform within the growth chamber ±0.2°C. Precise temperature control is aided by the R5 insulation that lines the outer chamber walls that minimize heat loss.

The door and perimeter heaters are microprocessor-controlled to adjust to the room's ambient temperature. They can also be adjusted manually from ±20 percent to reduce condensation within the growth chamber.



Cell Cultures Deserve Their Own Clean Room

Closed Loop HEPA Filtration

Continual HEPA filtration of chamber air complements periodic high heat decontamination to provide Constant Contamination Control. InVitrocell’s design constantly takes a sample of air from the chamber, routes it through a HEPA filter in a compartment outside that inner chamber, and ultimately returns it to create an ISO Class 5 level of clean air in the interior as well as a slight positive pressure. Inside the InVitrocell, your cell cultures are protected by a multi-tiered defense against contamination.

CO2 Incubator Coved Interior Corners

Easy to Clean, Minimize Contamination Risks

Coved Interior Corners

NuAire CO2 incubators are designed to minimize potential hiding places for contamination. Coved corners and a crevice-free interior, which makes it easy to clean.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor (5 Years IR Sensor Parts Only) (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Steel with Polyurethane Finish Exterior
  • 75.7L (20Gallon) Water Jacket
  • Polished, 16 Gauge Type 304L Stainless-Steel Chamber
  • Set of 4 Stainless Steel Shelves
  • Inner Glass Door
  • Separately Adjustable Chamber & Door Heaters
  • Infrared CO2 Sensor
  • Dual Temperature Sensors
  • Air Pump External to Chamber
  • HEPA Filter External to Chamber
  • Multilingual Touch Screen
  • USB Port for Data Download
Est. Shipping Width Inches (mm) 31 (787)
Est. Shipping Height Inches (mm) 49 (1245)
Est. Shipping Depth Inches (mm) 33 (838)
Access Port Location Right Side
Air Cleanliness (ISO 14644) ISO-Class-5
Chamber Air Circulation Method Air Pump
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Chamber Heater(s) Location Bottom of Chamber
Chamber Jacket Technology Water Jacket, 18 Gallon (68-Liter)
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Control System NuTouch
Data Output Features RS-485, USB, 4-20mA
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable
Electrical Configuration 115V50Hz, 230V5060Hz
Exterior Depth Inches (mm) 27 (685)
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Height Inches (mm) 37.75 (958)
Exterior Material 16 Gauge Steel with Textured Polyurethane Finish
Exterior Width Inches (mm) 25.625 (649)
Footprint Depth inches (mm) 17.5 (445)
Footprint Width inches (mm) 22 (557)

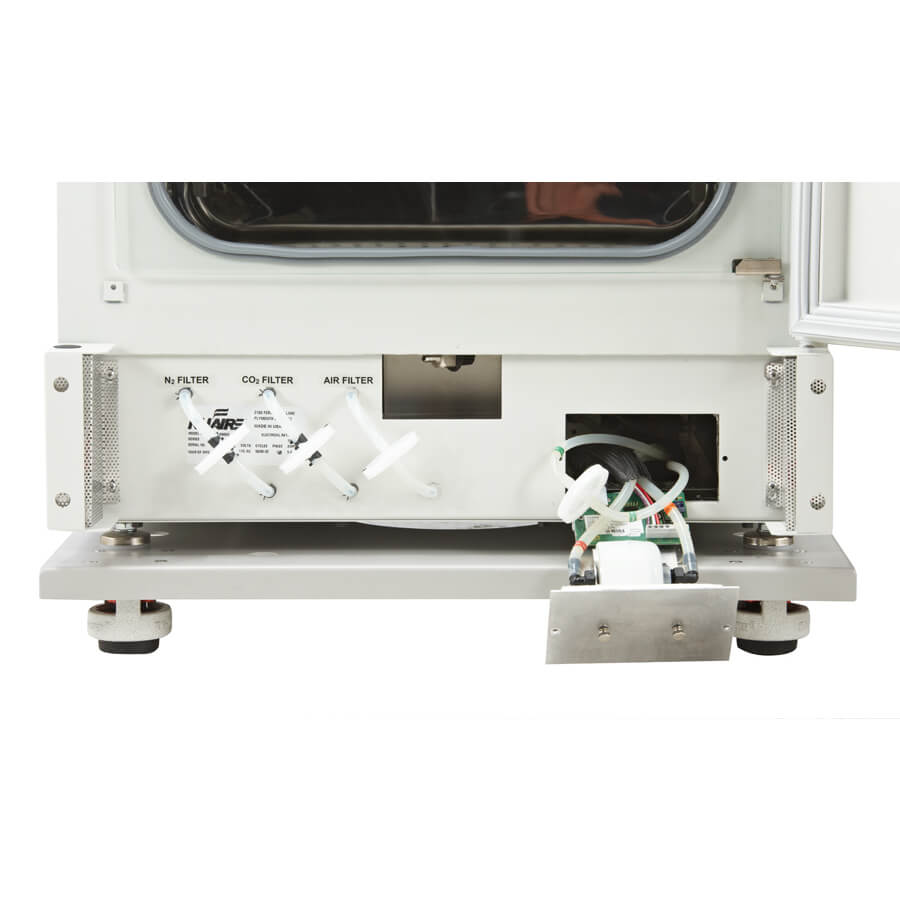

In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Segmented Doors Optional Set of 4 Inner Doors
Inner Doors One Standard, Sectional optional
Insulation Insulation with R5.0 Rating
Interior Depth Inches (mm) 20.625 (524)
Interior Door Seal Silicone Rubber Gasket
Interior Height Inches (mm) 24 (611)
Interior Material Polished Type 304L 16 Gauge Stainless Steel
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.375 (518)
Net Weight lbs (kg) 403 (183) includes full water jacket and shelves
O2 Accuracy Not available
O2 Control Logic Not available
O2 Display Resolution Not available
O2 Measuring Range Not available
O2 Set Point Range Not available
O2 Recovery Not available
O2 Sensor Type Not available
Power Cord Length Foot (Meter) 8 (2.5)
Remote Alarm Terminals Standard
RH Accuracy Not available
RH Control Method Water Pan
RH Control Logic Not available
RH Control Range Not available
RH Display Resolution Not available
RH Evaporator Box Capacity Not available
RH Recovery Not available
RH Sensor Type Not available
RH Water Pan Capacity 2L (Recommended Fill 1.5L)
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Material Stainless Steel or Copper Alloy
Shelf Width Inches (mm) 18 (457)
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Est. Shipping Weight lbs (kg) 370 (168)
Decontamination Cycle Not available
Temperature Accuracy °C ± 0.1%
Temperature Control Water Jacket
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.20°C @ 37°C
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)

Electrical

NU-8600 NU-8600E
Electrical Configuration 115V60Hz 230V5060Hz


General

NU-8600 NU-8600E
Safety Certification [ "", "UL, UL-C" ] [ "", "UL, UL-C" ]


Built-in Options

Humidity Display Single Unit

Chamber

With Cooling Coil
Without Cooling Coil

Inner Door

Sectioned Inner Door
Standard Glass Inner Door

Outer Door (Right Hinge Standard)

Left Side Door Hinge

Packing Option

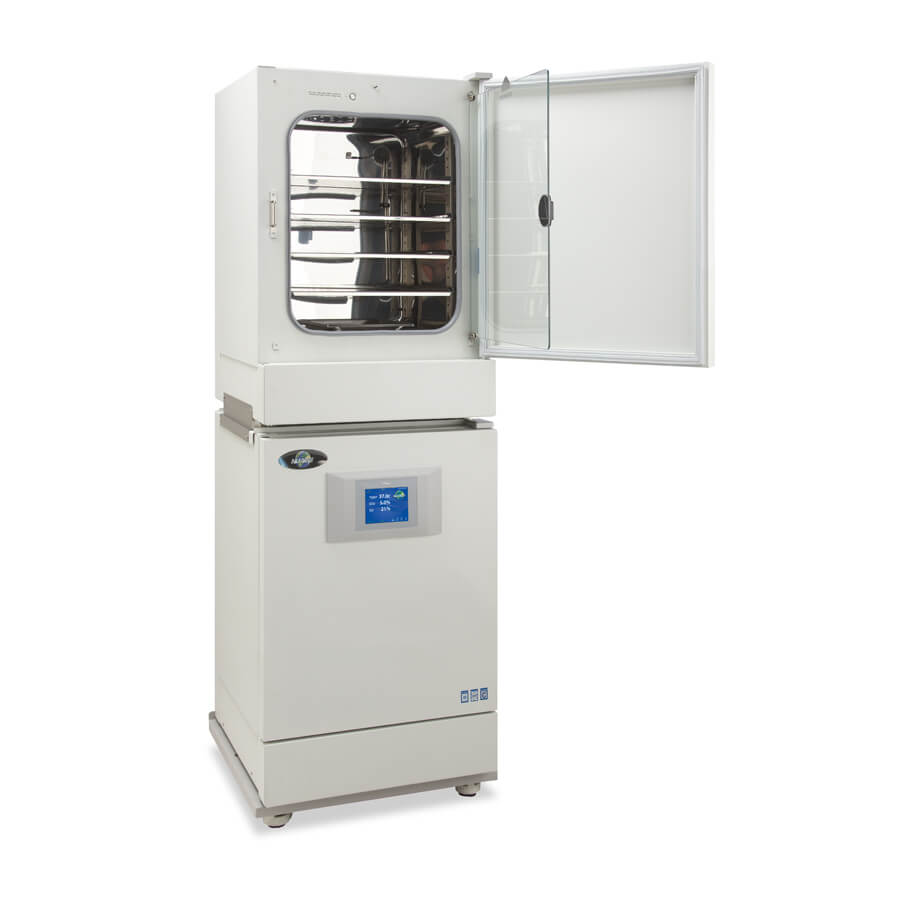

Packaging 2 Incubator Stacked with NU-8653
Packaging Single Incubator

Power Cord

Euro Power Cord Option Shipping Kit
UK Power Cord Option

NuAire Accessories

Please keep in mind parts and accessories are product and size specific, contact your sales representative for any clarity to your size questions.
