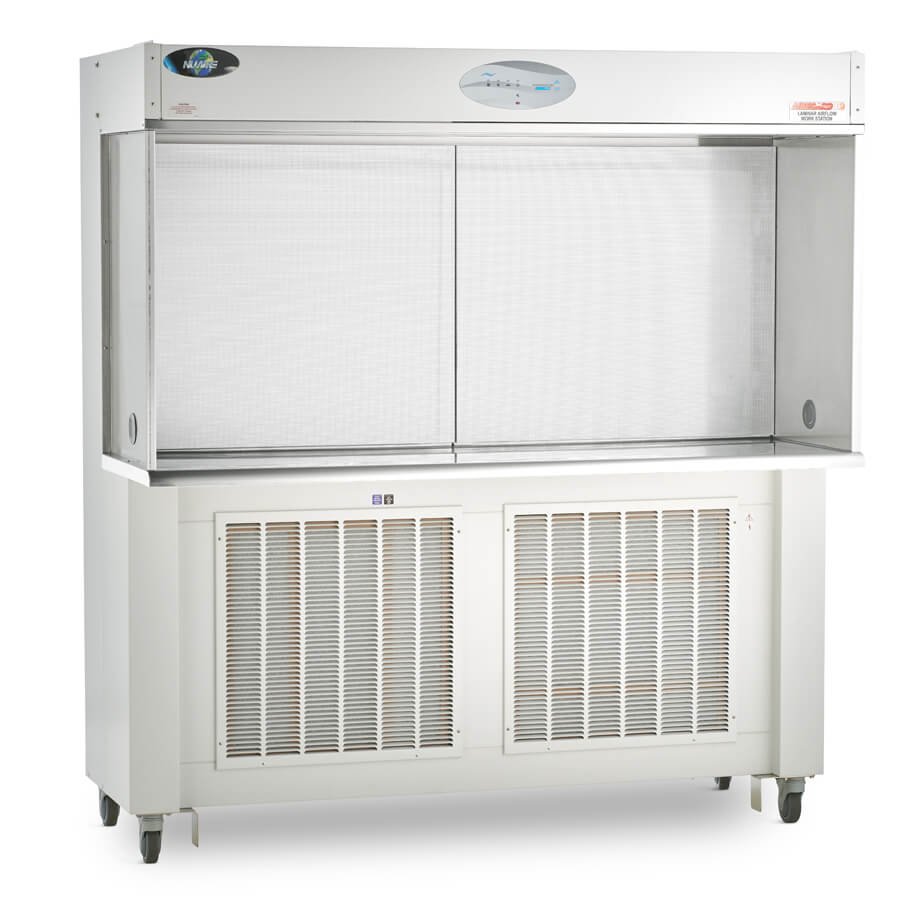

AireGardNU-340
Horizontal Laminar Airflow Workstation

Horizontal Laminar Airflow | Console Style Configuration | Stainless Steel Work Area | USP 797 Drug Compounding

The AireGard™ NU-340 generates HEPA-filtered horizontal laminar airflow to provide product protection for sterile but non-hazardous drug compounding in pharmacies or non-hazardous work in research labs. The DC ECM motor under the work surface draws air through a pre-filter and then pushes it up through the backwall HEPA filter to create an ISO Class 5 level of air cleanliness inside a work zone surrounded by stainless steel walls and a work surface made of stainless steel with a PVC core. One easily monitors workbench performance through the Aeromax™ control system that visualizes pressure in the internal airflow plenum. The work zone comes standard with cord-pass throughs and fluorescent lighting but can be optionally configured with polycarbonate walls, an IV bar, LED lighting, outlets, and service valves in order to meet the demands of your pharmacy or lab’s workflow.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The AireGard™ model NU-340 is available in four nominal widths, three of which offer two filter height options, to meet the needs of your laboratory space and application.

Products

NU-340-330

Nominal 3-foot (0.9 m)

NU-340-336

Nominal 3-foot (0.9 m)

NU-340-430

Nominal 4-foot (1.2 m)

NU-340-436

Nominal 4-foot (1.2 m)

NU-340-530

Nominal 5-foot (1.5 m)

NU-340-536

Nominal 5-foot (1.5 m)

NU-340-630

Nominal 6-foot (1.8 m)

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Direction Horizontal
Airflow Velocity 90 fpm (0.46 mps)
Control System AeroMax
Protection Product
  • Features
  • Specs
  • Options & Accessories
  • Resources
AeroMax Electronic Control System for Lab Equipment

Green Light, Yellow Light, Red Light

AeroMax Control System

The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever workbench performance departs from normal parameters.

Ultra high efficiency motor for lab equipment

Powerful Yet Quiet

Ultra High Efficiency Motor

The single DC ECM motor powers the airflow though the workbench while economizing energy and minimizing noise. This motor provides enough power to compensate HEPA filter loading for years to come and thereby minimize your laboratory's lifetime cost of HEPA filter replacement.

NU-340 Laminar Airflow Workstation smooth, cleanable work zone

Smooth Surfaces & Configurations for a Smooth Workflow

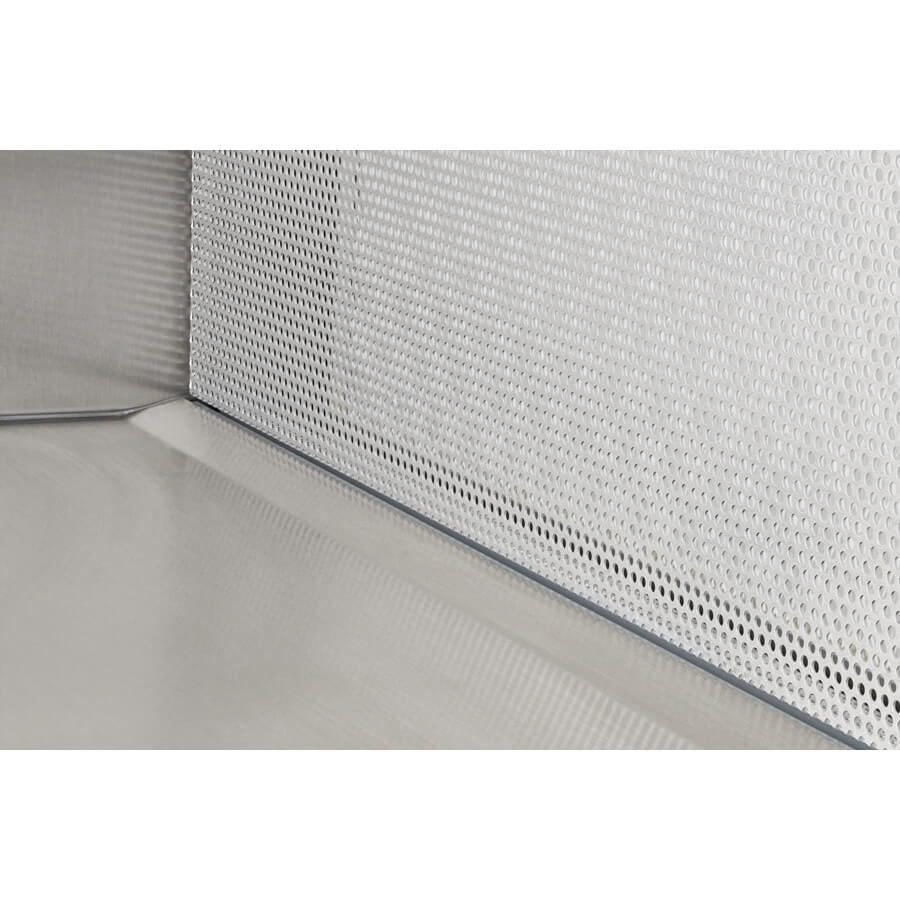

Stainless Steel Work Zone

The stainless-steel sidewalls and stainless-steel work surface with PVC core provide a work zone that is robust, cleanable. Two standard cord-pass throughs and an optional outlet under the work surface or IV bar with 6 hooks make it an ideal primary engineering control for your pharmacy or clean air workbench for your microbiology laboratory.

NU-340 Laminar Airflow Workstation pre-filtration system

When HEPA Filters Call for Backup

Pre-Filter Under Work Surface

The NU-340 console design minimizes its height by placing the DC ECM motor and air intake in the bottom, underneath the work surface. The workbench pre-empts contamination in this airflow pattern by using a pre-filter to strain out larger elements in the room air taken from near the floor and leaving the HEPA filter to contend with smaller particulate. The front access to this pre-filter makes routine removal and maintenance easy.

COMBINE THE NOMINAL WIDTH AND FILTER HEIGHT OF YOUR CHOICE.

AVAILABLE SIZE CONFIGURATIONS

115V/60Hz & 230V/50-60Hz (E Suffix)

 MODEL

 NOMINAL WIDTH

 FILTER HEIGHT

 NU-340-330
 NU-340-330E
 3 ft. (0.9m)   30 in (762mm)
 NU-340-336  3 ft. (0.9m)  36 in (914mm)
 NU-340-430
 NU-340-430E
 4 ft. (1.2m)  30 in (762mm)
 NU-340-436  4 ft. (1.2m)  36 in (914mm)
 NU-340-530
 NU-340-530E
 5 ft. (1.5m)  30 in (762mm)
 NU-340-536  5 ft. (1.5m)  36 in (914mm)
 NU-340-630
 NU-340-630E
 6 ft. (1.8m)  30 in (762mm)


The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 5 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Console Configuration
  • Single DC ECM Motor
  • Flexible HEPEX™ Plenum
  • ISO Class 5 Work Zone
  • Prefilter
  • Stainless Steel Sidewalls
  • Stainless Steel Work Surface with PVC Core

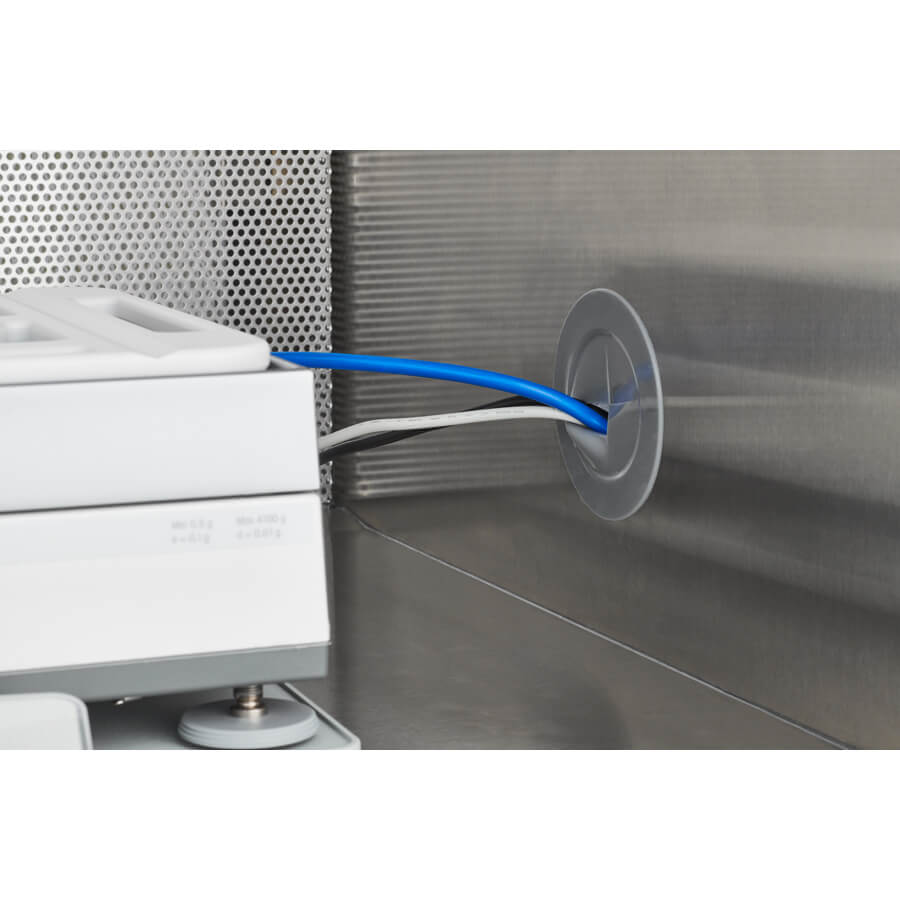

  • Cord-Pass Through on Both Sides
  • 32 to 38-inch (813-965mm) Work Zone Height
  • LED Lighting
  • Digital Pressure Sensor
  • Aeromax™ Control System
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Direction Horizontal
Airflow Velocity 90 fpm (0.46 mps)
Casters Optional
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Control System AeroMax
Cord Pass Through Standard on Right and Left Side Wall
Diffuser Metal, non-flammable
Electrical Configuration 115V60Hz, 230V5060Hz
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
IV Bar with 6 Hooks Optional
Lighting Standard LED
Light Intensity fc (Lux) 90-120 (968-1291)
Motor(s) DC ECM
Outlet(s) Optional under worksurface
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Plenum Type HEPEX
Power Cord Length Foot (Meter) 12 (3.7)
Pre-filter Bottom of Unit
Protection Product
Safety Certification UL, UL-C
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Console
Supply Filter 99.99% Efficiency on 0.3 microns
Ultraviolet (UV) Light N/A
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core

Dimensions

NU-340-330 NU-340-330E NU-340-336 NU-340-430 NU-340-430E NU-340-436 NU-340-530 NU-340-530E NU-340-536 NU-340-630 NU-340-630E
Est. Shipping Width Inches (mm) 84 (2134) 84 (2134)
Est. Shipping Height Inches (mm) 88 (2235) 88 (2235)
Est. Shipping Depth Inches (mm) 43 (1092) 43 (1092)
Exterior Depth Inches (mm) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814)
Exterior Height Inches (mm) 76 3/8 (1940) with Leg Levelers 76 3/8 (1940) with Leg Levelers 82 3/8 (2093) 76 3/8 (1940) 76 3/8 (1940) with Leg Levelers 82 3/8 (2093) 76 3/8 (1940) with Leg Levelers 76 3/8 (1940) with Leg Levelers 82 3/8 (2093) 76 3/8 (1940) with Leg Levelers 76 3/8 (1940) with Leg Levelers
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Exterior Width Inches (mm) 38 (965) 38 (965) 38 (965) 50 (1270) 50 (1270) 50 (1270) 62 (1575) 62 (1575) 62 (1575) 74 (1880) 74 (1880)
Footprint Depth inches (mm) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814)
Footprint Width inches (mm) 38 (965) 38 (965) 38 (965) 50 (1270) 50 (1270) 50 (1270) 62 (1575) 62 (1575) 62 (1575) 74 (1880) 74 (1880)
Work Area Depth Inches (mm) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813)
Work Area Width Inches (mm) 35 7/8 (911) 35 7/8 (911) 35 7/8 (911) 47 7/8 (1216) 47 7/8 (1216) 47 7/8 (1216) 59 7/8 (1521) 59 7/8 (1521) 59 7/8 (1521) 71 7/8 (1826) 71 7/8 (1826)


Performance

NU-340-330 NU-340-330E NU-340-336 NU-340-430 NU-340-430E NU-340-436 NU-340-530 NU-340-530E NU-340-536 NU-340-630 NU-340-630E
Airflow Volume at 90 fpm (0.46 mps) 718 (1220) 718 (1220) 852 (1448) 958 (1628) 958 (1628) 1137 (1932) 1198 (2036) 1198 (2036) 1422 (2416) 1438 (2443) 1438 (2443)
Heat Rejected (BTU/Hour) 863 863 1099 1256 1256 1491 1648 1648 1884 1962 1962


Electrical

NU-340-330 NU-340-330E NU-340-336 NU-340-430 NU-340-430E NU-340-436 NU-340-530 NU-340-530E NU-340-536 NU-340-630 NU-340-630E
Blower/Lights Amps 2.2 2.2 2.8 3.2 3.2 3.8 4.2 4.2 4.8 5 5
Power Cord 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A
Rated Amps 7 5 7 8 6 8 8 8 8 8 8


Construction

NU-340-330 NU-340-330E NU-340-336 NU-340-430 NU-340-430E NU-340-436 NU-340-530 NU-340-530E NU-340-536 NU-340-630 NU-340-630E
Motor(s) 1/3 HP DC ECM 1/3 HP DC ECM 1/3 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM
Work Access Opening(s) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813)


Weight

NU-340-330 NU-340-330E NU-340-336 NU-340-430 NU-340-430E NU-340-436 NU-340-530 NU-340-530E NU-340-536 NU-340-630 NU-340-630E
Net Weight lbs (kg) 330 (150) 330 (150) 345 (156) 390 (177) 390 (177) 405 (184) 460 (209) 460 (209) 480 (218) 540 (245) 540 (245)
Est. Shipping Weight lbs (kg) 370 (168) 370 (168) 385 (175) 440 (200) 440 (200) 455 (252) 510 (231) 510 (231) 530 (240) 610 (277) 610 (277)


Ergonomics

NU-340-330 NU-340-330E NU-340-336 NU-340-430 NU-340-430E NU-340-436 NU-340-530 NU-340-530E NU-340-536 NU-340-630 NU-340-630E
Sound Pressure Level per ISO 4871 Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire


Feet

4 Inch Castors
Leg Levelers

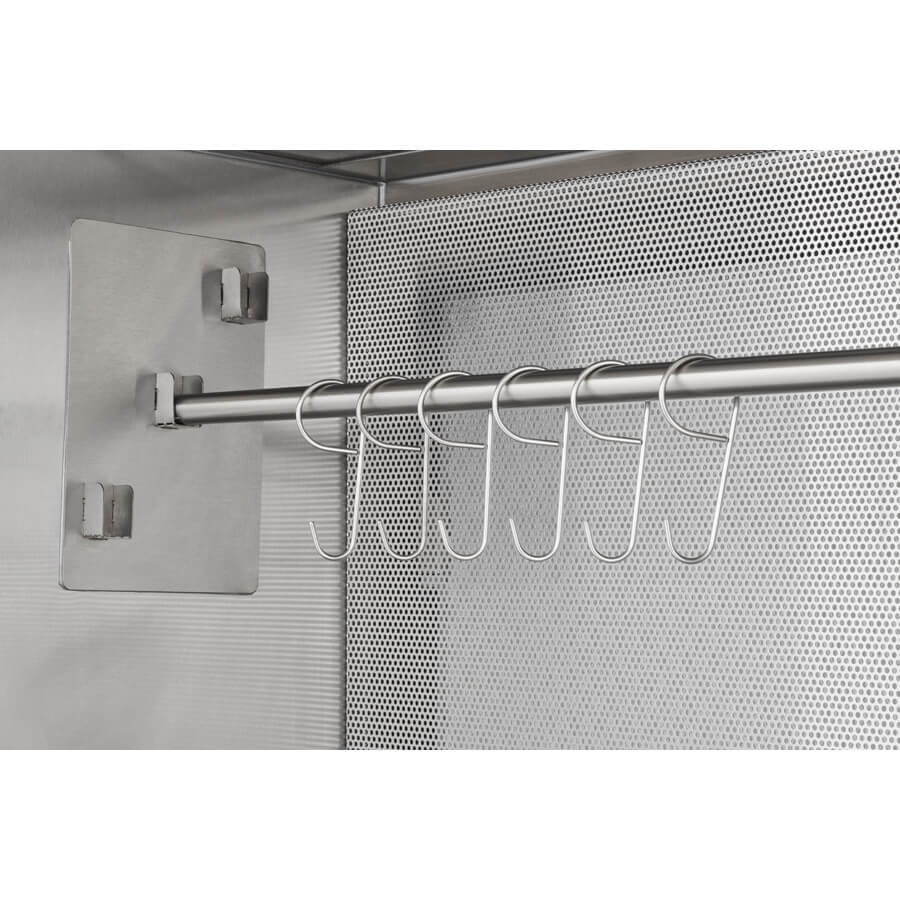

IV Bar

Polycarbonate Side Panel, IV Bar With 6 Hooks
Stainless Steel Side Panel, IV Bar With 6 Hooks

Lighting

115V Fluorescent Lighting
230V Fluorescent Lighting
LED Lighting

Outlets

115V Duplex Outlet
115V Ground Fault Interrupter
Australian Outlet (Type I)
Current UK Outlet (Type G)
Danish Outlet (Type K)
Israel Outlet (Type H)
Old UK Outlet (Type D)
Outlet Type E (Qty 1)
Schuko Outlet (Type F)
South African Outlet (Type M)
Swiss Outlet (Type J)
US Standard Outlet (Type B)

Seismic

28 Inch Seismic Floor Brackets
Rear Mount Seismic Brackets For Telescoping Basestand

Service Valves

Bottom Left Service Valve
Bottom Right Service Valve
Middle Left Service Valve
Middle Right Service Valve
Top Left Service Valve
Top Right Service Valve

Sidewalls

Polycarbonate Sidewalls
Stainless Steel Sidewalls

Work Surface

Nevamar Worksurface With PVC Core
Stainless Steel Worksurface With PVC Core
