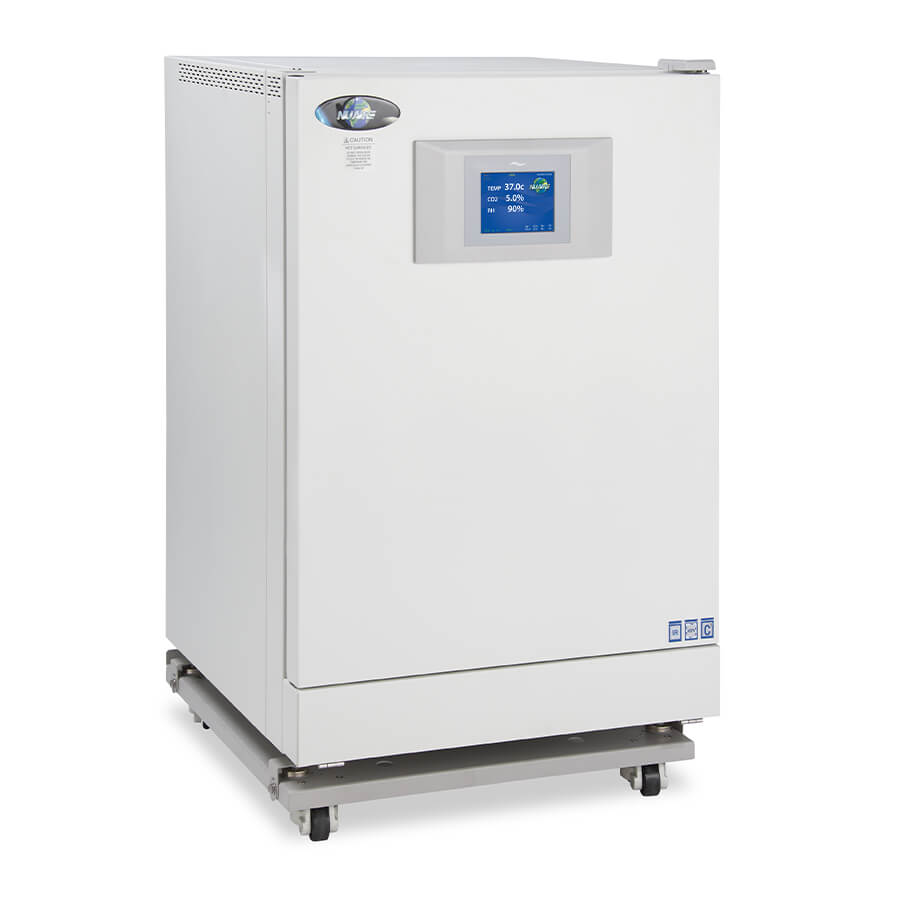

In-VitroCell NU-5820 Direct Heat CO2 Incubator

The In-VitroCell ES NU-5820 Microbiological CO2 Incubator features relative humidity (RH) control for cell lines prone to desiccation by utilizing a sensor that measures humidity in the chamber and injects 99.99% HEPA filtered vapor into the growth chamber to maintain setpoint.

Overview

The In-VitroCell CO2 Incubator model NU-5820 features humidity control through a relative humidity (RH) sensor and a water reservoir to minimize cell desiccation. The RH sensor monitors humidity levels in the growth chamber. When humidity is needed to maintain, setpoint vapor is injected into the chamber from the water reservoir. In addition, model NU-5820 comes standard with a 200-liter capacity, dual decontamination cycles, and a dual wave single source infrared (IR) sensor. In-VitroCell NU-5820 creates optimal cell growth conditions and is the perfect solution for cell lines prone to desiccation.

Optimal Growth Conditions with Effortless Relative Humidity Control

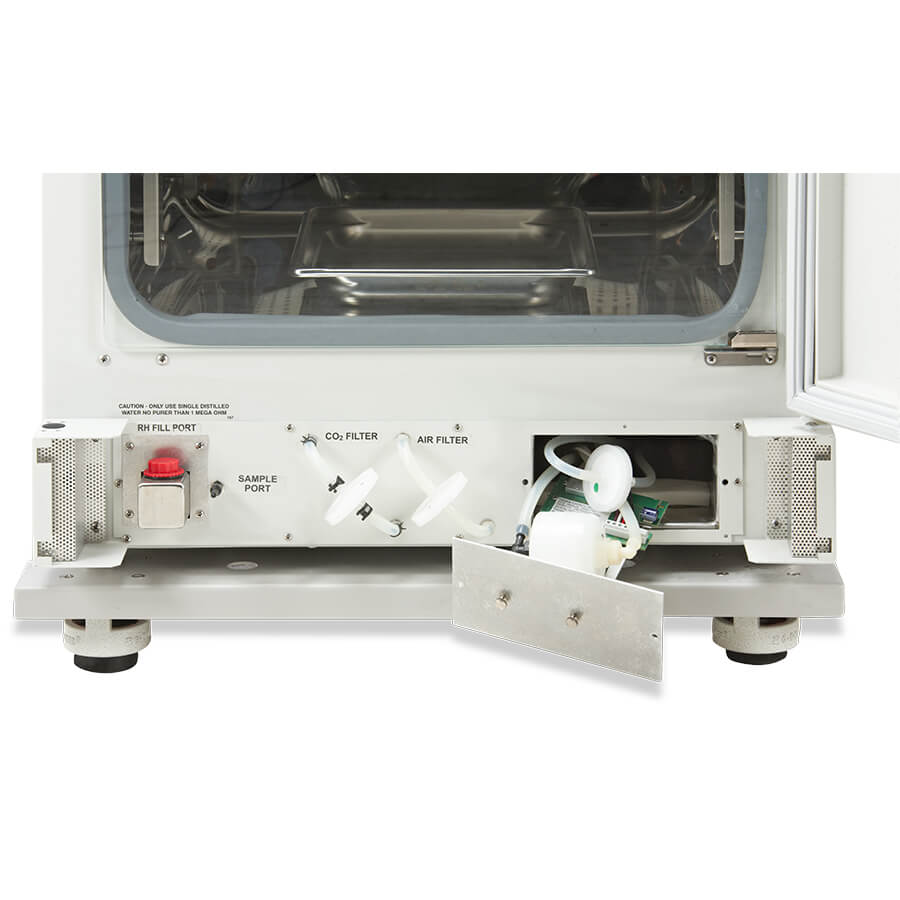

Achieve optimal growth conditions with our advanced product feature: Relative humidity levels of up to 90% can be effortlessly attained in the growth chamber. This is made possible by utilizing a 3-liter reservoir located externally to the chamber. The chamber air is intelligently directed through an evaporate box, where it comes into contact with water vapor-saturated air. This process ensures that humidity levels are adjusted accordingly, based on the feedback provided by the RH sensor. Experience the perfect balance of science and user-friendliness with our innovative solution.

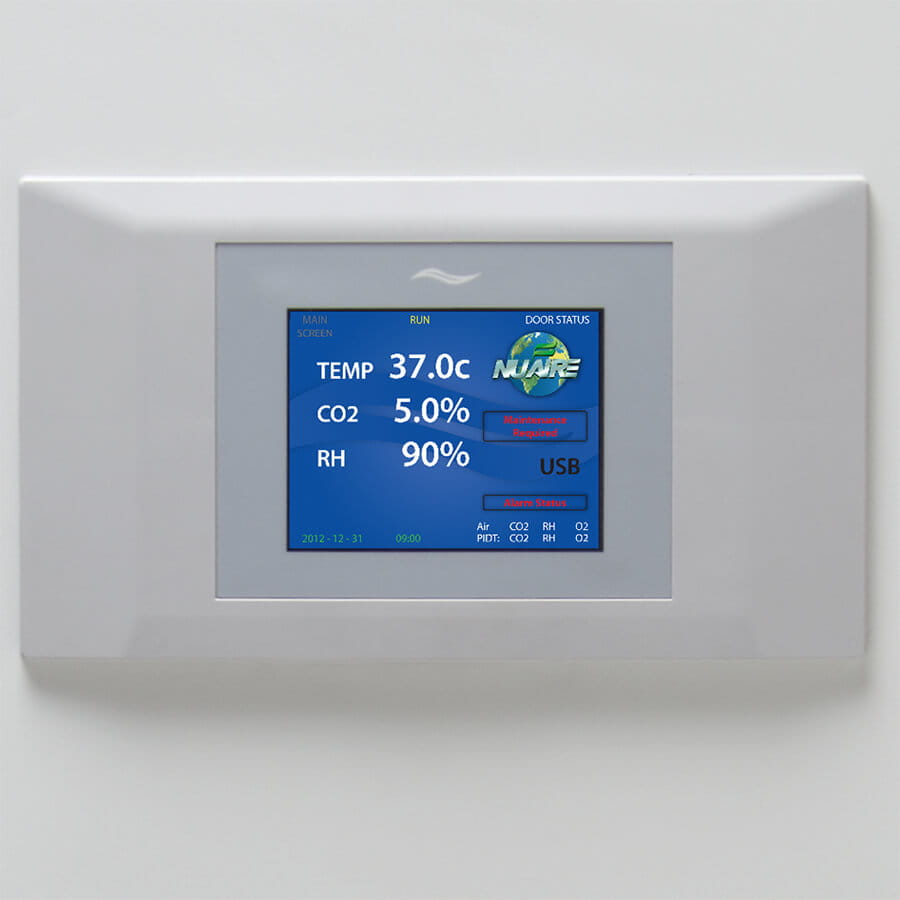

Simplified Precision: NuTouch Control System

The NuTouch control system offers an intuitive and efficient user experience, designed with your ease and convenience in mind. With this advanced interface, you can effortlessly adjust set points, access chamber history, initiate a decontamination cycle, or carry out calibration procedures. What's more, all NuAire CO2 incubators feature the NuTouch control system, ensuring a consistent and seamless experience across multiple units in your laboratory. Your journey with our incubators just got smarter and more user-friendly.

Cutting-Edge Dual Wave Infrared (IR) Sensor

Our state-of-the-art CO2 control system utilizes a sophisticated dual-wave infrared (IR) sensor that's specifically designed to maintain the perfect pH levels within the growth chamber. This sensor operates at wavelengths that are selectively absorbed solely by CO2, ensuring that measurements remain unaffected by other elements like water vapor. Its advanced design guarantees a stable output, greatly reducing the need for frequent calibrations. With this technology, your experiments can thrive in the most precise and controlled environment.

Specifications

In-VitroCell NU-5820 Humidity Control CO2 Incubator
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Inner Doors One
Exterior Depth Inches (mm) 27.188 (691)
Exterior Height Inches (mm) 39.688 (1008)
Exterior Width Inches (mm) 26.750 (680)
Footprint Depth inches (mm) 20.75 (527)
Footprint Width inches (mm) 23.75 (603)
Interior Depth Inches (mm) 20.053 (509)
Interior Height Inches (mm) 28.500 (724)
Interior Volume Cubic Feet (Liters) 7.06 (200)
Interior Width Inches (mm) 21.257 (540)
Electrical Configuration 115V 60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy ± 3%
RH Control Logic Fixed algorithm/manual environmental adaptable
RH Control Range Ambient dependent to 90%
RH Display Resolution 0.1%
RH Recovery 90% +5%/-3% within 25 minutes on average
RH Sensor Type Precision capacitance bulk-polymer
Control System NuTouch
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Net Weight lbs (kg) 235 lbs. / 106 kg.
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Inner Doors One
Exterior Depth Inches (mm) 27.188 (691)
Exterior Height Inches (mm) 39.688 (1008)
Exterior Width Inches (mm) 26.750 (680)
Footprint Depth inches (mm) 20.75 (527)
Footprint Width inches (mm) 23.75 (603)
Interior Depth Inches (mm) 20.053 (509)
Interior Height Inches (mm) 28.500 (724)
Interior Volume Cubic Feet (Liters) 7.06 (200)
Interior Width Inches (mm) 21.257 (540)
Electrical Configuration 230V 50/60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy ± 3%
RH Control Logic Fixed algorithm/manual environmental adaptable
RH Control Range Ambient dependent to 90%
RH Display Resolution 0.1%
RH Recovery 90% +5%/-3% within 25 minutes on average
RH Sensor Type Precision capacitance bulk-polymer
Control System NuTouch
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Net Weight lbs (kg) 235 lbs. / 106 kg.

Review

Options

  • 115V, 60Hz, 15 Amp, NEMA 5-15P, Made in USA
  • 230V, 50/60 Hz, 15 Amp, Type F Plug, Made in USA
  • 230V, 50/60 Hz, 15 Amp, Plug Type G, Made in USA
  • Stainless Steel Chamber with Floor Mounted Water Pan
  • Copper Alloy Chamber With Floor Mounted Water Pan
  • Stainless Steel Shelves (Qty 4)
  • Heavy Duty Stainless Steel Shelves (Qty 4)
  • Copper Alloy Shelves (Qty 4)
  • Left Hinged Door Swing
  • Right Hinged Door Swing
  • Standard Glass Door with Cam Action Lock

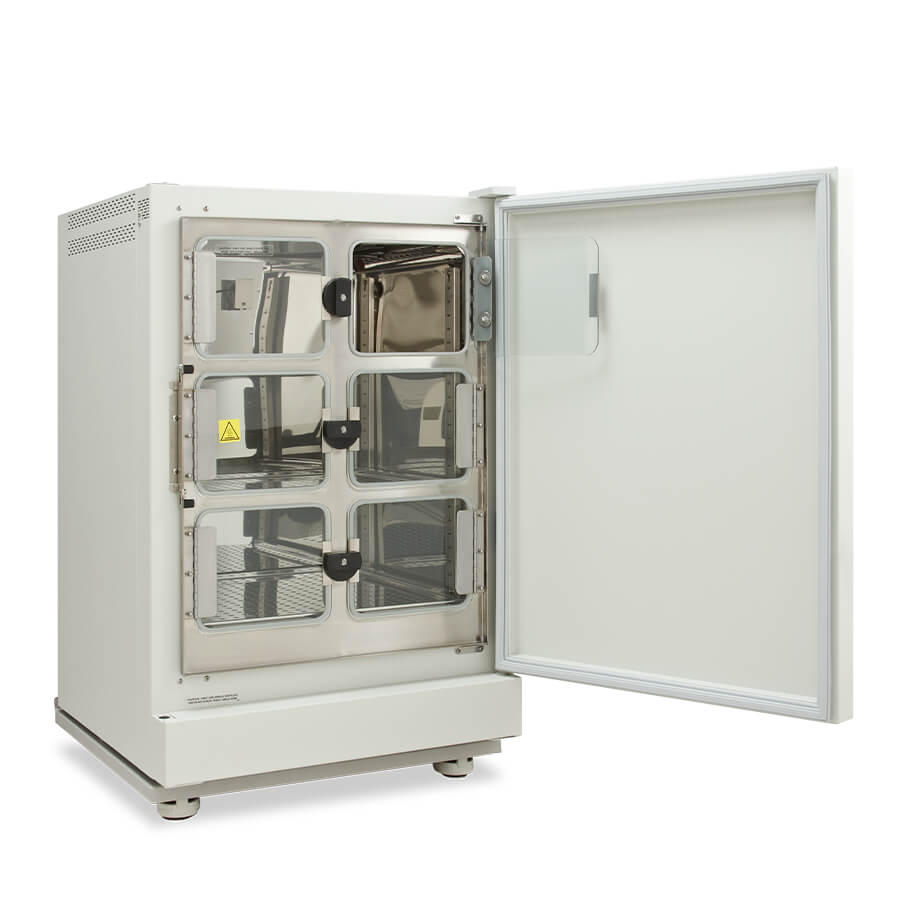

  • Sectioned Inner Door with Cam Action Locks (4 Vertical Sections)
  • Standard Glass Door with Cam Action Lock
  • Sectioned Inner Door with Cam Action Locks (4 Vertical Sections)
  • Standard Glass Door with Cam Action Lock
  • Sectioned Inner Door with Cam Action Locks (4 Vertical Sections)

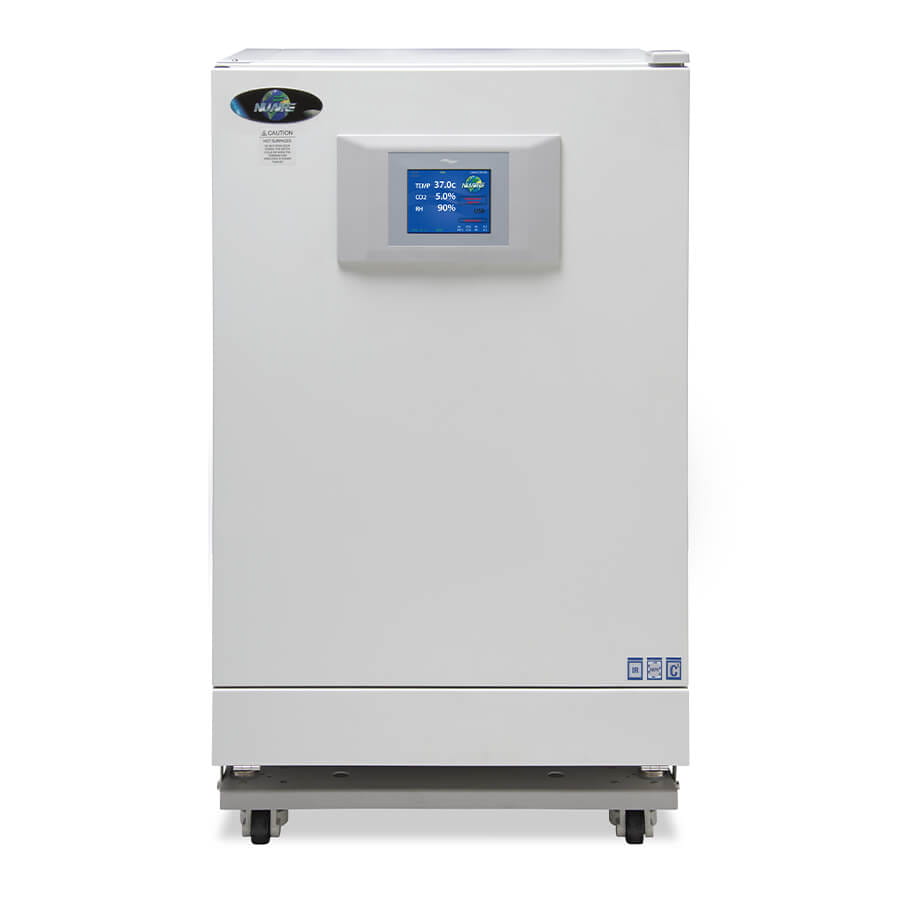

  • Platform with Combination Leg Levelers and Casters

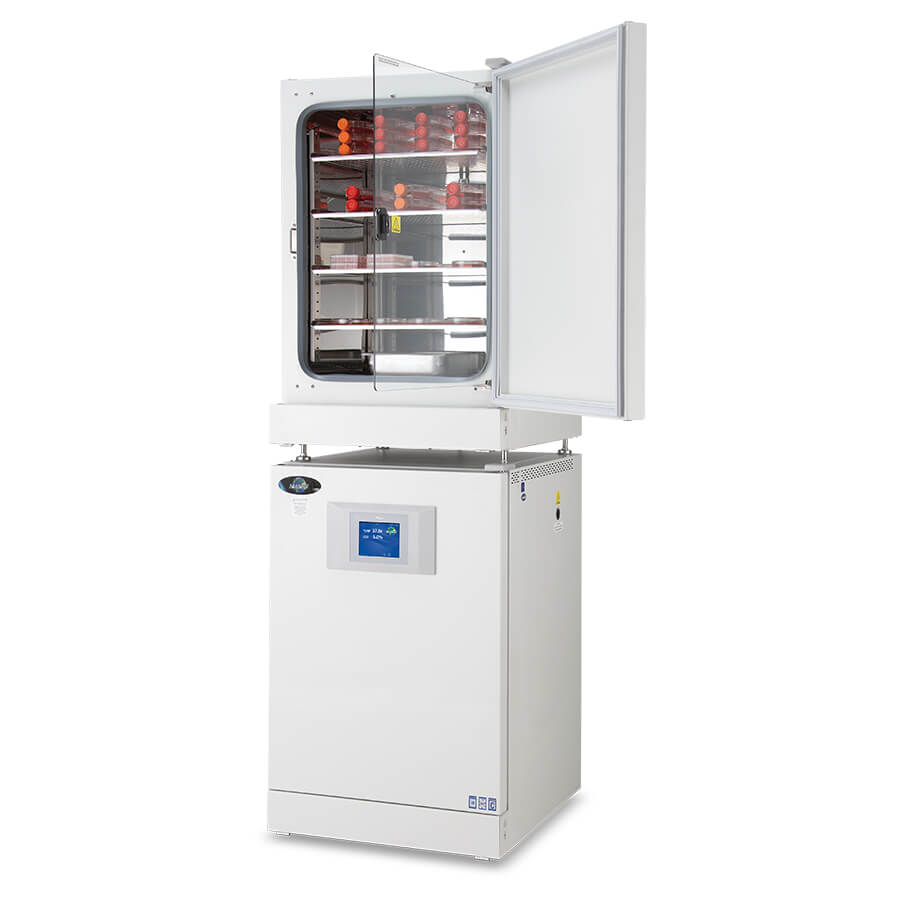

  • CO2 Incubator Stacking Brackets
  • Stacking Rack, Floor Mount
  • Regulator CO2 - Two Stage
  • Tank Switch, External, CO2 or N2
  • Tubing Kit (1)
  • CO2 Incubator Shelf, Copper Alloy, Qty1
  • CO2 Incubator Shelf, Stainless Steel, Qty1
  • CO2 Incubator Shelf, Stainless Steel, Heavy Duty, Qty1
  • Bacharach Fyrite CO2 Gas Analyzer (Dry)
  • Replacement Fluid CO2 Analyzer (carton)
  • Duplex Outlet Moisture Proof, 115V
  • Surge Protector, 115V
