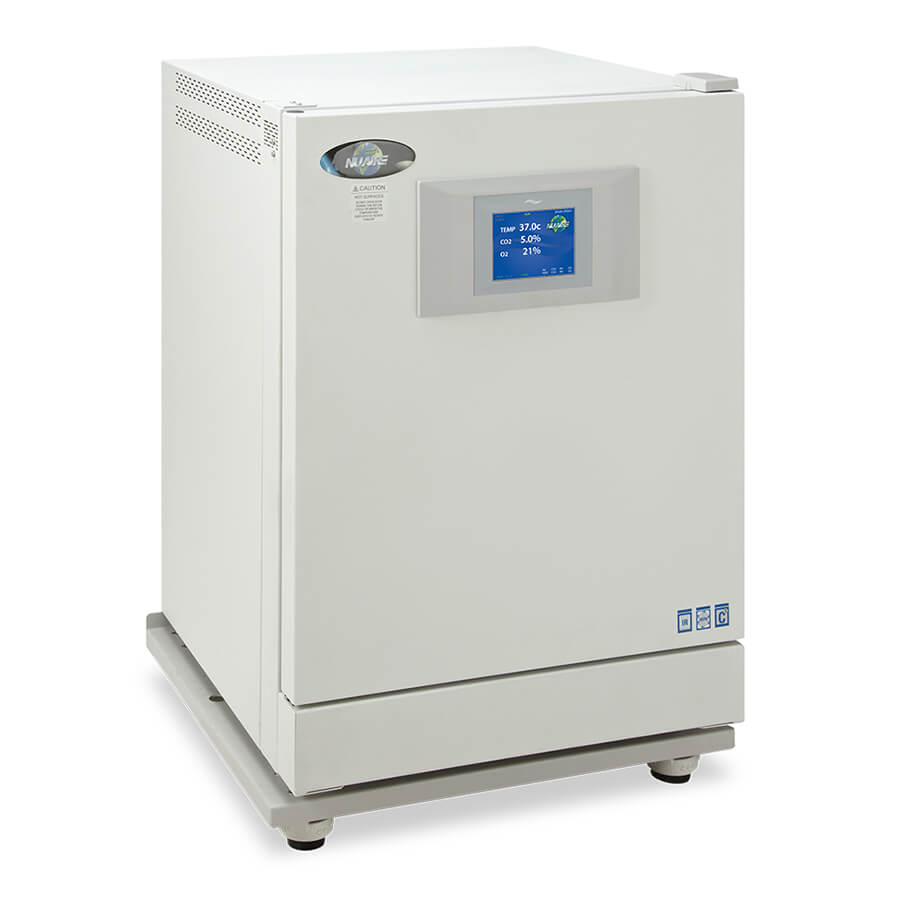

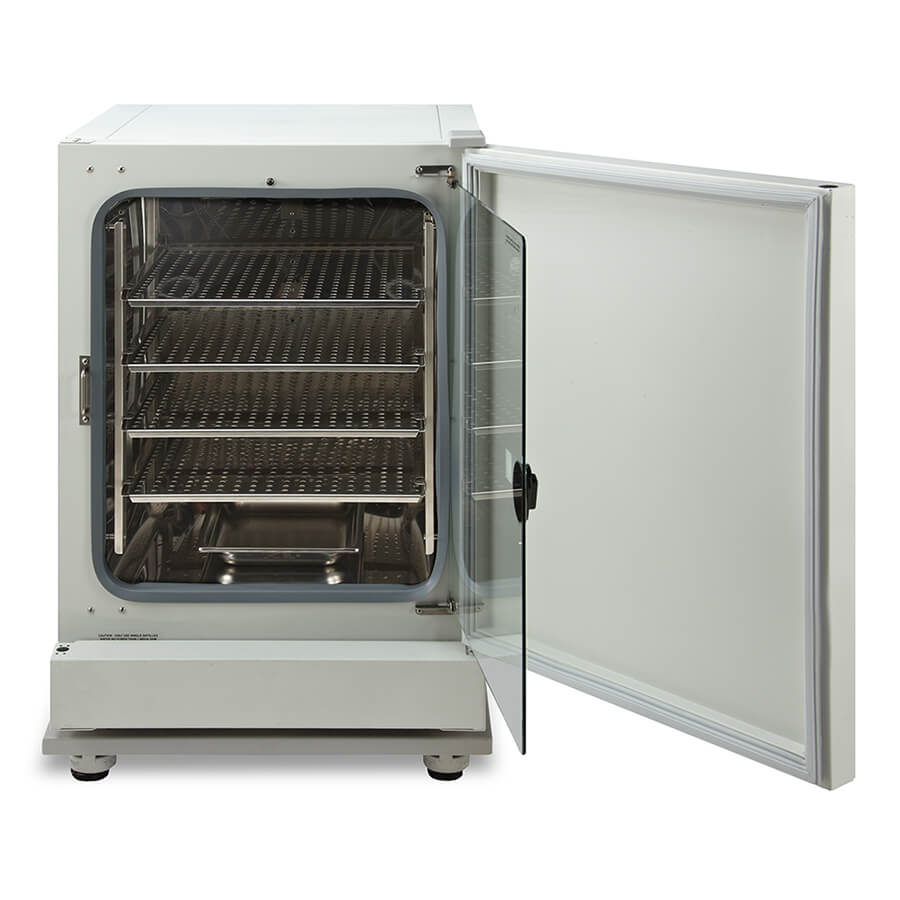

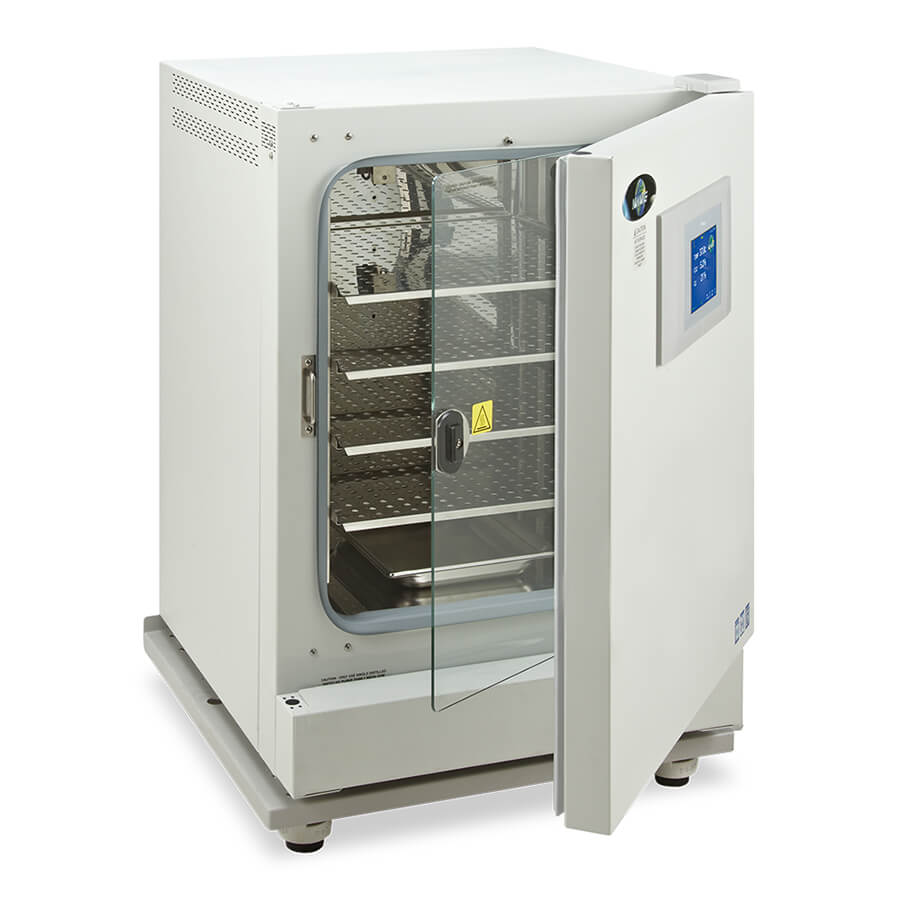

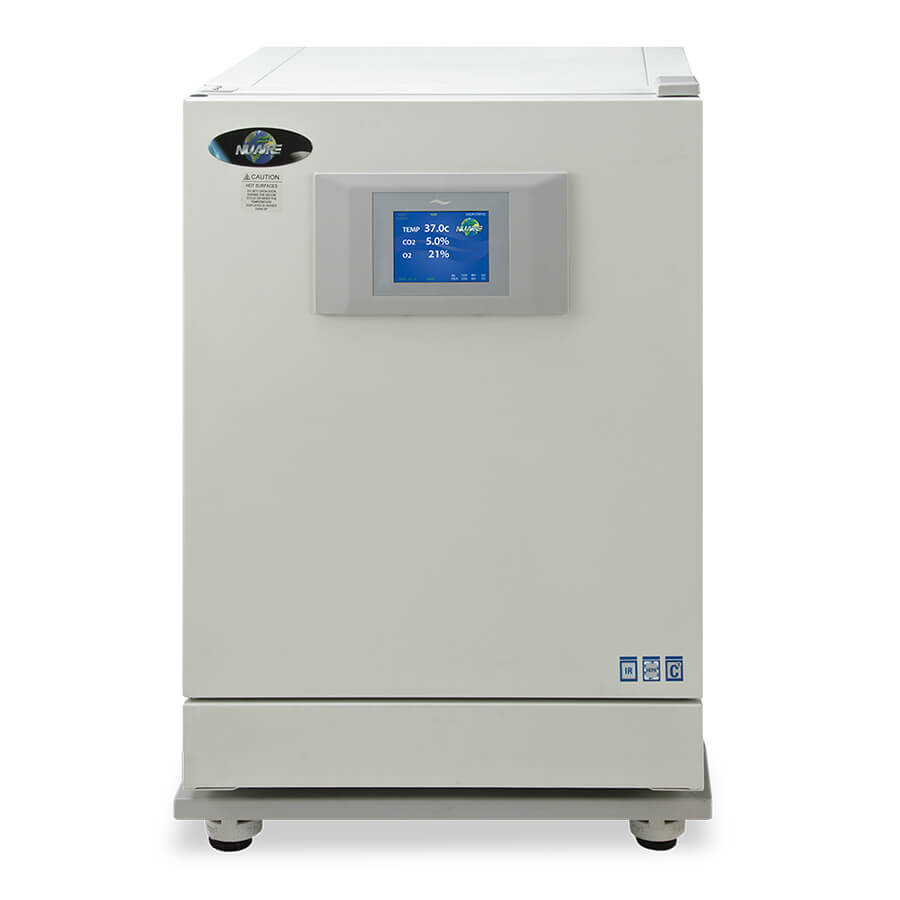

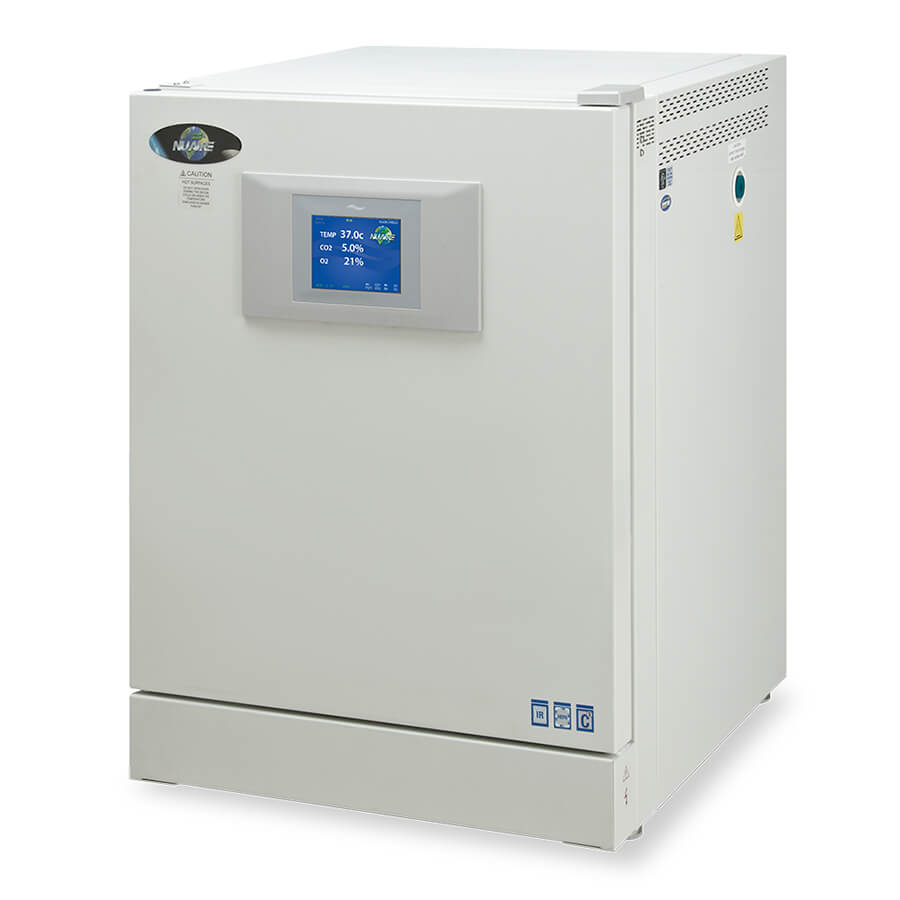

In-VitroCell NU-5731 Direct Heat CO2 Incubator
The In-VitroCell model NU-5731 is a direct heat CO2 incubator that creates hypoxic environmental conditions through the use of an Oxygen (O2) sensor and Nitrogen (N2) gas.
- Overview
- Specifications
- Reviews
- Resources
- Options
Overview
Advanced CO2 Incubator for Delicate Cell Cultures. Our state-of-the-art direct heat incubator, featuring a 5.65 cubic feet (160 Liter) chamber, is meticulously designed for both hypoxic and sensitive cell culture studies. Equipped with a precise O2 sensor, it adeptly controls and reduces oxygen levels by injecting N2 gas, creating ideal conditions for a range of delicate organ cultures, including the brain, eyes, liver, heart, and kidneys, in addition to age-related studies. The NU-5731's precise gas and temperature management ensures optimal conditions for cultivating even the most sensitive cells, offering unparalleled support for your critical research needs.
Advanced Oxygen Control
Optimize cell growth in sensitive cell lines with our CO2 Incubator models featuring precise Oxygen control. These models are equipped with an advanced O2 sensor, maintaining ideal oxygen levels in the growth chamber through the injection of Nitrogen gas. This precise control of oxygen, adjustable across a wide range, is crucial for research involving delicate organs like the brain, eyes, liver, heart, and kidneys. Additionally, the ability to restrict oxygen enables the creation of hypoxic conditions, essential for age-related studies and other specialized research areas. Enhance your cell culture success with tailored oxygen environments for optimal cell health and integrity.
Optimal Cell Growth with Contamination Control
Our advanced design maintains a slight positive pressure within the chamber to minimize contaminated laboratory air from entering the growth environment. Air and gas are purified through 99.99% efficient HEPA filters, achieving results similar to an ISO Class 5 cleanroom. Coved corners within the chamber reduce contamination risks, while our effective decontamination cycles at 145°C dry or 95°C humidified ensure a clean environment for cell culture. Trust NuAire to provide a secure, contamination-free space for sensitive mammalian cell growth.
Precision Temperature Control
Featuring strategically placed heating elements around the chamber, in the door perimeter, and within the door itself, this incubator ensures a consistently balanced temperature throughout the steel or copper insulated chamber. Independent adjustment of door and perimeter heaters guarantees temperature uniformity, even in challenging ambient conditions. This meticulous temperature management is crucial for the optimal growth and maintenance of mammalian cells in research settings.

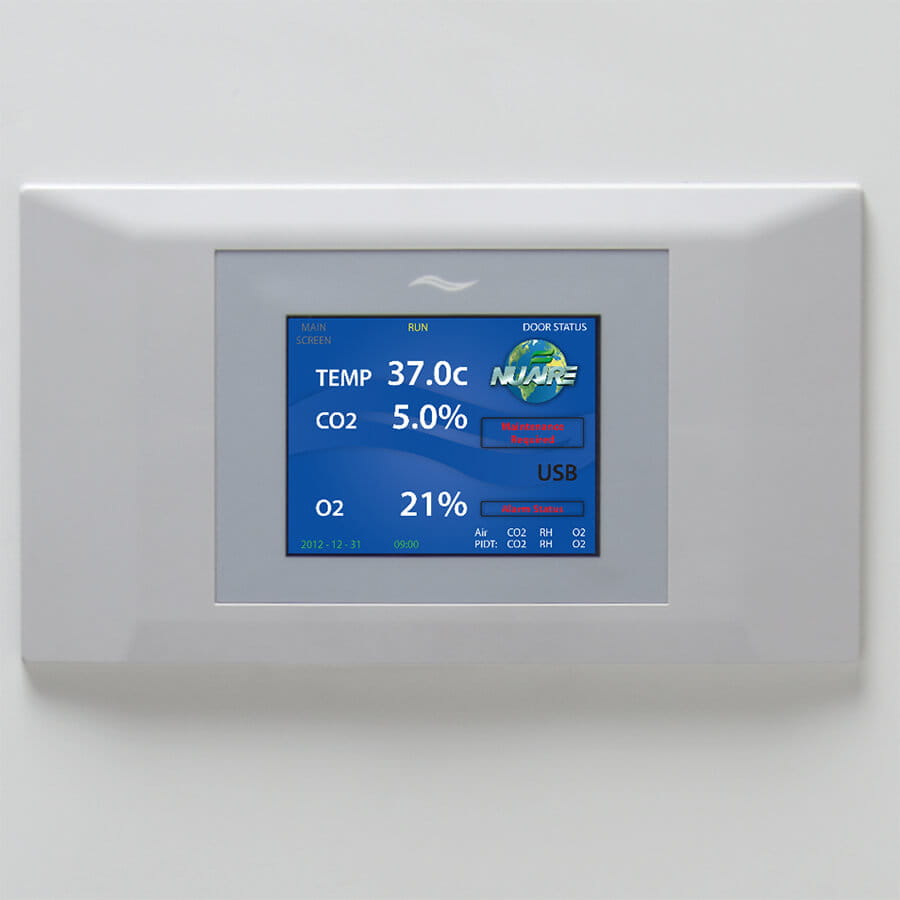

Simplifying CO2 Incubator Controls
Optimize your mammalian cell culture growth with the NuAire NuTouch Control System. This user-friendly interface simplifies operations, allowing seamless adjustments of set points, easy access to chamber history, initiation of decontamination cycles, and calibration procedures. Its intuitive design focuses on ease of use, ensuring smooth and efficient management of your CO2 incubator's essential functions for successful cell growth.
Specifications
| CO2 Accuracy | ± 0.1% |
| CO2 Control Logic | Fixed Algorithm/Manual, Environmental Adaptable |
| CO2 Display Resolution | 0.1% |
| CO2 Range | 0.1 to 20%, 5% Default Set Point |
| CO2 Recovery | Up to 5% ± 0.2% / -0.5 in 5 minutes Average |
| CO2 Sensor Type | Infrared (NDIR) |
| Segmented Doors | Optional Set of 4 Inner Doors |
| Access Port Location | Right Side |
| Chamber Air Filter | 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay |
| Exterior Door Seal | Magnetic Outer Door Gasket |
| Exterior Material | Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish |
| In-line Gas Filters | 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor |
| Inner Doors | One, Sectioned Optional |
| Insulation | High Density Insulation with High "R" Rating |
| Interior Door Seal | Silicone Rubber Gasket |
| Interior Material | Highly Polished Type 304L 16 Gauge Stainless Steel |
| Sample Port Location | Inner Glass Door |
| Shelf Capacity lbs (kg) | 25 lbs per Shelf / 125 lbs per Incubator |
| Shelf Material | Stainless Steel |
| Shelves | 4 Shelves Supplied, 16 Shelves Maximum Capacity |
| Data Output Features | RS-485, USB, 4-20mA |
| Remote Alarm Terminals | Standard |
| Est. Shipping Depth Inches (mm) | 31 (787) |
| Est. Shipping Height Inches (mm) | 47 (1194) |
| Est. Shipping Width Inches (mm) | 30 (762) |
| Exterior Depth Inches (mm) | 27.500 (699) |
| Exterior Height Inches (mm) | 36.188 (894) |
| Exterior Width Inches (mm) | 25.500 (648) |
| Footprint Depth inches (mm) | 20.825 (530) |
| Footprint Width inches (mm) | 22.625 (575) |
| Interior Depth Inches (mm) | 20.678 (525) |
| Interior Height Inches (mm) | 24.000 (610) |
| Interior Volume Cubic Feet (Liters) | 5.65 (160) |
| Interior Width Inches (mm) | 20.250 (514) |
| Shelf Depth Inches (mm) | 18 3/4 (476) |
| Shelf Width Inches (mm) | 18 (457) |
| Water Pan Depth | 1.5 (38) |
| Water Pan Length Inches (mm) | 12 (305) |
| Water Pan Width | 10 (254) |
| Electrical Configuration | 115V60Hz |
| Power Cord Length Foot (Meter) | 8 (2.5) |
| Safety Certification | UL, UL-C |
| O2 Accuracy | ± 0.25% |
| O2 Control Logic | Fixed algorithm/ manual environmental adaptable |
| O2 Display Resolution | 0.1% |
| O2 Measuring Range | 0 - 25% |
| O2 Recovery | 5.0 ± 0.5% twenty minutes on Average |
| O2 Sensor Type | Zirconia Ceramic |
| O2 Set Point Range | 0.5 -21.0% (ambient) (21.0% Default) |
| Decontamination Cycle | 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle |
| RH Accuracy | Not Available |
| RH Control Logic | Not Available |
| RH Control Method | Not Available |
| RH Control Range | Not Available |
| RH Display Resolution | Not Available |
| RH Evaporator Box Capacity | Not Available |
| RH Recovery | Not Available |
| RH Sensor Type | Not Available |
| RH Water Pan Capacity | Not Available |
| Chamber Air Circulation Method | Air Pump |
| Chamber Jacket Technology | Air Jacket via Two Axial Fans Drawing Air into Shell |
| Control System | NuTouch |
| Chamber Heater(s) Location | Sides, Bottom, Top and Back of Chamber |
| Door and Perimeter Heater Control Logic | Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable] |
| Temperature Accuracy °C | ± 0.1% |
| Temperature Control | Direct Heat |
| Temperature Control Range | 5°C above ambient (to a 30°C max ambient) to 55°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Recovery | 0.12°C/min. on Average |
| Temperature Sensor Type | Precision Integrated Circuit |
| Temperature Set-Point Range | 5°C to 55°C (37.0°C Default) |
| Temperature Uniformity °C | ± 0.35°C @ 37°C |
| Est. Shipping Weight lbs (kg) | Estimated 275 lbs (125 kgs) |
| Net Weight lbs (kg) | 220 lbs. / 100 kg. |
| CO2 Accuracy | ± 0.1% |
| CO2 Control Logic | Fixed Algorithm/Manual, Environmental Adaptable |
| CO2 Display Resolution | 0.1% |
| CO2 Range | 0.1 to 20%, 5% Default Set Point |
| CO2 Recovery | Up to 5% ± 0.2% / -0.5 in 5 minutes Average |
| CO2 Sensor Type | Infrared (NDIR) |
| Segmented Doors | Optional Set of 4 Inner Doors |
| Access Port Location | Right Side |
| Chamber Air Filter | 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay |
| Exterior Door Seal | Magnetic Outer Door Gasket |
| Exterior Material | Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish |
| In-line Gas Filters | 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor |
| Inner Doors | One, Sectioned Optional |
| Insulation | High Density Insulation with High "R" Rating |
| Interior Door Seal | Silicone Rubber Gasket |
| Interior Material | Highly Polished Type 304L 16 Gauge Stainless Steel |
| Sample Port Location | Inner Glass Door |
| Shelf Capacity lbs (kg) | 25 lbs per Shelf / 125 lbs per Incubator |
| Shelf Material | Stainless Steel |
| Shelves | 4 Shelves Supplied, 16 Shelves Maximum Capacity |
| Data Output Features | RS-485, USB, 4-20mA |
| Remote Alarm Terminals | Standard |
| Est. Shipping Depth Inches (mm) | 31 (787) |
| Est. Shipping Height Inches (mm) | 47 (1194) |
| Est. Shipping Width Inches (mm) | 30 (762) |
| Exterior Depth Inches (mm) | 27.500 (699) |
| Exterior Height Inches (mm) | 36.188 (894) |
| Exterior Width Inches (mm) | 25.500 (648) |
| Footprint Depth inches (mm) | 20.825 (530) |
| Footprint Width inches (mm) | 22.625 (575) |
| Interior Depth Inches (mm) | 20.678 (525) |
| Interior Height Inches (mm) | 24.000 (610) |
| Interior Volume Cubic Feet (Liters) | 5.65 (160) |
| Interior Width Inches (mm) | 20.250 (514) |
| Shelf Depth Inches (mm) | 18 3/4 (476) |
| Shelf Width Inches (mm) | 18 (457) |
| Water Pan Depth | 1.5 (38) |
| Water Pan Length Inches (mm) | 12 (305) |
| Water Pan Width | 10 (254) |
| Electrical Configuration | 230V5060Hz |
| Power Cord Length Foot (Meter) | 8 (2.5) |
| Safety Certification | UL, UL-C |
| O2 Accuracy | ± 0.25% |
| O2 Control Logic | Fixed algorithm/ manual environmental adaptable |
| O2 Display Resolution | 0.1% |
| O2 Measuring Range | 0 - 25% |
| O2 Recovery | 5.0 ± 0.5% twenty minutes on Average |
| O2 Sensor Type | Zirconia Ceramic |
| O2 Set Point Range | 0.5 -21.0% (ambient) (21.0% Default) |
| Decontamination Cycle | 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle |
| RH Accuracy | Not Available |
| RH Control Logic | Not Available |
| RH Control Method | Not Available |
| RH Control Range | Not Available |
| RH Display Resolution | Not Available |
| RH Evaporator Box Capacity | Not Available |
| RH Recovery | Not Available |
| RH Sensor Type | Not Available |
| RH Water Pan Capacity | Not Available |
| Chamber Air Circulation Method | Air Pump |
| Chamber Jacket Technology | Air Jacket via Two Axial Fans Drawing Air into Shell |
| Control System | NuTouch |
| Chamber Heater(s) Location | Sides, Bottom, Top and Back of Chamber |
| Door and Perimeter Heater Control Logic | Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable] |
| Temperature Accuracy °C | ± 0.1% |
| Temperature Control | Direct Heat |
| Temperature Control Range | 5°C above ambient (to a 30°C max ambient) to 55°C |
| Temperature Display Resolution | 0.1°C |
| Temperature Recovery | 0.12°C/min. on Average |
| Temperature Sensor Type | Precision Integrated Circuit |
| Temperature Set-Point Range | 5°C to 55°C (37.0°C Default) |
| Temperature Uniformity °C | ± 0.35°C @ 37°C |
| Est. Shipping Weight lbs (kg) | Estimated 275 lbs (125 kgs) |
| Net Weight lbs (kg) | 220 lbs. / 100 kg. |
