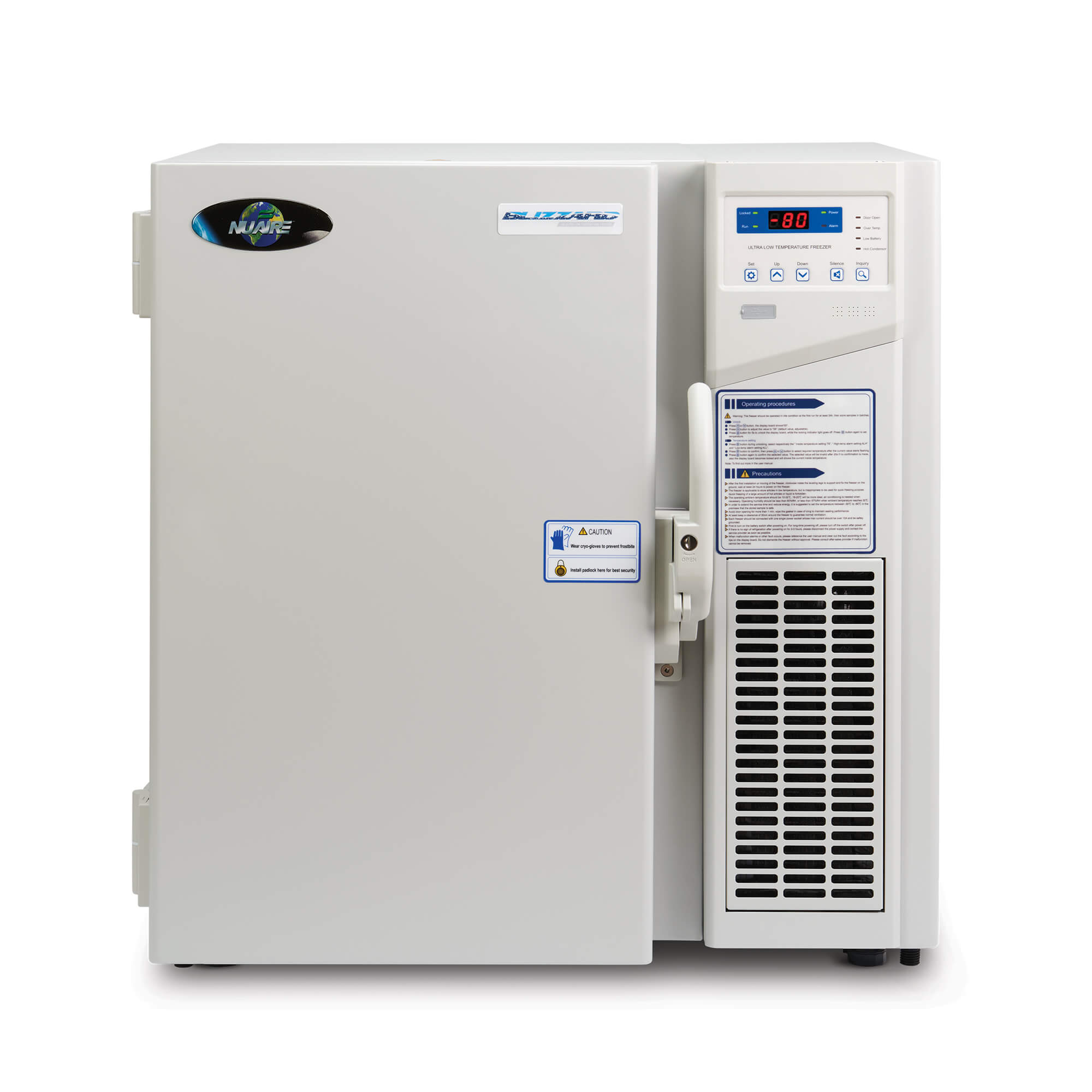

Blizzard HC MiniNU-99100J
-80°C Ultralow Freezer
SMALL, UNDER THE COUNTER SIZE | ENERGY EFFICIENT HC REFRIGERANTS | VIP & POLYURETHANE FOAM INSULATED | USB DOWNLOADABLE DATA LOGGING

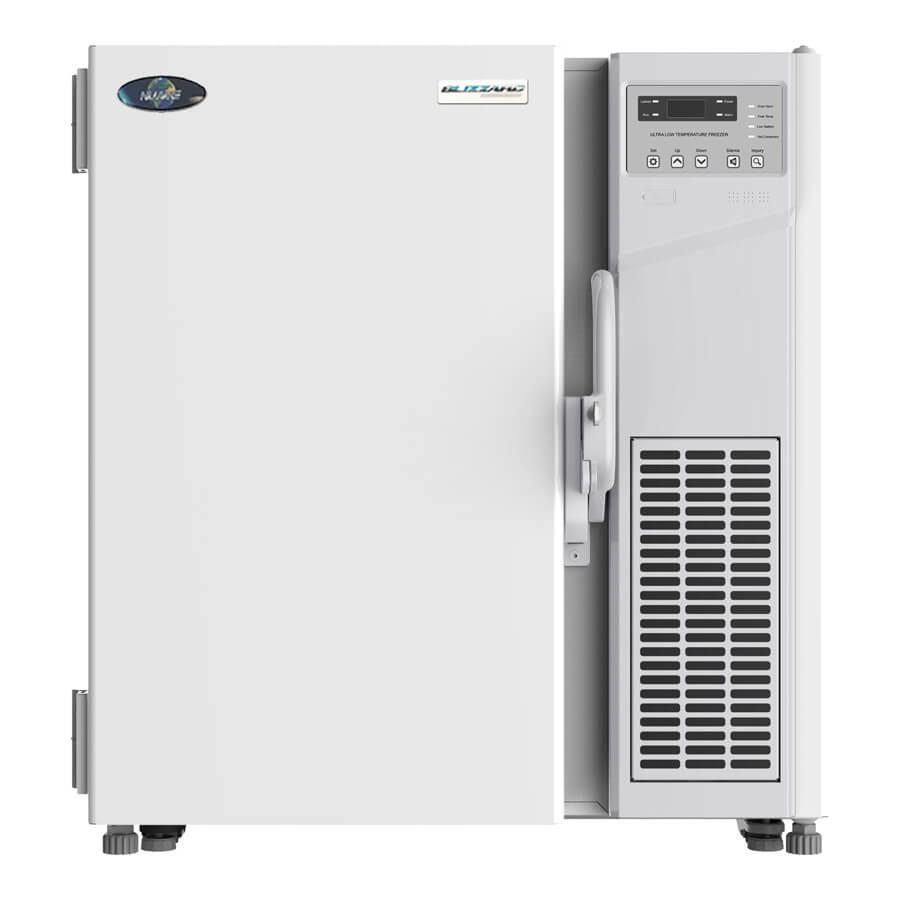

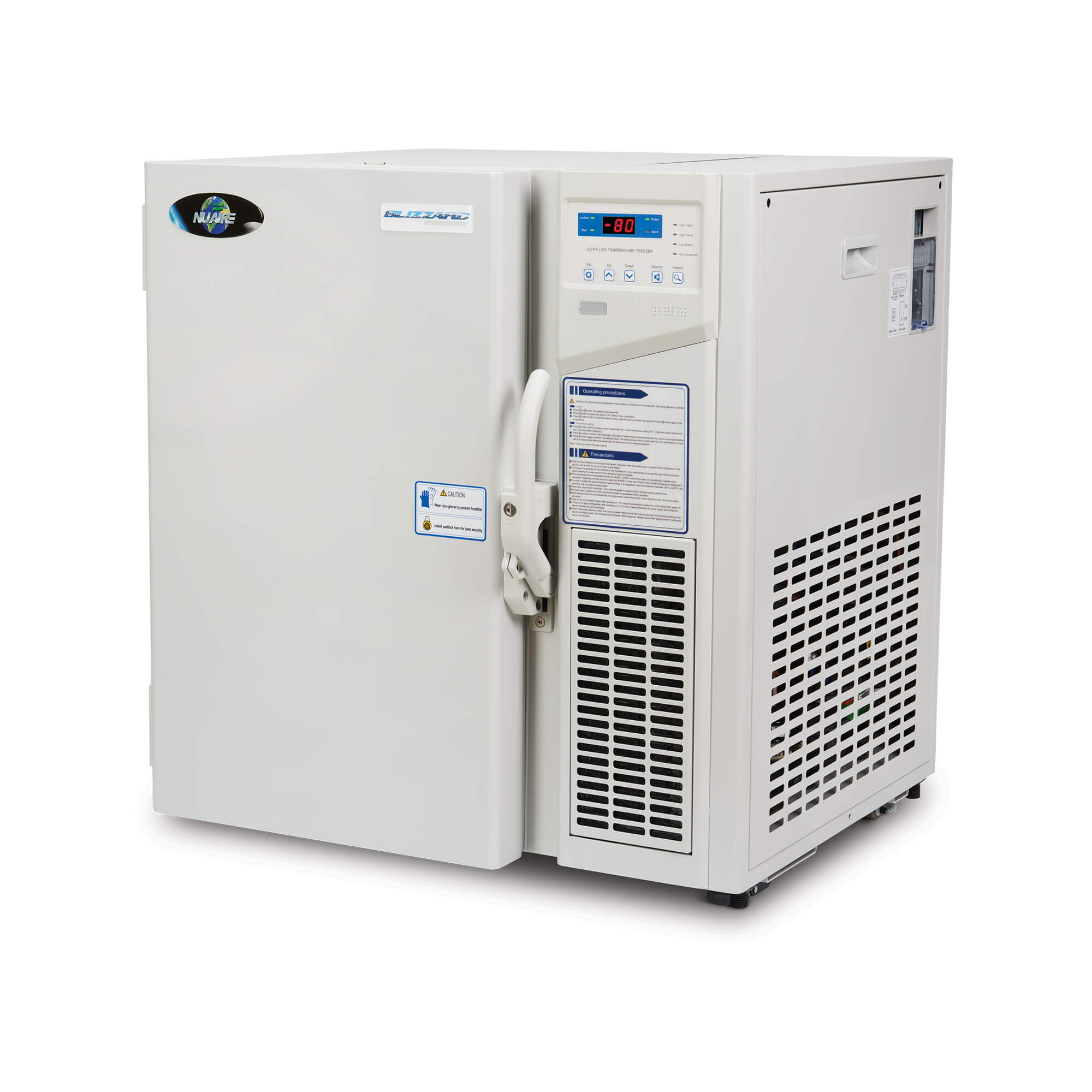

The Blizzard™ under the counter ultra-low freezer stores samples by using HC refrigerants and protects them within a structure using steel walls and composite insulation. The small, compact design facilitates easy access, while the front electronic control panel clearly visualizes running parameters at all times and includes a USB port to download 15 years of datalogging. The outer door includes quadruple gasket for a tight seal to the main cabinet while two stainless steel inner doors lead to the inner compartments.
Request a QuotePower for Your Lab
Products
Quick Specs
| 2-inch Box Capacity | 60 |
|---|---|
| Rack Capacity | 4 |
| Temperature Accuracy °C | Inquire |
| Temperature Control | Microprocessor Controller |
| Temperature Uniformity °C | +/- 4 |
-
Features
-
Specs
-
Options & Accessories
-
Resources
CLARITY AND EASE.

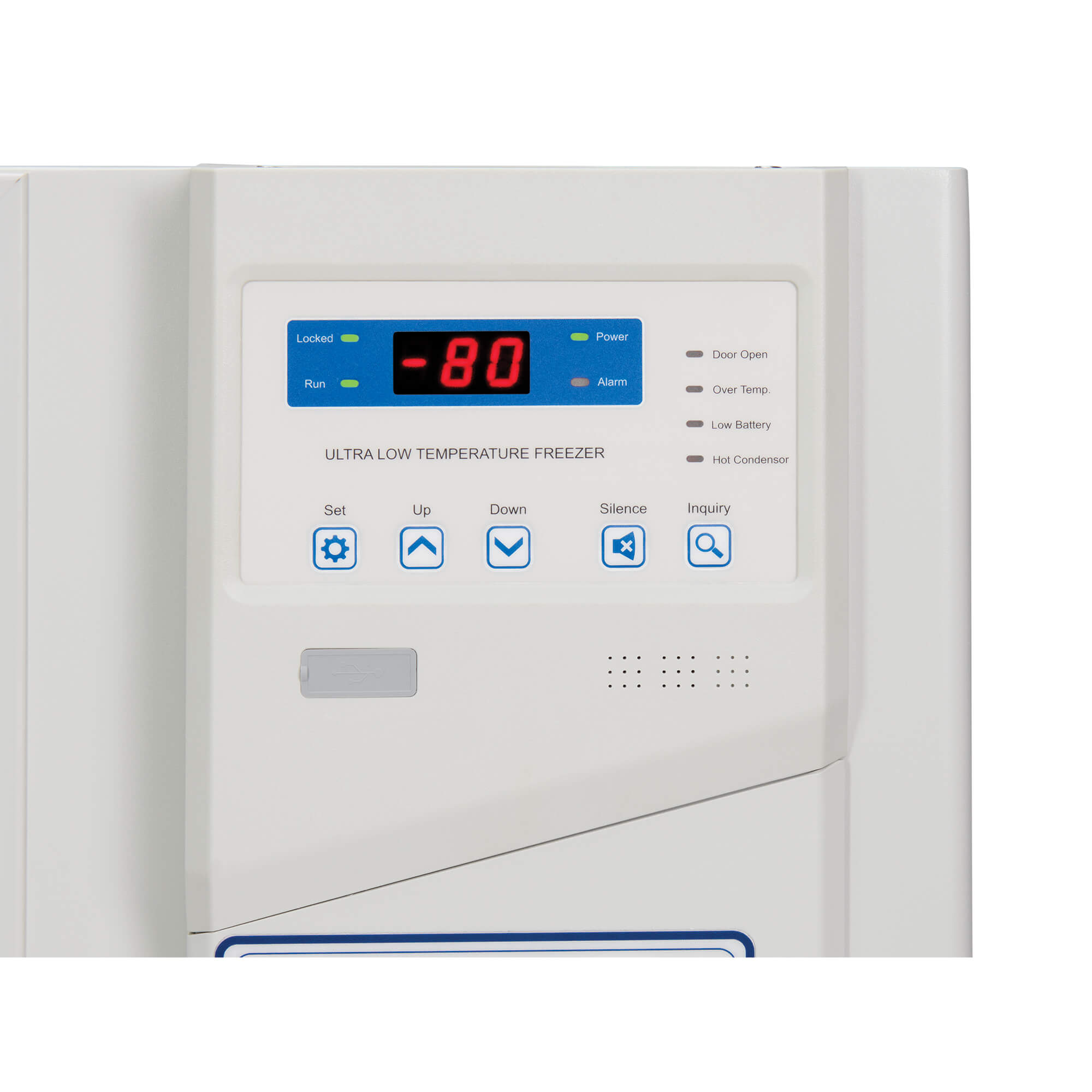

ELECTRONIC CONTROL SYSTEM
The electronic control system normally displays the freezer’s inner temperature as well as indications that power is flowing to the unit, the cooling system is running, and whether the controls are locked. Touching the inquiry button can show additional information about ambient temperature and voltage. An alarm condition will illuminate an alarm indicator and sound a buzzer, at which time the user can view the cause of the alarm by pressing the Inquiry button to then reveal the alarm code on screen. Other keys allow the user to set the password, set points and alarms, and datalogging preferences.
DOCUMENTING A FREEZER'S TRACK RECORD.
USB PORT FOR DATALOGGING
The onboard USB port allows historical data regarding temperature, alarms, and events to be exported for analysis. Users can configure preferences regarding the interval at which data is recorded as well as choose to download data for a number of months, a year, or for all time up to a maximum of 15 years. Remote data output is enabled by the standard RS-485 port. Lastly, the unit features remote alarm contacts.
A DEFENSE AGAINST TEMPERATURE LOSS.

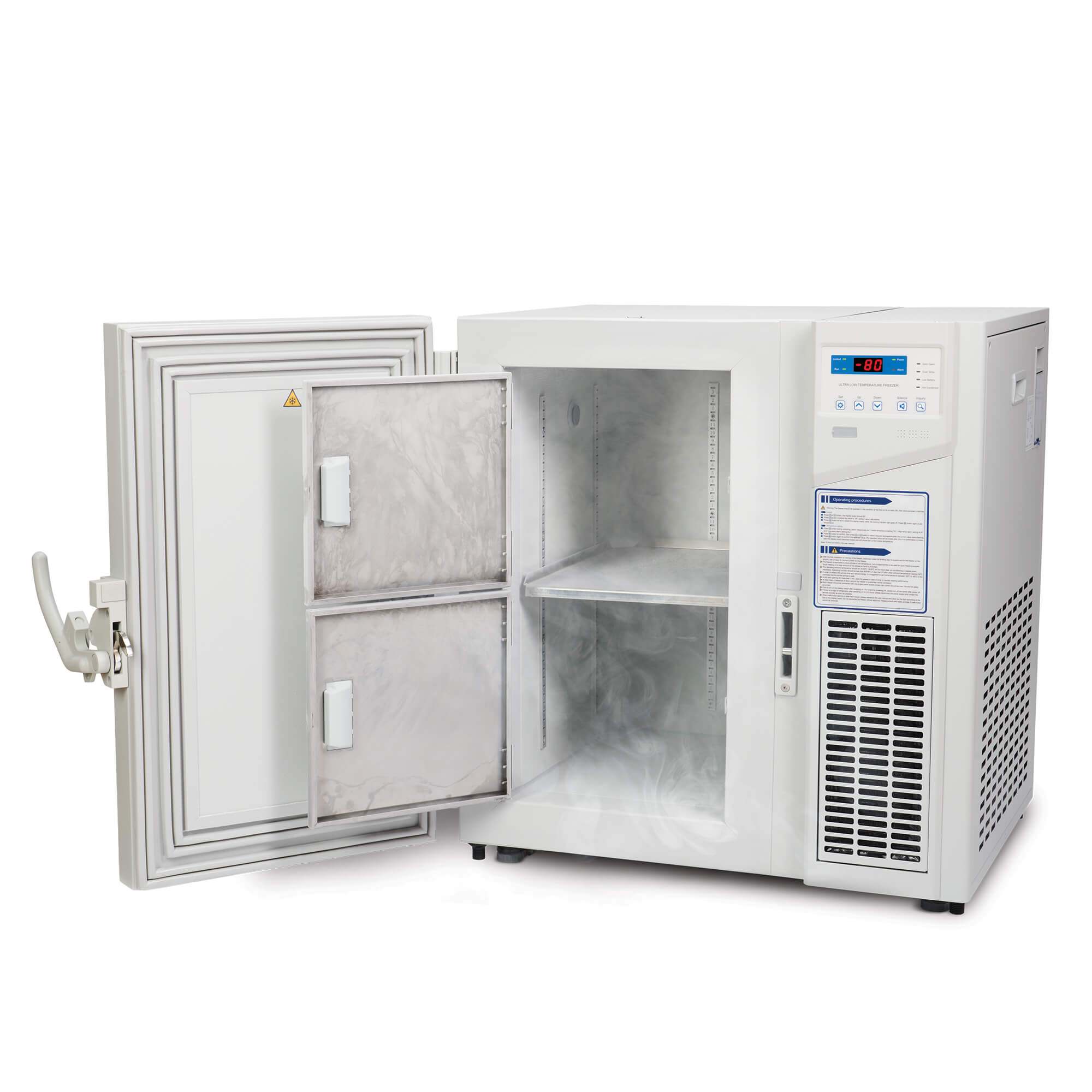

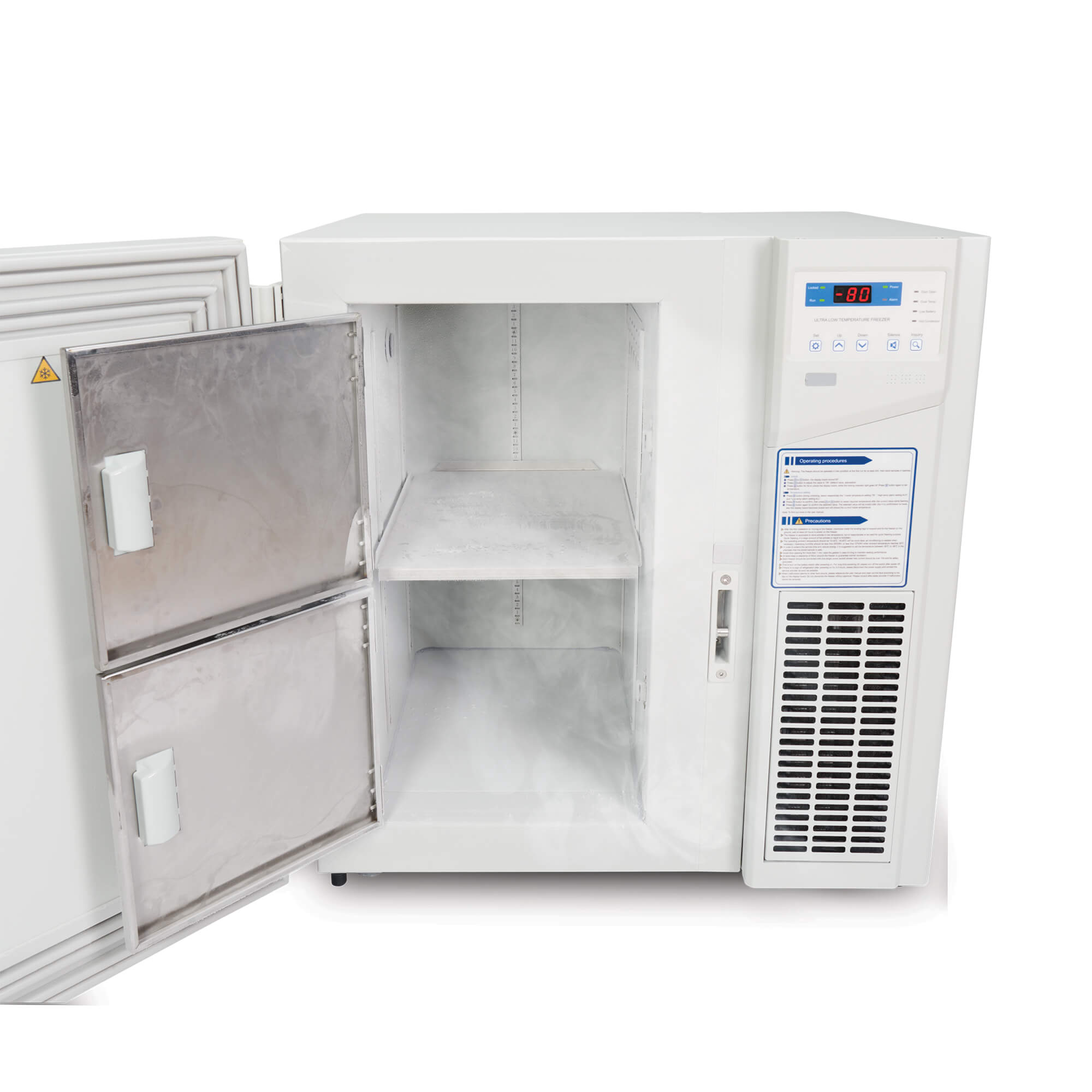

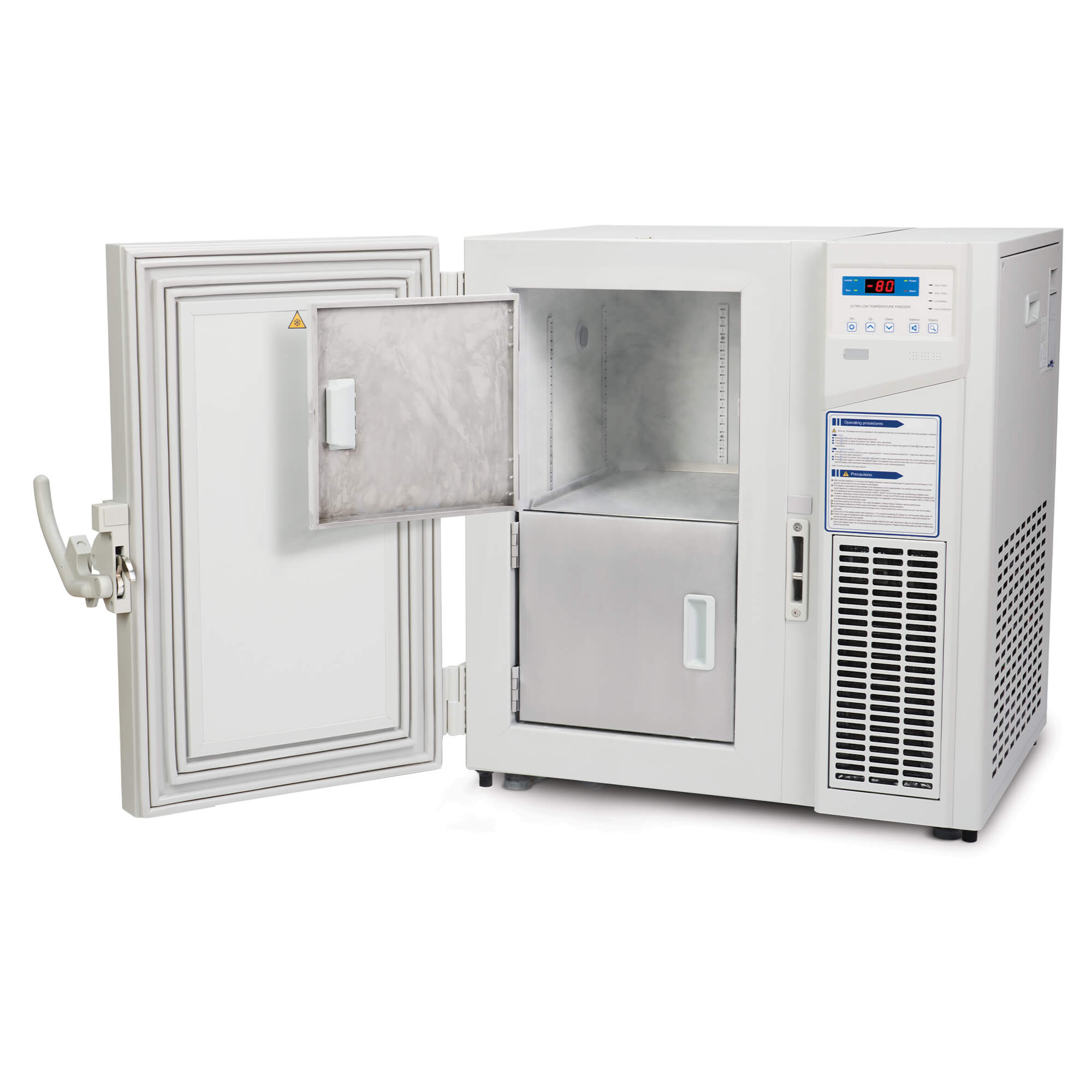

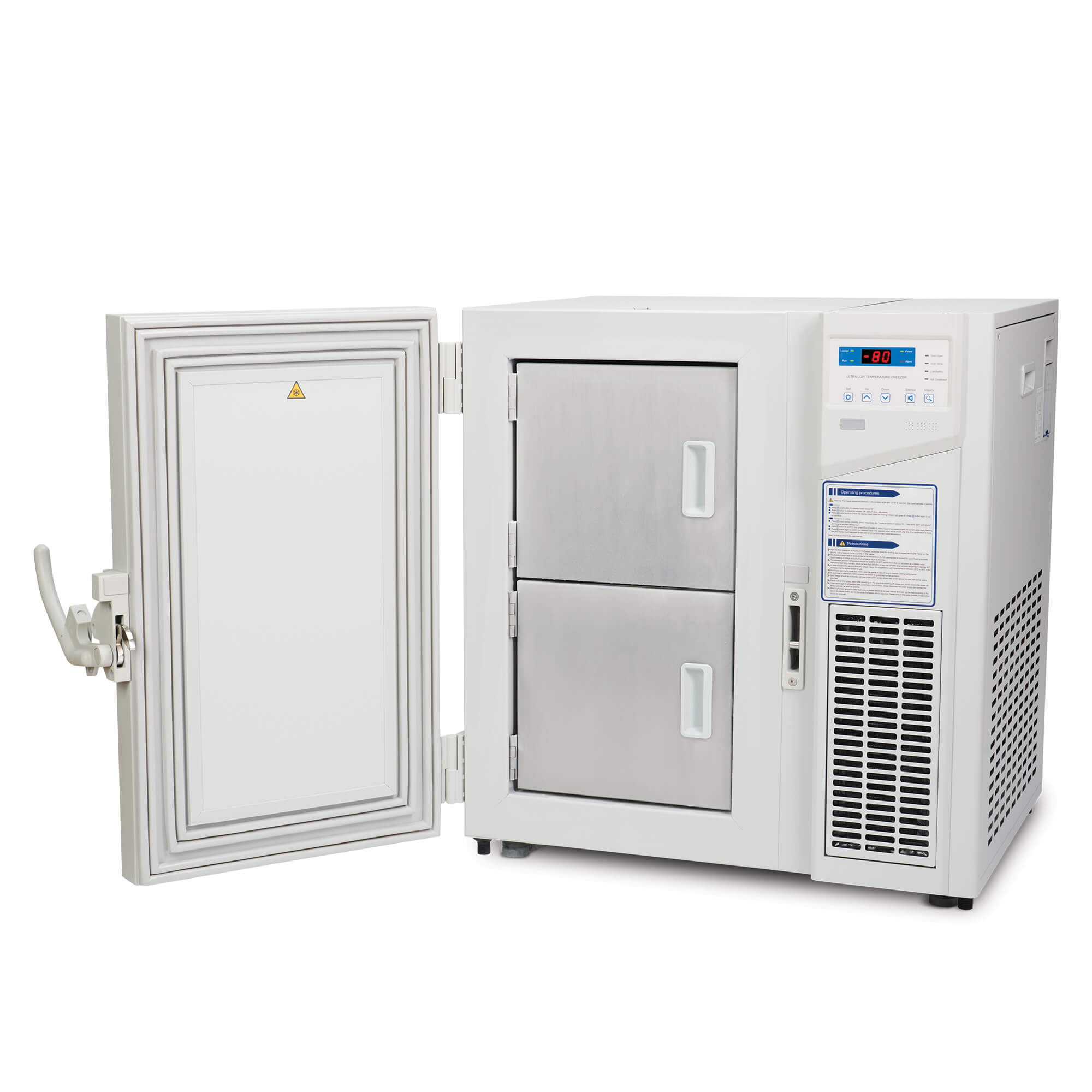

OUTER AND INNER DOORS
The outer freezer structure combines VIP and polyurethane foam to insulate the main chamber while the outer freezer door uses quadruple gasketing to defend against the loss of cold air. The outer door perimeter is implanted with heated elements that keep ice and frost build up under control to keep your samples isolated inside. The two stainless steel inner doors compartmentalize the interior and are held in place magnetically when closed.
choose your freezer electrical configuration.
AVAILABLE ELECTRICAL CONFIGURATIONS
MODEL |
VOLUME |
VOLTAGE |
| NU-99100JGA | 100L (3.5 ft3) | 120V/60Hz |
| NU-99100JE | 100L (3.5 ft3) | 240V/50Hz |
CALCULATE YOUR STORAGE CAPACITY
AVAILABLE STORAGE CAPACITY
MODEL |
RACK |
RACKS PER FREEZER |
BOXES PER RACK |
SAMPLES PER BOX |
SAMPLES STORED |
|||
| NU-99100J | 4 | X | 15 | X | 100 | = | 6000 |
The NuAire© Advantage
NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.
Warranty
Backed by the Industry's Best
- 3 Year Parts and Labor Warranty (United States and Canada)
- Consult Local Distributor (Global)
Standard Features
- Temperature Range of -40°C to -86°C
- R600A, R1150A & R50 Refrigerants
- Main Insulation with VIP and Polyurethane Foam
- Steel Plate Exterior Walls
- Steel Plate Interior Walls

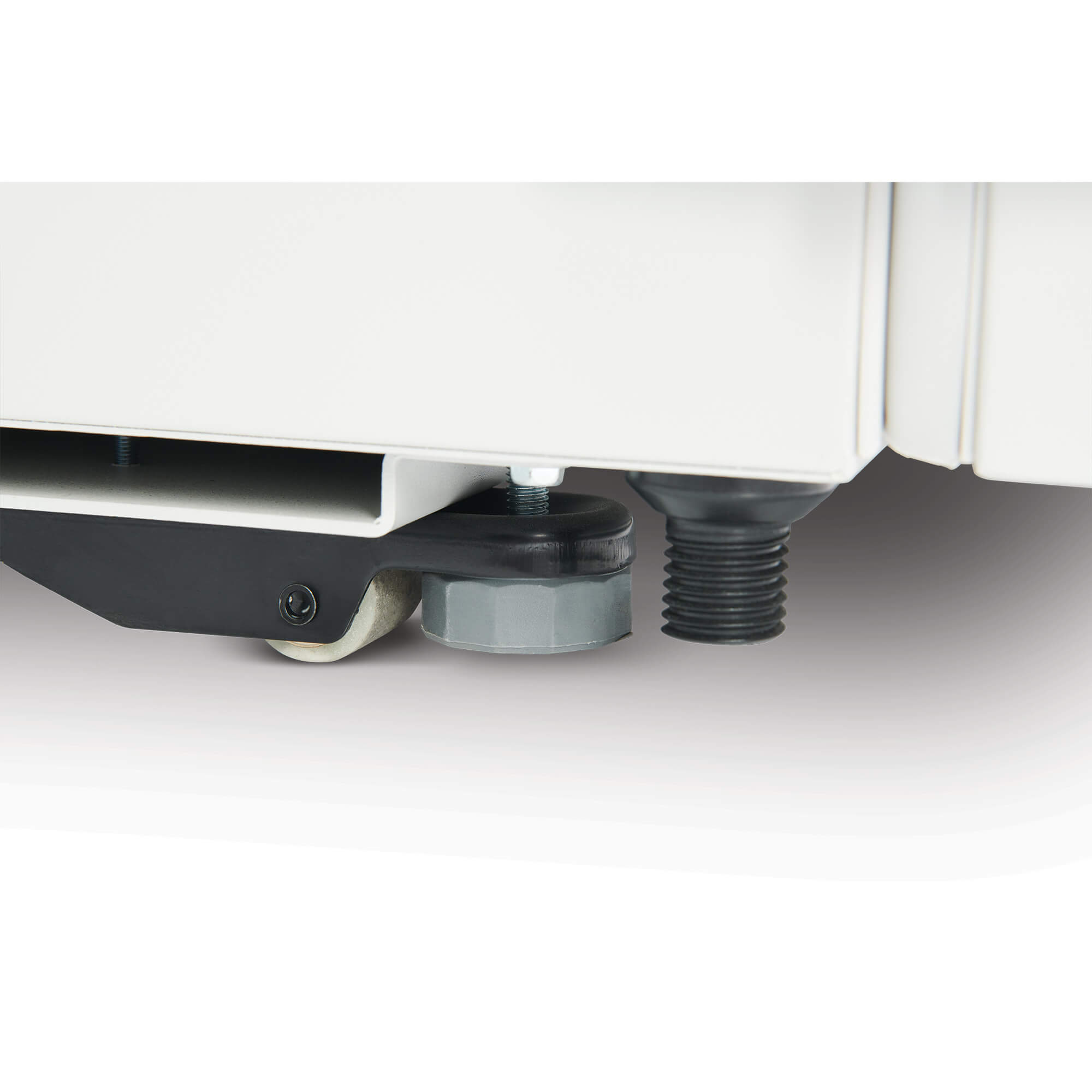

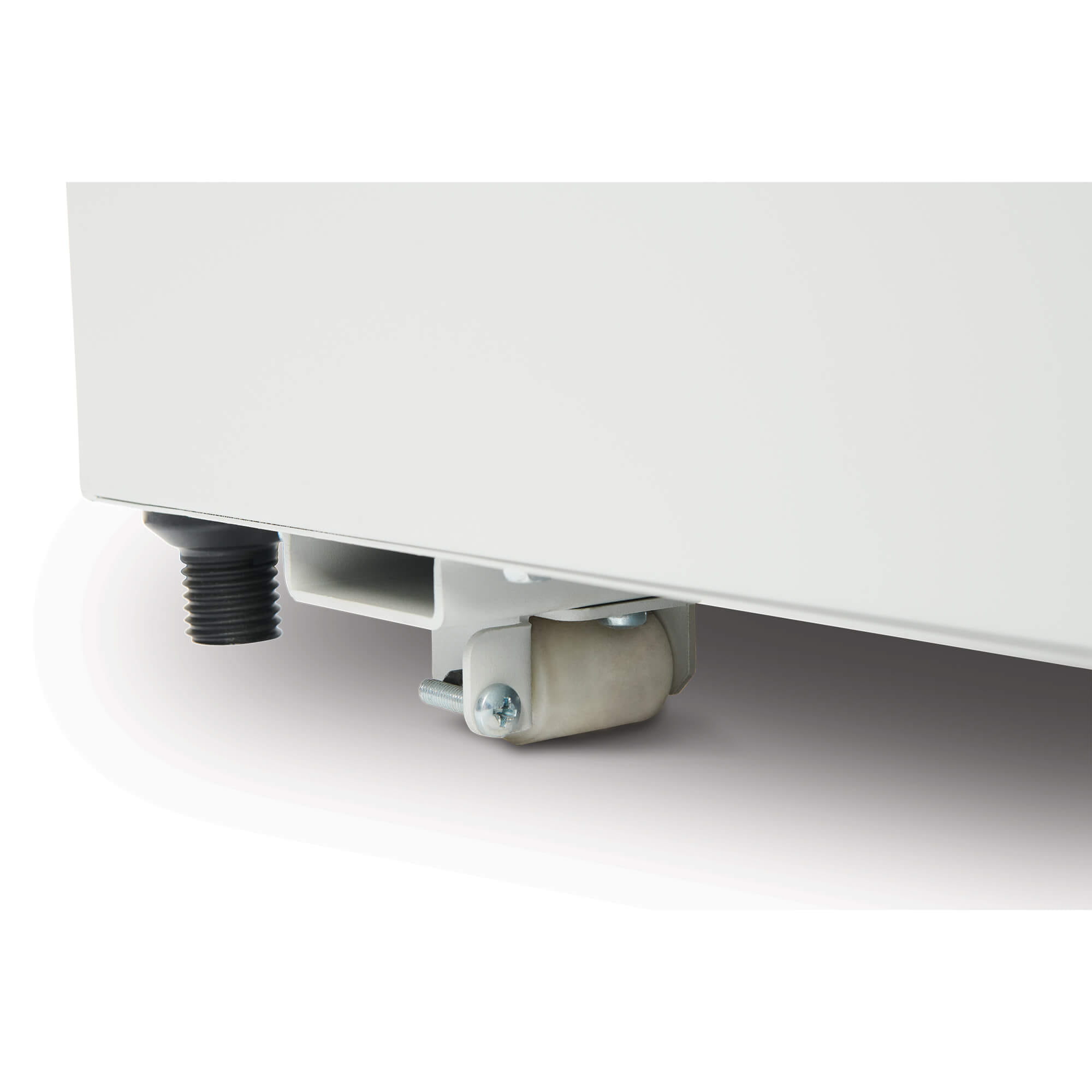

- Castors
- Quadruple Outer Door Gasket
- Two Stainless Steel Inner Doors
- Electronic Control System
- Pass Code Protection
- Audible and Visual Alarms
- Battery Backup for Power Failure Alarm
- USB Download Port for Datalogging
- Remote Alarm Contacts
- RS-485 Output
| Est. Shipping Width Inches (mm) | 31 (787) |
| 1 Minutes Door Open Recovery Time (25°C ambient running temp -75°C) in Minutes | Inquire |
| 2-inch Box Capacity | 60 |
| Est. Shipping Height Inches (mm) | 40 (1016) |
| Est. Shipping Depth Inches (mm) | 26 (660) |
| Access Port Location | Left Side |
| Adjustable High/Low Temperature Alarms | True |
| Alarms | Internal Temperature, Sensor Fault, Power Failure, Condenser, Ambient Temperature, Low Battery, Door Ajar, etc. |
| Ambient Temperature (°C) | Ideal Ambient Temperature Range 18C to 25C |
| Auto Voltage Safeguard | Inquire |
| Back Up Battery for Alarm Functions | Maximum load: DC 30V, 2A Rechargeable Battery, DC12V, automatic charging |
| Cabinet Thickness Inches (mm) | 2.75 (70) |
| Casters | 4 |
| Compressor Capacity Watt | Inquire |
| Compressor Type/Brand/Number | Enclosed Type/SECOP/1, NLE12.6CNL |
| Condenser Type | Micro-channel |
| Cool Down Time (25°C ambient to -80°C) in Minutes | 310 Minutes (Unspecified Ambient Temperature) |
| Data Output Features | USB, RS-485 |
| Defrost Method | Manual |
| Door Thickness Inches (mm) | 2.75 (70) |
| Electrical Configuration | 115V60Hz, 230V5060Hz |
| Electric Protection Type | Class I |
| Evaporator Type | Copper Tube |
| Exterior Depth Inches (mm) | 25.98 (660) |
| Exterior Depth with Door Open Inches (mm) | 43.70 (1110) |
| Exterior Door | One Door |
| Exterior Door Seal | Quadruple Outer Door Silicone Gasket |
| Exterior Height Inches (mm) | 31.89 (810) |
| Exterior Material | Steel Plate |
| Exterior Width Inches (mm) | 30.32 (770) |
| Fan Brand | Inquire |
| Footprint Depth inches (mm) | 25.98 (660) |
| Footprint Width inches (mm) | 30.32 (770) |
| Inner Doors | Two, Stainless Steel |
| Insulation | VIP and Polyurethane Foam |
| Interior Depth Inches (mm) | 19 (481) |
| Interior Door Seal | None |
| Interior Height Inches (mm) | 24.80 (630) |
| Interior Material | Steel Plate |
| Interior Volume Cubic Feet (Liters) | 3.53 (100) |
| Interior Width Inches (mm) | 13 (330) |
| Leg Levelers | 2 |
| Locking Mechanism | Key |
| Net Weight lbs (kg) | 238 lbs (108 kg) |
| Performance Standard | |
| Power Switch | On-Off |
| Rack Capacity | 4 |
| Refrigerant Charge/Flammable | R600A, R1150, R50 |
| Refrigeration System Type | Inquire |
| Remote Alarm Terminals | Standard |
| Setpoint Security | Yes |
| Shelf Capacity lbs (kg) | Inquire |
| Shelf Depth Inches (mm) | 16.7 (424) |
| Shelf Material | One, Stainless Steel |
| Shelf Width Inches (mm) | 12.44 (316) |
| Shelves | Stainless Steel |
| Est. Shipping Weight lbs (kg) | 258 lbs (117 kg) |
| Sound Level | 46.8 dB(A) |
| Style | Under the Counter |
| Temperature Accuracy °C | Inquire |
| Temperature Control | Microprocessor Controller |
| Temperature Range °C | -40 to -86 |
| Temperature Sensor Type | Platinum Resistor Pt100 Temperature Sensor |
| Temperature Uniformity °C | +/- 4 |
| Warm-Up Time (25°C ambient -80°C to -50°C) in Minutes | 120 Minutes |
