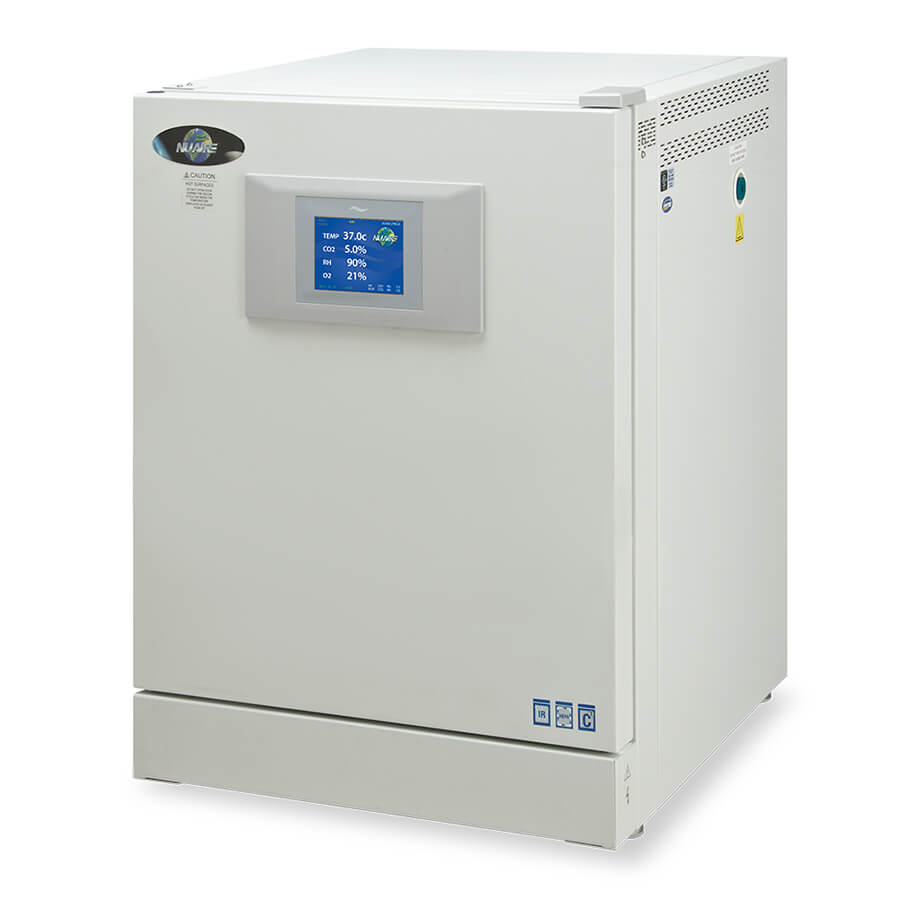

In-VitroCell NU-5741 Direct Heat CO2 Incubator

Model NU-5741 is a Direct Heat CO2 Incubator featuring precise Humidity control through the use of a water reservoir and sensor as well as Oxygen control for hypoxia research by injecting Nitrogen gas to meet set point to suppress Oxygen levels.

Overview

The In-VitroCell NU-5741 is a direct heat CO2 featuring Humidity and Oxygen control. Relative Humidity (RH) is controlled through an RH sensor injecting water vapor from a reservoir water tank in place of a water pan to meet the setpoint. Hypoxic conditions are created through an O2 sensor injecting Nitrogen (N2) gas to meet setpoint. Model NU-5741 creates optimal growth conditions for samples prone to desiccation and needing hypoxic conditions.

Oxygen Control for Sensitive Cell Cultures

Our CO2 Incubator models have an advanced Oxygen control feature specifically designed for sensitive cell lines susceptible to stress and DNA damage. This innovative feature includes an O2 sensor that meticulously monitors oxygen levels within the growth chamber. Nitrogen (N2) gas is precisely injected to reduce oxygen levels to your desired set point to maintain an optimal environment.

This extensive oxygen control range is particularly beneficial for a wide array of research applications, encompassing studies related to the brain, eyes, liver, heart, kidneys, and more. By adjusting the O2 levels, researchers can create hypoxic conditions crucial for conducting age-related studies and understanding cellular responses under various oxygen concentrations. This feature ensures that even the most delicate cell cultures can thrive and develop, providing more accurate and reliable results for your critical research.

Enhanced Cell Growth with Optimal Humidity Control

Our growth chamber is ingeniously designed to maintain relative humidity levels up to 90%, fostering an ideal environment for cell growth. This is achieved through a 3-liter external reservoir, separate from the main chamber. Air from the chamber circulates through this reservoir, which becomes saturated with water vapor in an evaporation box. This process is precisely regulated based on feedback from our RH sensor, which adds humidity to the chamber air whenever necessary to maintain the set point.

This feature ensures that the cells are grown in a consistently humid environment, crucial for maintaining cell integrity and promoting healthy cell development. By precisely controlling the humidity, our chamber creates optimal conditions for various cell culture applications, leading to more successful and reliable experimental outcomes.

Advanced Design for Contamination Control

Our NuAire CO2 Incubators are meticulously engineered to minimize areas where contamination could thrive. The design features coved corners and a crevice-free interior, significantly reducing any hiding spots for contaminants. This thoughtful design not only enhances the safety of your cultures but also makes the cleaning process effortless and efficient. Our incubators provide an optimal setting for your critical research needs by simplifying maintenance and ensuring a pristine environment.

Advanced HEPA Filtration

The In-Vitrocell CO2 Incubators are equipped with a continual HEPA filtration system, working with periodic high-heat decontamination to offer unmatched Constant Contamination Control. This state-of-the-art design actively samples the air within the chamber, directing it through a HEPA filter in an external compartment. This filtered air is recirculated back into the chamber, maintaining a clean environment at a slight positive pressure.

This innovative system ensures that the air surrounding your cell cultures is perpetually filtered, significantly minimizing the risk of contamination. The In-Vitrocell's multi-tiered defense system provides your cell cultures with an optimal, protected environment, enhancing cell growth and safeguarding your valuable research.

Specifications

In-VitroCell 160-Liter Direct Heat CO2 Incubator NU-5741 with Humidity and Oxygen Control
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Optional Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish

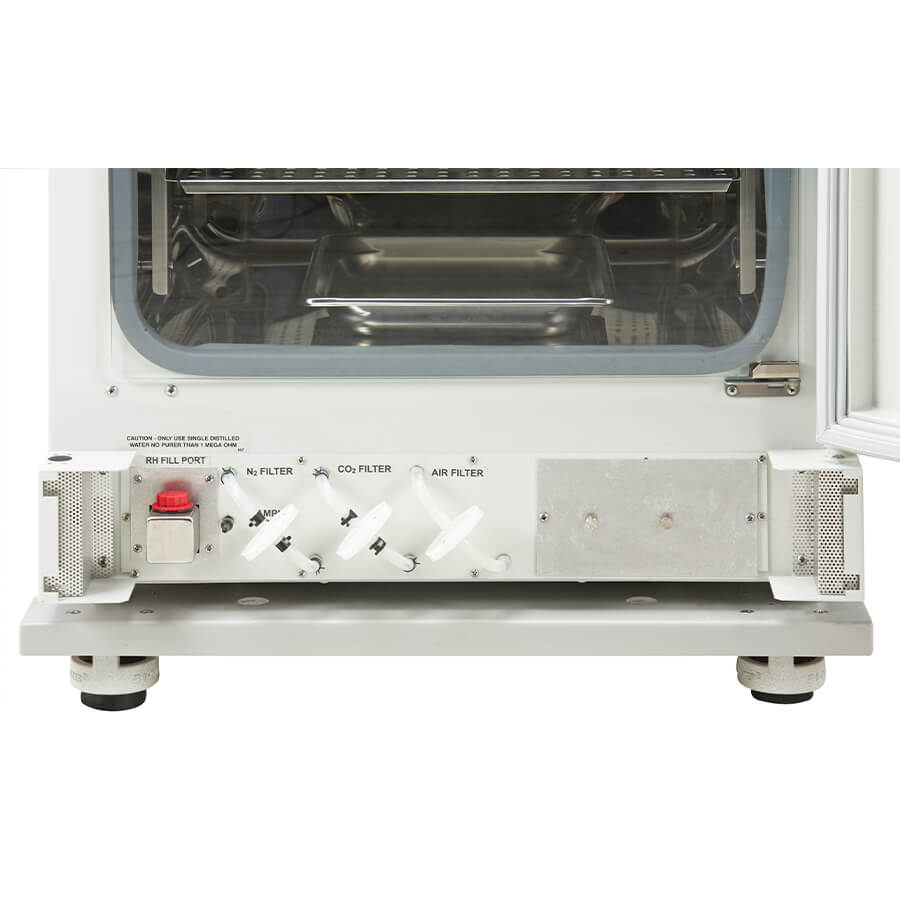

In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One
Insulation High Density Insulation with High "R" Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity

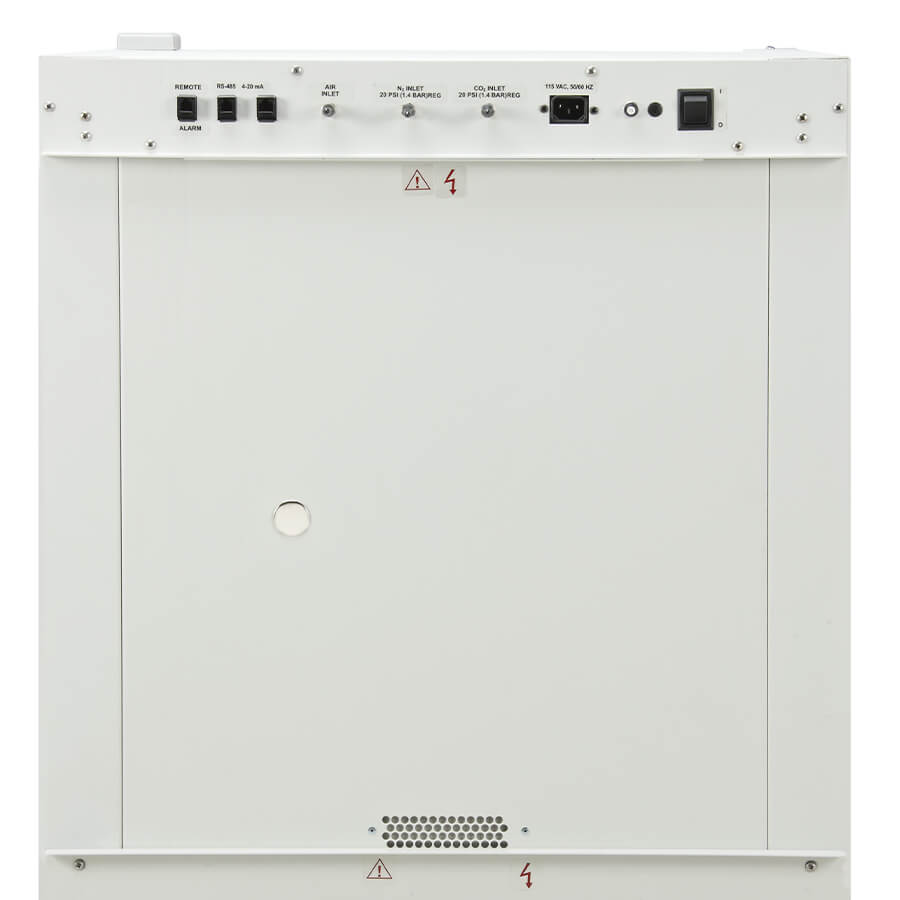

Data Output Features aRS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm) 31 (787)
Est. Shipping Height Inches (mm) 47 (1194)
Est. Shipping Width Inches (mm) 30 (762)
Exterior Depth Inches (mm) 27.500 (699)
Exterior Height Inches (mm) 36.188 (894)
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
Interior Depth Inches (mm) 20.678 (525)
Interior Height Inches (mm) 24.000 (610)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 3/4 (476)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 18 3/4 (476)
Water Pan Width 10 (254)
Electrical Configuration 115V60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
O2 Accuracy ± 0.25%
O2 Control Logic Fixed algorithm/ manual environmental adaptable
O2 Display Resolution 0.1%
O2 Measuring Range 0 - 25%
O2 Recovery 5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type Zirconia Ceramic
O2 Set Point Range 0.5 -21.0% (ambient) (21.0% Default)
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy ± 3%
RH Control Logic Fixed algorithm/manual environmental adaptable
RH Control Method Evaporator Box
RH Control Range Ambient dependent to 90%
RH Display Resolution 0.1%
RH Evaporator Box Capacity 3L
RH Recovery 90% +5%/-3% within 25 minutes on average
RH Sensor Type Precision capacitance bulk-polymer
RH Water Pan Capacity 2L (Recommended Fill 1.5L) (For Calibration Only)
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell

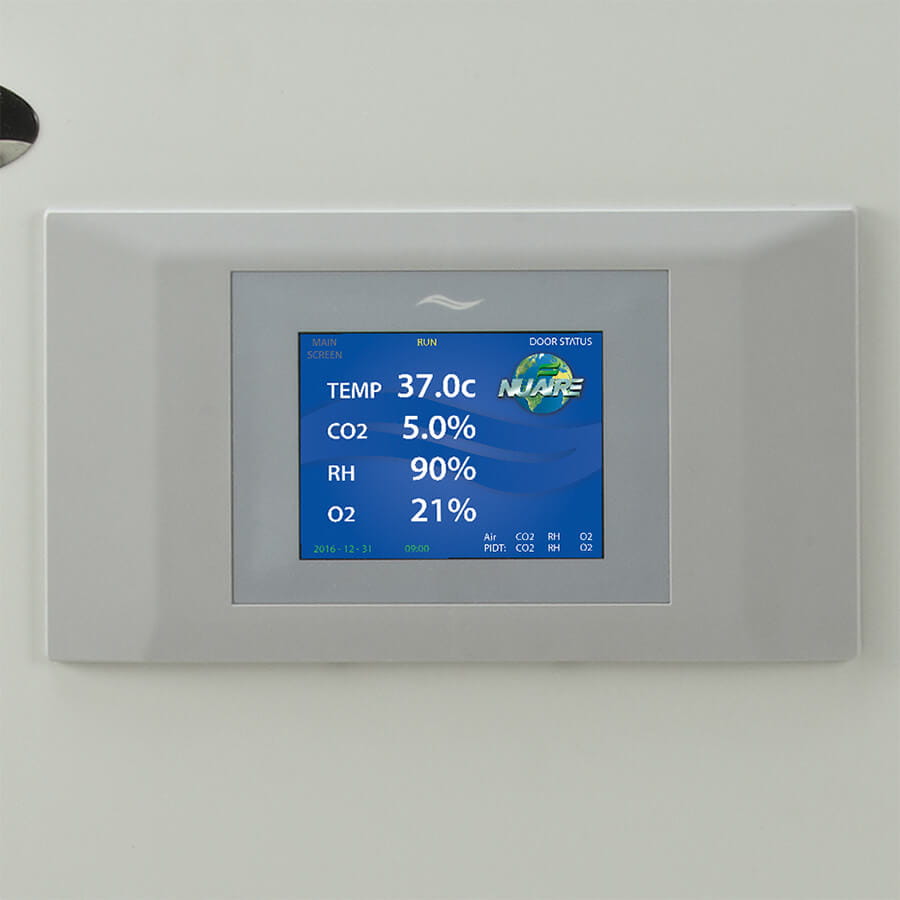

Control System NuTouch
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Est. Shipping Weight lbs (kg)
Net Weight lbs (kg) 220 lbs. / 100 kg.
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Optional Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One
Insulation High Density Insulation with High "R" Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Data Output Features aRS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm) 31 (787)
Est. Shipping Height Inches (mm) 47 (1194)
Est. Shipping Width Inches (mm) 30 (762)
Exterior Depth Inches (mm) 27.500 (699)
Exterior Height Inches (mm) 36.188 (894)
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
Interior Depth Inches (mm) 20.678 (525)
Interior Height Inches (mm) 24.000 (610)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 3/4 (476)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 18 3/4 (476)
Water Pan Width 10 (254)
Electrical Configuration 230V5060Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
O2 Accuracy ± 0.25%
O2 Control Logic Fixed algorithm/ manual environmental adaptable
O2 Display Resolution 0.1%
O2 Measuring Range 0 - 25%
O2 Recovery 5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type Zirconia Ceramic
O2 Set Point Range 0.5 -21.0% (ambient) (21.0% Default)
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy ± 3%
RH Control Logic Fixed algorithm/manual environmental adaptable
RH Control Method Evaporator Box
RH Control Range Ambient dependent to 90%
RH Display Resolution 0.1%
RH Evaporator Box Capacity 3L
RH Recovery 90% +5%/-3% within 25 minutes on average
RH Sensor Type Precision capacitance bulk-polymer
RH Water Pan Capacity 2L (Recommended Fill 1.5L) (For Calibration Only)
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
Control System NuTouch
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Est. Shipping Weight lbs (kg)
Net Weight lbs (kg) 220 lbs. / 100 kg.

Review

Options

  • Copper Alloy Chamber 115V
  • Copper Alloy Chamber 230V
  • Stainless Steel Chamber 115V
  • Stainless Steel Chamber 230V
  • Sectioned Inner Door
  • Standard Glass Inner Door
  • Left Side Door Hinge
  • Euro Power Cord Option Shipping Kit
  • UK Power Cord Option
