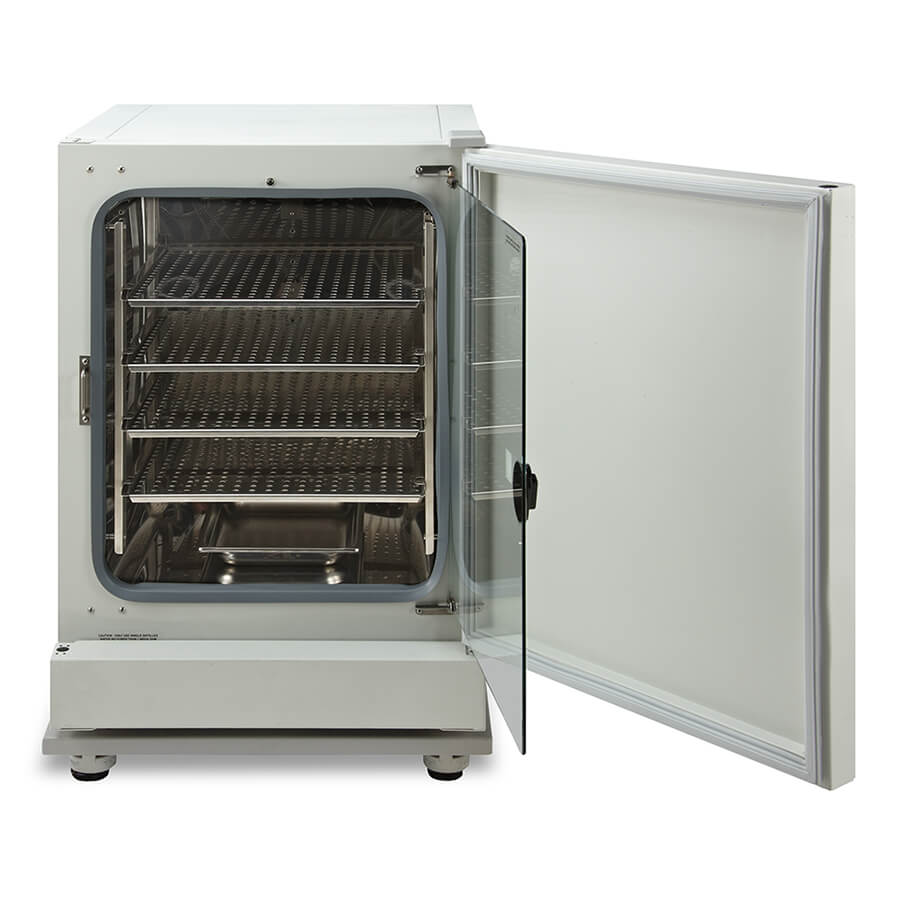

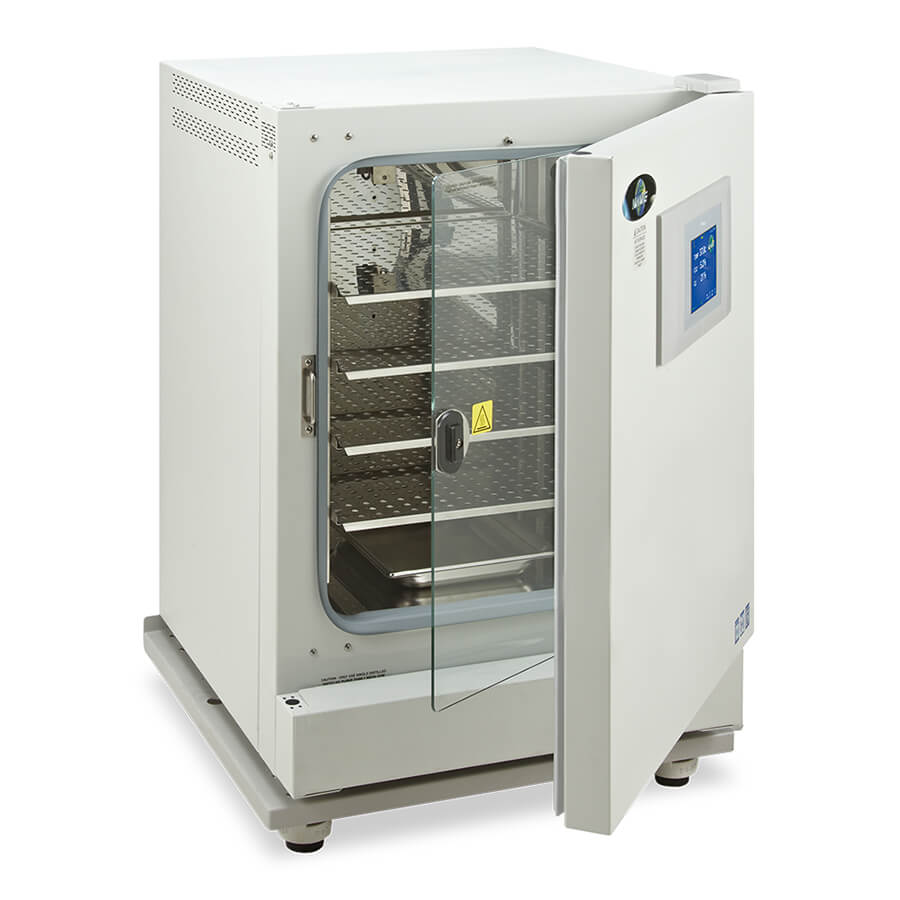

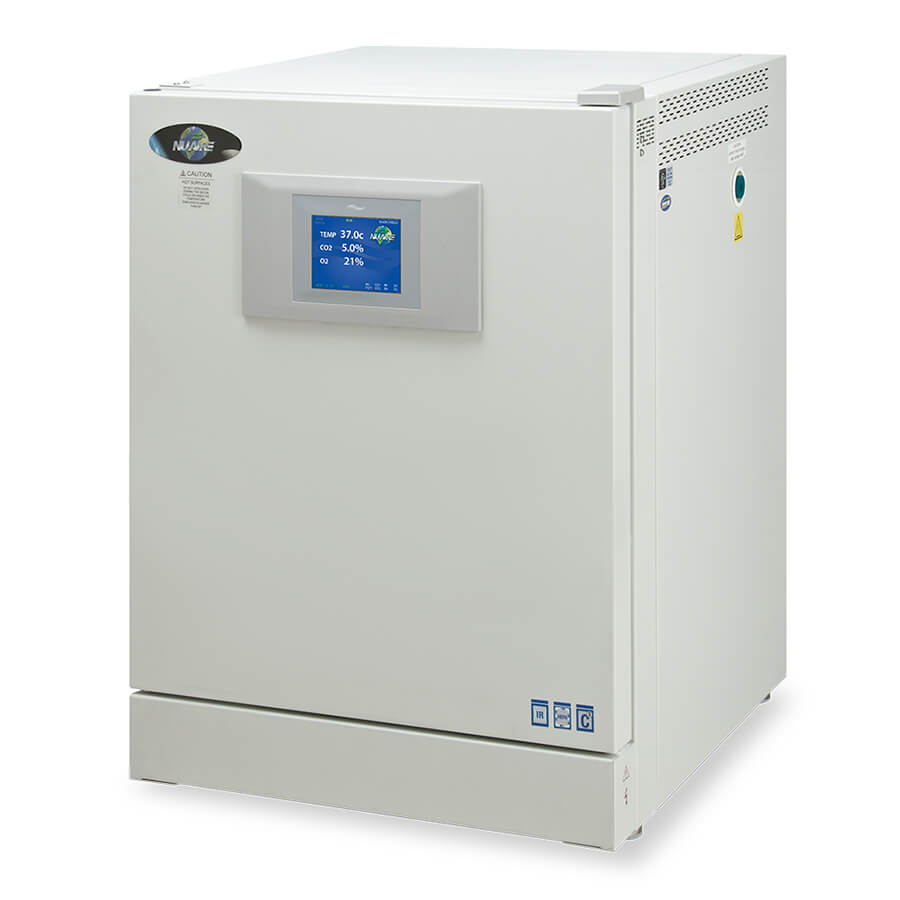

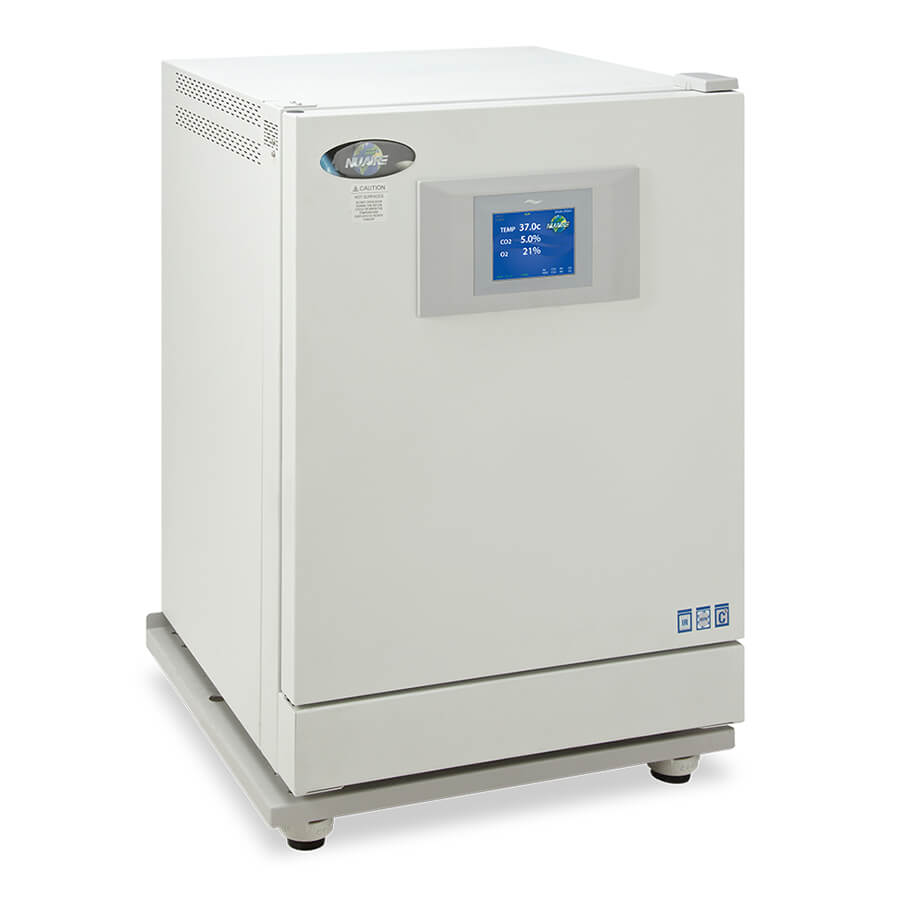

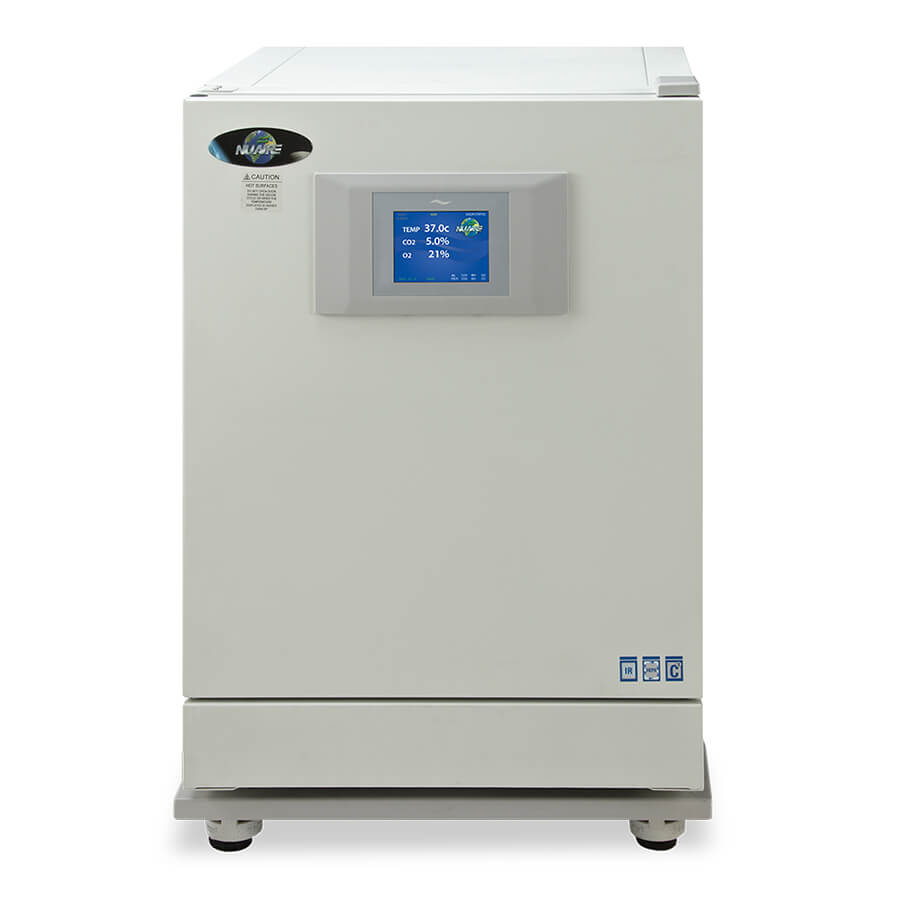

In-VitroCell NU-5731 Direct Heat CO2 Incubator

The In-VitroCell model NU-5731 is a direct heat CO2 incubator that creates hypoxic environmental conditions through the use of an Oxygen (O2) sensor and Nitrogen (N2) gas.

Overview

Advanced CO2 Incubator for Delicate Cell Cultures. Our state-of-the-art direct heat incubator, featuring a 5.65 cubic feet (160 Liter) chamber, is meticulously designed for both hypoxic and sensitive cell culture studies. Equipped with a precise O2 sensor, it adeptly controls and reduces oxygen levels by injecting N2 gas, creating ideal conditions for a range of delicate organ cultures, including the brain, eyes, liver, heart, and kidneys, in addition to age-related studies. The NU-5731's precise gas and temperature management ensures optimal conditions for cultivating even the most sensitive cells, offering unparalleled support for your critical research needs.

Advanced Oxygen Control

Optimize cell growth in sensitive cell lines with our CO2 Incubator models featuring precise Oxygen control. These models are equipped with an advanced O2 sensor, maintaining ideal oxygen levels in the growth chamber through the injection of Nitrogen gas. This precise control of oxygen, adjustable across a wide range, is crucial for research involving delicate organs like the brain, eyes, liver, heart, and kidneys. Additionally, the ability to restrict oxygen enables the creation of hypoxic conditions, essential for age-related studies and other specialized research areas. Enhance your cell culture success with tailored oxygen environments for optimal cell health and integrity.

Optimal Cell Growth with Contamination Control

Our advanced design maintains a slight positive pressure within the chamber to minimize contaminated laboratory air from entering the growth environment. Air and gas are purified through 99.99% efficient HEPA filters, achieving results similar to an ISO Class 5 cleanroom. Coved corners within the chamber reduce contamination risks, while our effective decontamination cycles at 145°C dry or 95°C humidified ensure a clean environment for cell culture. Trust NuAire to provide a secure, contamination-free space for sensitive mammalian cell growth.

Precision Temperature Control

Featuring strategically placed heating elements around the chamber, in the door perimeter, and within the door itself, this incubator ensures a consistently balanced temperature throughout the steel or copper insulated chamber. Independent adjustment of door and perimeter heaters guarantees temperature uniformity, even in challenging ambient conditions. This meticulous temperature management is crucial for the optimal growth and maintenance of mammalian cells in research settings.

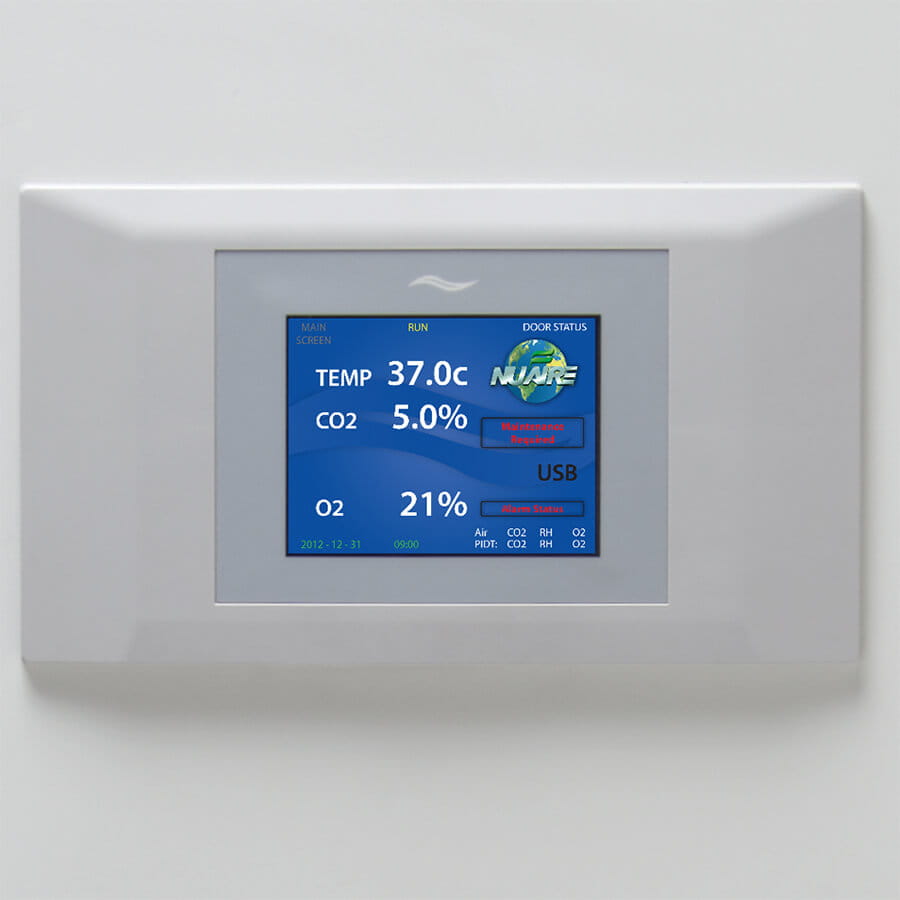

Simplifying CO2 Incubator Controls

Optimize your mammalian cell culture growth with the NuAire NuTouch Control System. This user-friendly interface simplifies operations, allowing seamless adjustments of set points, easy access to chamber history, initiation of decontamination cycles, and calibration procedures. Its intuitive design focuses on ease of use, ensuring smooth and efficient management of your CO2 incubator's essential functions for successful cell growth.

Specifications

In-VitroCell NU-5731 Direct Heat CO2 Incubator featuring Oxygen Control for Hypoxia Studies
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Optional Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One, Sectioned Optional
Insulation High Density Insulation with High "R" Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Data Output Features RS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm) 31 (787)
Est. Shipping Height Inches (mm) 47 (1194)
Est. Shipping Width Inches (mm) 30 (762)
Exterior Depth Inches (mm) 27.500 (699)
Exterior Height Inches (mm) 36.188 (894)
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
Interior Depth Inches (mm) 20.678 (525)
Interior Height Inches (mm) 24.000 (610)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 (457)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)
Electrical Configuration 115V60Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
O2 Accuracy ± 0.25%
O2 Control Logic Fixed algorithm/ manual environmental adaptable
O2 Display Resolution 0.1%
O2 Measuring Range 0 - 25%
O2 Recovery 5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type Zirconia Ceramic
O2 Set Point Range 0.5 -21.0% (ambient) (21.0% Default)
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy Not Available
RH Control Logic Not Available
RH Control Method Not Available
RH Control Range Not Available
RH Display Resolution Not Available
RH Evaporator Box Capacity Not Available
RH Recovery Not Available
RH Sensor Type Not Available
RH Water Pan Capacity Not Available
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
Control System NuTouch
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Est. Shipping Weight lbs (kg) Estimated 275 lbs (125 kgs)
Net Weight lbs (kg) 220 lbs. / 100 kg.
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Segmented Doors Optional Set of 4 Inner Doors
Access Port Location Right Side
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Inner Doors One, Sectioned Optional
Insulation High Density Insulation with High "R" Rating
Interior Door Seal Silicone Rubber Gasket
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Material Stainless Steel
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Data Output Features RS-485, USB, 4-20mA
Remote Alarm Terminals Standard
Est. Shipping Depth Inches (mm) 31 (787)
Est. Shipping Height Inches (mm) 47 (1194)
Est. Shipping Width Inches (mm) 30 (762)
Exterior Depth Inches (mm) 27.500 (699)
Exterior Height Inches (mm) 36.188 (894)
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
Interior Depth Inches (mm) 20.678 (525)
Interior Height Inches (mm) 24.000 (610)
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Width Inches (mm) 18 (457)
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)
Electrical Configuration 230V5060Hz
Power Cord Length Foot (Meter) 8 (2.5)
Safety Certification UL, UL-C
O2 Accuracy ± 0.25%
O2 Control Logic Fixed algorithm/ manual environmental adaptable
O2 Display Resolution 0.1%
O2 Measuring Range 0 - 25%
O2 Recovery 5.0 ± 0.5% twenty minutes on Average
O2 Sensor Type Zirconia Ceramic
O2 Set Point Range 0.5 -21.0% (ambient) (21.0% Default)
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
RH Accuracy Not Available
RH Control Logic Not Available
RH Control Method Not Available
RH Control Range Not Available
RH Display Resolution Not Available
RH Evaporator Box Capacity Not Available
RH Recovery Not Available
RH Sensor Type Not Available
RH Water Pan Capacity Not Available
Chamber Air Circulation Method Air Pump
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
Control System NuTouch
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable]
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Est. Shipping Weight lbs (kg) Estimated 275 lbs (125 kgs)
Net Weight lbs (kg) 220 lbs. / 100 kg.

Review

Options

  • Copper Alloy Chamber 115V
  • Copper Alloy Chamber 230V
  • Stainless Steel Chamber 115V
  • Stainless Steel Chamber 230V
  • Sectioned Inner Door
  • Standard Glass Inner Door
  • Left Side Door Hinge
  • Euro Power Cord Option Shipping Kit
  • UK Power Cord Option
