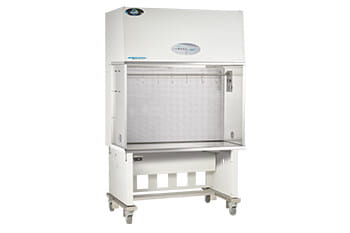

AireGardNU-240
Horizontal Laminar Airflow Workstation

HORIZONTAL LAMINAR AIRFLOW | POWERFUL DC ECM MOTOR | STAINLESS STEEL WORK AREA | USP 797 DRUG COMPOUNDING

The AireGard™ NU-240 creates HEPA-filtered horizontal laminar airflow to provide product protection for sterile but non-hazardous drug compounding in pharmacies or non-hazardous work in research labs. The DC ECM motor draws air through a top pre-filter and propels it through a backwall HEPA filter to create an ISO Class 5 level of air cleanliness inside a work zone surrounded by stainless steel walls and a work surface made of stainless steel with a PVC core. One easily monitors workbench performance through the Aeromax™ control system that visualizes pressure in the internal airflow plenum. The work zone comes standard with cord-pass throughs and fluorescent lighting but can be optionally configured with polycarbonate walls, an IV bar, LED lighting, outlets, and service valves to fit your workflow needs.

Request a Quote

A SIZE THAT MEETS YOUR NEEDS

The AireGard™ model NU-240 is available in four nominal widths, three of which offer two filter height options, to meet the needs of your laboratory space and application.

Products

NU-240-330

Nominal 3-foot (0.9 m)

NU-240-336

Nominal 3-foot (0.9 m)

NU-240-430

Nominal 4-foot (1.2 m)

NU-240-436

Nominal 4-foot (1.2 m)

NU-240-530

Nominal 5-foot (1.5 m)

NU-240-536

Nominal 5-foot (1.5 m)

NU-240-630

Nominal 6-foot (1.8 m)

Quick Specs

Airflow Direction Horizontal
Airflow Velocity 90 fpm (0.46 mps)
Control System AeroMax
Protection Product
  • Features
  • Specs
  • Options & Accessories
  • Resources

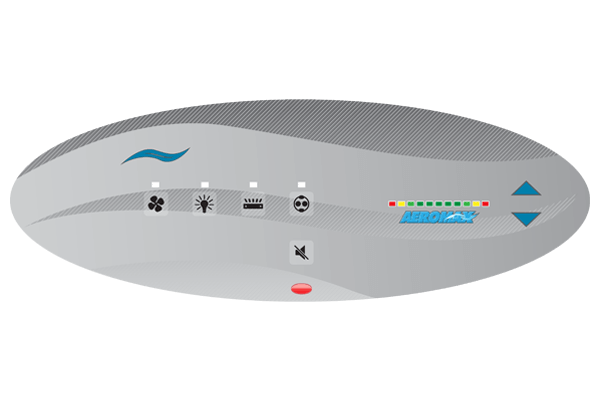

AeroMax Electronic Control System for Lab Equipment

Green Light, Yellow Light, Red Light

AeroMax Control System

The Aeromax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever workbench performance departs from normal parameters.

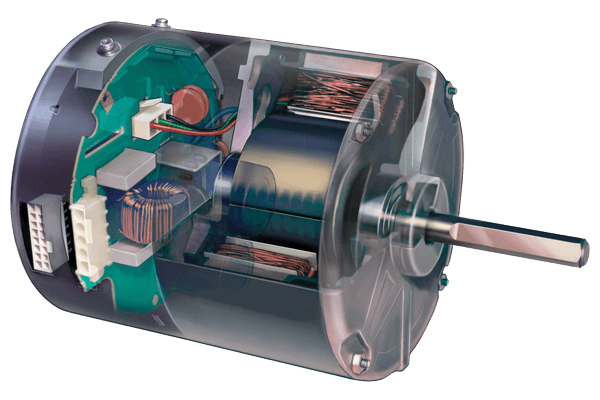

Ultra high efficiency motor for lab equipment

Powerful Yet Quiet

Ultra High Efficiency Motor

The single DC ECM motor powers the airflow though the workbench while economizing energy and minimizing noise. This motor provides enough power to compensate HEPA filter loading for years to come and thereby minimize your laboratory's lifetime cost of HEPA filter replacement.

AireGard Horizontal Laminar Airflow Workstations come optional with an IV bar with 6 hooks and 3 height locations for applications such as IV admixture.

Configurable for non-hazardous drug compounding

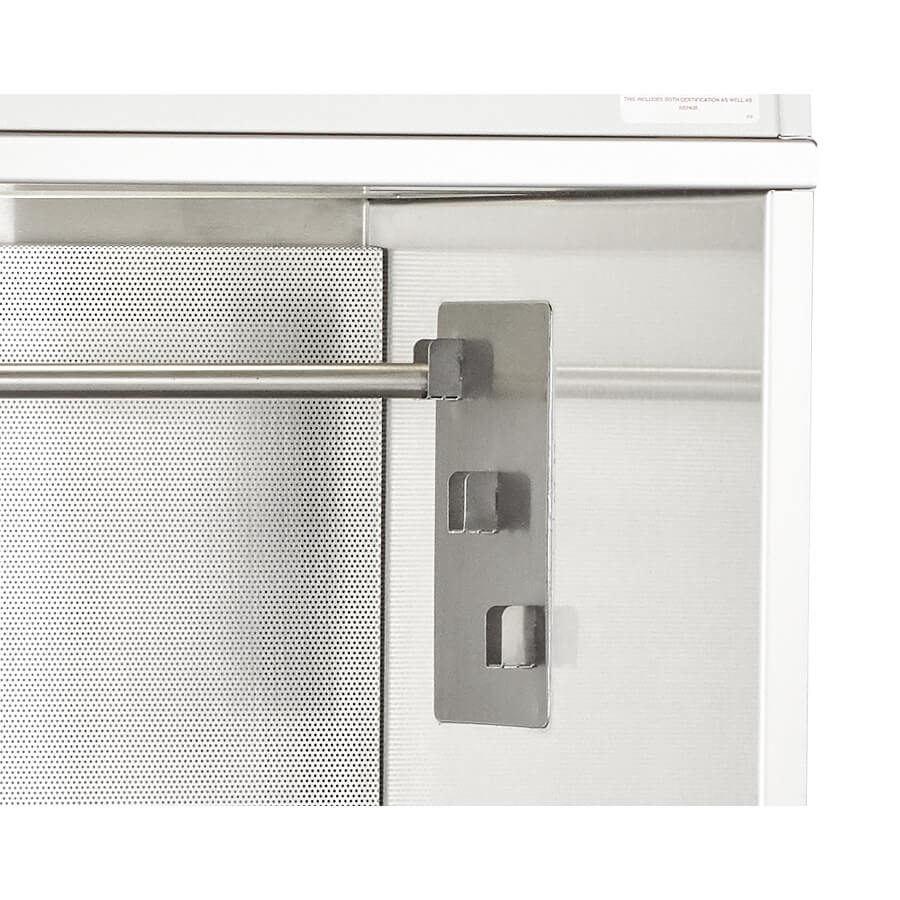

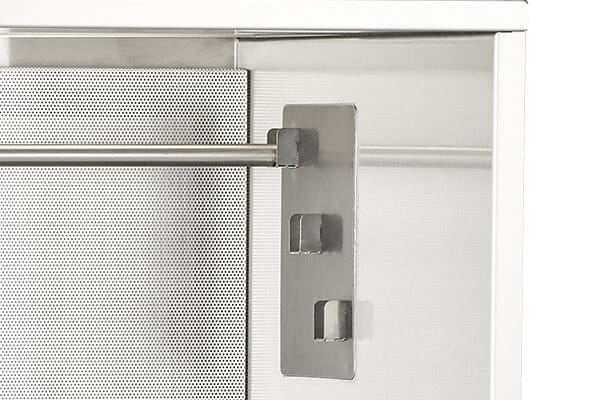

Optional IV Bar with 6 Hooks

The optional IV bar with 6 hooks and 3 height locations configures the unit to serve as a primary engineering control (PEC) for the compounding of nonhazardous drugs in pharmacy settings.

The AireGard NU-240 Horizontal Laminar Airflow Workstation comes standard with a smooth work zone constructed of stainless steel for enhanced cleanability.

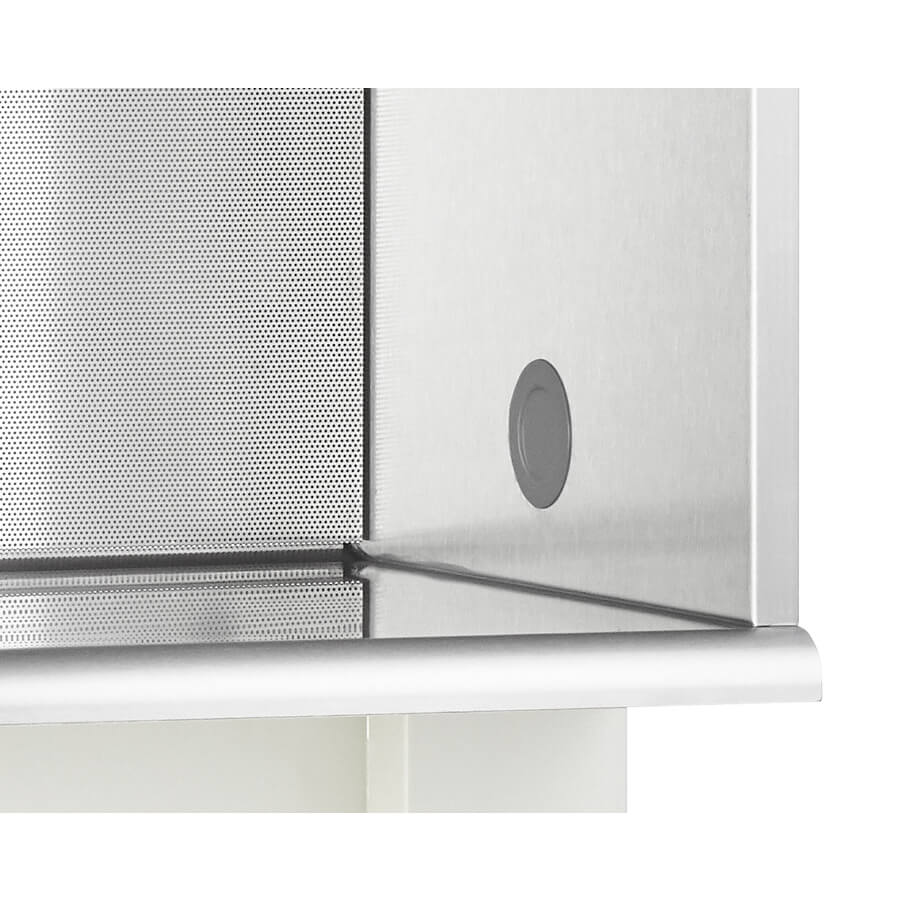

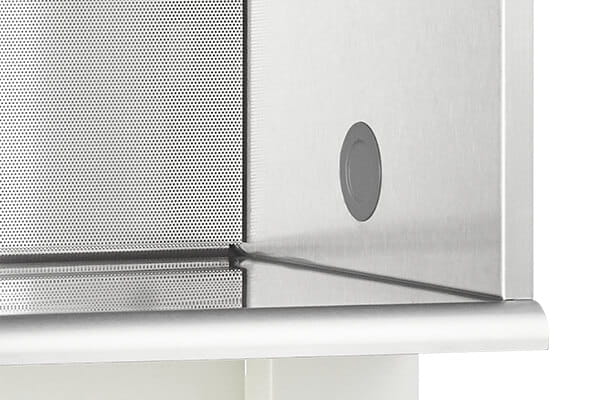

Smooth Surfaces for a Smooth Workflow

Stainless Steel Workzone

The stainless steel walls and stainless steel work surface with PVC core provide a work zone that is robust, cleanable, and already provided with two standard cord-pass throughs to make it an ideal primary engineering control for non hazardous compounding in pharmacies or clean air workbench for a microbiology lab.

COMBINE THE NOMINAL WIDTH AND FILTER HEIGHT OF YOUR CHOICE.

AVAILABLE SIZE CONFIGURATIONS

115V/60Hz & 230V/50-60Hz (E Suffix)

 MODEL

 NOMINAL WIDTH

 FILTER HEIGHT

 NU-240-330
 NU-240-330E
 3 ft. (0.9m)  30 in (762mm)
 NU-240-336  3 ft. (0.9m)  36 in (914mm)
 NU-240-430
 NU-240-430E
 4 ft. (1.2m)  30 in (762mm)
 NU-240-436  4 ft. (1.2m)  36 in (914mm)
 NU-240-530
 NU-240-530E
 5 ft. (1.5m)  30 in (762mm)
 NU-240-536  5 ft. (1.5m)  36 in (914mm)
 NU-240-630
 NU-240-630E
 6 ft. (1.8m)  30 in (762mm)


The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 5 Years Parts & Labor (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • Benchtop Configuration
  • Single DC ECM Motor
  • Flexible HEPEX™ Plenum
  • ISO Class 5 Work Zone
  • Prefilter
  • Stainless Steel Sidewalls
  • Stainless Steel Work Surface with PVC Core
  • Cord-Pass Through on Both Sides
  • 32 to 38-inch (813-965mm) Work Zone Height
  • LED Lighting
  • Digital Pressure Sensor
  • Aeromax™ Control System
Air Cleanliness (ISO 14644) ISO-Class-5
Airflow Direction Horizontal
Airflow Velocity 90 fpm (0.46 mps)
Casters N/A
Closure Panels Optional Rear Closure Panels for Seismic Brackets
Construction 16/18 GA, powder coated steel exterior; 16/18 GA type 304 SST work zone
Control System AeroMax
Cord Pass Through Standard on Right and Left Side Wall
Diffuser Metal, non-flammable
Electrical Configuration 115V60Hz, 230V5060Hz
HEPA Filter Seal Type HEPEX Zero Leak Neoprene Seal, Spring-loaded
IV Bar with 6 Hooks Optional
Lighting Standard LED
Light Intensity fc (Lux) 90-120 (968-1291)
Motor(s) DC ECM
Outlet(s) Optional under worksurface
Performance Standard IEST-RP-CC002-4, ISO-14644-1
Plenum Type HEPEX
Power Cord Length Foot (Meter) 12 (3.7)
Pre-filter Top of Unit
Protection Product
Safety Certification UL, UL-C
Seismic Brackets or Studs Optional Rear or Floor Mount Seismic Brackets
Service Couplings (3/8-inch NPT) N/A
Service Valves (3/8-inch NPT) Optional up to 3 each sidewall
Sidewalls Standard Stainless Steel, Optional Polycarbonate
Style Bench top, optional base stand
Supply Filter 99.99% Efficiency on 0.3 microns
Ultraviolet (UV) Light N/A
Work Surface Standard Stainless Steel with PVC Core, Optional Nevamar with PVC Core

Dimensions

NU-240-330 NU-240-330E NU-240-336 NU-240-430 NU-240-430E NU-240-436 NU-240-530 NU-240-530E NU-240-536 NU-240-630 NU-240-630E
Est. Shipping Width Inches (mm) 44 (1118) 44 (1118) 42 (1067) 58 (1473) 58 (1473) 70 (1778) 70 (1778) 82 (2083) 82 (2083)
Est. Shipping Height Inches (mm) 66 (1676) 66 (1676) 65 (1651) 64 (1626) 64 (1626) 68 (1727) 68 (1727) 67 (1702) 67 (1702)
Est. Shipping Depth Inches (mm) 43 (1092) 43 (1092) 42 (1067) 43 (1092) 43 (1092) 43 (1092) 43 (1092) 43 (1092) 43 (1092)
Exterior Depth Inches (mm) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814)
Exterior Height Inches (mm) 55 3/8 (1406) 55 3/8 (1406) 61 3/8 (1559) 55 3/8 (1406) 55 3/8 (1406) 61 3/8 (1559) 55 3/8 (1406) 55 3/8 (1406) 61 3/8 (1559) 55 3/8 (1406) 55 3/8 (1406)
Exterior Height with 30-inch (762 mm) Work Surface Height inches (mm) 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 87 7/8 (2232) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 87 7/8 (2232) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 87 7/8 (2232) with 27 7/8-inch (709mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL 81 7/8 (2080) with 27 7/8-in (708mm) Work Surface Height, Base with LL
Exterior Height with 36-inch (915 mm) Work Surface Height inches (mm) 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 95 7/8 (2435) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 95 7/8 (2435) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 95 7/8 (2435) with 35 7/8-inch (912mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL 89 7/8 (2282) with 32 7/8-in (835mm) Work Surface Height, Base with LL
Exterior Width Inches (mm) 38 (965) 38 (965) 38 (965) 50 (1270) 50 (1270) 50 (1270) 62 (1575) 62 (1575) 62 (1575) 74 (1880) 74 (1880)
Footprint Depth inches (mm) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814) 32 (814)
Footprint Width inches (mm) 38 (962) 38 (965) 38 (962) 50 (1270) 50 (1270) 50 (1270) 62 (1575) 62 (1575) 62 (1575) 74 (1880) 74 (1880)
Work Area Depth Inches (mm) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498) 19 5/8 (498)
Work Area Height Inches (mm) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813)
Work Area Width Inches (mm) 35 7/8 (911) 35 7/8 (911) 35 7/8 (911) 47 7/8 (1216) 47 7/8 (1216) 47 7/8 (1216) 59 7/8 (1521) 59 7/8 (1521) 59 7/8 (1521) 71 7/8 (1826) 71 7/8 (1826)


Performance

NU-240-330 NU-240-330E NU-240-336 NU-240-430 NU-240-430E NU-240-436 NU-240-530 NU-240-530E NU-240-536 NU-240-630 NU-240-630E
Airflow Volume at 90 fpm (0.46 mps) 718 (1220) 718 (1220) 852 (1448) 1137 (1932) 958 (1628) 1137 (1932) 1198 (2036) 1198 (2036) 1422 (2416) 1438 (2443) 1438 (2443)
Heat Rejected (BTU/Hour) 863 863 1099 1491 1256 1491 1648 1648 1884 1962 1962


Electrical

NU-240-330 NU-240-330E NU-240-336 NU-240-430 NU-240-430E NU-240-436 NU-240-530 NU-240-530E NU-240-536 NU-240-630 NU-240-630E
Blower/Lights Amps 2.2 2.2 2.8 3.2 3.2 3.8 4.2 4.2 4.8 5 5
Power Cord 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A 12 ft., 14 GA-3 Wire, 15A
Rated Amps 7 5 7 8 6 8 8 6 8 8 6


Construction

NU-240-330 NU-240-330E NU-240-336 NU-240-430 NU-240-430E NU-240-436 NU-240-530 NU-240-530E NU-240-536 NU-240-630 NU-240-630E
Motor(s) 1/3 HP DC ECM 1/3 HP DC ECM 1/3 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM 1/2 HP DC ECM
Work Access Opening(s) 32 (813) 32 (813) 38 (965) 32 (813) 32 (813) 38 (965) 38 (965) 32 (813) 38 (965) 32 (813) 32 (813)


Weight

NU-240-330 NU-240-330E NU-240-336 NU-240-430 NU-240-430E NU-240-436 NU-240-530 NU-240-530E NU-240-536 NU-240-630 NU-240-630E
Net Weight lbs (kg) 290 (132) 290 (132) 305 (138) 340 (154) 340 (154) 355 (161) 400 (181) 400 (181) 420 (191) 470 (213) 470 (213)
Est. Shipping Weight lbs (kg) 330 (150) 330 (150) 345 (156) 390 (177) 390 (177) 405 (184) 450 (204) 450 (204) 470 (213) 540 (245) 540 (245)


Ergonomics

NU-240-330 NU-240-330E NU-240-336 NU-240-430 NU-240-430E NU-240-436 NU-240-530 NU-240-530E NU-240-536 NU-240-630 NU-240-630E
Sound Pressure Level per ISO 4871 Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire Inquire


IV Bar

Polycarbonate Side Panel, IV Bar With 6 Hooks
Stainless Steel Side Panel, IV Bar With 6 Hooks

Lighting

115V Fluorescent Lighting
230V Fluorescent Lighting
LED Lighting

Outlets

115V Duplex Outlet
115V Ground Fault Interrupter
Australian Outlet (Type I)
Current UK Outlet (Type G)
Danish Outlet (Type K)
Israel Outlet (Type H)
Old UK Outlet (Type D)
Outlet Type E (Qty 1)
Schuko Outlet (Type F)
South African Outlet (Type M)
Swiss Outlet (Type J)
US Standard Outlet (Type B)

Seismic

28 Inch Seismic Floor Brackets
Rear Mount Seismic Brackets For Adjustable Basestand
Rear Mount Seismic Brackets For Telescoping Basestand

Service Valves

Bottom Left Service Valve
Bottom Right Service Valve
Middle Left Service Valve
Middle Right Service Valve
Top Left Service Valve
Top Right Service Valve

Sidewalls

Polycarbonate Sidewalls
Stainless Steel Sidewalls

Work Surface

Nevamar Worksurface With PVC Core
Stainless Steel Worksurface With PVC Core
