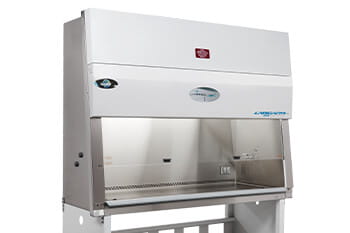

LabGard® model NU-540 is available in four different widths 3 foot (0.9 m), 4 foot (1.2 m), 5 foot (1.5 m), and 6 foot (1.8 m) ensuring there is a cabinet size that fits your application and laboratory.
Unidirectional airflow moving along parallel flow lines at a constant velocity of 60 fpm (0.30 m/s) minimizes air turbulence within the work zone lessening the chance of cross contamination.
A steady inflow air velocity of 105 fpm (0.53 m/s) over an aerodynamic airfoil creates an active air barrier offering maximum personnel protection.
A large user-friendly work zone offers more usable space while making the farthest corners easier to reach.

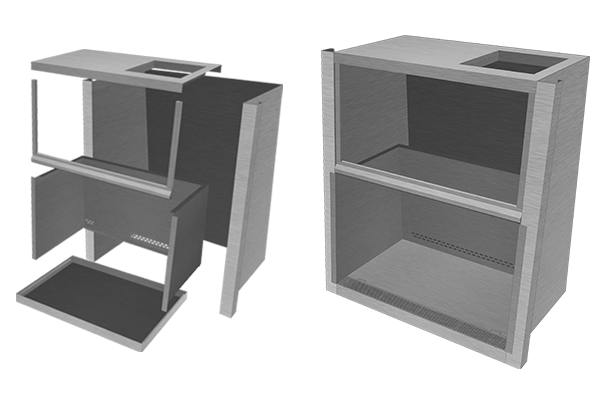

LabGard® Biological Safety Cabinets are constructed from 16/18 gauge, type 304 stainless steel welded together as a uniform, monolithic shell. The work zone features a coved back-wall insert welded into place creating double wall construction adding to the cabinet's integrity. LabGard® is Silicone Free and designed to provide long lasting safety.
AeroMax™ ECS provides user-friendly control systems that monitors and displays airflow performance via PressureFlow™ - A Digital Pressure Monitor.
nitecare™ Night Setback Mode - Upon sliding the window sash into the closed position, the motor blower will continue to operate at a lower rate to save energy and maintain interior clean air conditions ready for use upon window sash opening.
An ultra-high efficiency ECM motor combined with the appropriately sized fan blade lowers energy usage while extending the life of filters. LabGard® offers the lowest total cost of ownership compared to other models.

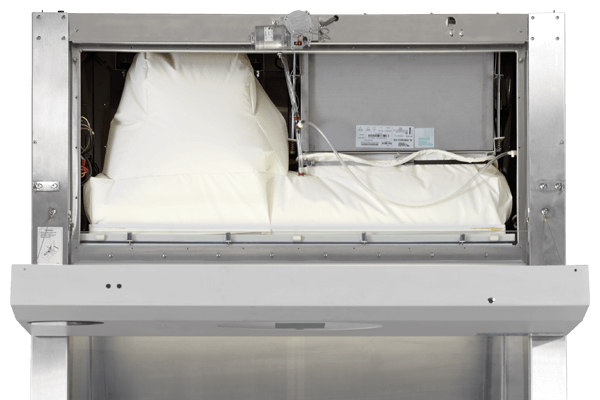

A vacuum surrounds all LabGard® positive pressure plenums relative to the room. In the event of a leak via gasket failure, all contaminated air in the plenum is forced through HEPA filtration. The HEPEX™ system also works to provide accurate laminar airflow by evenly distributing plenum air over the supply HEPA filter. The flexible design eliminates any vibration transfer from the motor blower as well as creates a serviceable work environment for Certifiers after decontamination.
We at NuAire® have designed each LabGard® Biosafety Cabinet to be service friendly. 95% of service functions are performed at the front of the cabinet. A flip down control panel creates a workable tray for service technicians. Access filters and the motor blower from the front of the cabinet with the removal of a safety panel.
When it comes time for service, make it easy with our DECON101™ System. The DECON101™ System works with a variety of decontamination systems using Formaldehyde, Chlorine Dioxide or Vapor Phase Hydrogen Peroxide.
NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.
5 Year Parts (Including Filters) and Labor Warranty (United States and Canada)
6 Year Parts (Including Filters) Warranty (Global)
Part Number | Description |
---|---|
M443 | 8" (203 mm) Access Opening Tempered Sliding Glass |
M441 | 10" (254 mm) Access Opening Tempered Sliding Glass |
M447 | 8" (203 mm) Access Opening Tempered Sliding Glass, Glass Sidewalls |
M448 | 10" (254 mm) Access Opening Tempered Sliding Glass, Glass Sidewalls |
Part Number | Description |
---|---|
M324 | Heavy Duty Ergonomic PVC Armrest |
M211 | Stainless Steel Armrest |
Part Number | Description |
---|---|
E34 | Ultraviolet Light (115V) |
E98 | Blower Contact Wires |
M262 | IV Bar w/ 6 Hooks |
M427 | NSF Approved Cord Pass-Thru Right Side Wall |
M428 | NSF Approved Cord Pass-Thru Left Side Wall |
M387 | Prop-up Work Tray |
M411 | Stainless Steel Window Edge Protector |
Part Number | Description |
---|---|
E120 | Fluorescent Lighting (115V) |
E122 | LED Lighting |
Part Number | Description |
---|---|
E64 | Qty 1 GFI Type B Outlet, Qty 1 Standard Type B Outlet |
E59 | 15 Amp Type B Outlet (3 amp max) (Qty 2) (115V) |
E97 | 15 Amp (5 Amp Max) Type B Outlet (Qty 2) (115V) |
E99 | Dedicated 15 Amp Outlet Power Cord |
E100 | Dedicated 20 Amp Outlet Power Cord |
E101 | Dedicated 20 Amp GFI Outlet Power Cord |
Part Number | Description |
---|---|
M120 | 3/8" Soft Copper Pipe |
M121 | 3/8" Black Pipe |
M122 | 1/2" Rigid Copper Pipe |
Part Number | Description |
---|---|
M264 | Seismic Brackets |
M306 | Seismic Brackets for Adjustable Base Stand |
Part Number | Description |
---|---|
M208 | Right Top Service Coupling |
M209 | Right Middle Service Coupling |
M285 | Right Bottom Service Coupling |
M205 | Left Top Service Coupling |
M206 | Left Middle Service Coupling |
M207 | Left Bottom Service Coupling |
M193 | Left Top Service Valve |
M194 | Left Middle Service Valve |
M195 | Left Bottom Service Valve |
M196 | Right Top Service Valve |
M197 | Right Middle Service Valve |
M198 | Right Bottom Service Valve |
Part Number | Description |
---|---|
M284 | Side Panel without Plumbing (Qty 2) |
M237 | Side Panel w/ Plumbing Out Bottom (Qty 2) |
M238 | Side Panel w/ Plumbing Out Top (Qty 2) |
M239 | Side Panel w/ Plumbing Out Back (Qty 2) |
Catalog Number | Catalog Number | |||
NU-540-300 Nominal 3 foot (0.9m) | NU-540-400 Nominal 4 foot (1.2m) | NU-540-500 Nominal 5 foot (1.5m) | NU-540-600 Nominal 6 foot (1.8m) | |
Performance Specifications
| NSF/ANSI 49 | NSF/ANSI 49 | NSF/ANSI 49 | NSF/ANSI 49 |
NSF/ANSI 49 | Class II, Type A2 | Class II, Type A2 | Class II, Type A2 | Class II, Type A2 |
Style of Cabinet | Bench top/console w/base stand/storage cabinet | Bench top/console w/base stand/storage cabinet | Bench top/console w/base stand/storage cabinet | Bench top/console w/base stand/storage cabinet |
Cabinet Construction | All welded stainless steel 16/18 GA, Type 304 pressure tight design | All welded stainless steel 16/18 GA, Type 304 pressure tight design | All welded stainless steel 16/18 GA, Type 304 pressure tight design | All welded stainless steel 16/18 GA, Type 304 pressure tight design |
Diffuser for Air Supply (Metal) | Non-flammable | Non-flammable | Non-flammable | Non-flammable |
HEPA Filter Seal Type: Supply Filter-99.99% Eff. on 0.3 microns Exhaust Filter-99.99% Eff. on 0.3 microns | HEPEX Seal Neoprene, Spring-loaded | HEPEX Seal Neoprene, Spring-loaded | HEPEX Seal Neoprene, Spring-loaded | HEPEX Seal Neoprene, Spring-loaded |
Fumigation : per NIH/NSF Procedures | Yes | Yes | Yes | Yes |
Standard Services: Service Coupling (3/8 inch NPT) Service Coupling (3/8 inch NPT) Gas Valve/Service Coupling (3/8inch NPT) Duplex Outlet | One Right Sidewall Two Left Sidewall One Right Sidewall Two Backwall | One Right Sidewall Two Left Sidewall One Right Sidewall Two Backwall | One Right Sidewall Two Left Sidewall One Right Sidewall Two Backwall | One Right Sidewall Two Left Sidewall One Right Sidewall Two Backwall |
Optional Services: Gas Cocks 3/8" NPT Ultraviolet Light Standard/Cup Sinks | Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface | Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface | Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface | Up to 3 ea. Sidewall One, Backwall Left or Right Work Surface |
Cabinet Size Inches (mm): Height (Fully Assembled) Height (Minimum for Transport) Width Depth with Armrest Removed | 60 7/8 (1546) 59 (1499) 41 5/8 (1057) 31 7/16 (799) | 60 7/8 (1546) 59 (1499) 53 5/8 (1362) 31 7/16 (799) | 60 7/8 (1546) 59 (1499) 65 5/8 (1669) 31 7/16 (799) | 60 7/8 (1546) 59 (1499) 77 5/8 (1972) 31 7/16 (799) |
Work Access Opening Inches (mm): Standard Opening Height/Optional Standard Inflow Velocity | 10 (254) / 8 (203) 105 FPM (.53 m/s) | 10 (254) / 8 (203) 105 FPM (.53 m/s) | 10 (254) / 8 (203) 105 FPM (.53 m/s) | 10 (254) / 8 (203) 105 FPM (.53 m/s) |
Work Zone Inches (mm): Height Width Depth measured at 10 inches (254mm) window height | 28 1/2 (724) 34 3/8 (873) 25 3/4 (654) | 28 1/2 (724) 46 3/8 (1178) 25 3/4 (654) | 28 1/2 (724) 58.375 (1483) 25 3/4 (654) | 28 1/2 (724) 70 3/8 (1788) 25 3/4 (654) |
Viewing Window Inches (mm): Standard is safety plate sliding glass | Fully closed to 21 (533) open | Fully closed to 21 (533) open | Fully closed to 21 (533) open | Fully closed to 21 (533) open |
Required Exhaust CFM/CMH Standard/Optional: Canopy Variable Flow Thimble (NU-911) Canopy Fixed Flow Thimble (NU-907) | 10(254) / 8(203) opening CFM (CMH) 276-501 (649-851) / 255-450 (383-765) 320 (544) / 269 (457) | 10(254) / 8(203) opening CFM (CMH) 363-588 (617-1000) / 295-520 (502-884) 426 (724) / 359 (610) | 10(254) / 8(203) opening CFM (CMH) 451-676 (766-1149) / 365-590 (621-1003) 531 (902) / 445 (756) | 10(254) / 8(203) opening CFM (CMH) 538-763 (915-1297) / 436-661 (741-1124) 634 (1077) / 532 (904) |
Plant Duct Static Pressure Eng./Metric | 0.05-0.1"/1.27-2.54mm H2O | 0.05-0.1"/1.27-2.54mm H2O | 0.05-0.1"/1.27-2.54mm H2O | 0.05-0.1"/1.27-2.54mm H2O |
Heat Rejected, BTU, Per Hour (non-vented) (vented) | 10(254) / 8(203) opening 903/826 120 | 10(254) / 8(203) opening 1140/1020 157 | 10(254) / 8(203) opening 1768/1611 198 | 10(254) / 8(203) opening 1884/1768 198 |
Electrical: Volts, AC 60 Hz +Amps: Blower/Lights (10/8 openings) Amps: Duplex Rated Amps: 12 ft. Power Cord (one) | U.L./U.L.-C Listed 115 2.3/2.1 3 10 14 GA - 3 Wire, 15A | U.L./U.L.-C Listed 115 2.9/2.6 3 12 14 GA - 3 Wire, 15A | U.L./U.L.-C Listed 115 4.5/4.1 3 14/*12 *12/14 GA-3 Wire, 20A Std., 15A Optional | U.L./U.L.-C Listed 115 4.8/4.5 3 14/*12 *12/14 GA-3 Wire, 20A Std., 15A Optional |
Crated Shipping Weight:*** Net Weight | 450 lbs. /204 kg. 400 lbs. /181 kg. | 515 lbs. /234 kg. 465 lbs. /211 kg. | 600 lbs. /272 kg. 550 lbs. /249 kg. | 670 lbs. /304 kg. 620 lbs. /281 kg. |
*15A Configuration does not include accessory outlet.
***Crated shipping weight does not include weight for accessories or options
+ Based on cabinet with new filters running at 115VAC.
