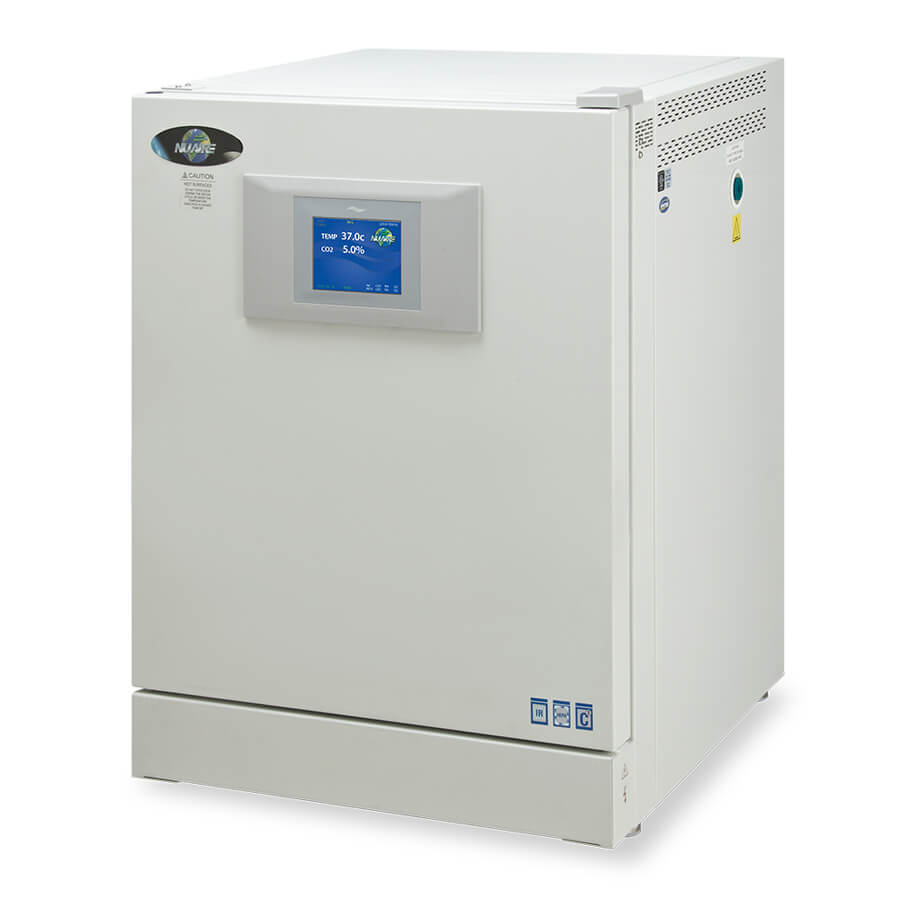

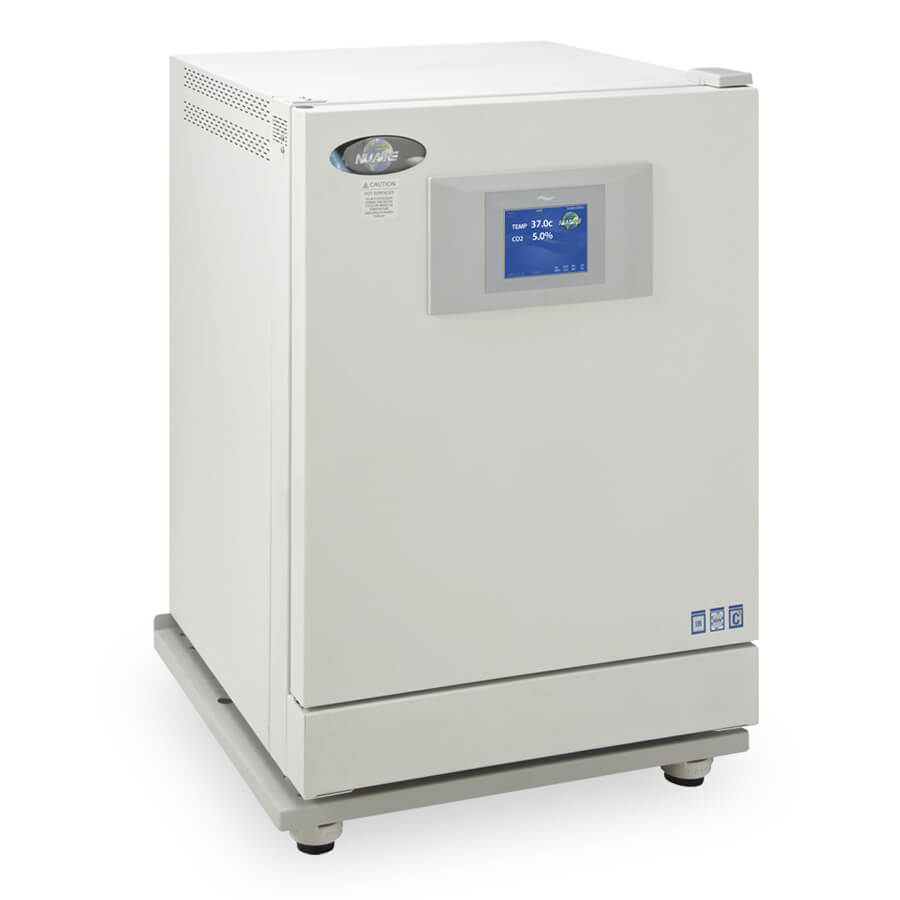

In-VitroCellNU-5710
Direct Heat CO2 Incubator

Direct Heat | 160-Liter Capacity | Dual Decontamination Cycles | Temperature & CO2 Control

CO2 incubator model NU-5710 features heating elements that surround the growth chamber on five sides. An independent door heater helps maintain temperature uniformity and reduce condensation. This direct heat model offers optimal cell growth conditions by producing humidity levels up to 95% and precisely controlling CO2 gas and temperature levels while minimizing potential contamination.

Request a Quote

A Product to Meet Your Need

Model NU-5710 is available in two electrical configurations.

Products

NU-5710

115V

NU-5710E

230V

Quick Specs

Air Cleanliness (ISO 14644) ISO-Class-5
CO2 Accuracy ± 0.1%
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average

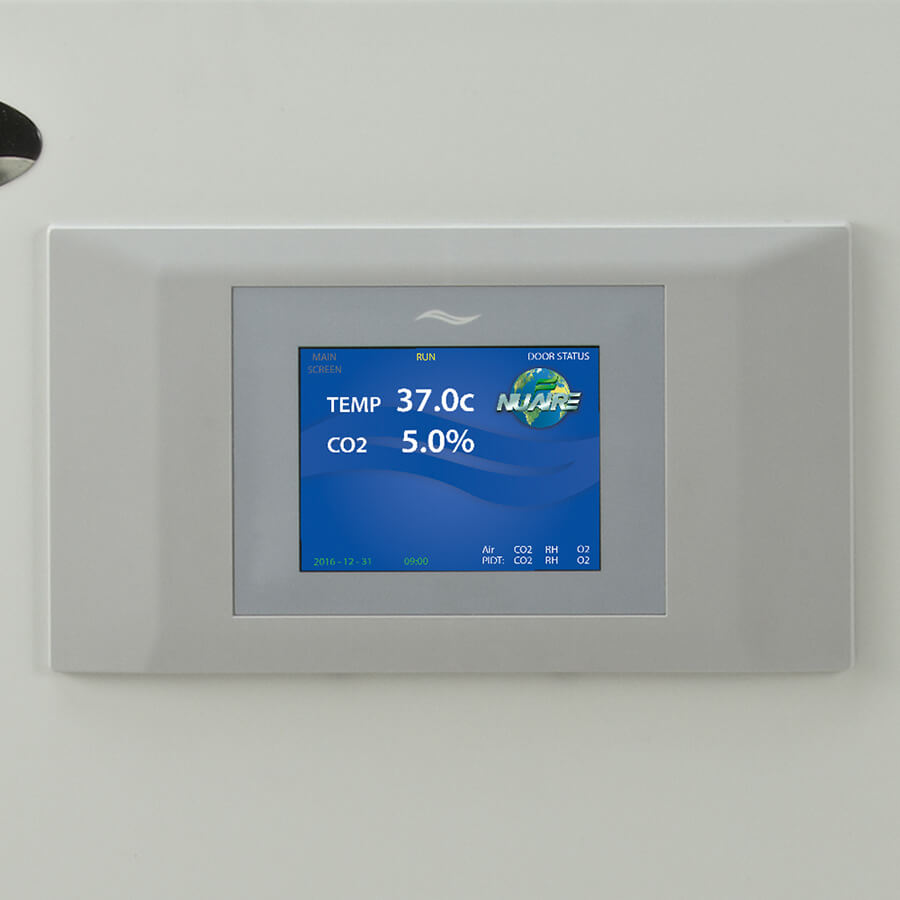

Control System NuTouch
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Recovery 0.12°C/min. on Average
Temperature Uniformity °C ± 0.35°C @ 37°C
  • Features
  • Specs
  • Options & Accessories
  • Resources
  • Citations
CO2 Incubator Decontamination Cycles

Convenient Contamination Control

Dual Decontamination Cycles

The direct heat technology enables the use of a 145°C dry and 95°C humidified decontamination cycle that can be conveniently run overnight in just 8 hours without removing the CO2 or temperature sensors. The NuTouch control system steps the user through the process with on screen instructions and displays progress throughout each phase of the complete cycle.



Cell Cultures Deserve Their Own Clean Room

Closed Loop HEPA Filtration

Continual HEPA filtration of chamber air complements periodic high heat decontamination to provide Constant Contamination Control. InVitrocell’s design constantly takes a sample of air from the chamber, routes it through a HEPA filter in a compartment outside that inner chamber, and ultimately returns it to create an ISO Class 5 level of clean air in the interior as well as a slight positive pressure. Inside the InVitrocell, your cell cultures are protected by a multi-tiered defense against contamination.

CO2 Incubator Coved Interior Corners

Easy to Clean, Minimize Contamination Risks

Coved Interior Corners

NuAire CO2 incubators are designed to minimize potential hiding places for contamination. Coved corners and a crevice-free interior, which makes it easy to clean.



Optimal CO2 Levels

Infrared (IR) Sensor

A single source dual wave infrared (IR) sensor controls CO2 levels within the growth chamber to maintain an optimal PH. The wavelengths used are absorbed only by CO2, making the measurements insensitive to other components such as water vapor. Advanced design provides a stable output minimizing drift, and requires less frequent calibrations.

The NuAire© Advantage

NuAire® utilizes an independent network of sales and service professionals offering our customers a vast array of knowledge and relationships. Our inside sales and service teams are the pride of the industry; some of which have been with NuAire® since the beginning in 1971. We work hard and diligently to make you happy. That is our mission, and that is why we come to work every day. Purchase a NuAire® and become part of our family.

Warranty

Backed by the Industry's Best

  • 3 Years Parts & Labor, IR Sensor 5 Years Parts Only (United States and Canada)
  • Consult Local Distributor (Global)

Standard Features

  • NuTouch Electronic Control System
  • Dual Decontamination Cycles
  • Coved Interior Corners
  • Closed Loop HEPA Filtration
  • Dual Wave IR (Infrared) Sensor
  • Direct Heating Elements
  • Perimeter Door Heating Element

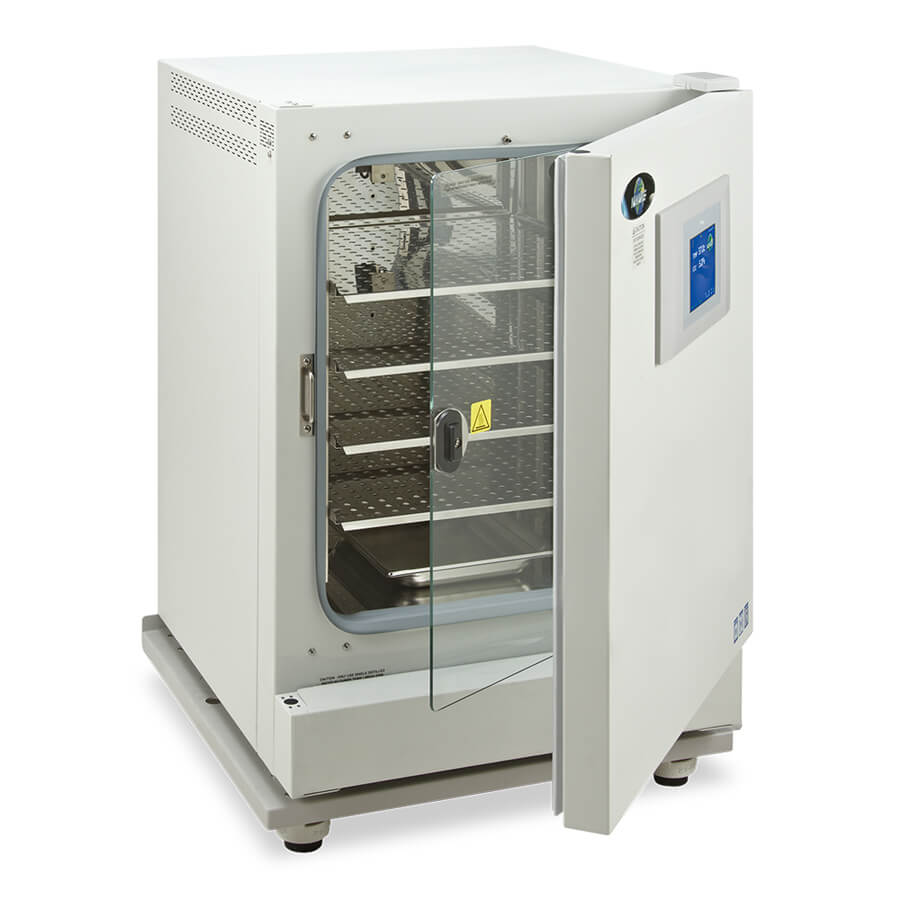

  • Inner Door with Cam Action Door Handle
  • Water Pan
  • Dual Temperature Sensor Probes
  • Inner Door Gasket
  • Four (4) Shelves
  • Eight (8) Shelf Guides
  • Four (4) Wall Brackets
  • Remote Alarm Output Contacts
  • 4 to 20 mA Analog Output
  • RS-485 Communication
  • USB Port
  • CO2 Sample Port
  • Adjustable Leg Levelers
  • Access Port and Plug with Breathing Hole(s)
  • Electrical Cord
Est. Shipping Width Inches (mm)
Est. Shipping Height Inches (mm)
Est. Shipping Depth Inches (mm)

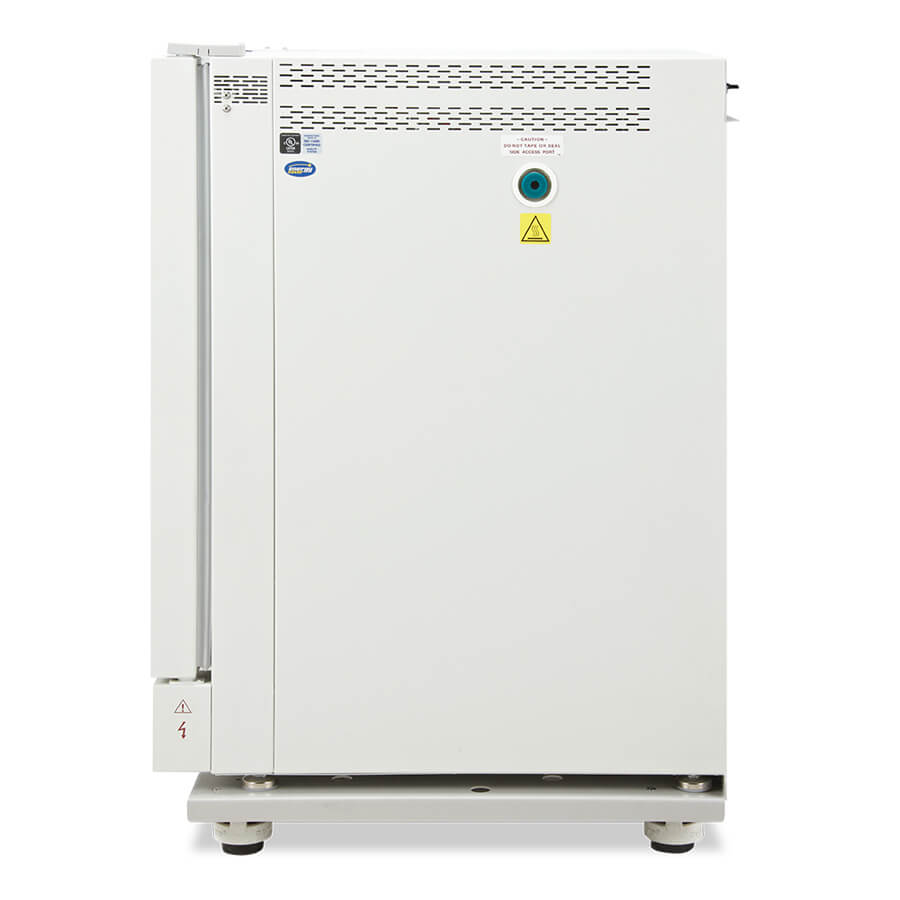

Access Port Location Right Side
Air Cleanliness (ISO 14644) ISO-Class-5
Chamber Air Circulation Method Air Pump
Chamber Air Filter 99.97% Efficiency @ ≥ 0.3 Micron Capsule Filter Located in Sensor Bay
Chamber Heater(s) Location Sides, Bottom, Top and Back of Chamber
Chamber Jacket Technology Air Jacket via Two Axial Fans Drawing Air into Shell
CO2 Accuracy ± 0.1%
CO2 Control Logic Fixed Algorithm/Manual, Environmental Adaptable
CO2 Display Resolution 0.1%
CO2 Range 0.1 to 20%, 5% Default Set Point
CO2 Recovery Up to 5% ± 0.2% / -0.5 in 5 minutes Average
CO2 Sensor Type Infrared (NDIR)
Control System NuTouch
Data Output Features RS-485, USB, 4-20mA
Door and Perimeter Heater Control Logic Base Duty Cycle set to chamber temperature Set-Point, Proportional 0-100% [manually adjustable
Electrical Configuration 115V50Hz, 230V5060Hz
Exterior Depth Inches (mm) 27.500 (699)
Exterior Door Seal Magnetic Outer Door Gasket
Exterior Height Inches (mm) 36.188 (894)
Exterior Material Cold Rolled 16 & 18 Gauge Steel, Finished in Powder Coated Polyurethane Finish
Exterior Width Inches (mm) 25.500 (648)
Footprint Depth inches (mm) 20.825 (530)
Footprint Width inches (mm) 22.625 (575)
In-line Gas Filters 99.97% Efficiency @ ≥ 0.3 Micron Disk Filters for Gas & Air Supplies, Disk Filter for CO2 Sensor
Segmented Doors Optional Set of 4 Inner Doors
Inner Doors One, Sectioned Optional
Insulation High Density Insulation with High "R" Rating
Interior Depth Inches (mm) 20.678 (525)
Interior Door Seal Silicone Rubber Gasket
Interior Height Inches (mm) 24.000 (610)
Interior Material Highly Polished Type 304L 16 Gauge Stainless Steel
Interior Volume Cubic Feet (Liters) 5.65 (160)
Interior Width Inches (mm) 20.250 (514)
Net Weight lbs (kg) 220 (100)
O2 Accuracy
O2 Control Logic
O2 Display Resolution
O2 Measuring Range
O2 Set Point Range
O2 Recovery
O2 Sensor Type
Power Cord Length Foot (Meter) 8 (2.5)
Remote Alarm Terminals Standard
RH Accuracy
RH Control Method
RH Control Logic
RH Control Range
RH Display Resolution
RH Evaporator Box Capacity
RH Recovery
RH Sensor Type
RH Water Pan Capacity
Sample Port Location Inner Glass Door
Shelf Capacity lbs (kg) 25 lbs per Shelf / 125 lbs per Incubator
Shelf Depth Inches (mm) 18 3/4 (476)
Shelf Material Stainless Steel
Shelf Width Inches (mm) 18 (457)
Shelves 4 Shelves Supplied, 16 Shelves Maximum Capacity
Est. Shipping Weight lbs (kg) Inquire
Decontamination Cycle 95°C Humidified Decontamination, 145°C Dry Decontamination Cycle
Temperature Accuracy °C ± 0.1%
Temperature Control Direct Heat
Temperature Control Range 5°C above ambient (to a 30°C max ambient) to 55°C
Temperature Display Resolution 0.1°C
Temperature Recovery 0.12°C/min. on Average
Temperature Sensor Type Precision Integrated Circuit
Temperature Set-Point Range 5°C to 55°C (37.0°C Default)
Temperature Uniformity °C ± 0.35°C @ 37°C
Water Pan Depth 1.5 (38)
Water Pan Length Inches (mm) 12 (305)
Water Pan Width 10 (254)

Electrical

NU-5710 NU-5710E
Electrical Configuration 115V60Hz 230V5060Hz


General

NU-5710 NU-5710E
Safety Certification [ "", "UL, UL-C" ] [ "", "UL, UL-C" ]


Chamber

Copper Alloy Chamber 115V
Copper Alloy Chamber 230V
Stainless Steel Chamber 115V
Stainless Steel Chamber 230V

Inner Door

Sectioned Inner Door
Standard Glass Inner Door

Outer Door (Right Hinge Standard)

Left Side Door Hinge

Power Cord

Euro Power Cord Option Shipping Kit
UK Power Cord Option
